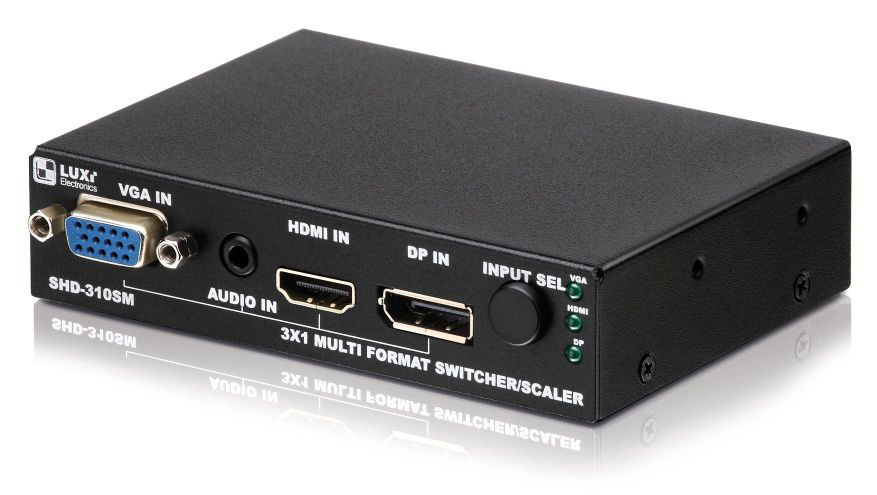

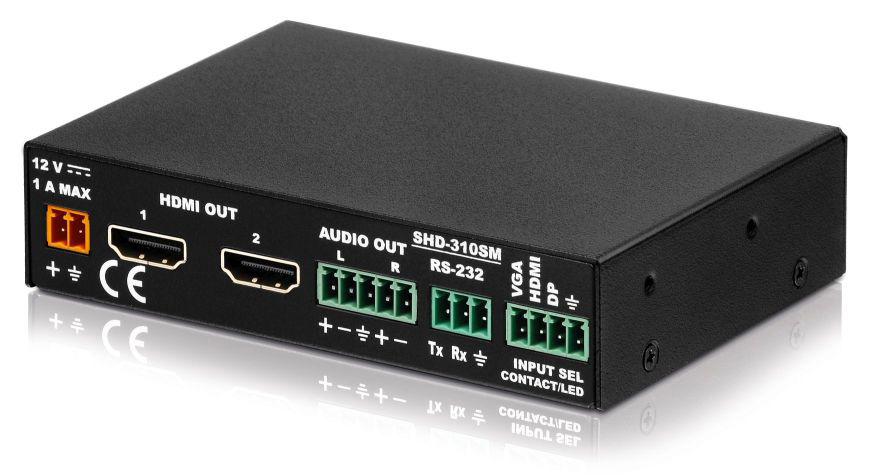

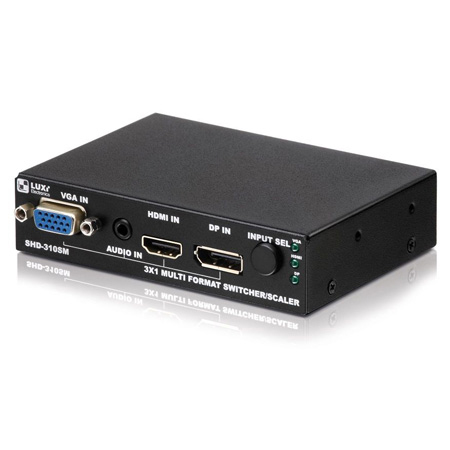

Luxi SHD-310SM VGA/HDMI/DP/Audio 3x2 Switcher with Scaler - Optional 12V Power Adapter Not Included

ITEM #: LXL-SHD-310SM MFG #: SHD-310SM

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$513.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    SHD-310SM - Overview

    The SHD-310SM is the world's smallest switcher with scaling, auto input switching, audio processing, display power controls all in one box. VGA, HDMI, DP inputs ensure the full compatibility, mic input mix presenter's voice into the outputs.

    • Features:

      • World's smallest high performance all-format, all-purpose, HDCP compliant signal converter, scaler, switcher, splitter, audio mixer, embedder, de-embedder
      • VGA, HDMI, DP input, auto switch or front panel, RS-232, contact controllable
      • Automatically turn on display when a signal plugged in, turn off when no signal
      • Dual mirrored HDMI outputs for big screen/projector and local monitor/VC
      • Analog audio input for laptops or wireless microphones
      • Balanced/unbalanced audio outputs for driving power amplifiers
      • Picture zoom (out) adjustments for compensating display overscan
      • Multiple preset video output formats or pixel to pixel mode
      • Selectable audio digitally pass thru or mixing and embedding, or mute
      • HDMI 2.0 4k 30 Hz, 21:9 aspect ratio, dynamic AV sync, CEC extensions, 3D, deep color compliance
      • High efficiency fanless design, rack mountable, under-table mountable

    • Specifications:

      • Enclosure material: steel
      • Enclosure size: 4.29 x 1.00 x 3.00 (10.9 x 2.5 x 7.6 cm)
      • Video signal path: There are 3 video inputs and 2 video outputs. The analog RGB video from the VGA input goes to the scaler's analog input; the DisplayPort (DP) input signal is first converted to HDMI, then switched with the HDMI input signal, the selected signal goes to the digital input of the scaler. The scaler converts all video to LVDS, feeds to a HDMI encoder, then a 1x2 HDMI splitter for dual outputs.
      • VGA input: 0.7 Vp-p analog RGBHV, 75 ohm impedance
      • HDMI input: HDMI 2.0, 4k 30 Hz, max 10.2 Gbps
      • DP input: DP 1.3, 4k 30 Hz, max 10.2 Gbps
      • Scaled video output resolution presets: 720p, 1080p, 1280x800, 1920x1200, 1024x768, 1280x960, 1600x1200, pixel to pixel
      • HDCP compliance: HDCP 1.2
      • Analog audio input: stereo on 3.5 mm mini jack, nominal; level -10 dBV (316 mV), max +3.5 dBV (1.5 V), 22k ohms
      • Analog audio output: stereo on 5-pin 3.5 mm captive screw connector, balanced output nominal -4 dBV (632 mV), un-balanced output nominal -10 dBV (316 mV), 60 ohms
      • Power consumption: 12 V DC, 0.2 A
      • Safety: CE, cUL, UL (power supply only)
      • EMI/EMC: CE, FCC Class A

    • Item Includes:

      • Switcher
      • Manual
      • Captive screw plugs

    • Warranty:

      • 3 years
