Luxi THB-350 VGA/HDMI/DP/audio 3x2 Switcher with Scaler and HDBT Transmitter

ITEM #: LXL-THB-350 MFG #: THB-350

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LXL-THB-350

THB-350 - Overview

The THB-350 is the world's smallest switcher with scaling, auto input switching, audio processing, display power controls all in one box. VGA, HDMI, DP inputs ensure the full compatibility; HDBT output for display far away; mic input mix presenter's voice into the outputs.

  • Features:

    • World's smallest high performance all-format, all-purpose, HDCP compliant signal converter, scaler, switcher, splitter, audio mixer, embedder, de-embedder and display controller

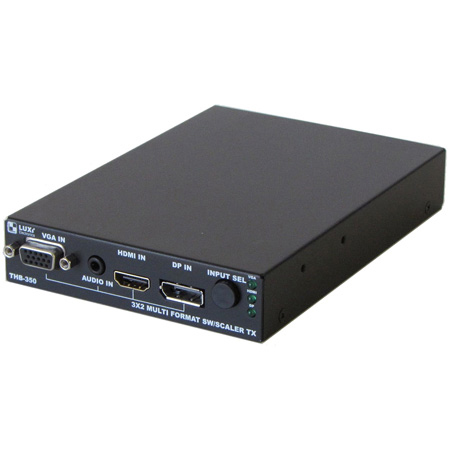

    • VGA, HDMI, DP input, auto switch or front panel, RS-232, contact controllable
    • Automatically turn on display when a signal plugged in, turn off when no signal

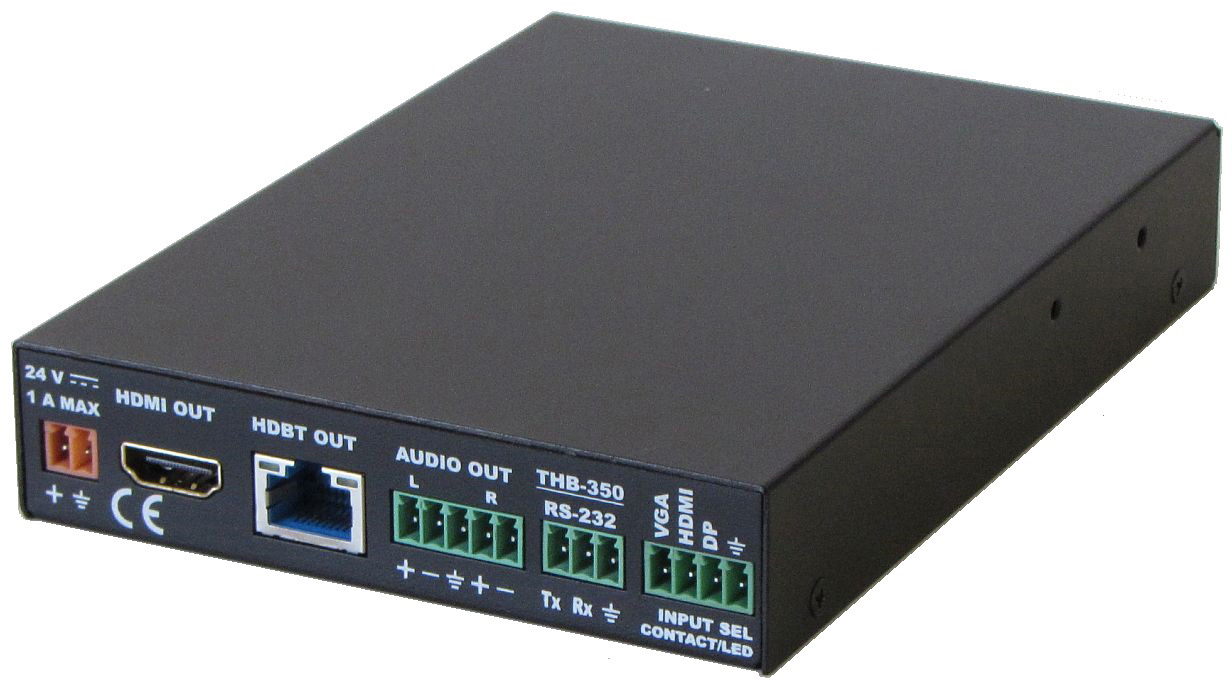

    • HDBT output for big screen/projector and HDMI output for local monitor/VC
    • Analog audio input for laptop or wireless microphone
    • Balanced/unbalanced audio outputs for driving power amplifiers
    • Send signals to up to 70 m (235') with Cat 6 cables; POC
    • Multiple preset video output formats or pixel to pixel mode
    • Selectable audio digitally pass thru or mixing and embedding, or mute
    • HDMI 2.0 4k 30 Hz, 21:9 aspect ratio, dynamic AV sync, CEC extensions, 3D, deep color compliance
    • High efficiency fanless design, rack mountable, under-table mountable

  • Specifications:

    • Enclosure material: steel
    • Enclosure size: 4.29 x 1.00 x 6.00 (10.9 x 2.5 x 15.2 cm)
    • Video signal path: There are 3 video inputs and 2 video outputs. The analog RGB video from the VGA input goes to the scaler's analog input; the DisplayPort (DP) input signal is first converted to HDMI, then switched with the HDMI input signal, the selected signal goes to the digital input of the scaler. The scaler converts all video to LVDS, feeds to a HDMI encoder, then to 1 HDMI and 1 HDBT output
    • VGA input: 0.7 Vp-p analog RGBHV, 75 ohm impedance
    • HDMI input: HDMI 2.0, 4k 30 Hz, max 10.2 Gbps
    • DP input: DP 1.3, 4k 30 Hz, max 10.2 Gbps
    • Scaled video output resolution presets: 720p, 1080p, 1280x800, 1920x1200, 1024x768, 1280x960, 1600x1200, pixel to pixel
    • HDBT output: up to 70 m (235') with Cat6 cable; POC 24 V
    • Analog audio input: stereo on 3.5 mm mini jack, nominal level -10 dBV (316 mV), max +3.5 dBV (1.5 V), 22k ohms
    • Analog audio output: stereo on 5-pin 3.5 mm captive screw connector, balanced output nominal -4 dBV (632 mV), un-balanced output nominal -10 dBV (316 mV), 60 ohms
    • Power consumption: 24 V DC, up to 1 A; Safety: CE, cUL, UL (power supply only)
    • EMI/EMC: CE, FCC Class A

  • Item Includes:

    • Transmitter
    • Manual
    • Captive screw plugs

  • Warranty:

    • 3 years
