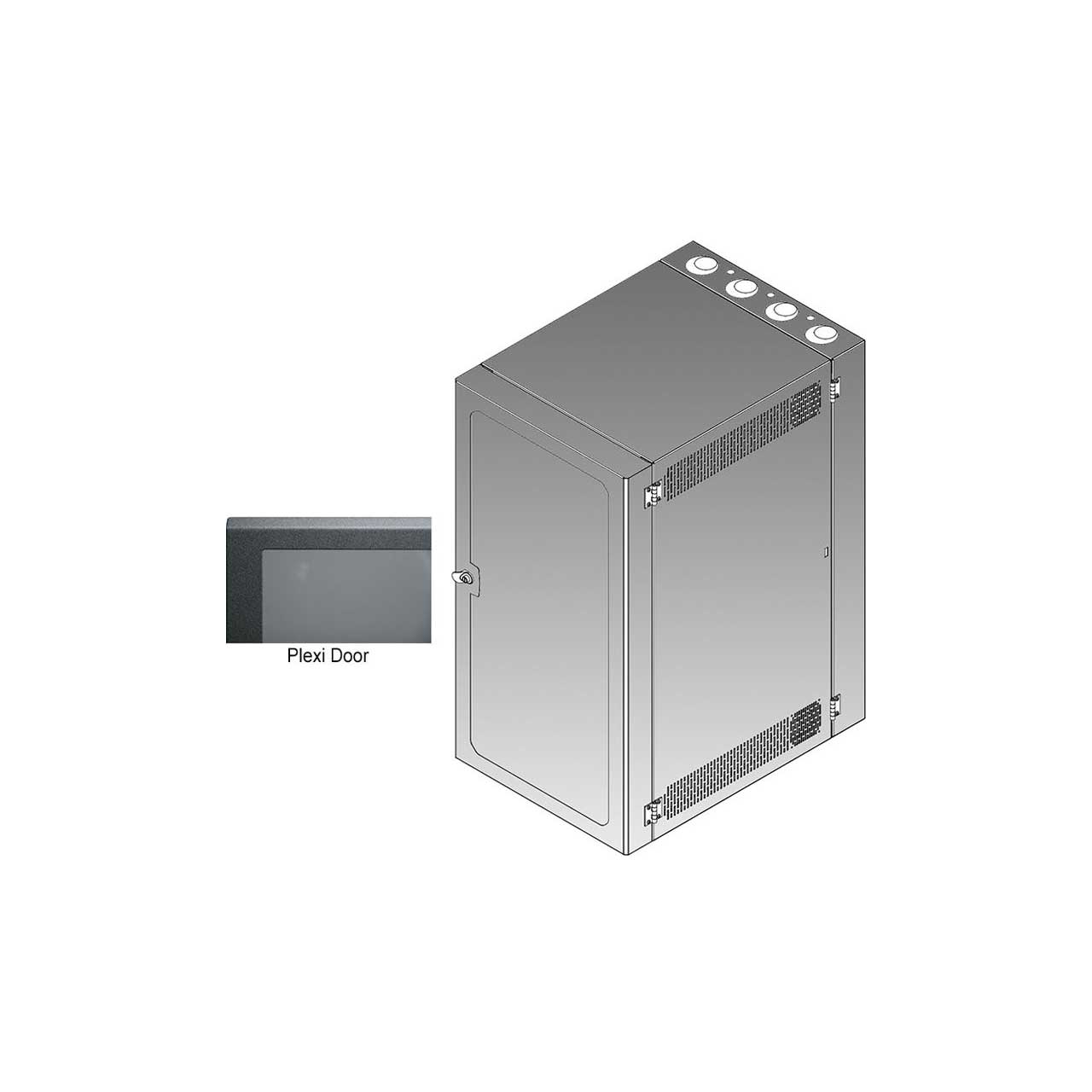

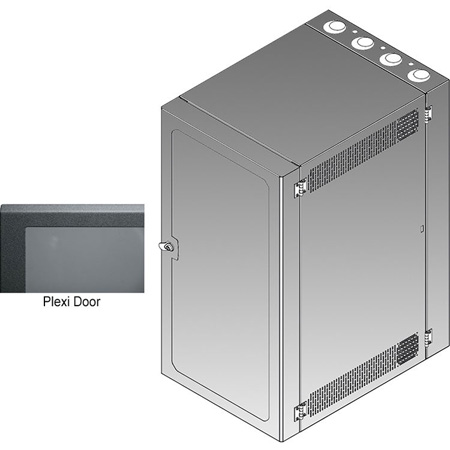

Middle Atlantic CWR-18-36PD4 CWR Series 18-36PD4 Cabling Wall Mount Rack - 36in D with Deep Plexi Front Door

ITEM #: MAP-CWR-18-36PD4 MFG #: CWR-18-36PD4

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,721.00

Our Price:

$1,548.90

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


CWR-18-36PD4 - Overview

The CWR Series 18-36PD4 Cabling Wall Mount Rack with deep plexi front door from Middle Atlantic is a 26" wide cabinet designed for accommodating rack equipment and cable installation. A wide-face rackrail comes standard in the cabinet and is set back 4" from the door, leaving room for cable management. Tapped with mounting holes and electrical knockouts, as well as featuring 6 d-rings, the rail is designed to provide easy and convenient installation of your equipment. The rack door can be installed as either left or right handswinging and can be locked and latched for security. The deep door leaves room for additional front cabling before reaching the rackrail. The swing open center section allows for accessing your equipment from the front or rear, and the back panel has a 12 1/2 x 12 1/2" cut-out for installing an electrical pull-box. A passive thermal management fan kit can be installed if additional heat dissipation is required.

  • Features:

    • Welded steel construction
    • Wide-face rackrail on left and right of cabinet
    • Front rackrail is set 4.0" / 10.2 cm back for accommodating cable managers
    • Swing open center section for front and rear access to equipment and cabling
    • Left or right handswing locking and latching door
    • Rackrail includes tapped 12-24 mounting holes in universal EIA spacing
    • 6 d-rings included for cable management
    • Back pan features ½", 2", and 3" electrical knockouts, as well as a 12½ x 12½" cut-out for electrical pull-box
    • Engineered to facilitate passive thermal management
    • UL Listed, RoHs compliant, GREENGUARD Gold certified, meets CSA standards

  • Specifications:

    • Rack Size: 18 RU
    • Weight Capacity: 250.0 lb / 113.4 kg
    • Dimensions (WxHxD): Usable: 26.00 x 31.50 x 30.00" / 66.04 x 80.01 x 76.20 cm
