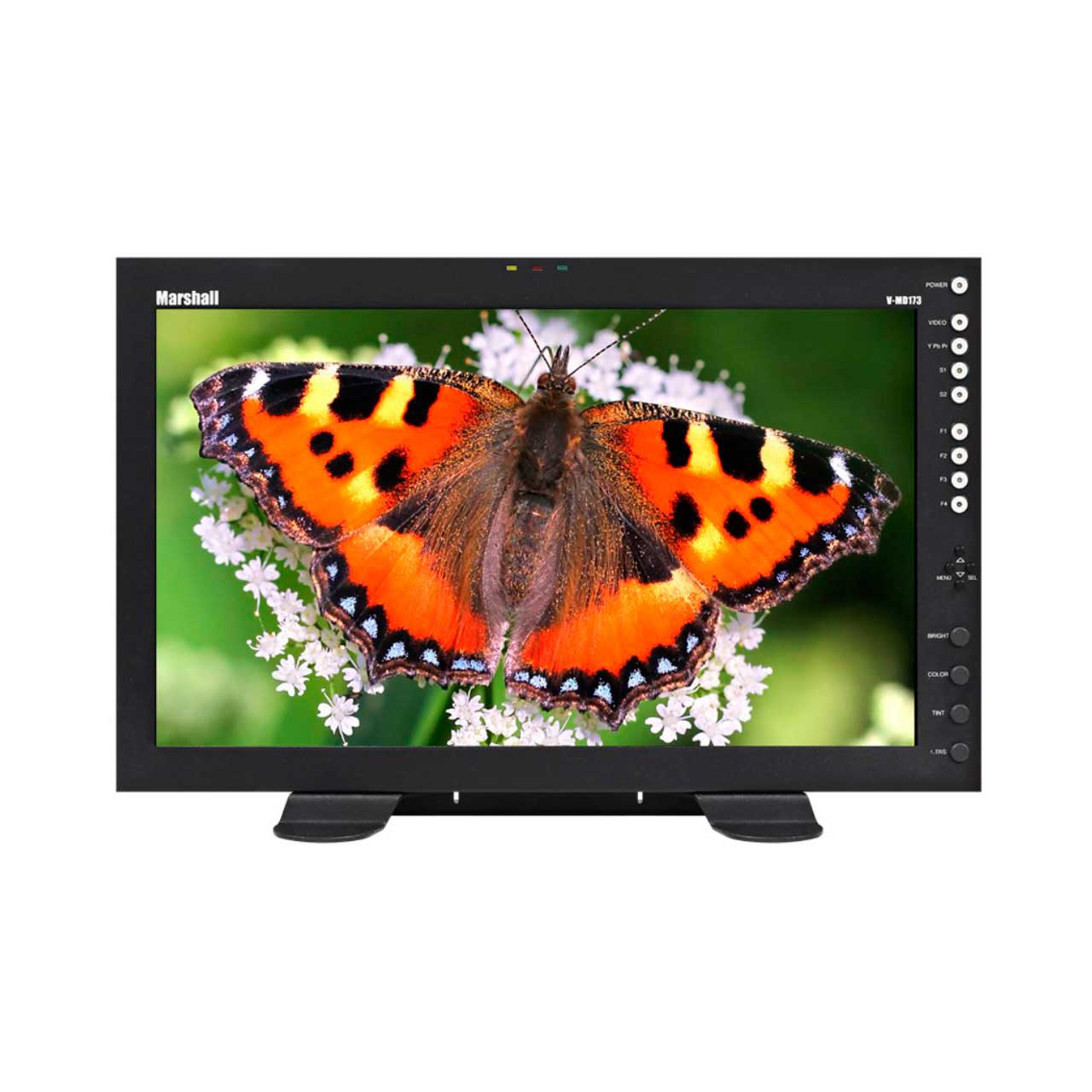

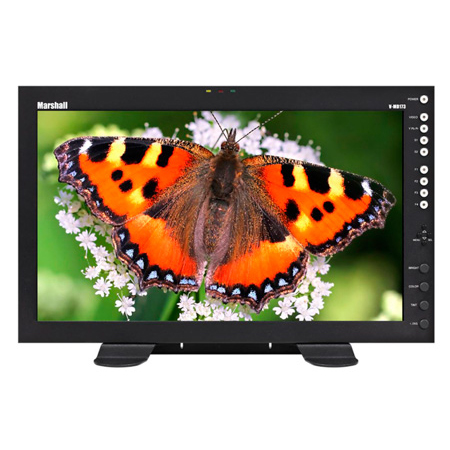

Marshall V-MD173 17.3 Inch Monitor with Modular Inputs & Network Control

ITEM #: MAR-V-MD173 MFG #: V-MD173

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,286.99

Our Price:

$1,945.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    V-MD173 - Overview

    The V-MD173 is part of Marshall Electronics' extensive MD series of rack mount monitors. MD Series monitors offer a flexible modular solution to system integration. These rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required. This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

    The V-MD173 can be mounted in any standard EIA 19" equipment rack. The attached rack ears can be angled to provide the user control over the viewing angle. A VESA standard 75mm hole pattern also allows custom mounting installations. Alternately, the V-MD173 can be used in a desktop configuration with optional stand (Marshall part number V-ST15).

    • Features:

      • Status Display
      • False Color Filter
      • Freeze Function
      • Hard Tally
      • Color Temperature Presets
      • RGB Gain / Bias Adjust
      • Pixel-to-Pixel
      • Blue Gun
      • User-definable function buttons
      • Network Control
      • Composite and Component loop-through
      • User-changeable input modules

    • Specifications:

      • Display (Viewing Area) 17"
      • Resolution (Pixels) 1920 x 1200
      • Aspect Ratio 16 : 9
      • Brightness (in cd/m²) 400
      • Contrast Ratio 600:1

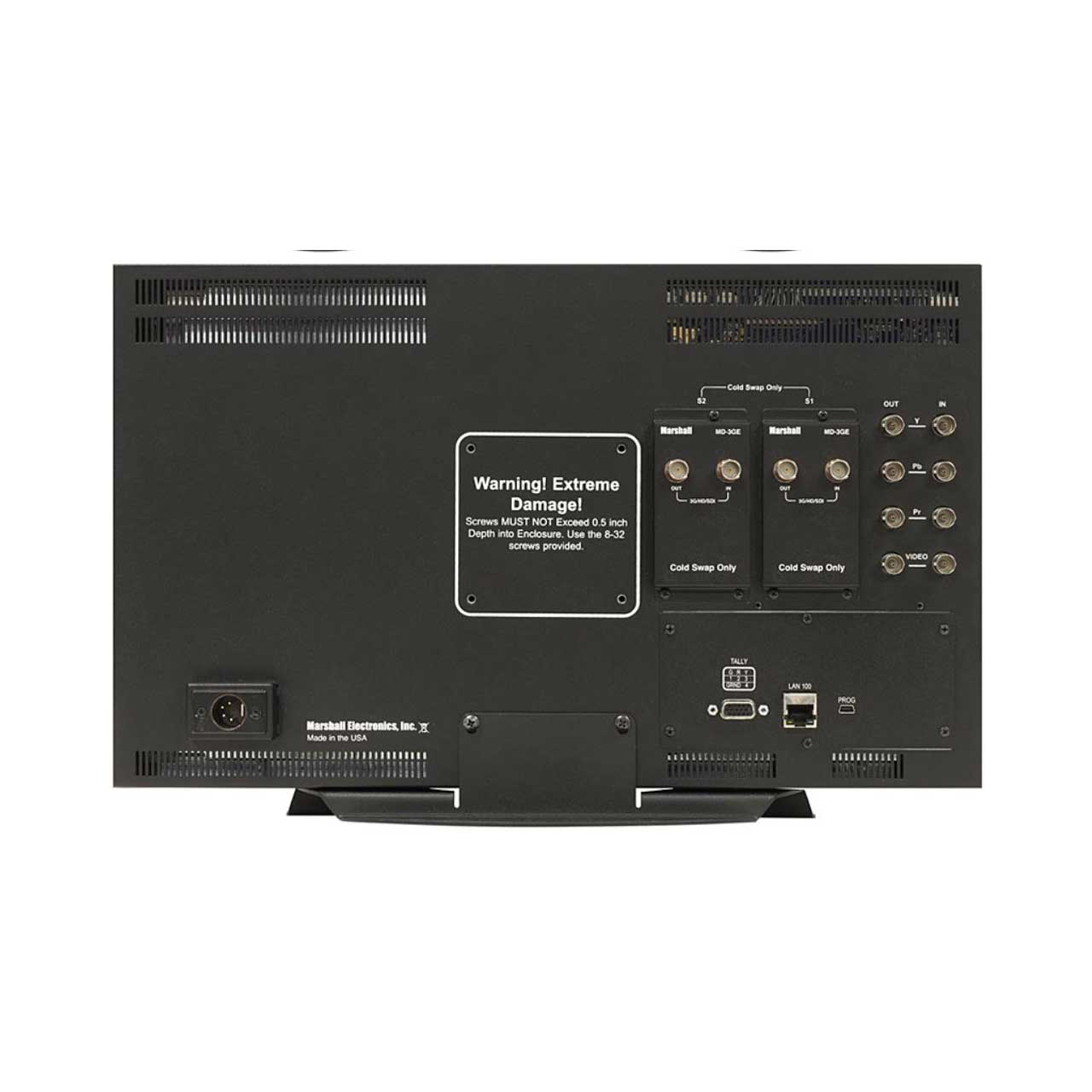

      • Analog Inputs Composite, component active loop-through
      • Optional Input Slots 2 (compatible with all MD Type A modules)
      • Dimensions 17.15"W x 10.45"H x 2.00" D
      • Weight 8.75 lbs.
      • Power Consumption 3.5 AMP@ 12VDC (32W Max)

    • GTIN:

      0801813167184
