Rolls MB15B 3.5mm / RCA / XLR ProMatch Converter

ITEM #: MB-15B MFG #: MB15B

free ship

List Price:

$129.00

Our Price:

$89.00

Availability: In Stock
iAvailability Description Popup


    MB15B - Overview

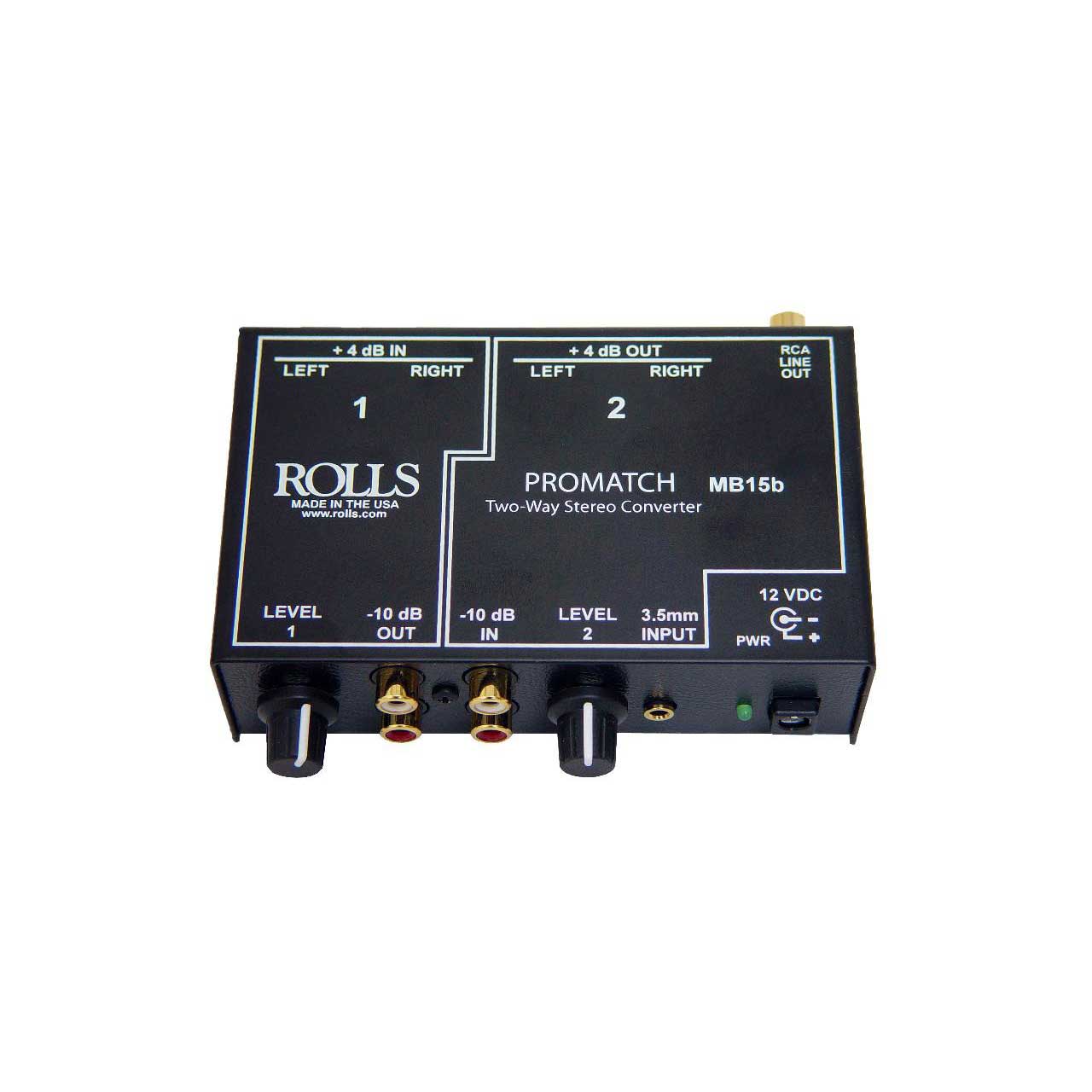

    The Rolls MB15 ProMatch converts consumer level stereo RCA signals to balanced XLR professional line level, and back. One side of the unit, labeled 1, has two XLR inputs and stereo RCA outputs. The other side labeled 2, has stereo RCA inputs and two XLR outputs. Each side has stereo level controls, and an LED indicates that power is applied to the unit. An additional benefit of the MB15 is that it will act as a balanced XLR line level control. By adding a stereo pair jumper between the four RCA jacks (connecting ins to outs), the two Level controls may be inserted into any balanced XLR line.

    • Features:

      • Stereo Direct Box
      • Stereo RCA to stereo XLR
      • Stereo Level control for each channel
      • Works as stereo balanced line level control
      • 1/8" Headphone level to line level adaptor

    • Specifications:

      • Max Out: Balanced: +18 dB, Unbalanced: +12 dB
      • Max In: Balanced: +22 dB, Unbalanced: +22 dB
      • Input Impedance: RCA : 100k Ohm, XLR: 10 k Ohm, 1/8" stereo: 10k Ohm
      • Output Impedance: RCA: 100 Ohm, XLR: 100 Ohm balanced
      • Noise Floor: -88 dB
      • Gain: +4 dB In: -8 dB, -10 dB In: + 20 dB
      • THD: .003%
      • Power: 12 VDC adapter (center negative)
      • Size: 4.15" x 2.46" x 1.55"
      • Weight: 1 lbs. (.45 Kg)
      • Current drain 16ma nominal no load 15vdc

    • GTIN:

      0675889001501
