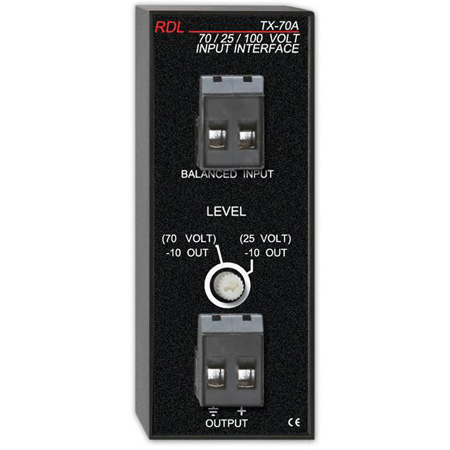

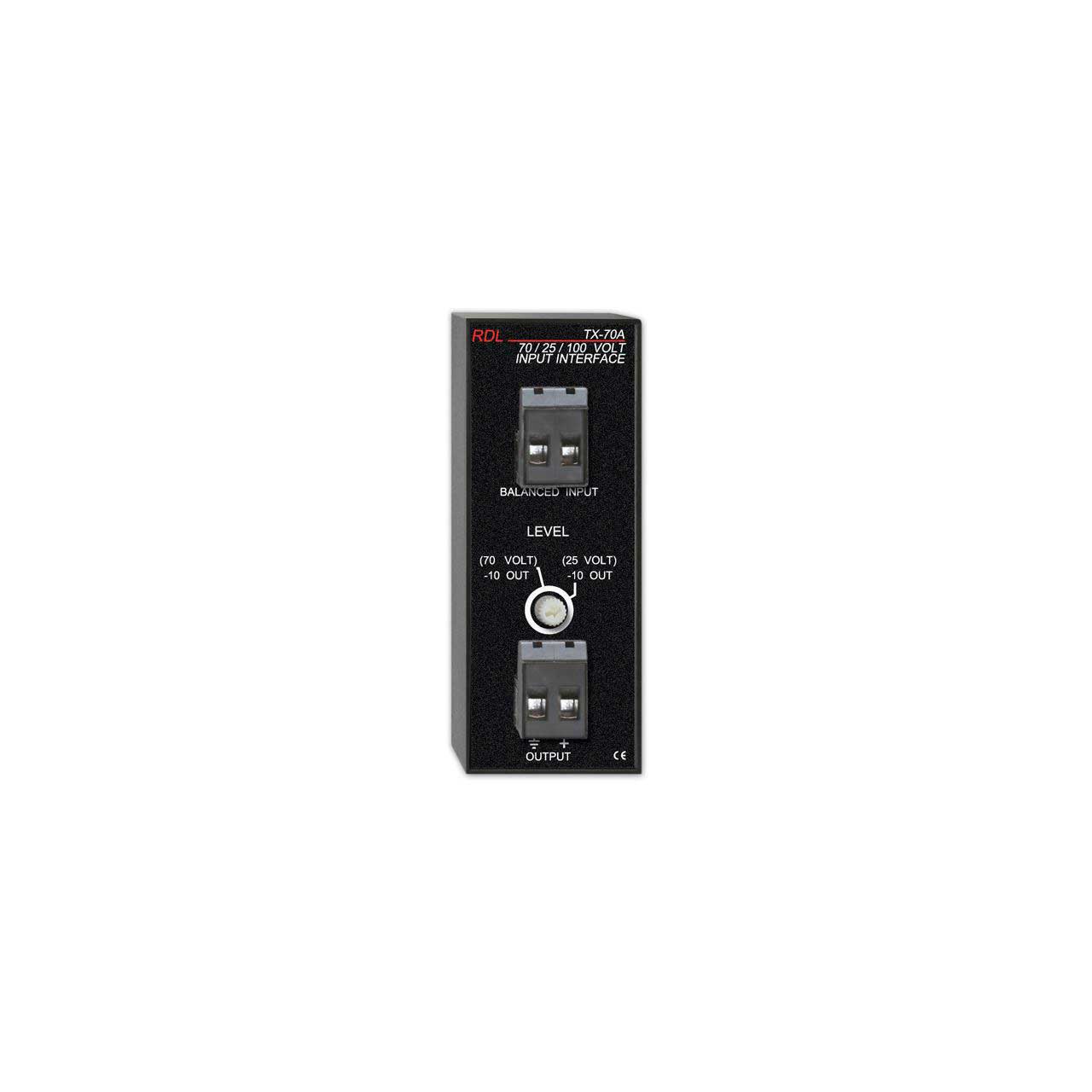

RDL TX-70A 25V/ 70V/ 100V Speaker Level Input Interface - Unbalanced Line Output

ITEM #: TX-70A MFG #: TX-70A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$73.83

Our Price:

$55.37

Availability: In Stock
iAvailability Description Popup


    TX-70A - Overview

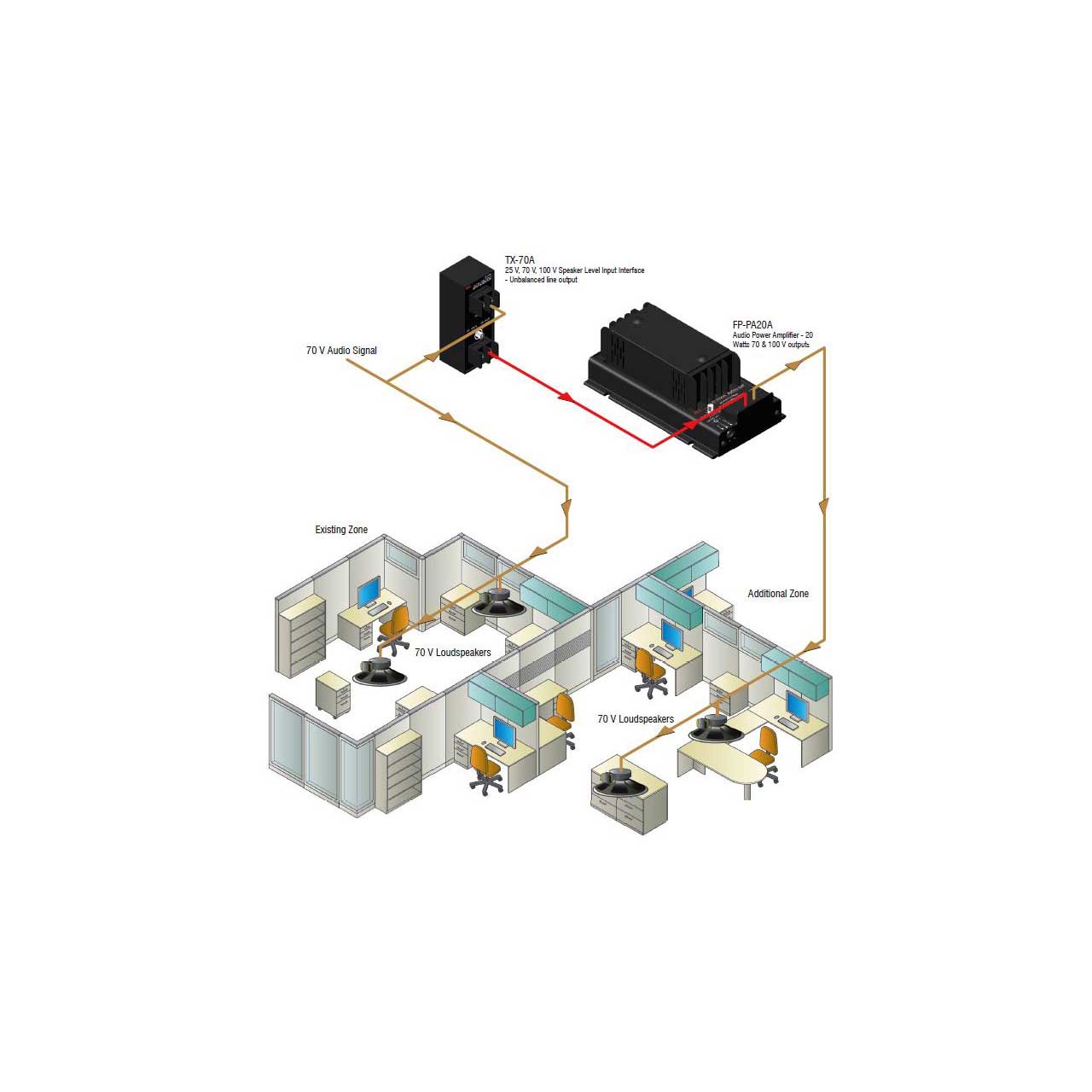

    Do you ever need to feed the audio from a 70V distributed loud speaker system into a line-level device in a remote location? Do you ever need a few more loudspeakers than your existing 70V amplifier can drive but have no convenient line-level audio to run into a local amplifier?

    Well RDL has the module for you!

    The TX-70A 70/25/100 volt input interface matches a 100, 70 or 25 volt speaker line to any unbalanced line level audio input. Simply install the TX-70A as you would a 70V speaker tap and adjust the trimmer for proper output level.

    The TX-70A features the advanced circuitry for which RDL products are known, combined with durable, quality connectors. The ultra-compact TX-70A can be mounted in limited space using the included adhesive methods or may be mounted directly to a backboard or chassis using a variety of mounting options available from RDL.

    • Features:

      • Matches a 100, 70 or 25 volt speaker line to any unbalanced line-level audio input
      • Trimmer adjusts output level for various input voltage/power levels
      • Frequency response: 20 Hz to 20 kHz (+/- 0.5 dB)
      • THD: < 0.05% (1 kHz)

    • Specifications:

      • Ambient Operating Environment: 0° C to 55° C
      • Package Type: Cardboard Box
      • Package Dimensions: 2 x 2 x 4 in
      • Shipping Weight: 0.3 lbs
      • WEEE weight: 0.245 lbs

    • Item Includes:

      • 1x RDL TX-70A 25V/ 70V/ 100V Speaker Level Input Interface - Unbalanced Line Output

    • GTIN:

      0813721011411
