Masterclock GMR6000 1RU Multi-Function 13-Digit NTP & PTP Master Clock Display w/ GMR-PTP Option - TAA

GMR6000-GMR-PTP - Overview

Designed for mission-critical applications, the GMR6000 provides legally traceable time signals by establishing a local physical realization of time and maintaining consistent and compliant output signals for a wide variety of applications.

• Features:

  Robust
  • Mission-critical Stratum 1 timing solution
  • Capability of synchronizing to GPS, GNSS, IRIG-B, or PTP reference
  • Four configurable Masterport BNC outputs
  • Includes fully customizable Masterports which can output IRIG, SMPTE, video/audio sync and more
  • The system supports power redundancy with AC and DC options

    Resilient
  • Internal-disciplined high-stability OCXO or Rubidium options allow for critical holdover resiliency
  • Optional modules provide flexible input/output signal support
  • SNMP v3 with custom MIB

    Scalable
  • Supports high-accuracy PTP and hardware timestamping
  • Backward compatible with legacy signals


• Specifications:

  Inputs/Reference Sources
  • NTP
  • RS232 (DB-9)/RS422 (5 Pos TB) and/or IP packet serial messages (NMEA 0183)
  • GNSS Receiver (Single or Multi-constellation)
  • Single L1 or Multiband L1, L2/L5 supporting GPS, GLONASS, GALILEO, BEIDOU, M-CODE GPS Receiver
  • PTP/IEEE1588
  • IRIG (DCLS/AM) and SMPTE Timecodes
  • PPS (Sync In)
  • 10 MHZ reference frequency
  • Configurable input reference priority

    Outputs
  • Standard Output:
    - NTP
    - 10MHZ Sinewave (BNC, 50Ω, low phase noise and phase locked to PPS out)
    - 1 PPS (BNC, 50 Ω)
    - RS232 (DB-9)/RS422 (5 Pos TB) and/or IP packet serial messages - NMEA 0183, NENA Format 0, 1, or 8, Truetime-Kinemetrics
    - Programmable relay closure - NO/NC dry contact relay
    - Relay alerts loss of sync by default
  • Output Features:
    - 4x configurable Masterport BNC outputs
    - Time Codes: IRIG (DCLS and AM)/SMPTE
    - Audio/Video Sync: Genlock Black-Burst, Tri-Level Sync, Wordclock
    - 10MHz Square Wave (Phase locked with PPS)
    - Additional PPS
    - Programmable Pulse
    - Programmable Reference Frequency
  • Masterport outputs utilize BNC connectors and are software switchable

    Network
  • Three Independently Addressable isolated 1GigE Ethernet ports (two RJ45, one SFP)
  • NTP Server: Synchronization of NTP and SNTP compatible clients
  • NTP authentication: MD5, SHA-1, SHA-2
  • PTP/IEEE 1588 Ordinary Clock or Grandmaster
  • Synchronization of IEEE1588-2008 (PTPv2) compatible Clients

    Security
  • Advanced Anti-Jamming, Anti-Spoofing Detection and Mitigation
  • Authenication on Dedicated Management Port(s)
  • Encrypted Protected Admin and User Passwords and Access Levels
  • Authenticated NTP

    High-Stability
  • Oscillator Options
  • Features FAST Disciplining, and Low Phase Noise options for extended holdover with low drift - Choose between:
    - OCXO oscillator ±10µsec/24 hours
    - Rubidium Oscillator ±500nSec/24 hours

    Management Features
  • Dedicated isolated management nework port
  • Additional USB managment port
  • Firmware Upgradable
  • Masterclock-provided WinDiscovery configuration and status monitoring utility
  • SSH CLI (Command Line Interface)
  • Additional SNMP v1, v2, and v2c, v3 AES-256 monitoring (Traps) and logging with provided MIBs
  • Syslog client

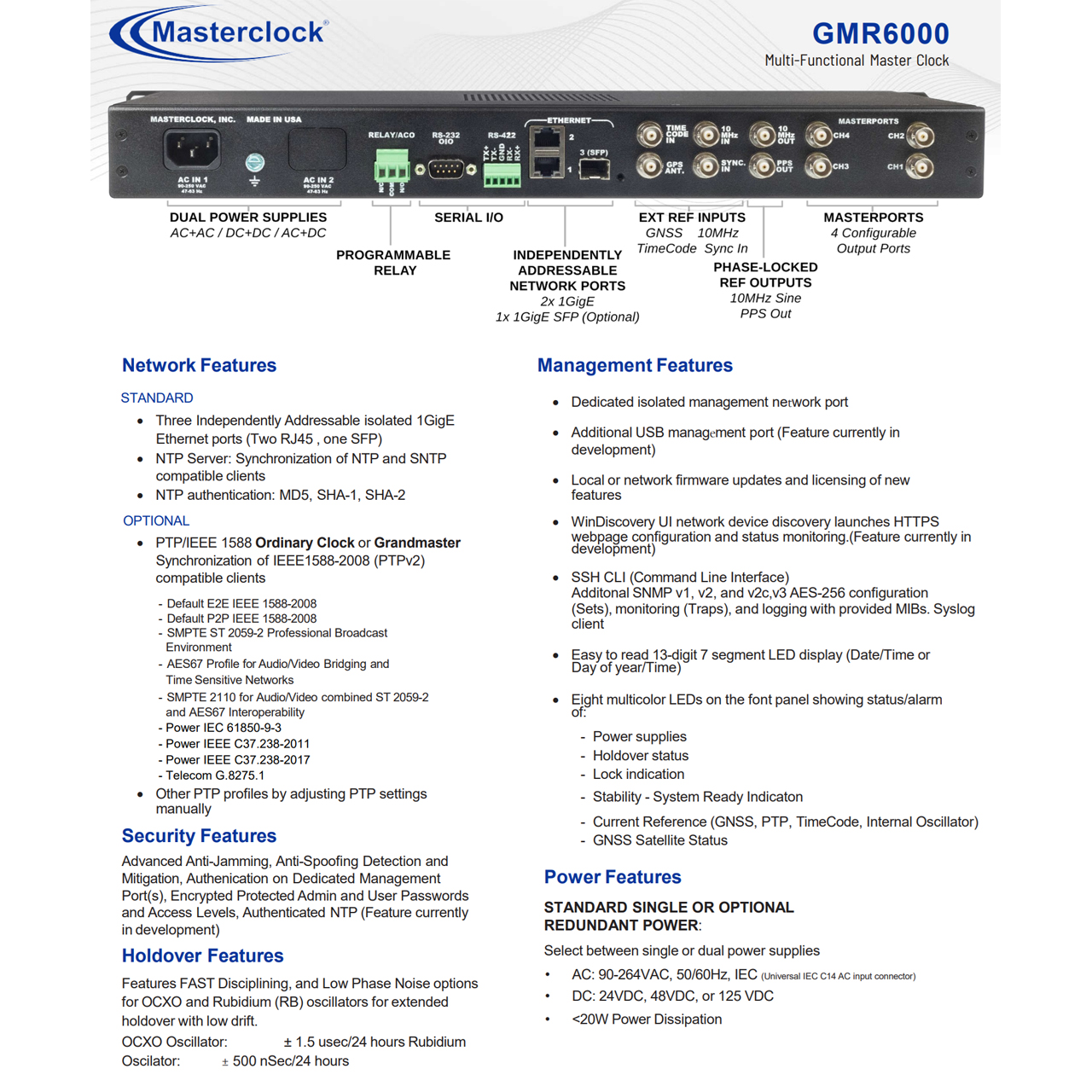

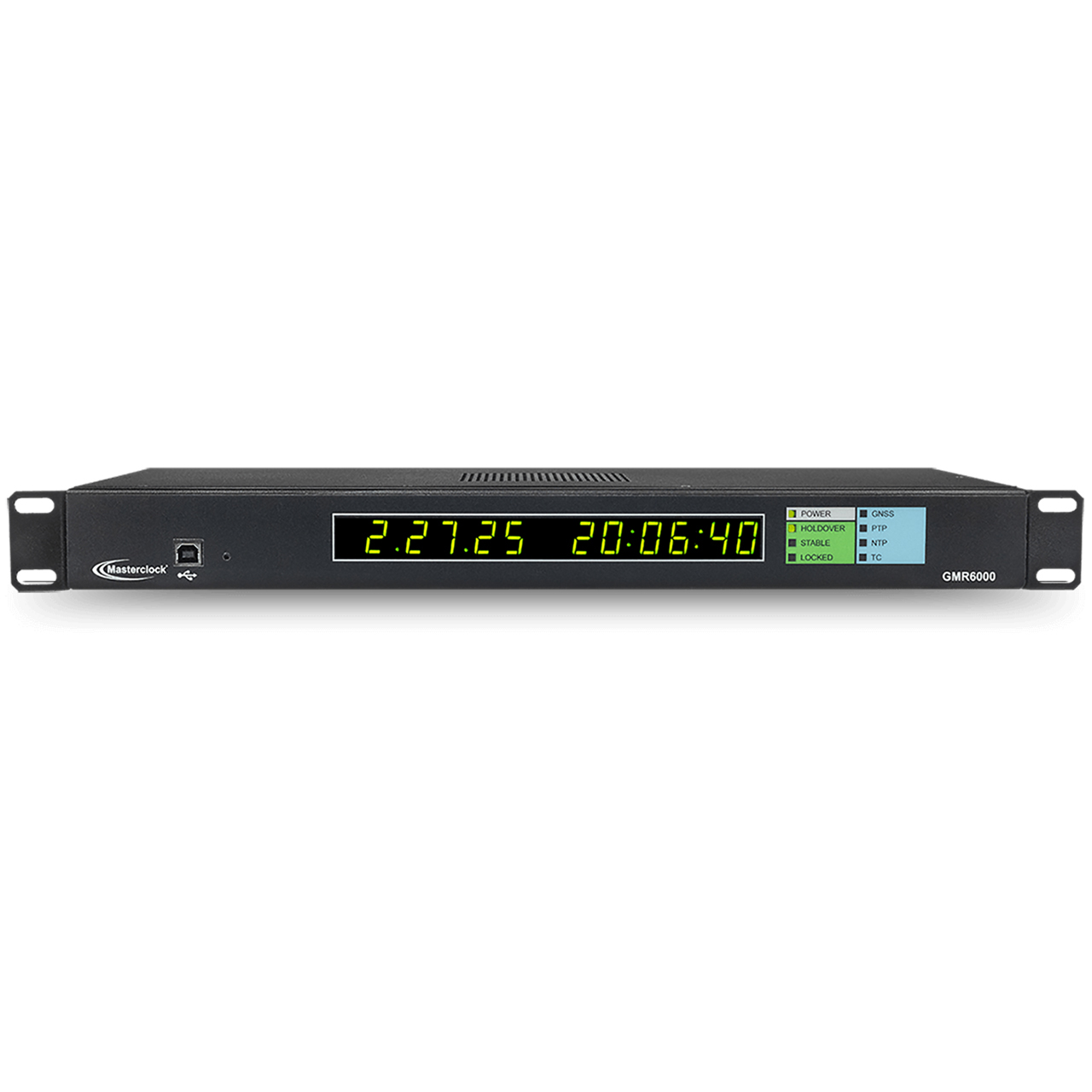

  • Easy to read, green 13-digit 7 segment LED display (Date/Time or Day of year/Time)
  • Eight multicolor LEDs on the font panel indicate:
    - Power Stability
    - Holdover status
    - Reference Lock Indicator
    - Oscillator Calibration Stability
    - Current Reference (GNSS, PTP, NTP, TimeCode)

    Power
  • Select between single or dual power supplies
  • AC: 90V - 264VAC, 50/60Hz, IEC
  • DC: 24VDC, 48VDC, or 110 VDC
  • <20W Power Dissipation

    Physical
  • Dimensions: 16.92" x 1.77" x 7.53" (42.97cm x 4.5cm x 19.13cm)
  • Temperature: 32°F - 140°F (0°C - 60°C)
  • Humidity: Up to 90%, non-condensing


• Item Includes:

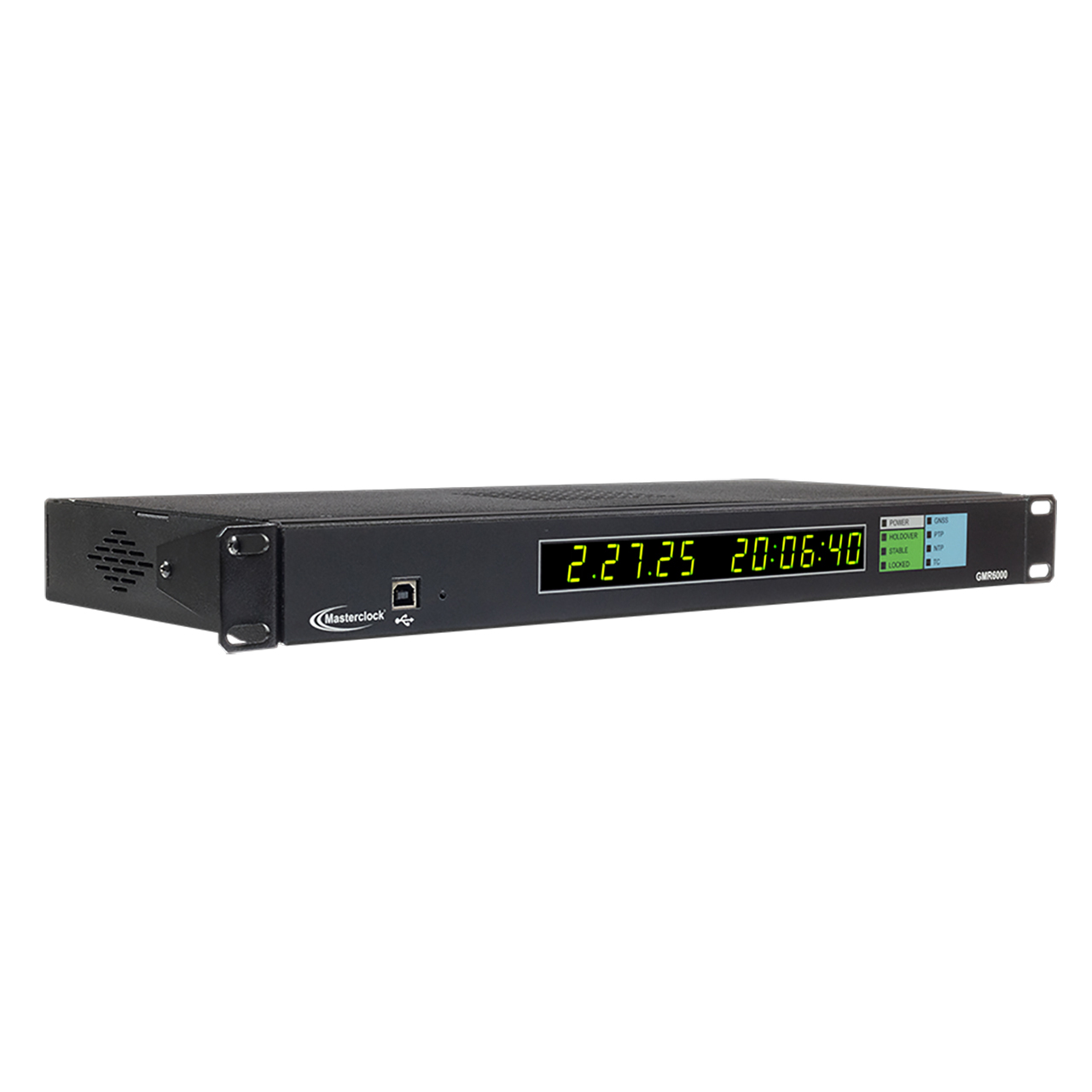

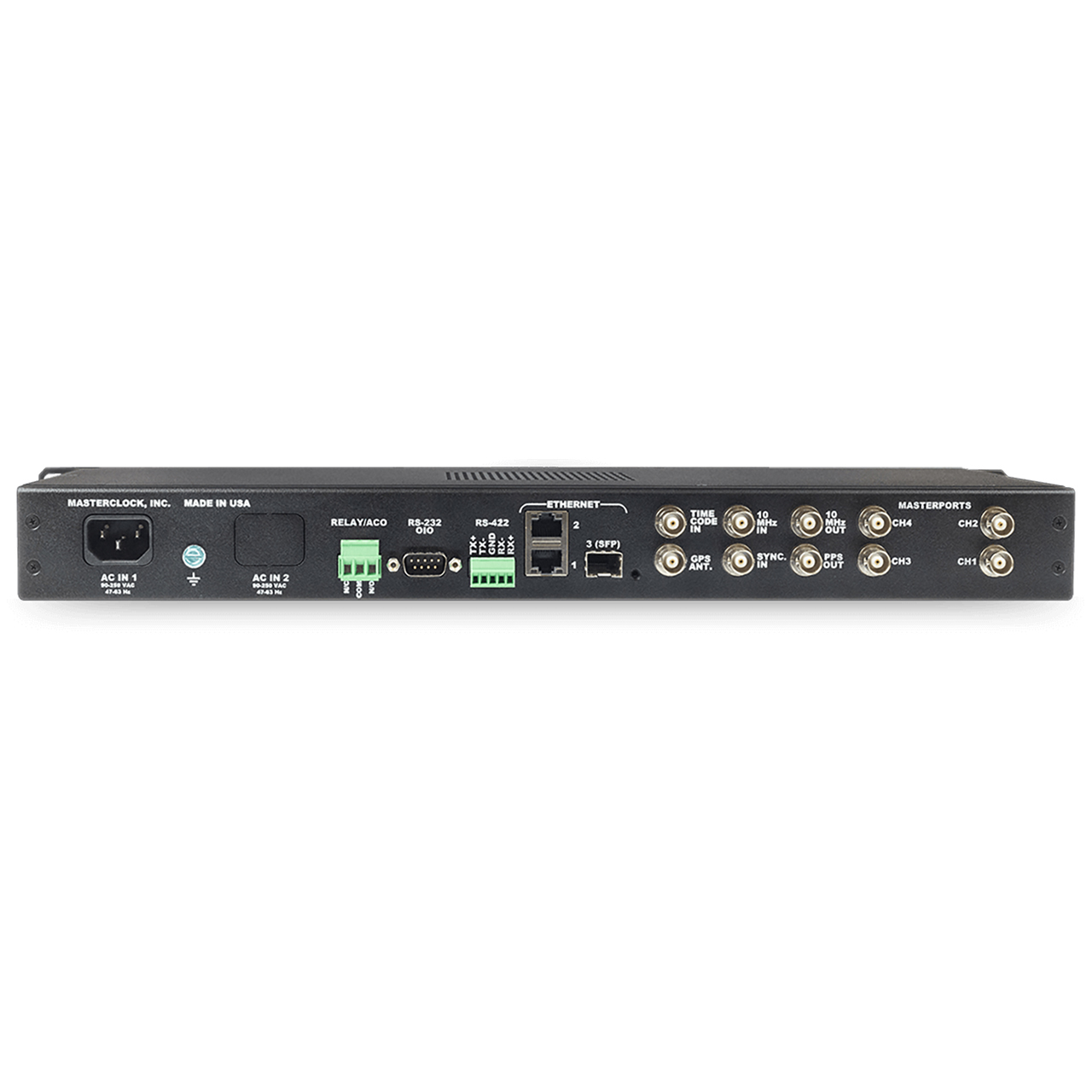

  • 1x Masterclock GMR6000 1RU Multi-Function 13-Digit NTP & PTP Master Clock Display w/ GMR-PTP Option - TAA


• Warranty:

  • 5 Year Warranty
