Masterclock DA232 8-Port Isolation and Distribution Amplifier

DA232 - Overview

DA232 Isolation and Distribution Amplifier

• Features:

  • 1 input: 1:8 output standard
  • Up to 16 output options
  • Chassis is steel with rust resistant powder coat
  • Universal worldwide AC power

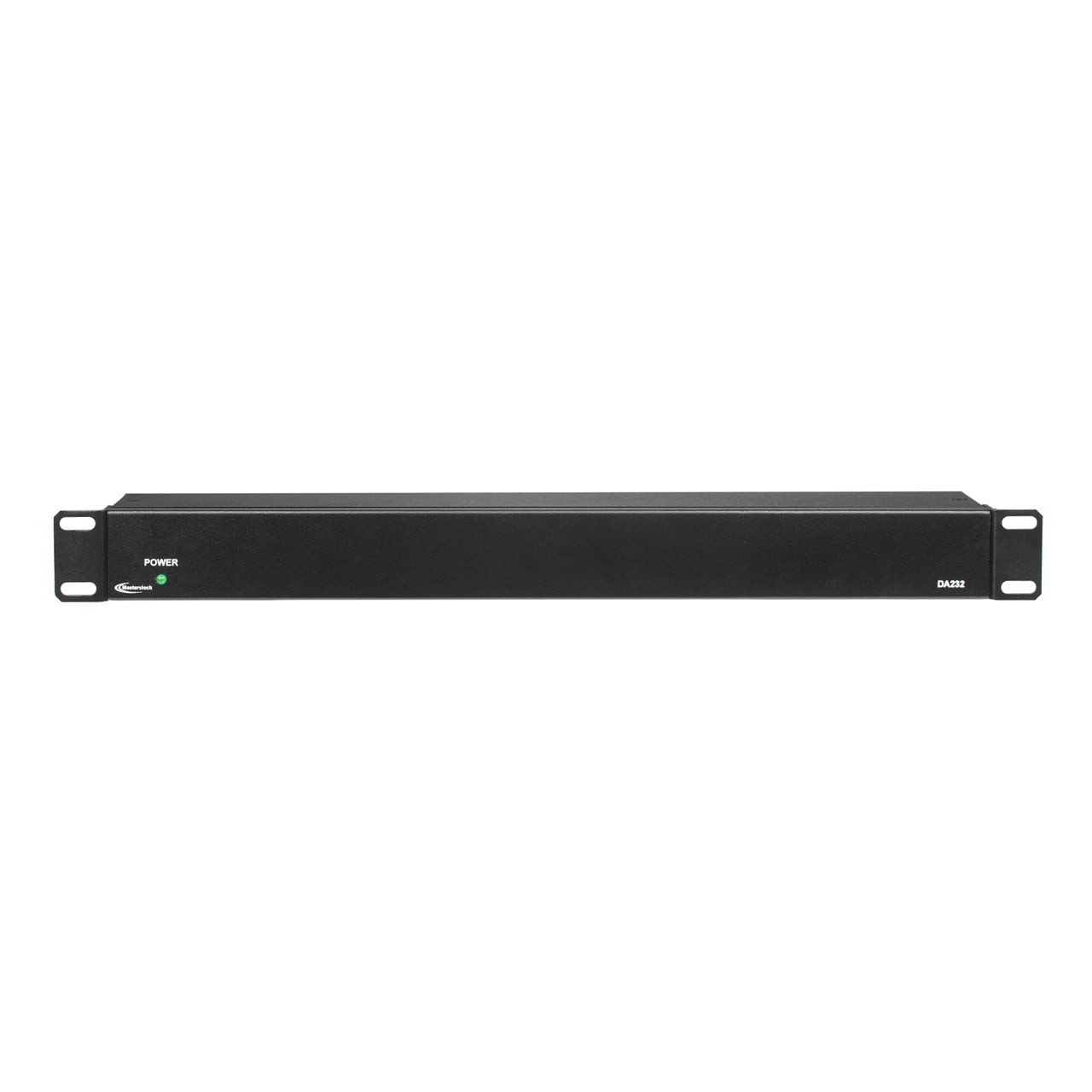

  • Green power LED on front panel


• Specifications:

  • Inputs: 1x RS-232C (Bi-directional)

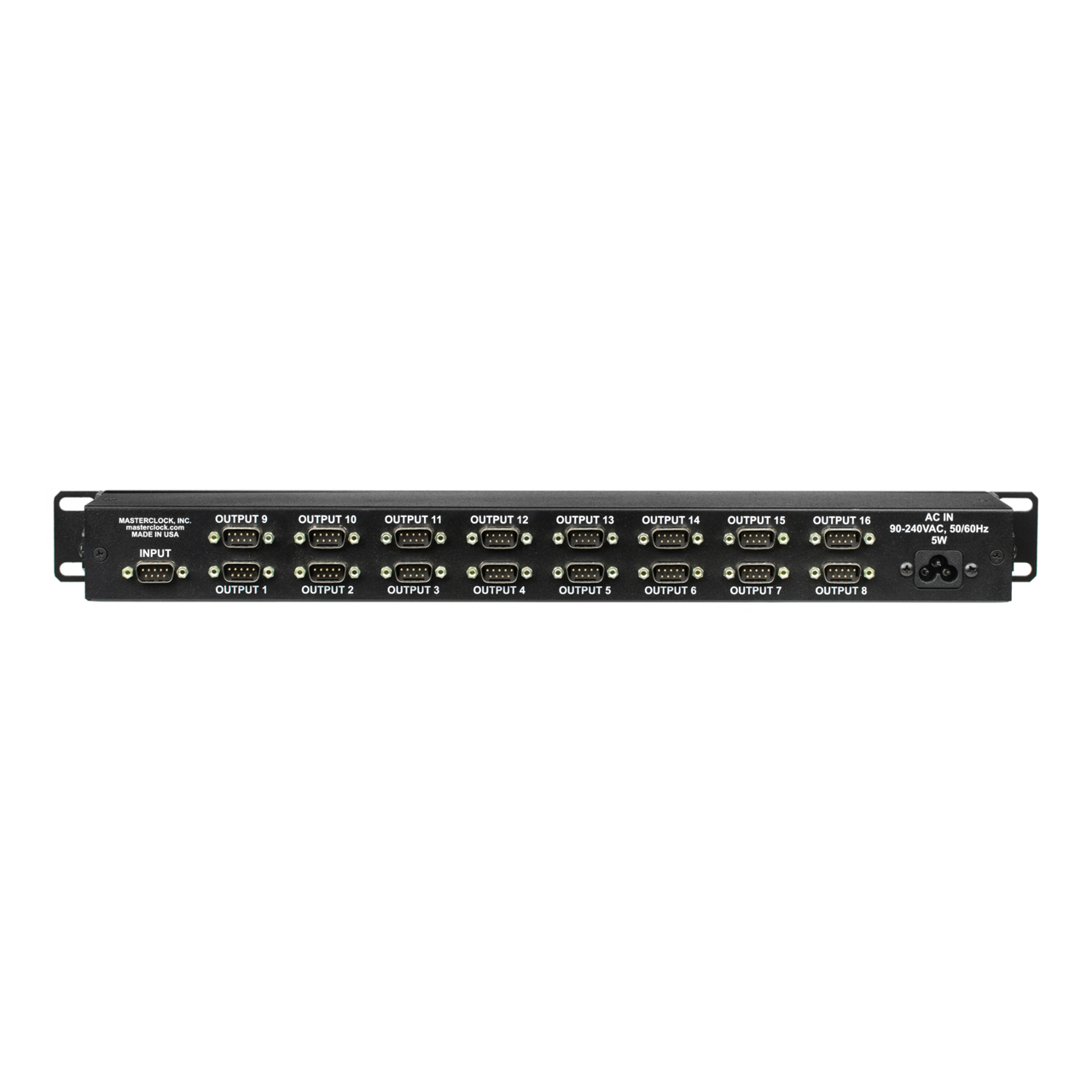

  • Outputs: 16x DB9 RS-232C (1x RS232 level transmit and receive, 15x transmit only), 120Kbps
  • Operating Temperature: 32°F - 140°F (0°C - 60°C)
  • Humidity: Up to 90% (non-condensing)
  • Power:
    - IEC 320-C5 AC connector
    - 110V - 220VAC, 50/60Hz
  • Power Consumption: <5 watts
  • Dimensions (WxHxD): 16.9" x 1.75" x 4.5" (43cm x 4.3cm x 11.5cm)
  • Weight: 2.49lbs (0.95kg)


• Item Includes:

  • 1x DA232


• Warranty:

  • 5 Year Limited Warranty
