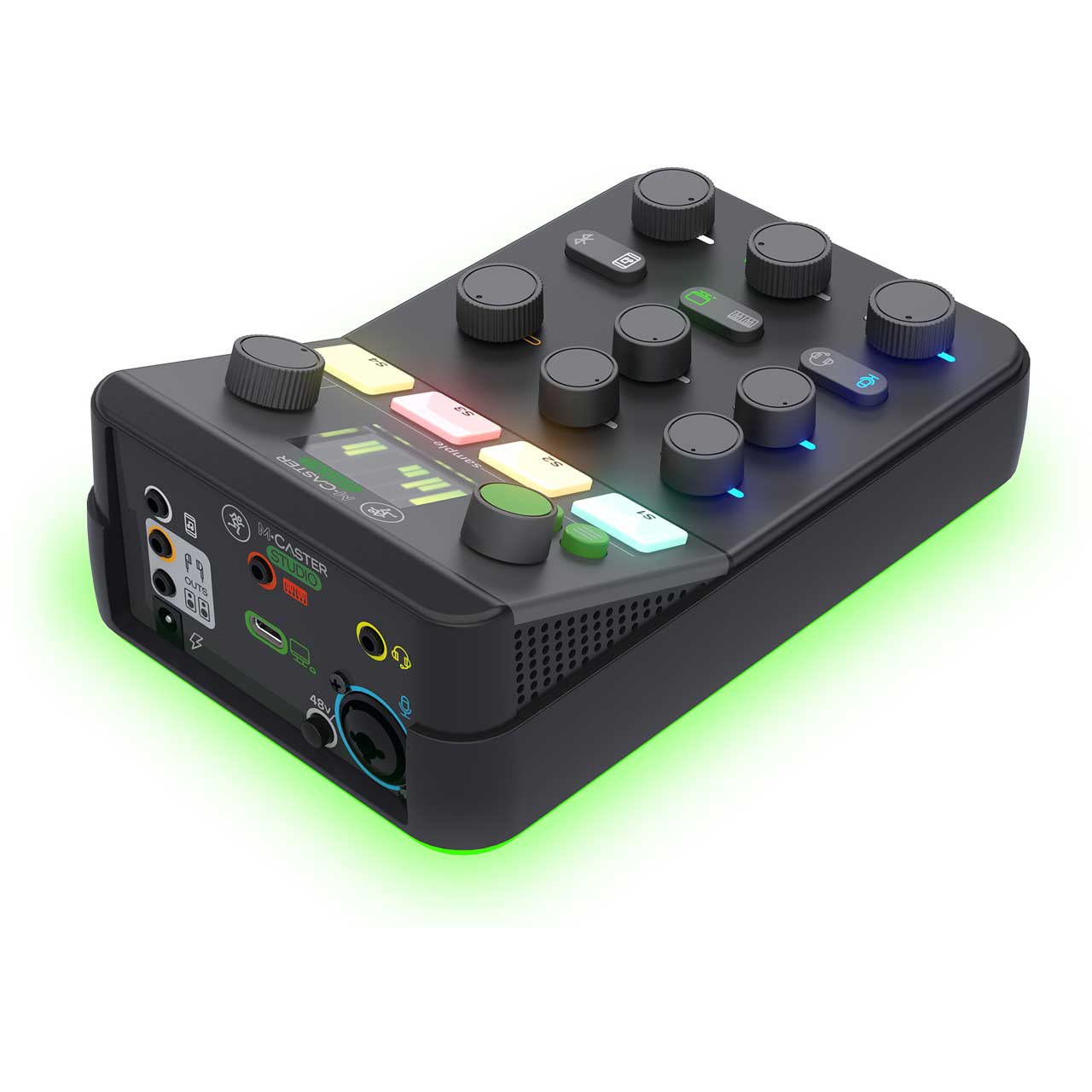

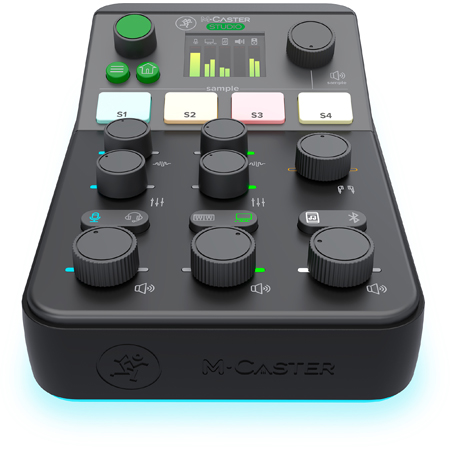

    M-CASTER STUDIO - Overview

    Breathe Life Into Your Live Stream
    Not sure how to get your voice to the next level on your live streams? Messing with resource-hogging plugins not your thing? Worry not my friend. Mackie M-Caster Studio is a powerful, compact live audio solution for streaming on Mac/PC and even on your smartphone, and makes it incredibly easy to get the professional sound you are looking for and then some.

    Get the ultimate compact audio upgrade with M-Caster Studio, your followers will thank you.

    Plug In All The Things

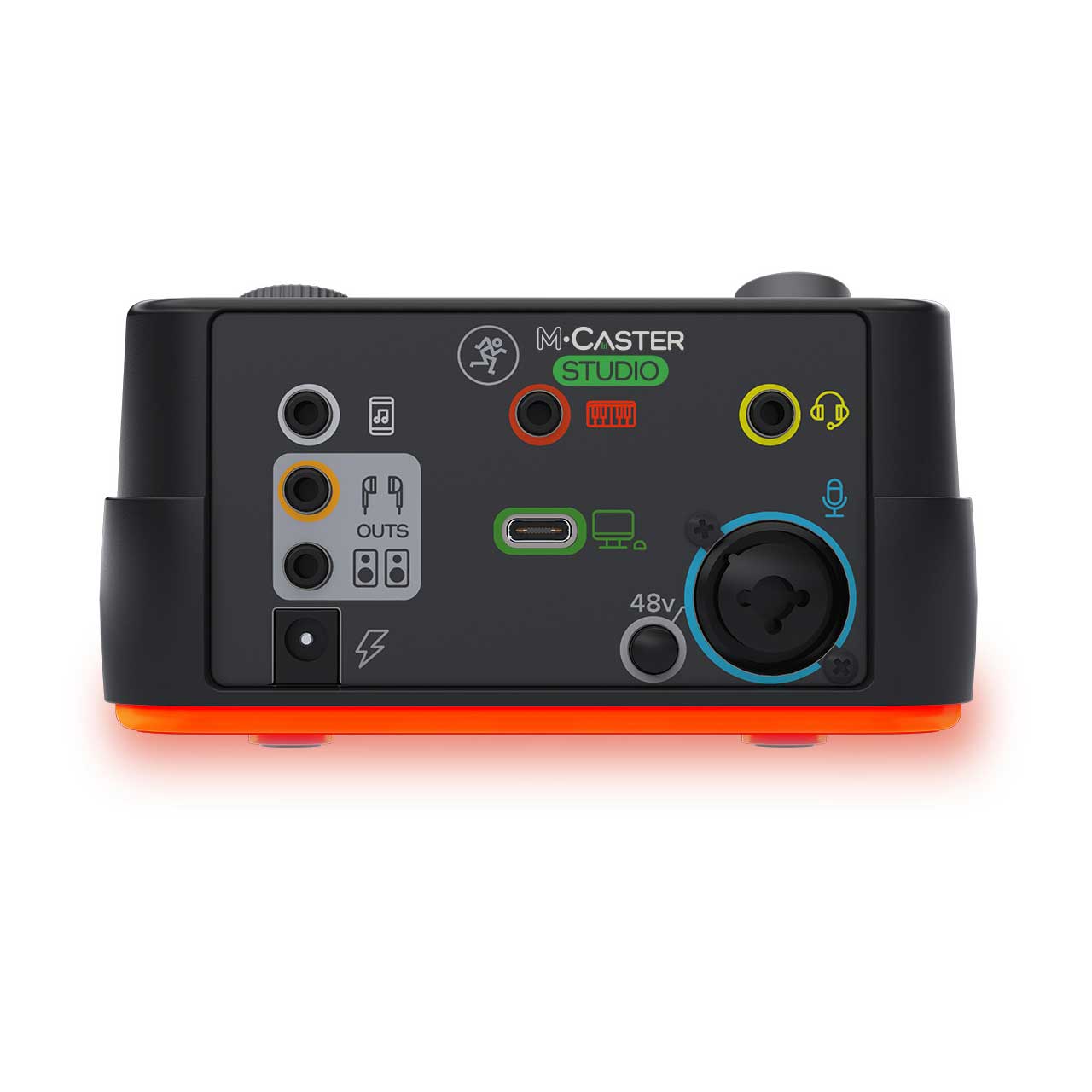

    Sure, you can use your favorite professional microphone, but it doesn't stop there. M-Caster Studio plays nicely with DSLR's, Headsets, and Smartphones too. When it comes to monitoring, there are dedicated headphone and studio monitor outputs.

    Go Wireless With Bluetooth
    With Bluetooth connectivity built in, you can both send and recieve audio wirelessly with your M-Caster Studio. Great for integrating a caller, music, you name it alongside your USB connection.

    Samples On The Fly
    With 3GB of internal storage, you can load and even direct record tons of samples to trigger any time via the 4 backlit buttons. Perfect for celebrating a fun moment, thanking a subscriber, or when you feel the need to relentlessly smash that remix horn (yes, that sound is preloaded).

    • Features:

      • Pristine sound quality and unmatched flexibility in a sleek, compact design
      • Use your favorite mic plus a headset, media player and more
      • Pick the perfect vocal sound with selectable ContourFX Presets
      • StreamFX makes it easy to add the finishing touch with fun voice-changing effects
      • USB connectivity allows for use as an audio interface on a Mac/PC
      • Bluetooth connectivity allows for both sending and receiving audio
      • Connect directly to your smartphone's headphone jack to both send and receive audio
      • Automatic Mix Minus ensures that any call-ins hear only you and not themselves
      • View levels, settings, and more via the built-in MixViewer color display
      • Built-in Sampler allows you to transfer and store audio files directly on M-Caster Studio and trigger them via 4 dedicated buttons
      • RGB LED strip with 15 user-selectable colors
    • Specifications:

      • Noise Characteristics
      • A-D Dynamic Range (all inputs): 116 dB
      • D-A Dynamic Range (all outputs): 120 dB

        Distortion (THD+N) (1 kHz, -1dBFS, 20 kHz BW)
      • Ch 1 - XLR Input <0.02% THD+N
      • Ch 1 - 1/4" Line Input <0.05% THD+N
      • Ch 1 - 1/8" Gaming Headset Input <0.02% THD+N
      • Ch 2 - 1/8" Line Input <0.02% THD+N
      • Ch 2 - USB <0.01% THD+N
      • Ch 3 - 1/8" Phone Input <0.01% THD+N

        Input / Output
      • Maximum Input Level +10 dBu
      • Maximum Output Level +10 dBu

        Bit Depth / Sample Rate
      • Supported Bit Depth & Sample Rate 24-bit / 48 kHz

        System Requirements
      • PC Windows 10 or higher (32 or 64 MB RAM)
      • Android Android 9 or higher
      • Mac Mac OS X 10.13 or higher (32 or 64 MB RAM), iOS iOS 13 or higher

        Power Requirements
      • USB-C 100-240V, 50/60 Hz, 12V 2A
      • Phantom Power 48VDC to Channel 1 input

        Physical Dimensions and Weight
      • Height: 2.8 in
      • Width: 5.1 in
      • Depth: 8.0 in
      • Weight: 1.5 lb
    • Item Includes:

      • 1x Mackie M Caster Studio
      • 1x USB Cable
      • 1x 1/8" TRS / Aux Cable
      • 1x 1/8" TRRS Cable (For Smartphones)
      • 1x Power Supply
