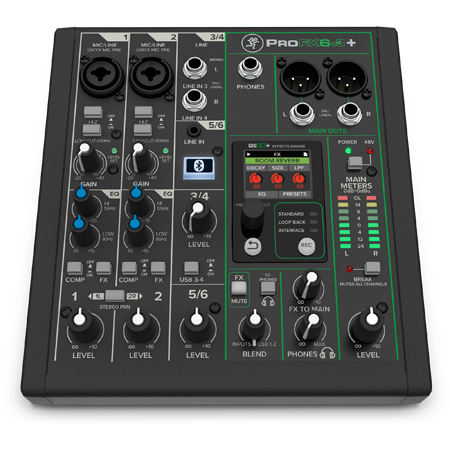

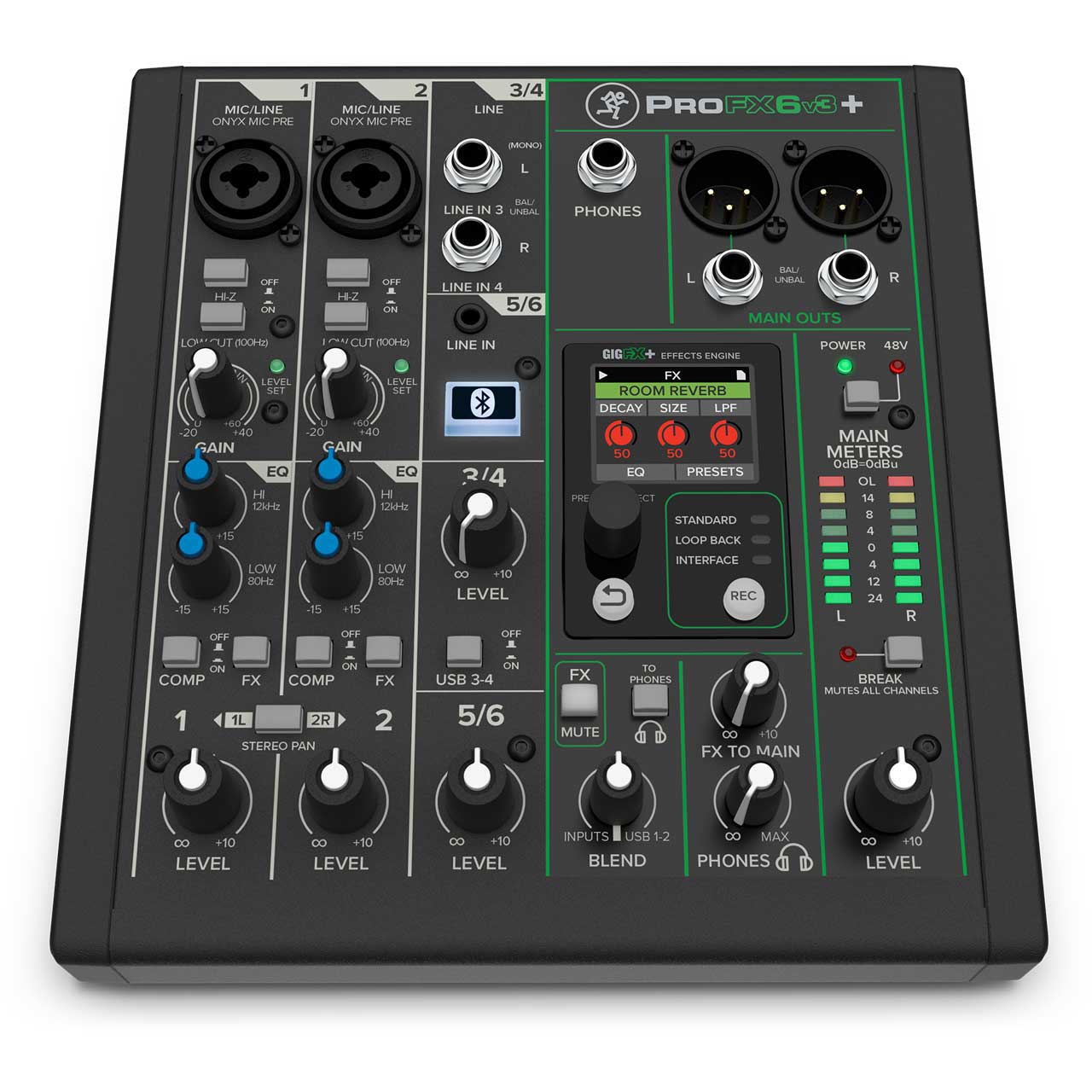

Mackie ProFX6v3+ 6-Channel Professional Analog Mixer w/ Enhanced FX / USB Recording Modes / Bluetooth

PROFX6V3+ - Overview

• Features:

  • 2 Onyx mic pres with up to 60 dB of gain and ultra-low noise performance
  • High-resolution GigFX+™ effects engine

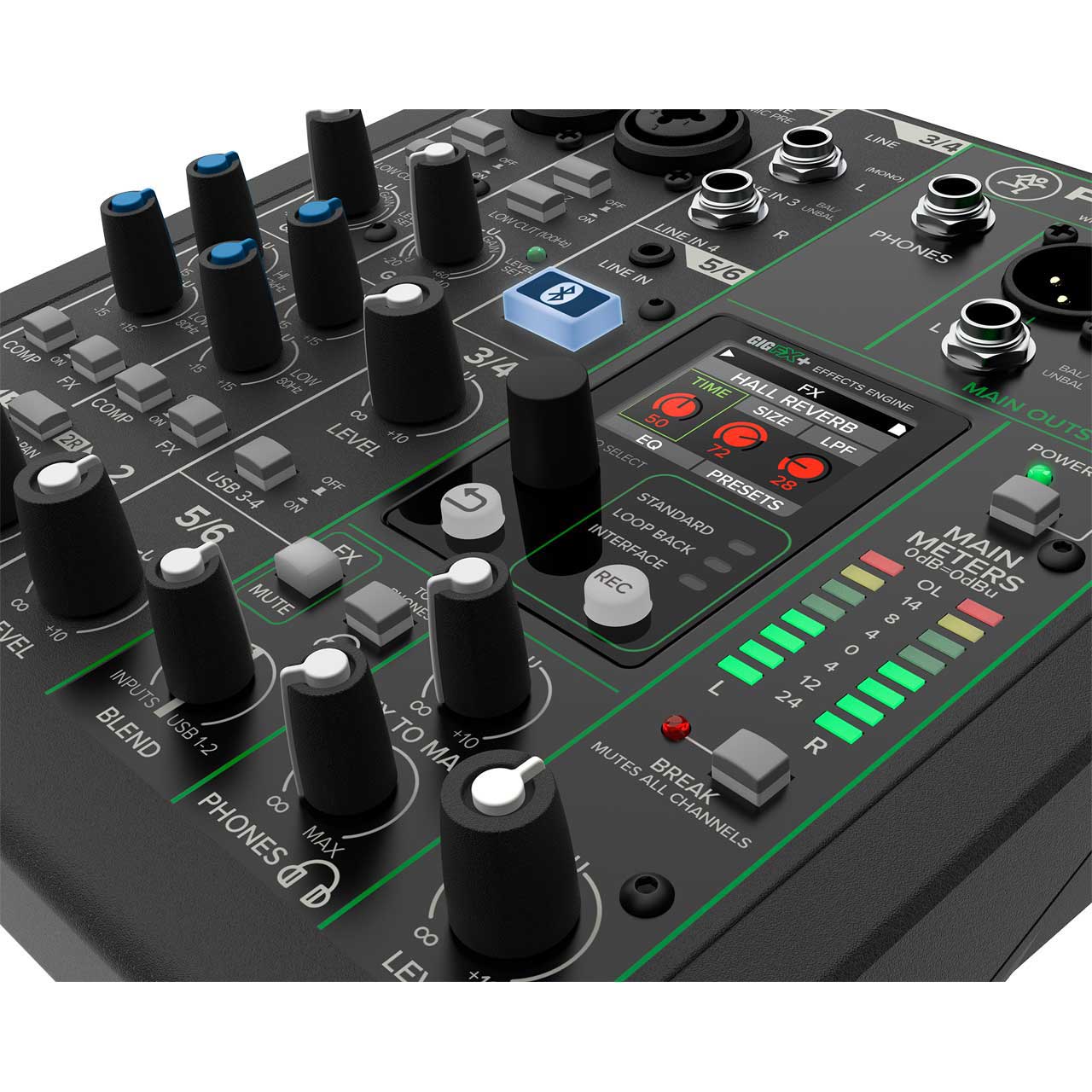

  • Full-color LCD display for editing and saving effects presets
  • 24-Bit / 192 kHz 2x4 USB-C audio interface
  • Three recording modes: Standard, Loopback and Interface
  • Bi-directional Bluetoothr for music playback and caller integration
  • 2-band EQ on channels 1 and 2
  • One-button compression on channels 1 and 2
  • Hi-Z switches allow direct connection of instruments
  • 100 Hz low-cut filter and 48V phantom power on all mic channels
  • Stereo 1/8" input on channel 5/6
  • Headphone output with separate level and blend control
  • Easily blend between monitoring your computer output and a latency-free feed from the mixer
  • Waveform OEM™ recording software Included
  • Legendary Built-Like-A-Tank design
  • Solid steel chassis
  • Tough ABS side protection


• Specifications:

  • Noise Characteristics:
  • Equivalent Input Noise (EIN) (150 Ω Source Impedance, 20 Hz to 20 kHz):
  • Mic in to Insert Send out, max gain: -126 dBu
  • Residual Output Noise:
  • All outputs, master levels off, all channel levels off: -95 dBu
  • All outputs, master levels unity, one channel level unity: -80 dBu

    Frequency Response:
  • Mic input to any output (gain at unity, +0 dB / -1 dB ): 20 Hz to 30 kHz
  • Distortion (22 Hz to 80 kHz bandwidth):
  • Mic in to Main Out (+4 dBu output): <0.03%

    Attenuation and Crosstalk:
  • Adjacent Inputs @1 kHz: -90 dB
  • Inputs to Outputs @1 kHz: -80 dB
  • Fader Off @1 kHz: -75 dB
  • Mute Switch / Break Switch Mute @ 1 kHz: -90 dB
  • Common Mode Rejection Ratio (CMRR):
  • Mic in to Main out, max gain, 1 kHz: 70 dB

    Maximum Levels:
  • All inputs: +22 dBu
  • Main Mix XLR: +28 dBu
  • All other outputs: +22 dBu

    Impedances:
  • Mic in: 3.3 kΩ
  • Channel Insert Return: 10 kΩ
  • All other inputs: ≥20 kΩ
  • Phones out: 25 Ω
  • All other outputs: 120 Ω Unbalanced, 240 Ω Balanced

    Equalization:
  • Low: ±15 dB @ 80 Hz
  • High: ±15 dB @ 12 kHz
  • Low Cut Filter: 18 dB/octave @ 100 Hz

    Maximum Voltage Gain (EQ Flat):
  • Mic Input Channel to Insert Output: 60 dB
  • Mic Input Channel to 1/4" Main Output: 80 dB
  • Mic Input Channel to XLR Main Output: 86 dB
  • Mic Input Channel to 1/4" Sub Output: 80 dB
  • Mic Input Channel to Aux Output (Pre-Fader): 80 dB
  • Mic Input Channel to Aux Output (Post-Fader): 90 dB
  • Mic Input Channel to FX Send: 90 dB
  • Mic Input Channel to USB Output: 70 dB
  • Mono Line Input Channel to Insert Output: 40 dB
  • Mono Line Input Channel to 1/4" Main Output: 60 dB
  • Mono Line Input Channel to XLR Main Output: 66 dB
  • Mono Line Input Channel to 1/4" Sub Output: 60 dB
  • Mono Line Input Channel to Aux Output (Pre-Fader): 60 dB
  • Mono Line Input Channel to Aux Output (Post-Fader): 70 dB
  • Mono Line Input Channel to FX Send: 70 dB
  • Mono Line Input Channel to USB Output: 50 dB
  • Stereo Line Input Channel to 1/4" Main Output: 20 dB
  • Stereo Line Input Channel to XLR Main Output: 26 dB
  • Stereo Line Input Channel to 1/4" Sub Output: 20 dB
  • Stereo Line Input Channel to Aux Output (Pre-Fader): 20 dB
  • Stereo Line Input Channel to Aux Output (Post-Fader): 30 dB
  • Stereo Line Input Channel to FX Send: 30 dB
  • Stereo Line Input Channel to USB Output: 10 dB
  • 1/8" Input to 1/4" Main Output: 40 dB
  • 1/8" Input to XLR Main Output: 46 dB
  • 1/8" Input to 1/4" Sub Output: 40 dB
  • 1/8" Input to Aux Output (Pre-Fader): 40 dB
  • 1/8" Input to Aux Output (Post-Fader): 50 dB
  • 1/8" Input to FX Send: 50 dB
  • 1/8" Input to USB Output: 30 dB
  • USB Input to XLR Main Output: 46 dB

    Digital Effects:
  • Number of Presets: 12

    Meters:
  • Main L/R Mix:
  • Two columns of 8 segments each: OL, +14, +8, +4, 0 (0 dBu), -4, -12, -24

    USB:
  • Format: USB 2.0
  • I/O: 1 Stereo Input, 2 Stereo Outputs
  • A/D/A: 24 bit, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz


  • Phantom Power: 48 VDC to all Mic channels simultaneously

    AC Power Requirements:
  • Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz

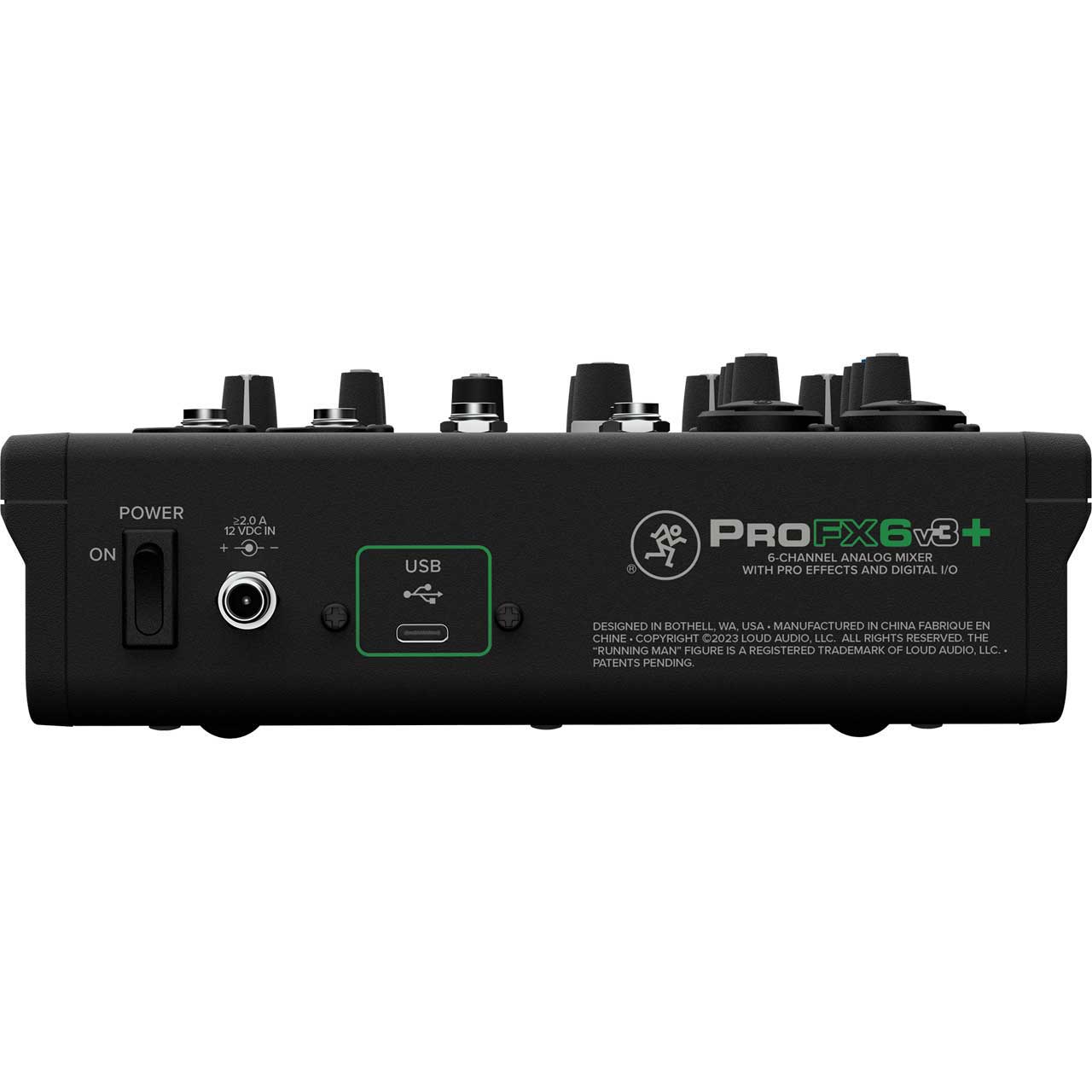

  • Power Connector: 12VDC @ 2A Class I Hard-Wired Wall Mount Adapter


• Warranty:

  • 1-year all inclusive, nontransferable warranty
