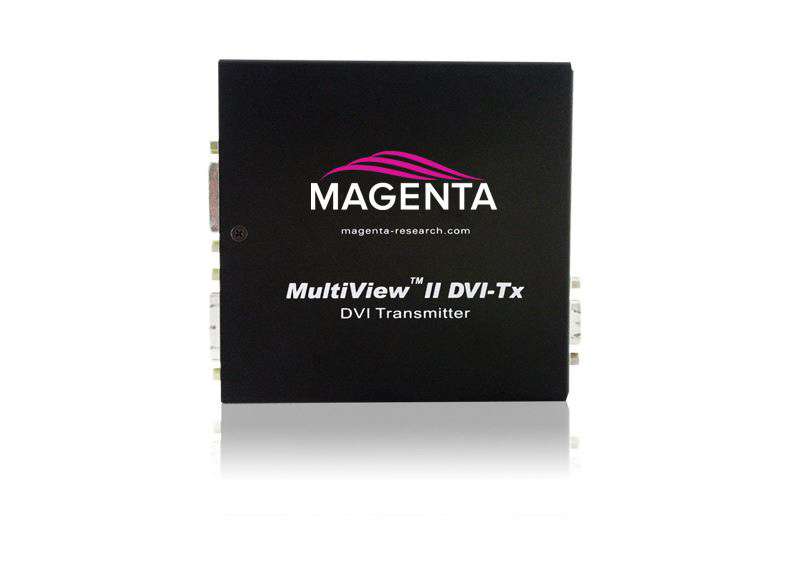

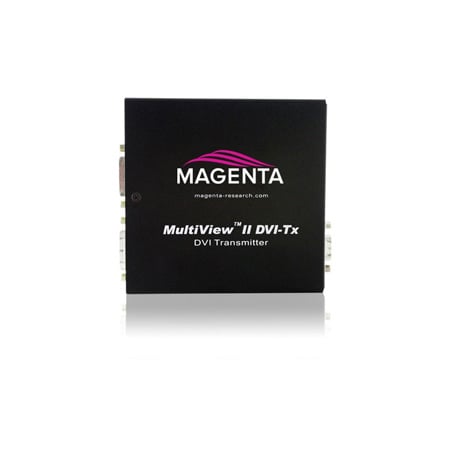

Magenta MultiView II DVI-SAP - DVI Transmitter for use with MultiView

ITEM #: MGE-2620066-02 MFG #: 2620066-02

free ship

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

2620066-02 - Overview

MultiView goes digital!

Until now, Magenta's world renowned MultiView Series operated exclusively in the analog domain, but the introduction of the MultiView II DVI Transmitter opens up even more possibilities for the switching, distribution and extension of video, audio and serial signals over UTP cable.

This product accepts a digital 1080p DVI-D video input and converts the signal to a 1080p analog signal for use with MultiView receivers.

Best of all, the MultiView II DVI-TX is fully compatible with Magenta's Mondo Matrix UTP-based switching platform, enabling digital signals to be infused into both new and existing Mondo-based projects. This ability adds even more adaptability to a switching system that can be configured in increments of 16 inputs/outputs, from 16x16 all the way to 256x512.

The MultiView II DVI-TX features a local DVI monitor-output and a series of external buttons to enable users to easily configure various DDC, sync and fourth-pair (on DVI-TX base model only) modes of operation.

For maximum performance, widescreen resolutions (1280x720/720p and 1920x1080/1080p) are recommended for use with the MultiView DVI Transmitter.

  • Features:

    • Compatible with MultiView receivers(Maximum distance capability is determined by receivers distance specification).
    • Backwards compatible with Magenta's Mondo Matrix switching platform.
    • Converts 1080p DVI-D input to 1080p analog output
    • External configuration for DDC, sync and fourth pair modes
    • Local DVI-D Output (Local output can used for local monitoring or for cascading to any other transmitter type).
    • Rack-mountable
  • Specifications:

    • Cable Required Category 5, 5e, 6 cable. Shielded or unshielded twisted pair. Low-skew.
    • Compliance CE, FCC Class A, IC Class / Class A, UL listed I.T.E Device, RoHS.
    • Video Support DVI-D, and HDMI by using a connector adapter for unprotected content only (non-HDCP).
    • Resolution &
    • Refresh Rate Established timings:
    • [email protected] [email protected] [email protected]
    • [email protected] [email protected] [email protected]
    • [email protected] [email protected] [email protected]
    • Detailed timings: [email protected]
    • CEA video formats:
    • [email protected](59.94,60Hz)@4:3 [email protected]@4:3
    • [email protected]@16:9 [email protected](59.94,60Hz)@16:9
    • [email protected]@16:9 [email protected](59.94,60Hz)@16:9
    • Specific timings [email protected] [email protected] [email protected]
    • Interface Signal Details Video-input: Standard DVI-D interface specifications apply. DDC/EDID is supported.
    • Standard auxiliary Signals (including -A and -S versions):
    • L+R summed audio input: 47K ohms input impedance. A source device with 600 ohms maximum output impedance is recommended.(analog audio input mode).
    • Simplex RS-232 input: 4.75K ohms input impedance (RS-232 mode).
    • SPDIF input: 75 ohms input impedance (S/PDIF input mode).
    • Duplex (232) option module: Audio: Not supported.
    • Duplex input: 4.75K ohms input impedance.
    • Duplex (SA) or (SAP) option modules: Stereo L/R audio input: 10K ohms input impedance. A source device with 600 ohms maximum output impedance is recommended.
    • RS-232 input: 4.75K ohms input impedance.
    • Local-output Port Drive Impedance Standard DVI interface specifications apply (at local video-output port).
    • DDC/EDID is supported.
    • Audio Characteristics Standard (A) version: Left+Right summed audio.
    • (232) version: This option module does not support audio.
    • (SA) & (SAP) versions: Left/Right true stereo audio.
    • Embedded digital audio is not supported.
    • * For summed L+R analog-audio input, please select the 4th-pair configuration setting accordingly.
    • * For stereo analog-audio input, please use an SA or SAP option module.
    • Connectors Standard connectors:
    • (2) DVI-female: Video in/out
    • (1) RJ-45: MultiView CAT5 link output
    • (1) 4 position phoenix: Auxiliary signal input
    • (1) Coaxial (5.5mm OD, 2.5mm ID, 11mm L) jack: DC power input
    • For (232), (SA) or (SAP) versions:
    • (1) DB9-F: Serial I/O
    • EDID/DDC This module supports the EDID/DDC connections on the DVI-I connectors.
    • HDMI It is usually possible to connect to HDMI devices (via a plug-adapter or cable-adapter)
    • if the source device is providing un-protected content only (non-HDCP). Embedded HDMI audio is not supported
    • HDCP Not supported, even if a "HDMI-to-DVI" plug-adapter or cable-adapter is used.
    • CEC Not supported, even if a "HDMI-to-DVI" plug-adapter or cable-adapter is used.
    • Power Input voltage: +5 VDC @ 1.2 Amps max.
    • Consumption: 6 watts maximum
    • Environmental Operating temperature: 32 to 104°F (0 to 40°C).
    • Storage temperature: -4 to +140°F (-20 to +60°C).
    • Humidity: 80% RH, non-condensing.
    • Enclosure Steel (0.040"/1mm thick).
    • Powder-coat black paint, white epoxy graphics.
    • Size 1.2"H x 4.2"W x 4.3"D (3.1 x 10.4 x 10.9 cm)
    • Weight 1.0 lb. (0.45 kg)
    • MTBF 100,000 hours.
