Magewell Director One Portable 7-Inch Multi-Input Switching / Graphics / Monitoring & Streaming Device with 4G Modem

ITEM #: MGW-DIRECTOR-ONE MFG #: DIRECTOR ONE

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,599.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


DIRECTOR ONE - Overview

Control Your Content Creation the Way You Want

Combining multi-input switching, graphics, streaming, recording, and monitoring in one powerful device, Magewell Director One boasts a large 7" touchscreen that provides an expansive view for seamless control and monitoring. Equipped with a built-in 4G modem and both 4G and WiFi antennas, Director One ensures users have stable and reliable network connectivity anytime, anywhere. Designed for versatile production needs, Director One enables operators to produce live events and remote feeds with enhanced visibility and ease.

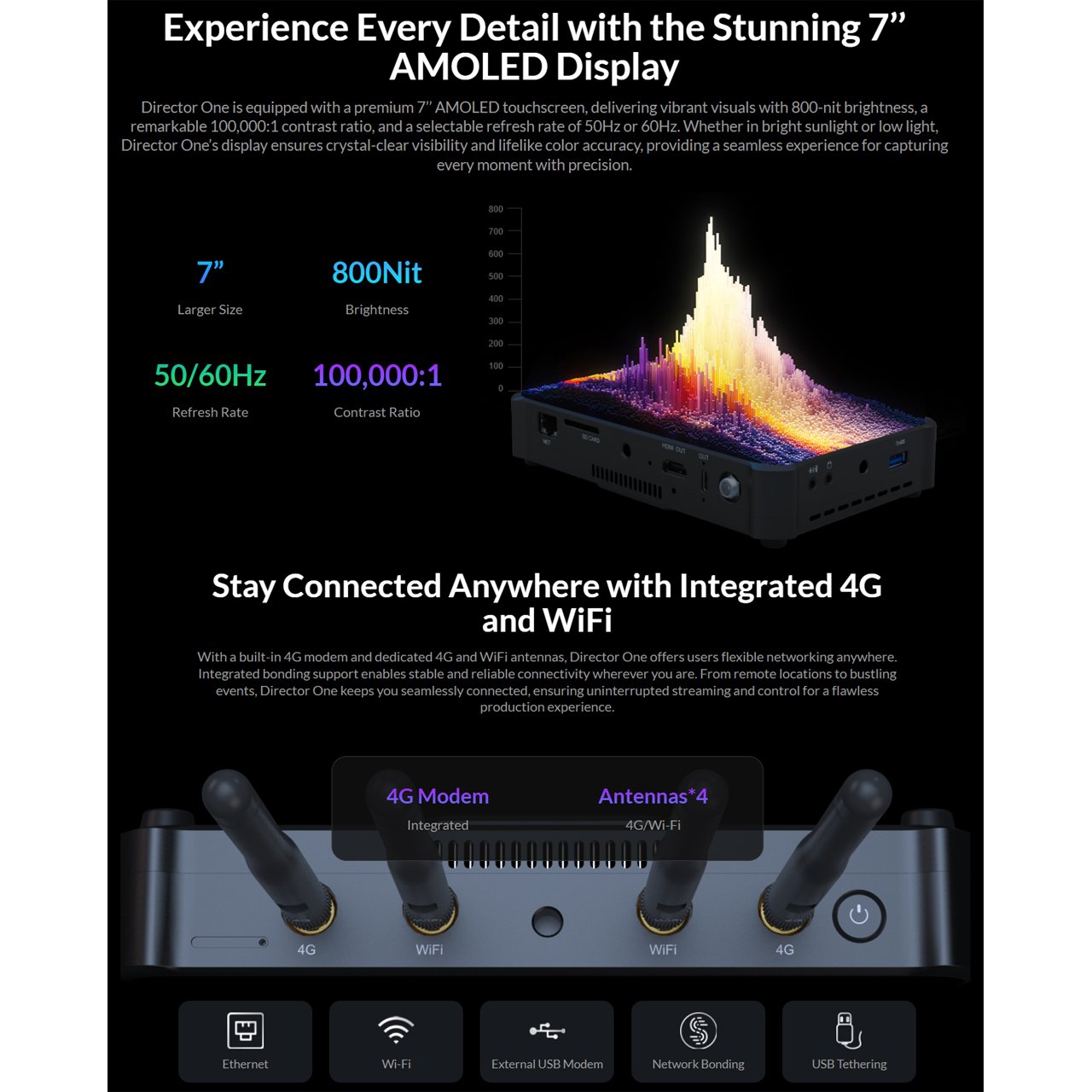

Experience Every Detail with the Stunning 7" AMOLED Display
Director One is equipped with a premium 7" AMOLED touchscreen, delivering vibrant visuals with 800-nit brightness, a remarkable 100,000:1 contrast ratio, and a selectable refresh rate of 50Hz or 60Hz. Whether in bright sunlight or low light, Director One's display ensures crystal-clear visibility and lifelike color accuracy, providing a seamless experience for capturing every moment with precision.

Stay Connected Anywhere with Integrated 4G and WiFi
With a built-in 4G modem and dedicated 4G and WiFi antennas, Director One offers users flexible networking anywhere. Integrated bonding support enables stable and reliable connectivity wherever you are. From remote locations to bustling events,

Please Note: SIM cards for cellular bonding are sold separately.

Expand Your View with HDMI Output
Director One features an HDMI output port, making it easy to connect to an external screen for a larger display experience. Connected touchscreen displays can even control the Director One in reverse, providing an intuitive and flexible way to manage productions.

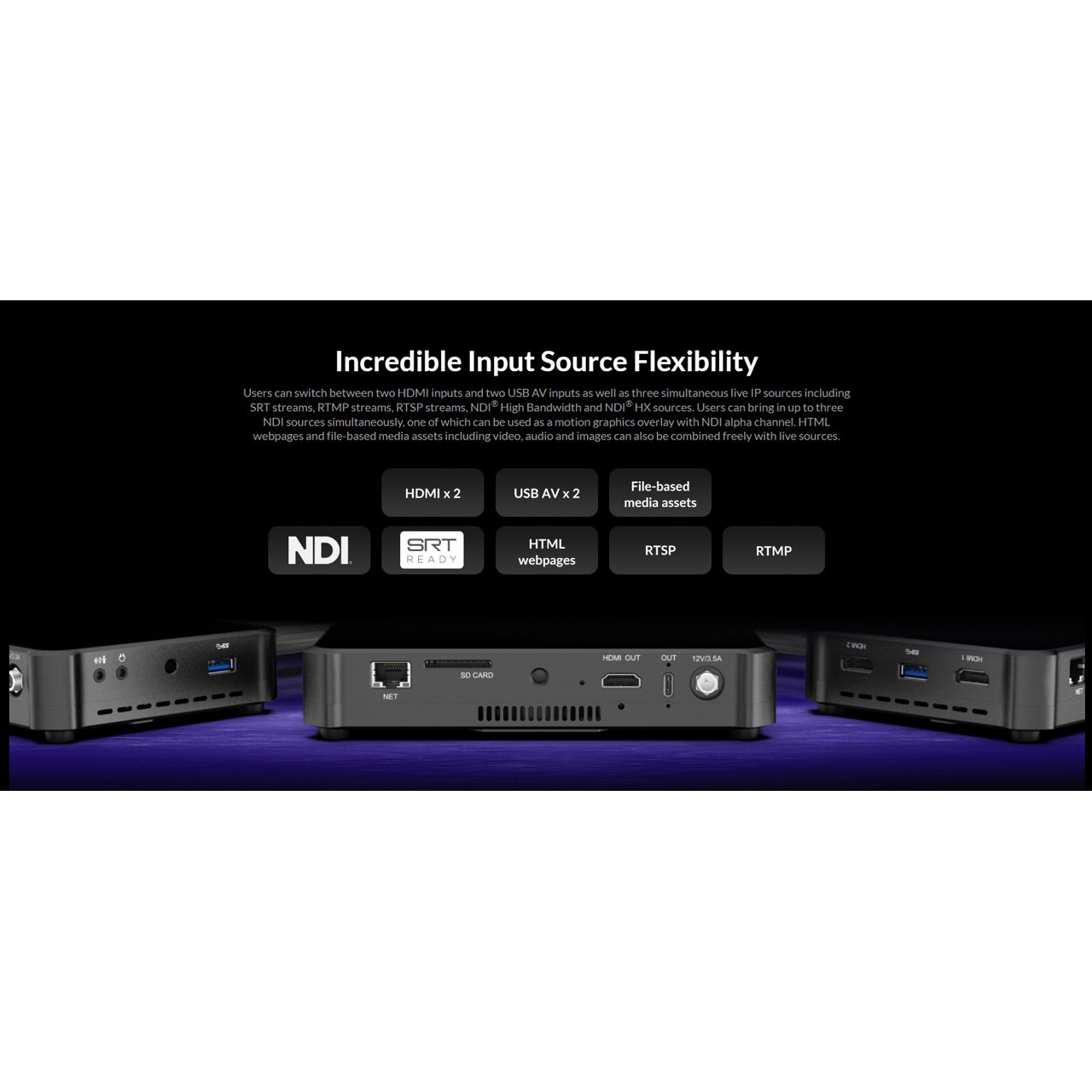

Incredible Input Source Flexibility
Users can switch between two HDMI inputs and two USB AV inputs as well as three simultaneous live IP sources including SRT streams, RTMP streams, RTSP streams, NDI® High Bandwidth and NDI® HX sources. Users can bring in up to three NDI sources simultaneously, one of which can be used as a motion graphics overlay with NDI alpha channel.

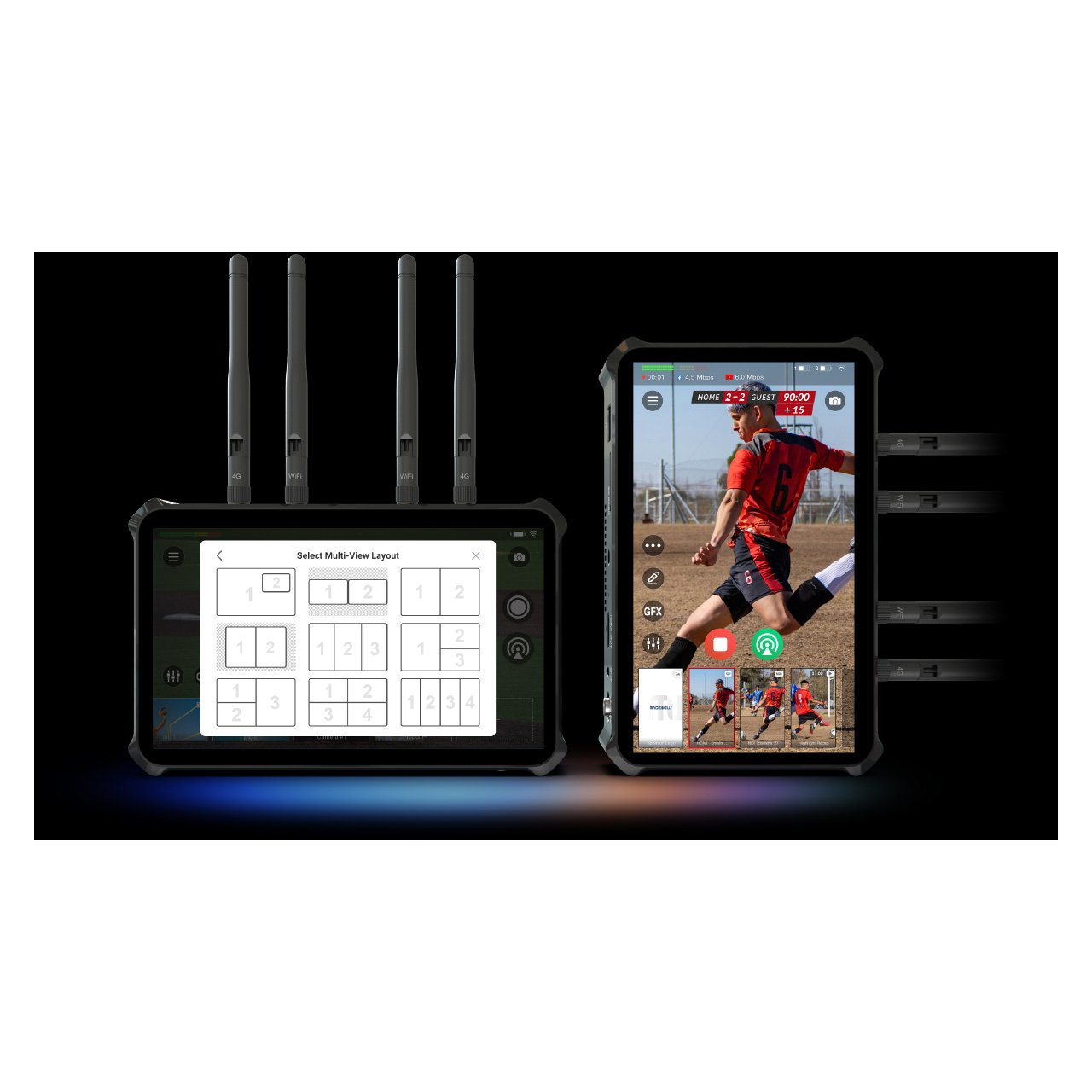

Flexible Layouts and Powerful Production Tools
Users can define multiple scenes that combine live video and audio inputs with network streams, media sources and graphics, then switch or transition between these scenes on the fly.

  • Features:

    • 7" AMOLED touchscreen with 800 nits brightness and 100000:1 contrast ratio
    • Supports flexible input sources ranging from AV and IP streams to media files
    • Intuitive user interface and companion App for scene editing and creating shows
    • Rich output possibilities including RTMP and SRT streams, NDI® HX and local displays

  • Specifications:

      Video Input
    • HDMI:
      - Port: 2x HDMI 2.0 Type-A
      - 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
      - 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
      - 1920x1080i 25/29.97/30
      - 1280x720p 23.98/24/25/29.97/30/50/59.94/60
      - 720x576p 50/100
      - 720x576i 25/50
      - 720x480p 59.94/60
      - 720x480i 29.97/30
    • Color depth: 8/10/12-bit
    • Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
    • USB:
      - Port: 2x USB 3.0 Type-A, 1x USB 3.0 Type-C
      - Format: YUYV, MJPG, NV12, UYUV
    • Resolution/frame rate:
      - Single USB-A: Up to 1920x1080p, 60fps
      - Single USB-C: Up to 1920x1080p, 60fps
      - Dual USB-A: Up to 1920x1080p, 50fps + 1920x1080p, 30fps
      - One USB-A + one USB-C: Up to 1920x1080p, 60fps + 1920x1080p, 60fps
    • Phone Camera:
      - Connection mode: LAN
      - Resolution/frame rate: Up to 1080p, 60fps
    • SRT Caller/Listener:
      - Codec: H.264, H.265
      - Resolution/frame rate: Up to 1080p, 60fps
    • RTMP Pull/Push:
      - Codec: H.264
      - Resolution/frame rate: Up to 1080p, 60fps
    • RTSP stream:
      - Codec: H.264, H.265
      - Resolution/frame rate: Up to 1080p, 60fps
    • NDI Stream:
      - NDI HX2, NDI HX3, NDI High Bandwidth
      - Codec: H.264, H.265
      - Resolution/frame rate: Up to 1080p, 60fps
    • Video:
      - Resolution: Up to 4K
      - Codec: H.264, H.265
      - Format: MOV/MP4
    • Picture:
      - Format: JPEG/PNG/BMP

      Audio Input
    • Mic/line in: 1x 3.5mm jack, 2-ch, 48 KHz, 16-bit
    • HDMI port: 2-ch, 48 KHz, 16-bit
    • USB port: 2-ch, 48 KHz, 16-bit
    • Bluetooth: 2-ch, 48 KHz, 16-bit
    • Phone Mic
    • SRT, RTMP, RTSP, NDI streams

      Video Output
    • Streaming & recording
    • Codecs: H.264, H.265
    • Resolutions: 1080p, 720p, 540p, 360p (NDI)
    • Frame rates: 60/59.94/50/30/29.97/25/24/23.98/15 fps
    • Bitrates:
      - NDI HX3: up to 62.0Mbps, down to 1.5Mbps
      - Others: up to 30.0Mbps, down to 256kpbs
      - Bitrate modes: VBR, CBR
    • USB-C:
      - Port: 1x USB 3.0 Type-C
      - Output mode: UVC/UAC
      - Resolution: 1920x1080,1280x720
      - Frame rate: 60/59.94/50/30/29.97/25/24/23.98fps
      - Sampling format: RGB24, YUYV, NV12
    • HDMI OUT:
      - Port: 1x HDMI 2.0 Type-A
      - Resolution: 1920x1080
      - Frame rate: 60fps, 50fps
      - Sampling format: RGB 4:4:4

      Audio Output
    • 2-ch, 16-bit, 48 KHz, aac, 64kbps/96kbps/128kbps
    • 1x 3.5mm jack, 2-ch, 48 KHz, 16-bit
    • Bluetooth: 2-ch, 48 KHz, 16-bit
    • USB-C port: 2-ch, 48 KHz, 16-bit
    • USB-A port: 2-ch, 48 KHz, 16-bit/24-bit/32-bit
    • HDMI OUT port: 2-ch, 48 KHz, 16-bit

      Network
    • Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
    • WiFi: 2.4G/5G, Station and Hotspot modes
    • Cellular Bonding:
      - 1x 4G SIM card slot (SIM not supplied)
      - USB modem supported (not supplied)
    • Bluetooth: BT 5.0
    • USB tethering support

      Screen
    • Size: 7"
    • Type: AMOLED
    • Aspect ratio: 16:9
    • Resolution: 1920x1080
    • Brightness: 800nit
    • Contrast ratio: 100000:1
    • Color gamut: 100% NTSC
    • sRGB: 145%
    • DCI-P3: 105%
    • Color depth: 10-bit
    • PPI: 315
    • Refresh rate: 60Hz, 50Hz
    • Touchscreen: Capacitive

      Storage
    • Local storage: 64 GB
    • SD card (not supplied): FAT32 (Under 128G), NTFS, exFAT

      Dimensions
    • 7.29" x 4.61" x 1.29"

      Power
    • AC power:
      - Power input: 12V/3.5A
    • Battery pack:
      - 2x DC 7.4V (NP-F battery not supplied)
      - Hot swappable
    • Power consumption:
      - No-load: ≈6W
      - Full-load: ≈27W

  • Item Includes:

    • 1x Director One
    • 1x Power adapter
    • 1x Sunhood
    • 1x USB Type-C to Type-A cable
    • 1x USB-A to USB-C adapter
    • 2x Thumb screws
    • 1x SIM card ejector tool
    • 2x Wi-Fi antennas
    • 2x 4G antennas
    • 1x Quick Start Guide
