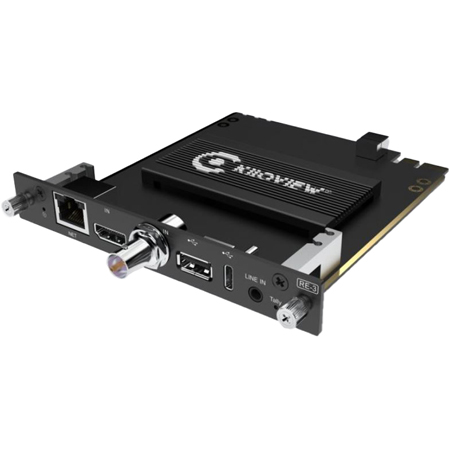

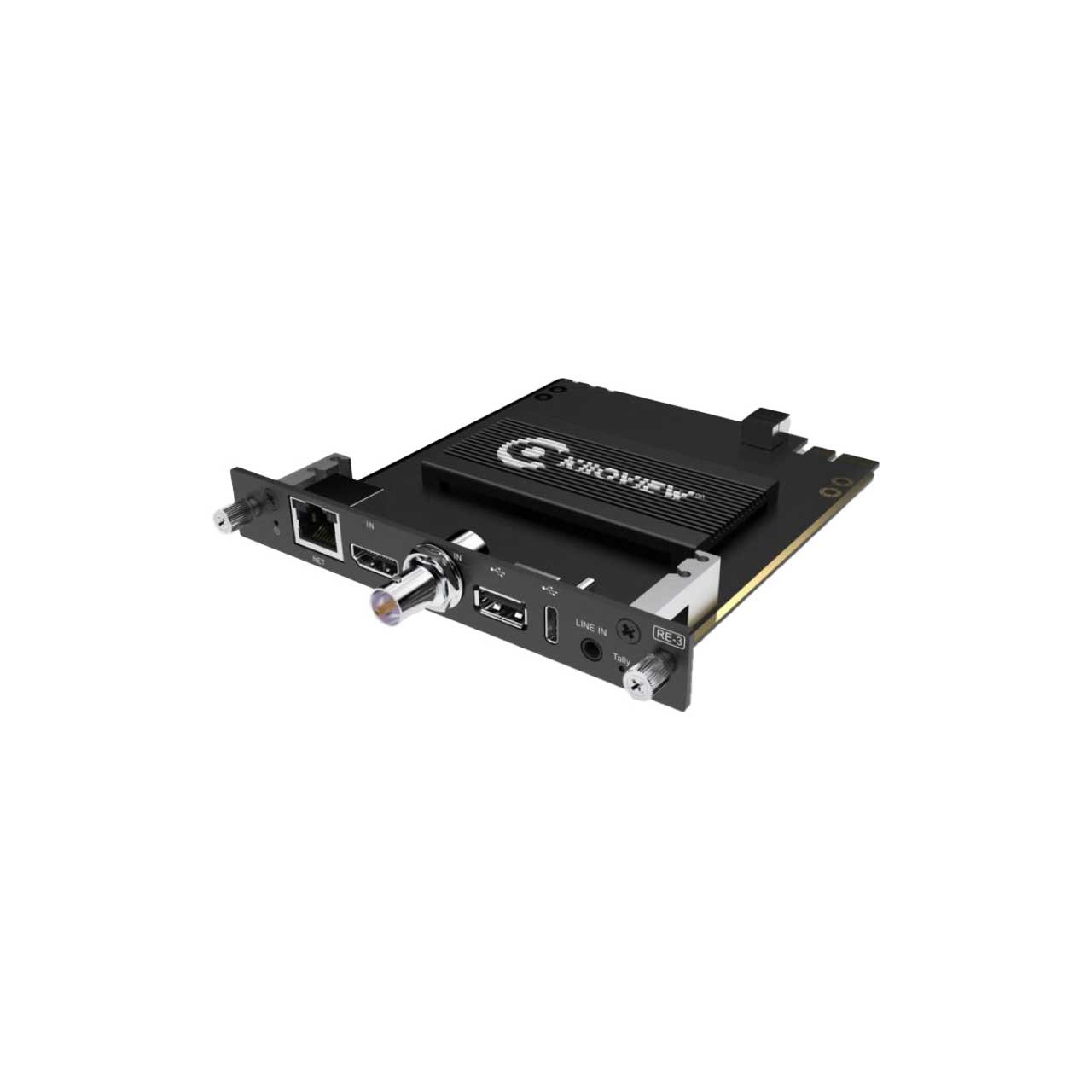

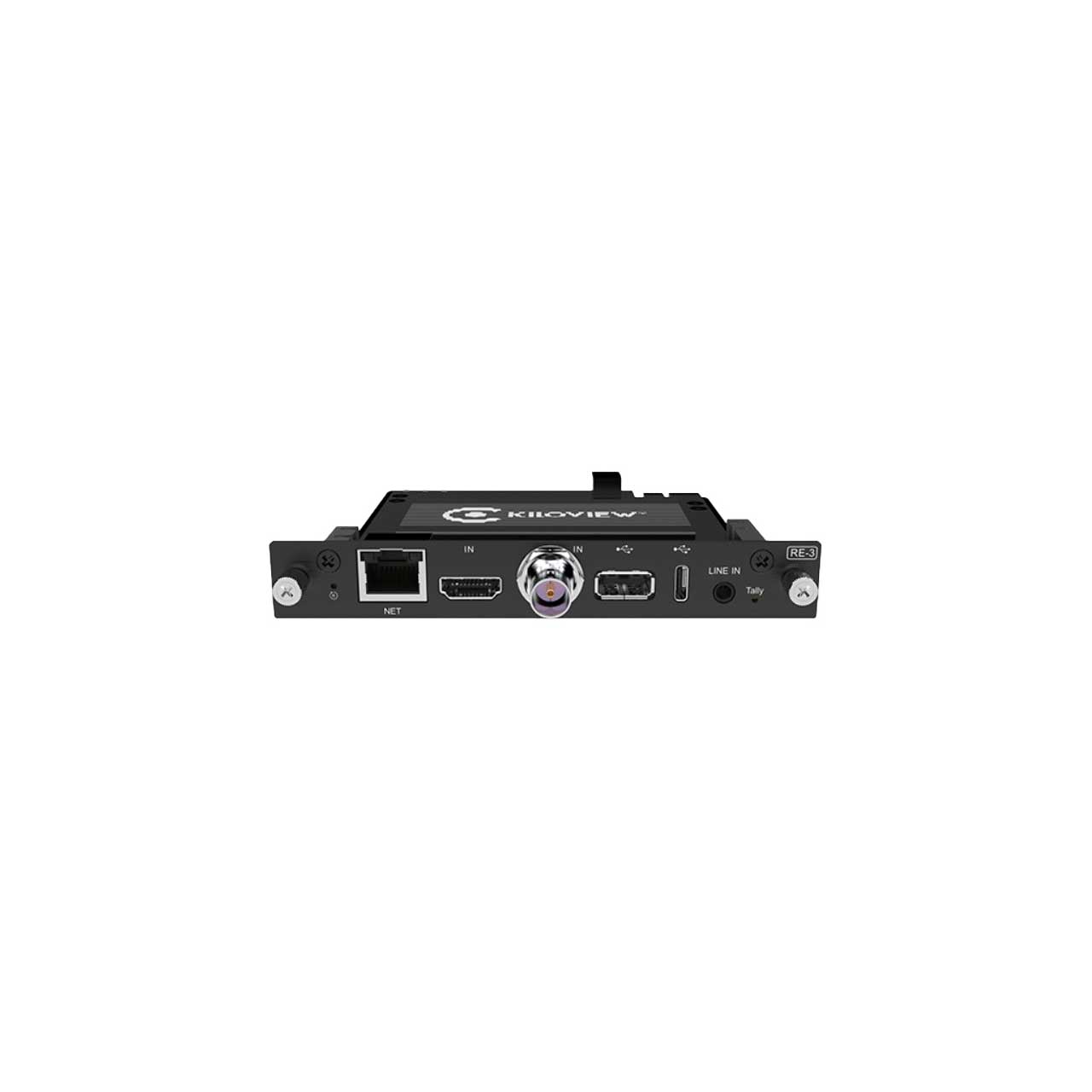

Kiloview RE-3 4K Cradle Series HDMI/3G-SDI Input Video Encoding Card

ITEM #: KV-RE-3 MFG #: RE-3

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$449.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    RE-3 - Overview

    RE-3 Dual-channel 4K Rackmount Encoder
    Kiloview RE-3 is the latest version of the Cradle series rackmount encoder, which enhances the capabilities of their previous RE-1 V2 and RE-2. RE-3 has all the same great features of the original RE series rackmount encoder, but now it gets the same encoding performance as our E3 including 4K and dual video inputs support. With the upgraded encoding capabilities of RE-3, you can now encode 4K video at up to 30 frames per second or HD video at up to 60 frames per second. Dual-channel video inputs provide users with the highest level of flexibility, allowing them to encode both videos in multiple ways. HEVC technology also enables users to live stream to up to 8 destinations simultaneously. RE-3 is a versatile and cost-effective solution for video encoding in various industries. It can be used for live production, live streaming, remote transmission, and post-production.

    • Features:

      • HDMI encoding and 3G-SDI encoding up to 4Kp30 / 1080p60
      • HDMI input with 4-channel embedded audio
      • 3G-SDI input with 8-channel embedded audio
      • H.265/H.264 codec and multiple IP streaming protocols support including NDI|HX2, NDI|HX3, SRT, RTMP/ RTMPS, HLS, TS over UDP, RTP/RTSP
      • Mix both video inputs as one output or simultaneously encode both video inputs in 1080p
      • Up to 8 destinations live streaming available
      • High-quality video deinterlacing
      • Multiple audio encoding formats support including AAC/MPEG-4/MPEG-3/MPEG-2/Opus/G.711
      • OSD available
      • Low capture/encoding latency
      • NTP server support
      • Local and NAS recording
      • KiloLink Server
      • Kiloview Intercom System (KIS)

    • Specifications:

      • Input: 1x 3G-SDI, 1x 4K HDMI

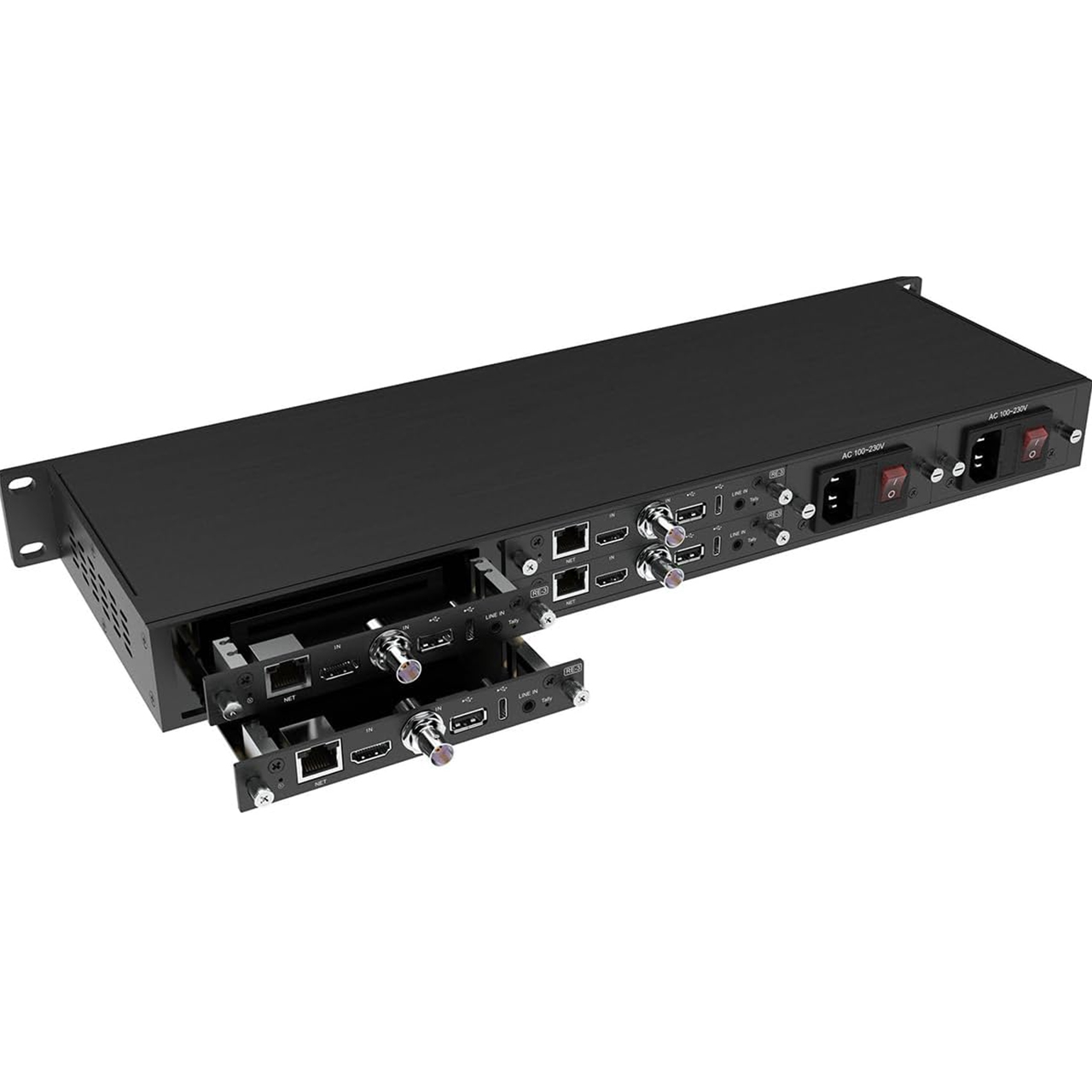

      • Applicable frame: RU01, RU03, RU03S
      • Analog audio port: 1x 3.5mm
      • NDI/HX: NDI/HX2/NDI/HX3
      • Protocols: NDIHX2/NDIHX3*/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/RTSP Onvif (Extensible for SIP/GB-T2818)
      • Video codec: H.265(HEVC)/H.264(AVC)
      • Resolution: HDMI: up to 4Kp30, 3G-SDI: up to 1080p60
      • Network: 1x 10/100M/1000M RJ45 Ethernet Port
      • Audio encoding: AAC/G.711
      • Image and text overlay: User-defined text and image overlay
      • Video rotation and cropping: Support
      • Management Portal: Web UI and remote management with KILOVIEW KiloLink Server

    • Item Includes:

      • 1x Kiloview RE-3 4K Cradle Series HDMI/3G-SDI Input Video Encoding Card

    • GTIN:

      0710917166613
