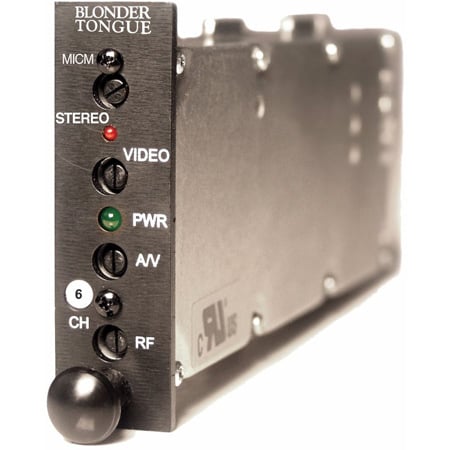

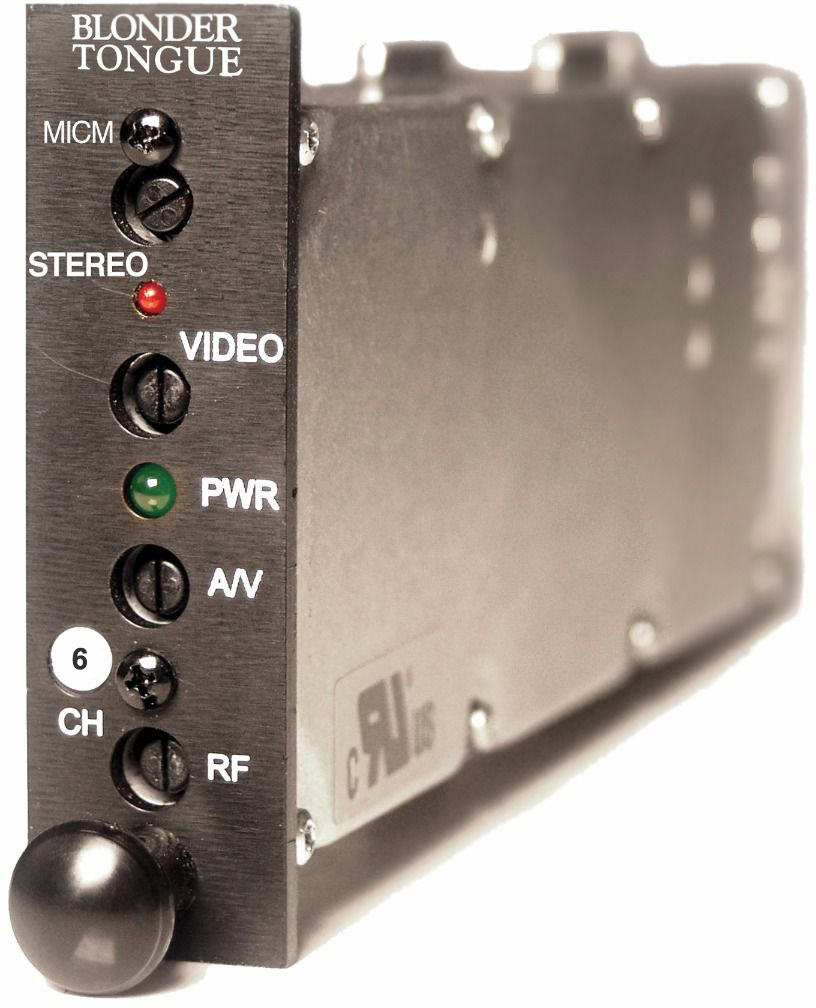

Blonder Tongue MICM-45S Module Stereo AV Modulator 45dB 54-600 MHz Channel 6

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Blonder Tongue MICM-45S Module Stereo AV Modulator 45dB 54-600 MHz Channel 6

    Item #: MICM-45S-6   •   MFG #: 7797S 600 CH6



    List Price:$235.00
    Our Price:$219.89

    free ship


    Channels:



    Availability:
    More on the way, usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The MICM-45S is a professional quality,channelized, heterodyne stereo A/V modulator providing a stereo audio and video modulated RF carrier on any single VHF channel. It provides modulated RF carrier output on any single VHF channel, including: broadcast TV (2-13), CATV (14-135). It is ideal for placing audio and video onto any unused VHF channel. Any standard audio/video source can be used, such as satellite receivers, television cameras, video tape recorders, or television demodulators. The MICM-45 utilizes SAW filtering with FCC group delay pre-distortion to provide true vestigial sideband selectivity which makes it perfect for use in adjacent channel systems. The MICM-45C takes base band audio and video and modulates these signals onto the desired output channel. The MICM-45S takes base band L/R audio and video and modulates these signals into the desired output channel. The heterodyne conversion process used in the unit employs a crystal referenced, PLL synthesized local oscillator. This guarantees rock solid, no-drift output for the life ofthe modulator. The MICM-45 meets FCCDocket 21006 aeronautical frequency off set requirements (±5 kHz video carrier accuracy).The modulator accepts standard polarity (sync negative) video in the range of 0.7 to 2.5 V pp. It has field defeatable audio pre-emphasis to provide stereo compatibility with any external BTSC stereo generator providing a composite stereo baseband output.


      • Features

        • 5-860 MHz Channelized Audio/Video Modulator SAW Filtered to True Adjacent Channel Response Die-Cast Chassis Offers Superior Protection Against Ingress or Egress Front Panel Accessible Level Controls for Easy Set-Up and Adjustment Integrated Stereo Encoder
