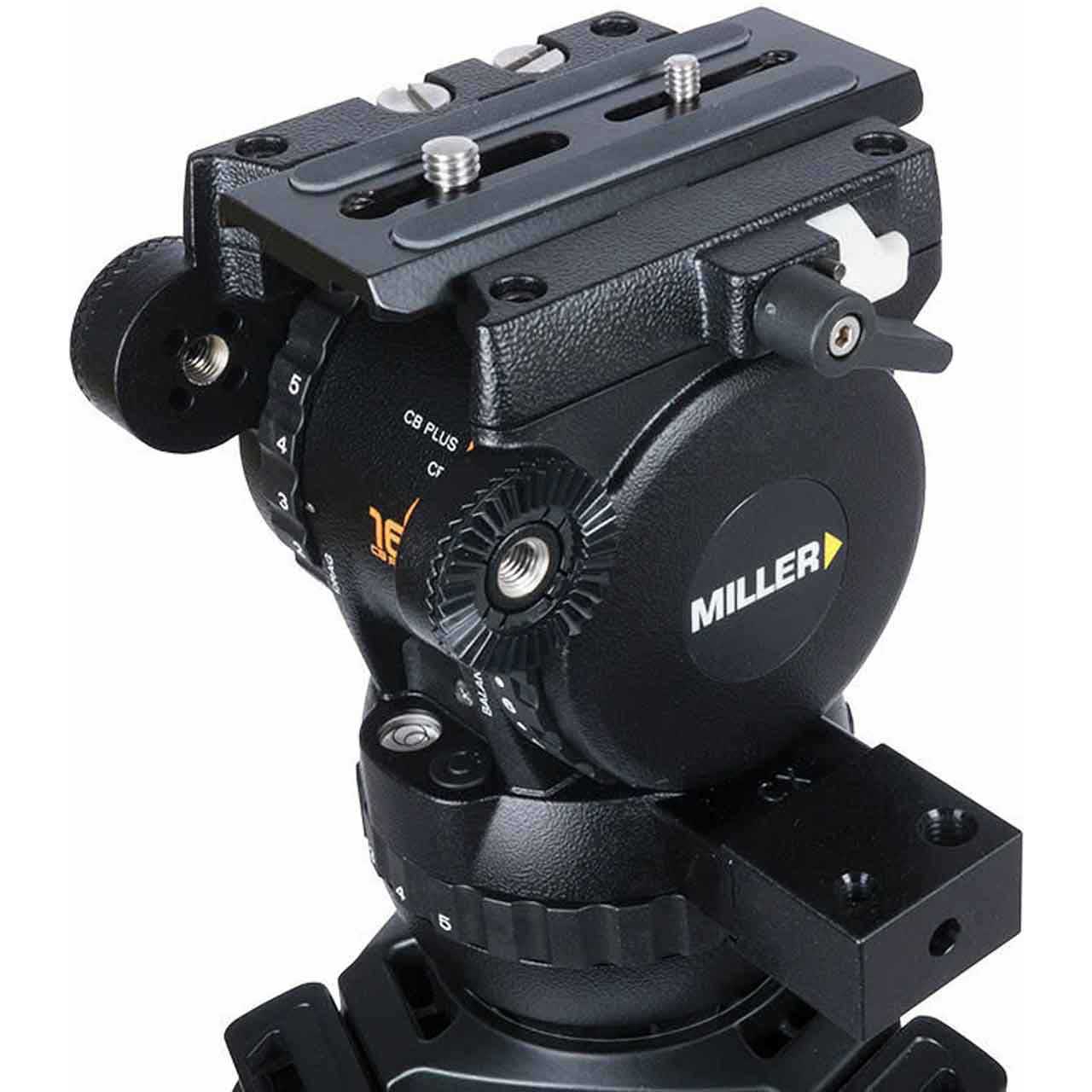

Miller 1090 CX2 Ball Levelling Video Fluid Head

ITEM #: MIL-1090 MFG #: 1090

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    1090 - Overview

    The Miller CX2 is an exceptional ball levelling fluid head designed for "on the go" creative professionals needing a versatile and affordable solution with uncompromised performance. Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, CX2 is capable of balancing payloads from 0kg to 8kg. It features advanced precision fluid drag, intuitive controls, and fast set-up.

    The CX2 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 settings of Miller's unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.

    Constructed of lightweight high-strength die-cast alloy and tough composite polymers and featuring precision ball bearings Miller have combined robust engineering with silk smooth pan and tilt camera movements. Built for extreme conditions the CX2 performs consistently over a wide range of temperatures and environments giving you confidence when out on a shoot.

    Versatile and light weight, CX2 makes a great choice for applications such as news gathering, documentary, wildlife and filmmaking. The CX2 meets the demands for reliability and "THE RIGHT FEEL" that are hallmarks of Miller, enabling you to tell your story.

    • Features:

      • Compact, light and versatile.
      • 75mm ball levelling.
      • Perfect for payloads to 0-8kg (17.6lbs).
      • 15+0 CB Plus selectable counterbalance positions.
      • Ergonomically located CB Plus switch.
      • 3+0 selectable positions of fluid pan and tilt drag.
      • Positive selection radial ring controls.
      • Illuminated bubble level.
      • Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
      • Side loading, 60mm balance travel camera plate with 1/4" and 3/8" screws.
      • Robust construction for rugged outdoor shooting conditions.
      • Side mounting point for viewfinders and accessories.
      • Optional second pan handle mount.
      • 3 year warranty.
    • Specifications:

      • Weight: 2.3kg (5.1lbs)
      • Payload range: 0 - 8.0 kg (0 - 17.6lbs)
      • Pan/tilt drag: 3 selectable fluid drag positions + 0
      • Counterbalance: 16 selectable positions (15 + 0)
      • Pan/tilt lock: Positive lock caliper brake system
      • Tilt range: + 90° / -75°
      • Pan range: 360°
      • Camera platform: Quick release, side load camera plate
      • Sliding range: 60mm (2.4")
      • Mounting base: 75mm (2.9") ball levelling
      • Height above bowl: 167mm (6.6")
      • Illumination: Bubble level
      • Pan handle: Fixed 390mm (15.4")
      • Temperature range: -40° to +65° C (-40° to +149° F)
    • Item Includes:

      • 1x Miller 1090 CX2 Ball Levelling Video Fluid Head
    • Warranty:

      • 3 Year Warranty
    • GTIN:
