Miller 2090 Cineline 70 HD MB 1-Stage Alloy Tripod System with HD Ground Spreader

ITEM #: MIL-2090 MFG #: 2090

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MIL-2090

2090 - Overview

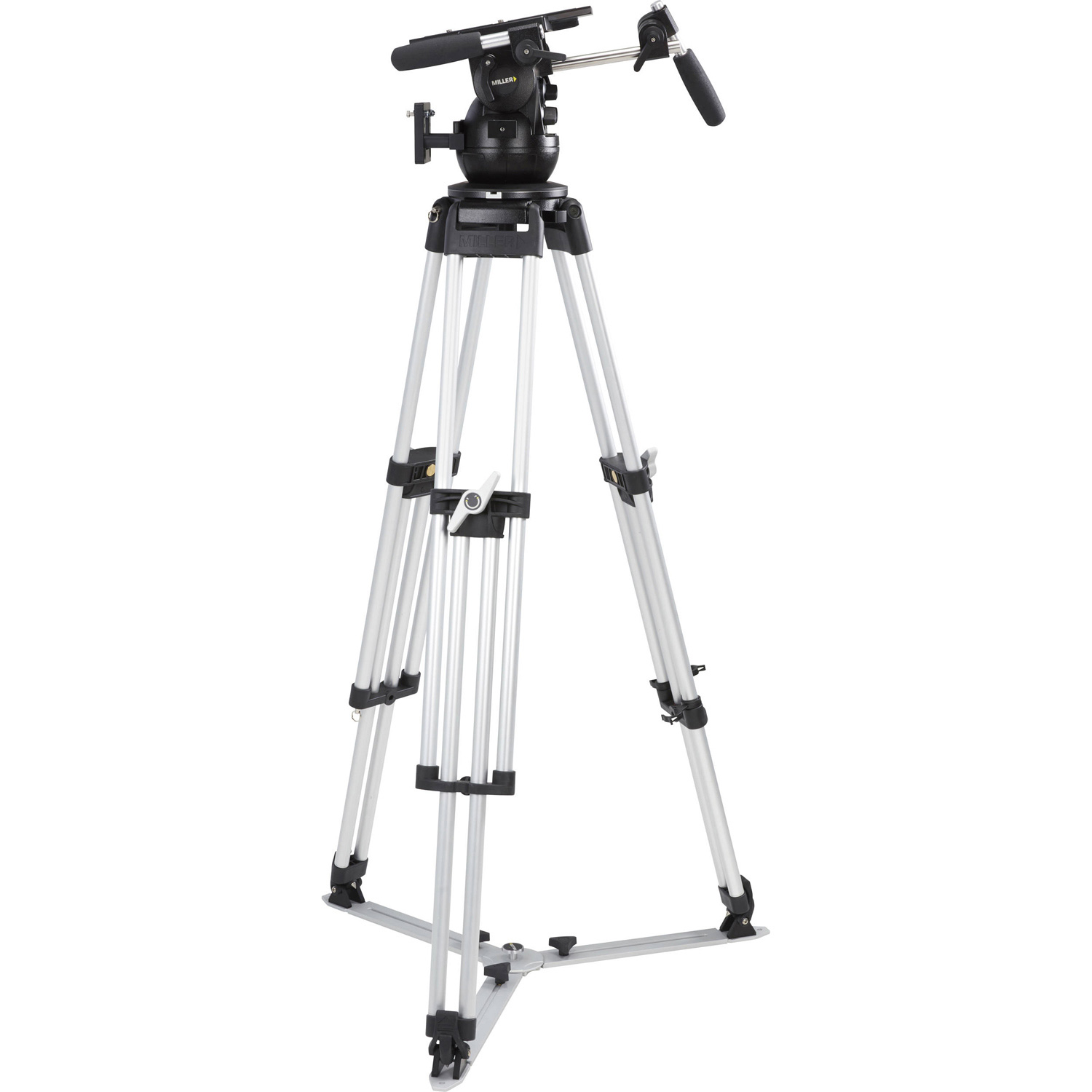

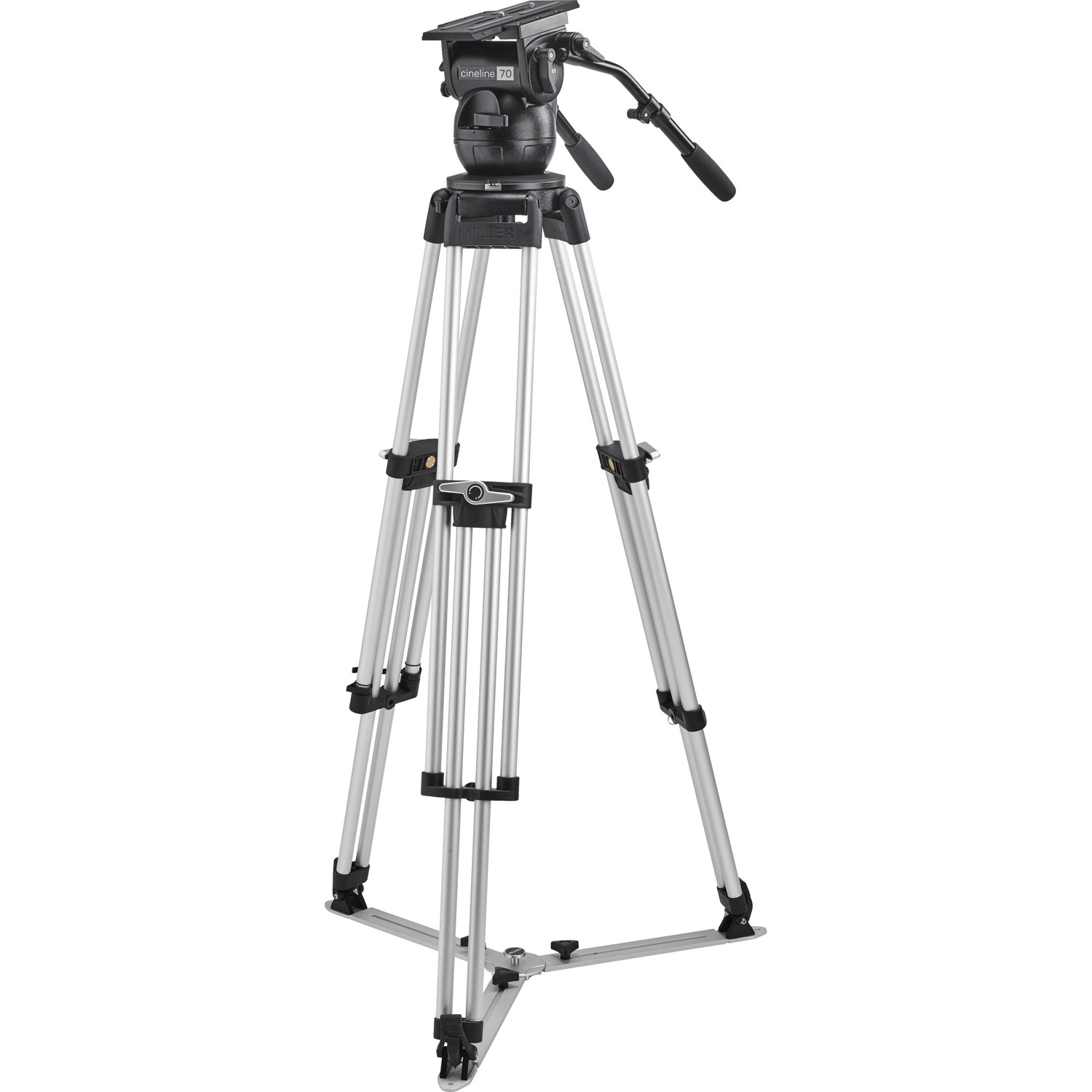

The 2090 Cineline 70 HD MB 1-Stage Alloy Tripod System includes a new HD Mitchell Base 1-Stage Alloy Tripod and HD Alloy Ground Spreader to complement the robust Cineline 70 Fluid Head. This premium product, with proven solid build quality, aims to help cinematographers capture content with ease.

Components of the 2090 Cineline 70 HD MB 1-Stage Alloy Tripod System include: Cineline 70 Fluid Head (1055), Mitchell Base Adaptor with Clamp (1225), HD MB 1-stage tripod (alloy) (2110G), and HD Ground Spreader (2130).

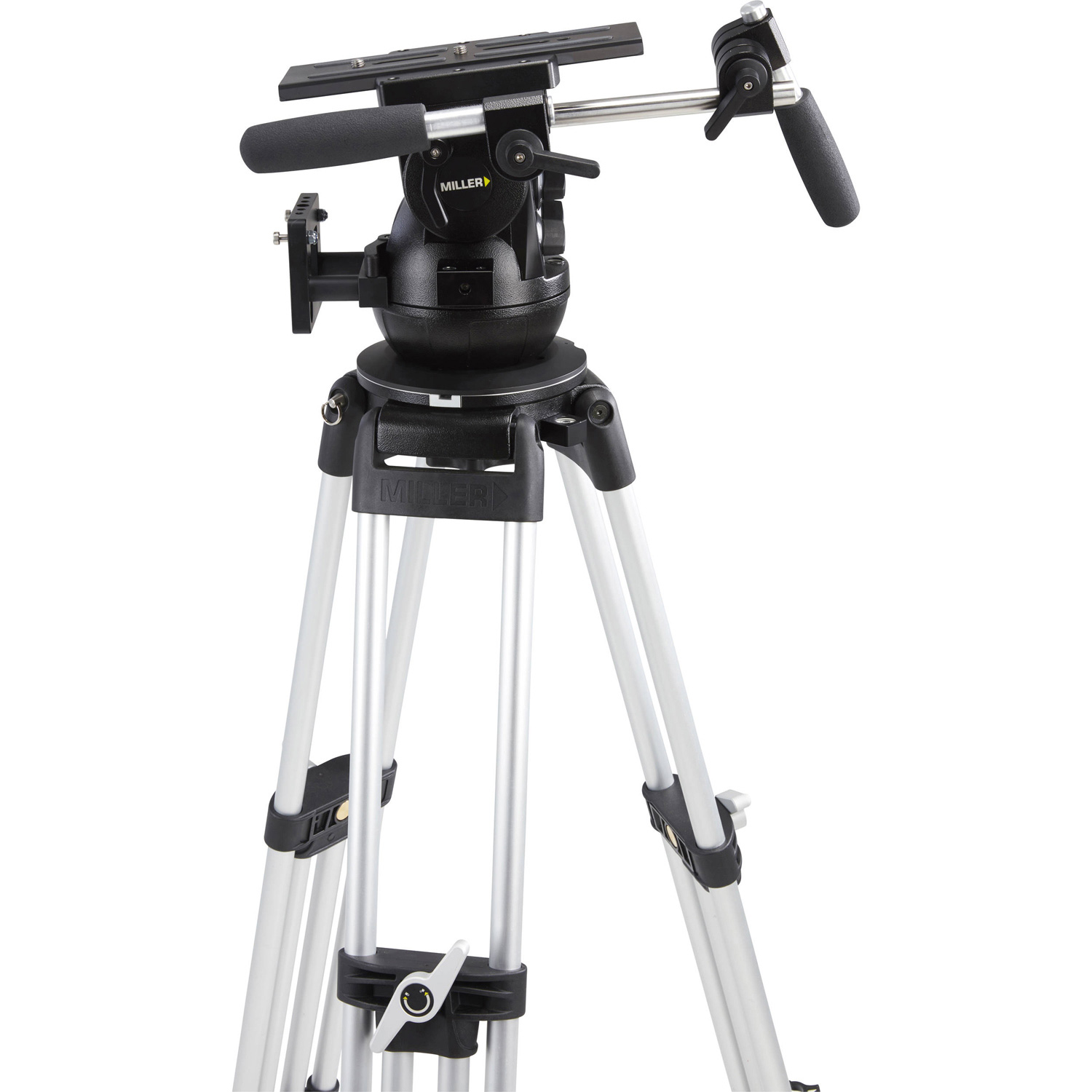

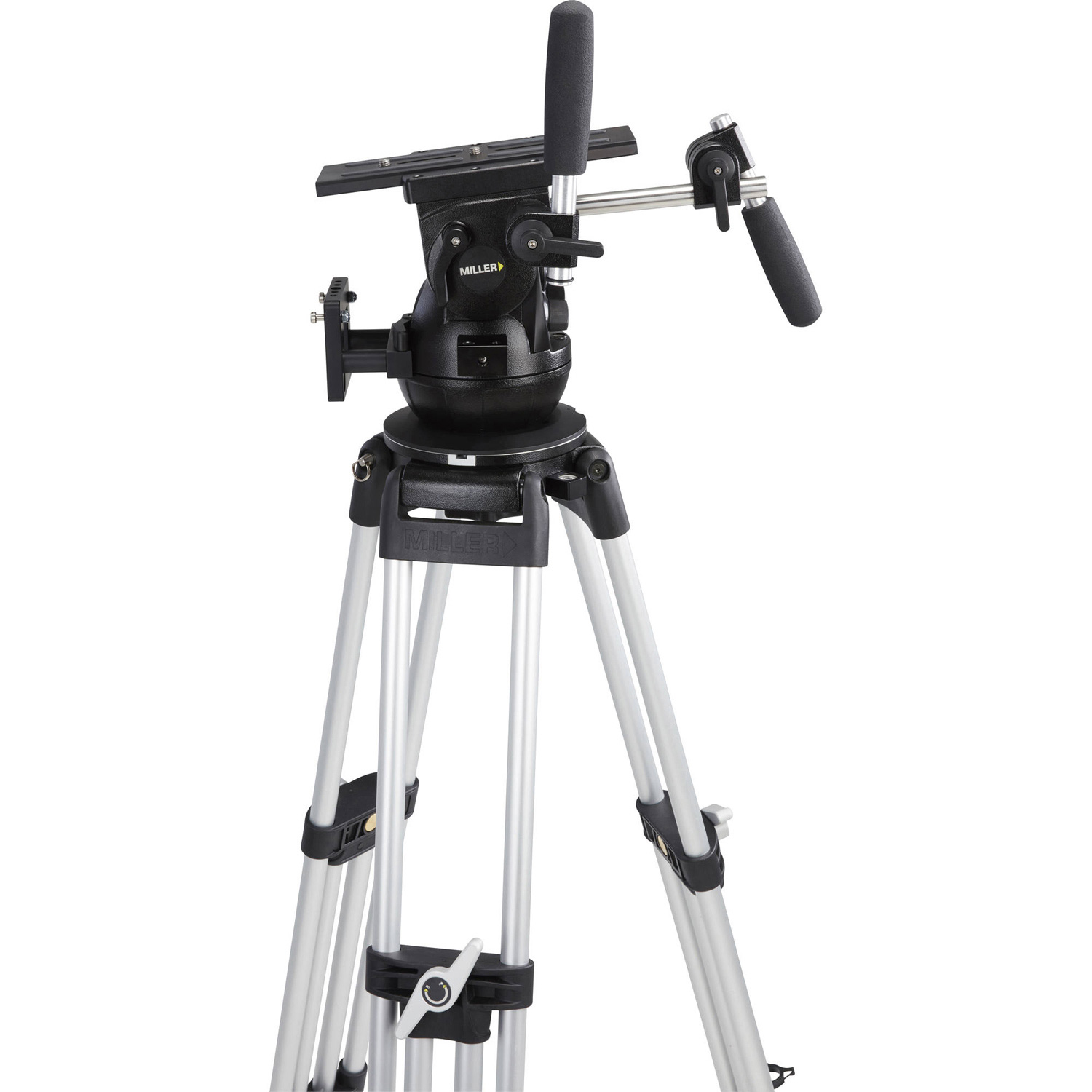

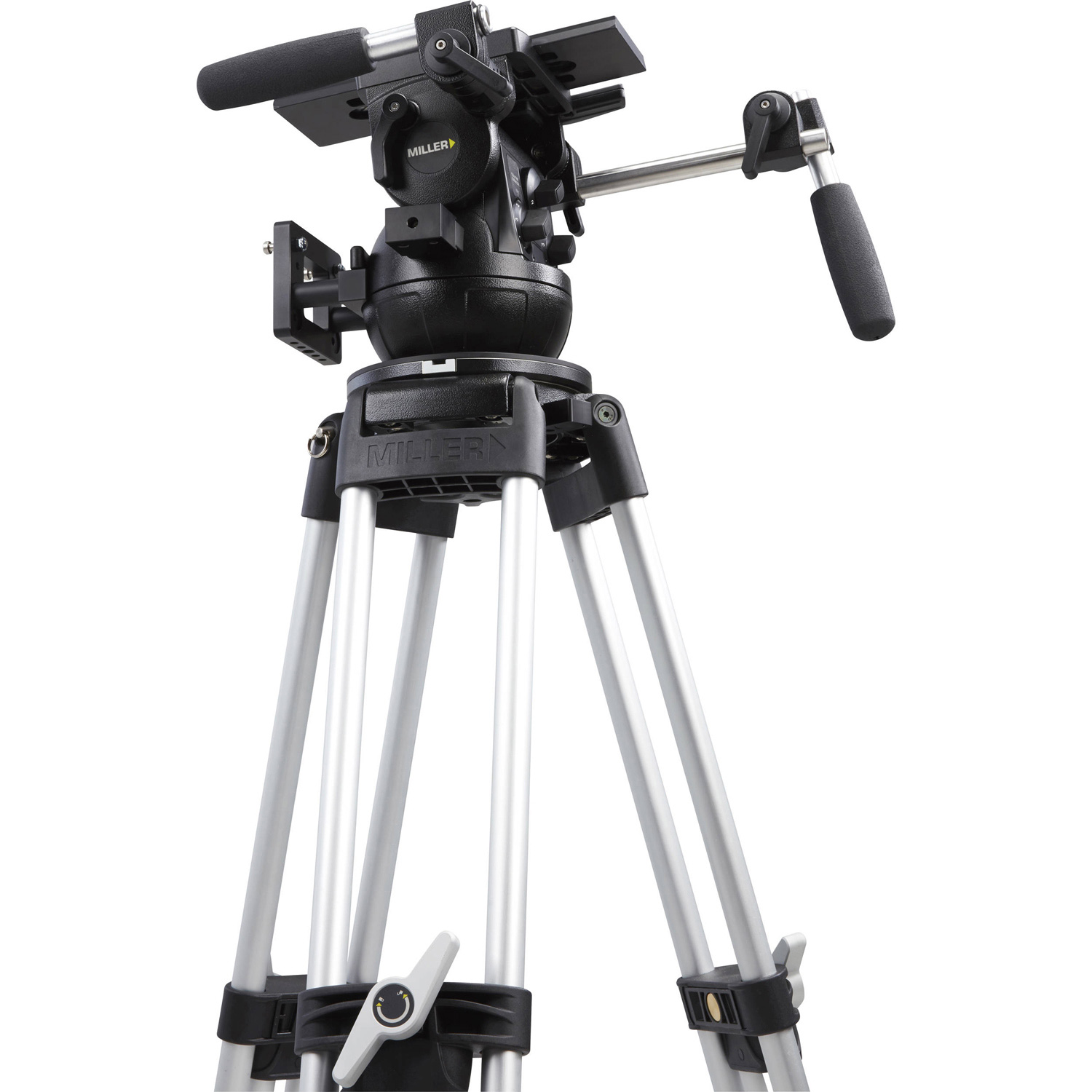

The Cineline 70 Fluid Head is exactly what passionate creatives need. Designed for cinematic productions, the Cineline 70 brings a new dimension to professional camera support. Incorporating advanced precision fluid drag and counterbalance systems operated through rear mounted “all in one location" with unique illumination of all controls and bubble level, the Cineline 70 makes it even faster and easier than ever before to set up and capture the action.

With an extended 7+0 position fluid drag system employing smooth start and soft stop technology, well balanced diagonal drag transition, 8 counterbalance settings plus 150mm camera plate balance travel, the Cineline 70 offers a fast reliable set up you can trust and is versatile enough to use over a wide array of camera configurations. It is built to deliver consistent performance and drag resistance with no variation over a wide range of temperatures and environments.

Constructed of lightweight, high-strength, die-cast alloy and rigid composite polymers and featuring precision ball bearing supported pan and tilt movements, Cineline 70 is extremely durable and robust delivering silky smooth pan-tilt fluid actions to match camera payloads up to 37.5kg (82.5Ibs).

HD MB 1-Stage Tripod (alloy) features adjustable flip locks for quick setup and easy maintenance and the solid single stage 150mm alloy support offers stable studio camera support. The HD Ground Spreader, included with this system, is lightweight and high-strength machined.

The 2090 Cineline 70 HD MB 1-Stage Alloy Tripod System finishes out with the Mitchell Base Adaptor with Clamp featuring Universal tripod fit and Universal fit to Pedestal and 150 ball level fluid heads.

  • Features:

    • Quick and easy to operate “all in one location" rear mounted controls
    • Drag control with ultra soft starts and smooth stops
    • Perfect diagonal drag transitions
    • Side loading camera platform, 150 mm travel with Arri type camera plate
    • Illuminated controls and bubble level
    • Dual side mounts for monitors and accessories
    • Front mount for camera assistants accessory box adaptor
    • Water and dust resistant alloy construction
    • Rock solid heavy duty Mitchell base tripod with built-in-bubble level
    • Robust heavy duty ground spreader
    • 3 year warranty

  • Specifications:

    • Material: Alloy/rubber
    • Construction: Single Stage
    • Maximum Height: 1549 mm (61 in)
    • Minimum Height: 737 mm (29 in)
    • Mounting Standard: 150mm Ball Levelling
    • Payload Capacity: 45.00 kg (99.2 lbs)
    • Payload Range: 4.5-37.5kg
    • Transport Length: 946 mm (37.2 in)
    • Weight: 15.80 kg (34.8 lbs)

  • Item Includes:

    • Cineline 70 Fluid Head (1055)
    • Mitchell Base Adaptor with Clamp (1225)
    • HD MB 1-stage tripod (alloy) (2110G)
    • HD Ground Spreader (2130)

  • Warranty:

    • 3 Years

  • GTIN:

    9354041000996
