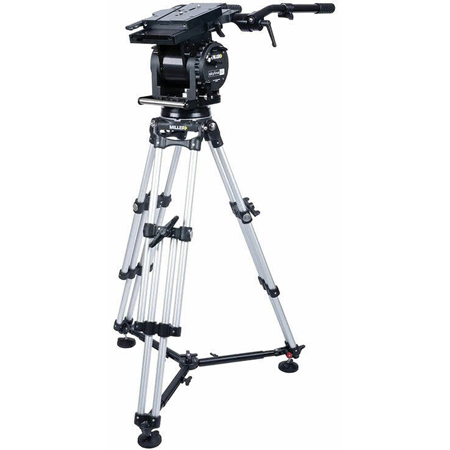

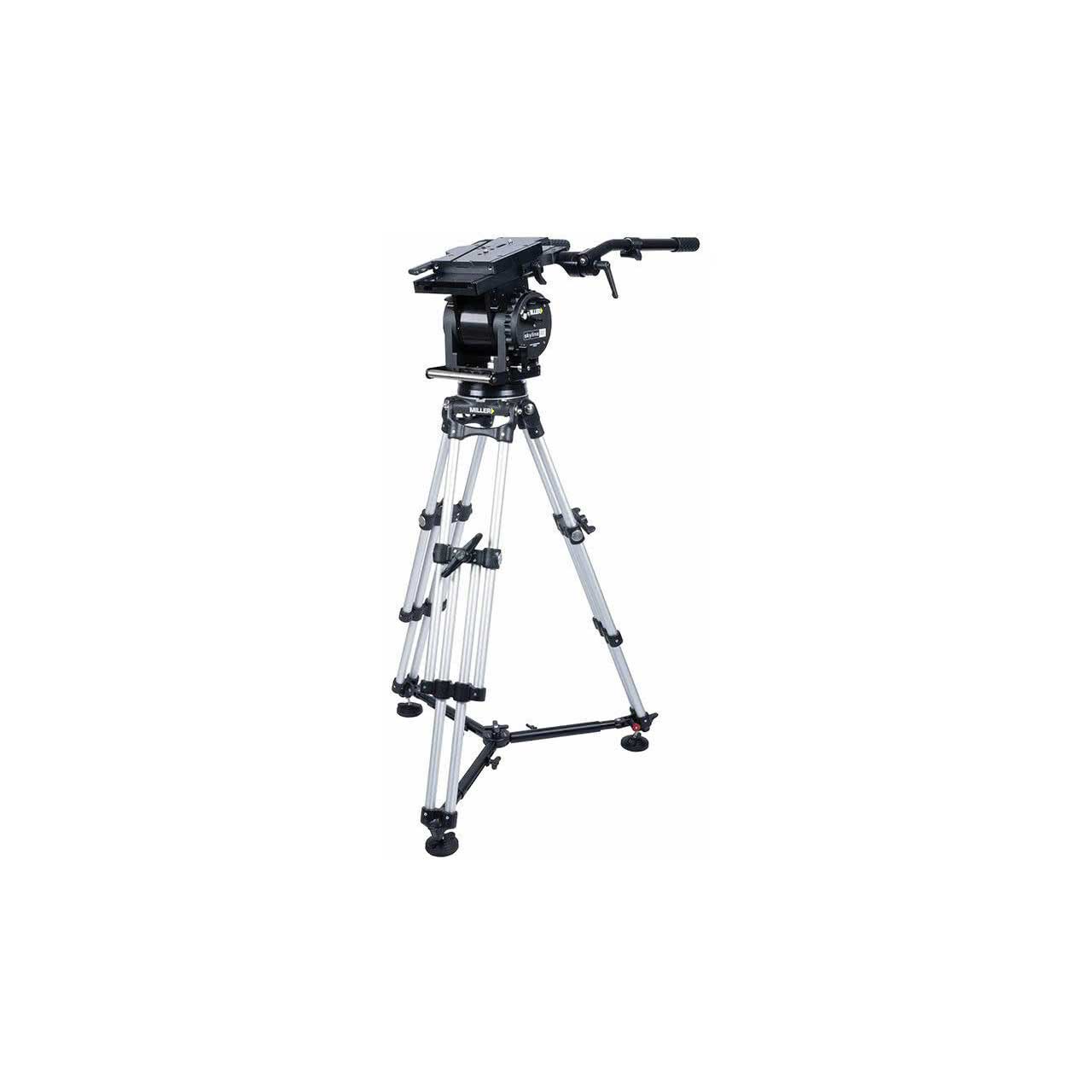

Miller 3404 Skyline 90 HD 1 Stage Alloy Tripod System with Fluid Head and Transport Cases

ITEM #: MIL-3404 MFG #: 3404

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$33,082.00

Our Price:

$26,796.42

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


3404 - Overview

The Skyline 90 is a heavy duty fluid head designed to meet the challenging requirements of outside broadcast productions. Reliability, ease of setup, smooth pans, tilts, diagonals and user ergonomics form the hallmarks of this revolutionary head.

The Skyline 90 has continuous counterbalance control that ranges from zero to 165 lbs. (75 kg.) at 12 in. (30 cm.) above the tilt axis and 15+0 selectable fluid pan-tilt drag positions to ensure optimum drag for any lens focal length. The sliding platform features 300mm of sliding range that glides smoothly and effortlessly with full payload. Skyline 90 also comes with an auto safety lock to ensure a secure horizontal position when loading or dismantling heavy box lenses.

The Skyline system comes with all head accessories and is coupled with the HD 1-stage tripod and off-ground spreader giving ultimate stability on a variety of surfaces.

  • Features:

    • 15 selectable fluid pan-tilt drag positions + 0.
    • Continuous counterbalance control knob for perfect counterbalance adjustment.
    • Perfect for payloads up to 75kg (165lbs) at 30 cm above central tilt axis.
    • Fluid drag system with smooth start and soft stop technology & balanced diagonal transition.
    • Mitchell base for flat mounting.
    • One stage alloy rotary lock leg extension for heavy duty clamping.
    • Heavy duty clear anodised alloy tubing.
    • Cast alloy brackets for rigid geometry.
    • Comes with off-ground spreader.
    • Comes with fluid head and tripod transport cases.

  • Specifications:

    • Payload Range: 0-75kg (0-165.4lbs)
    • Weight: 38.4kg (84.7lbs)
    • Height Range: 957-1642mm (37.7-64.7")
    • Transport Length: 1162mm (45.8")
    • Counterbalance Positions: Continuous adjustment (0 - 100%)
    • Pan Tilt Drag: 15 selectable fluid drag positions + 0
    • Pan Tilt Locks: Positive lock caliper brake system
    • Tilt Range: +60° / -60°
    • Pan Range: 360°
    • Camera Platform: Quick release wedge plate
    • Sliding Range: 300mm (11.8")
    • Mounting Base: Mitchell base
    • Height Above Bowl: 332mm (13.1")
    • Safety Lock: Quick release tilt lock pin
    • Pan Handle: 2 x HD telescopic
    • Temperature Range: -40° to +65° C (-40° to +150° F)
    • Leg Extension: 1-stage
    • Lock Type: Rotary lock
    • Leg Material: Alloy

  • Warranty:

    • 3 Years

  • Components

    :

    • 1085: Skyline 90 fluid head
    • 3350: HD 1-stage alloy tripod
    • 3336: Wedge plate
    • 3342: Pan handles (2)
    • 3346: Centre screw / nut

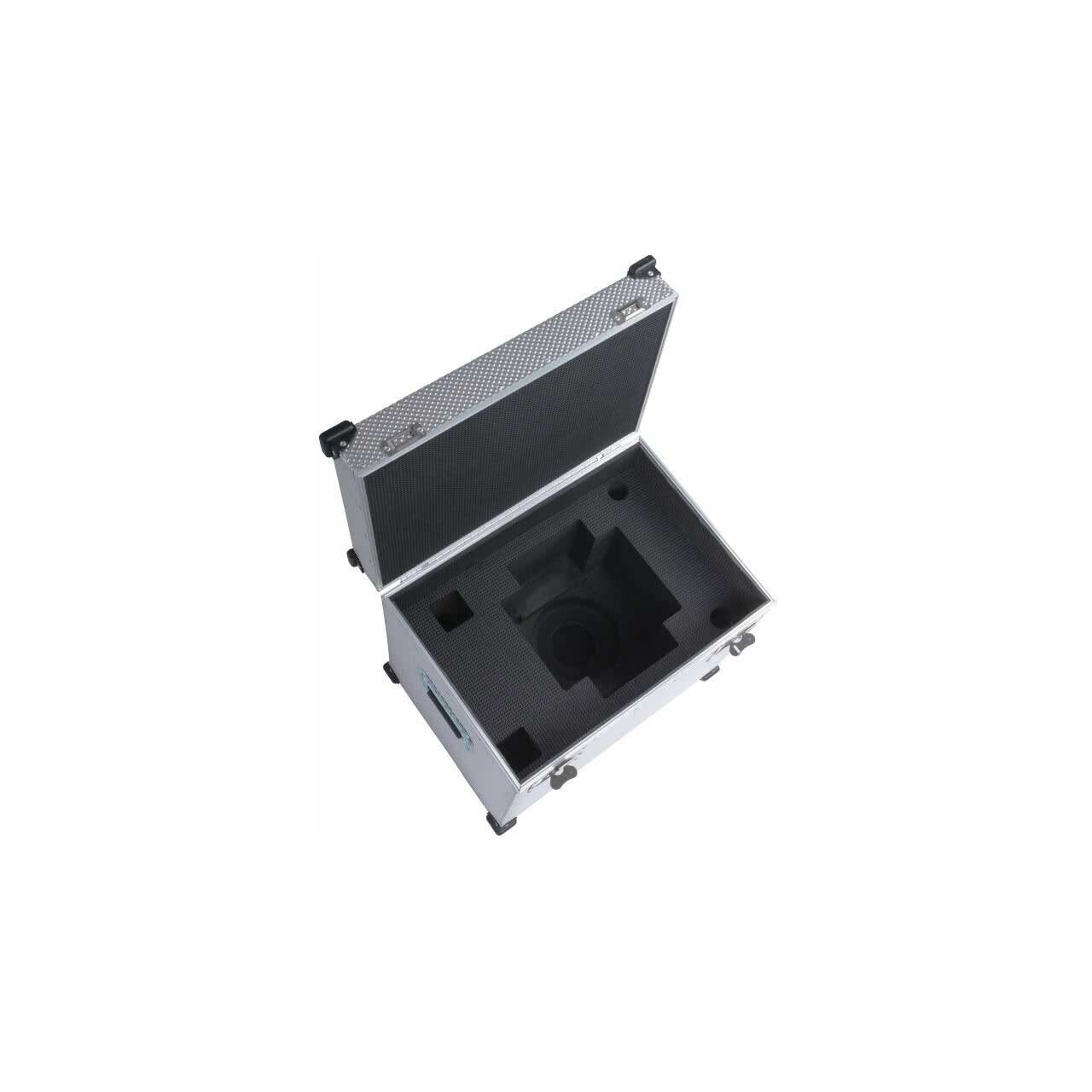

    • 3348: Head case
    • 3360: Above ground spreader
    • 3366: HD feet

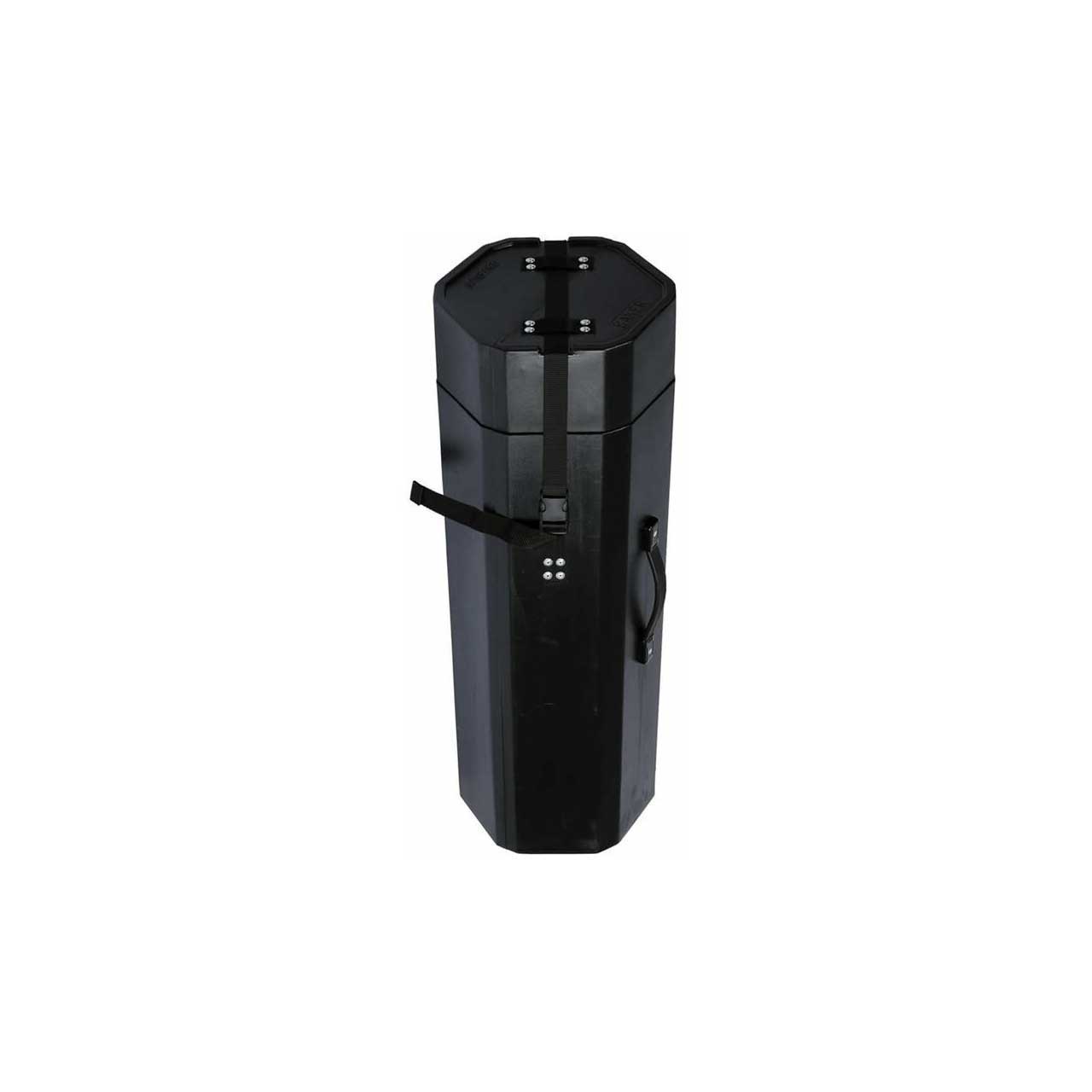

    • 3380: Hexagonal tripod case
