    3702 - Overview

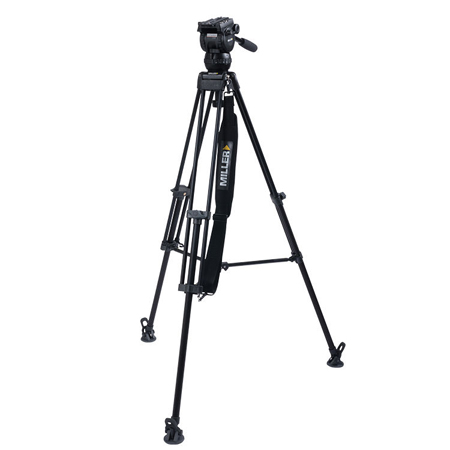

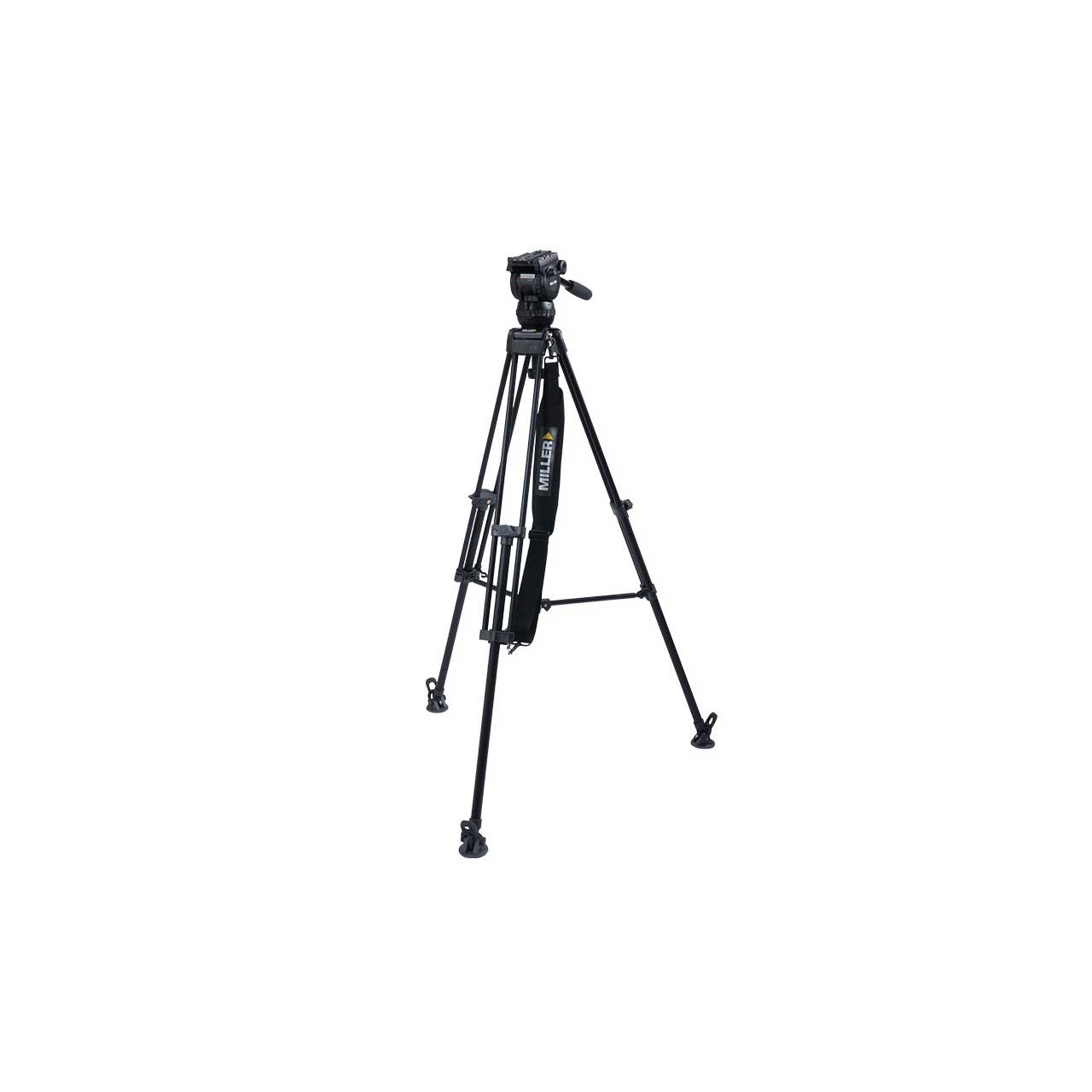

    The Miller 3702 CX2 Toggle LW 1-stage (alloy) Tripod system is designed for "on the go" creative professionals needing a versatile and affordable solution with uncompromised performance. Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, CX2 is capable of balancing payloads from 0kg to 8kg. It features advanced precision fluid drag, intuitive controls, and fast set-up.

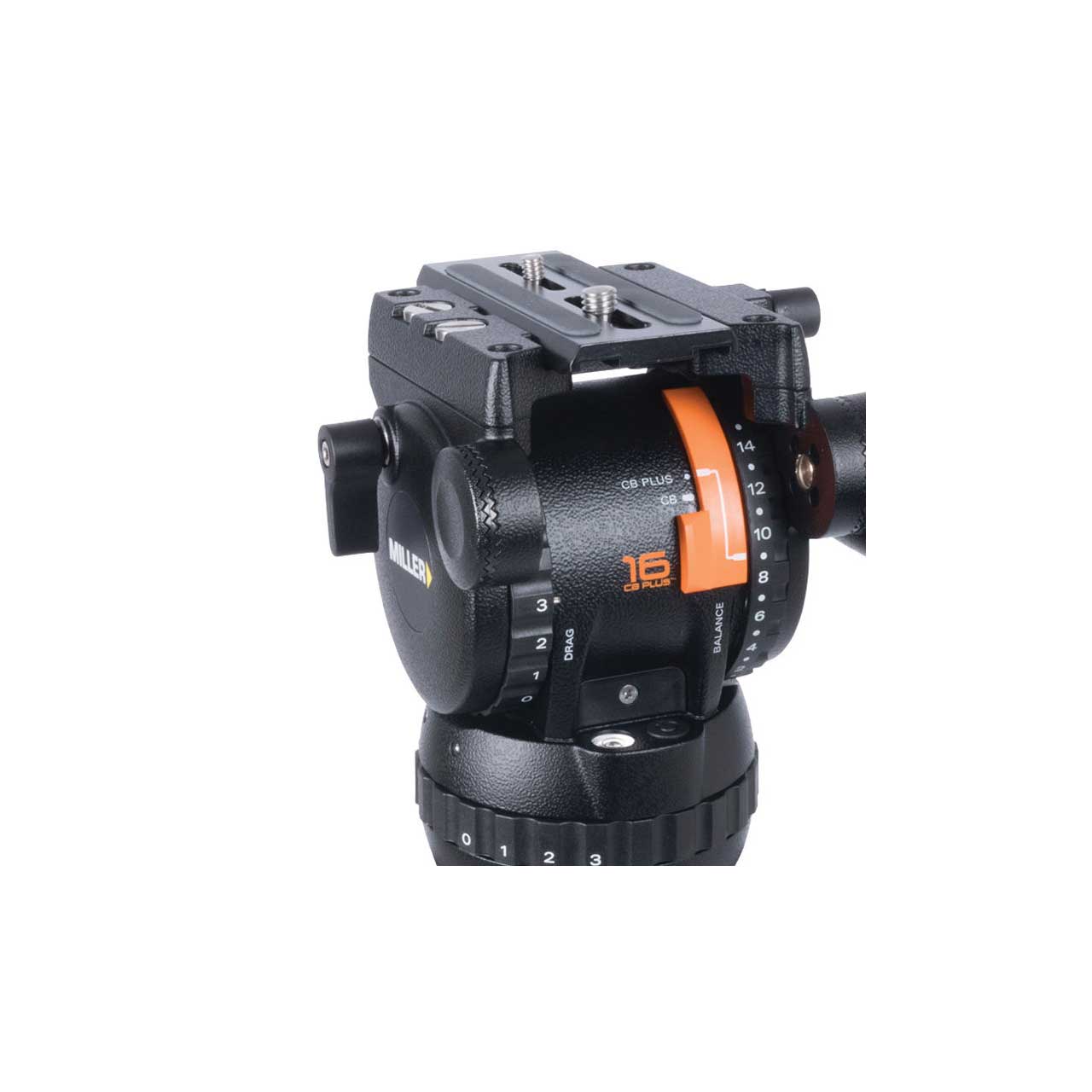

    The CX2 employs CB Plus technology providing 16 positions of counterbalance and, with 3+0 settings of Miller's unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.

    The CX is matched with the LW Toggle Tripod (alloy) with above ground spreader, where the positive Toggle locks mean quick set-ups while the rubber feet mean the system can be used over any terrain.

    • Features:

      • Compact, light and versatile.
      • 75mm ball levelling.
      • Perfect for payloads to 0-8kg (17.6lbs).
      • 15+0 CB Plus selectable counterbalance positions.
      • Ergonomically located CB Plus switch.
      • 3+0 selectable positions of fluid pan and tilt drag.
      • Positive selection radial ring controls.
      • 1-stage fast toggle adjustment legs.
      • Durable black anodised alloy tubing.
      • Comes with above ground spreader and rubber feet.
      • Comes with 1-stage Tripod bag.
      • 3 year warranty.

    • Specifications:

      • Payload Range: 0-8.0kg (0-17.6lbs)
      • Weight: 5.9kg (13.0lbs)
      • Height Range: 790-1500mm (31.1-59")
      • Transport Length: 1000mm (39.4")
      • Counterbalance Positions: 16 selectable positions (15+0)
      • Pan Tilt Drag: 3 selectable fluid drag positions + 0
      • Pan Tilt Locks: Positive lock calliper brake system
      • Tilt Range: + 90°/ -75°
      • Pan Range: 360°
      • Camera Platform: Quick release, side load camera plate
      • Sliding Range: 60mm (2.4")
      • Mounting Base: o75mm (2.9") ball levelling
      • Height Above Bowl: 167mm (6.6")
      • Illuminated Controls: Bubble level
      • Pan Handle: Fixed length 390mm (15.4")
      • Temperature Range: -40° to +65°C (-40° to +149°F)
      • Leg Extension: 1-stage
      • Lock Type: Toggle
      • Leg Material: Alloy

    • Item Includes:

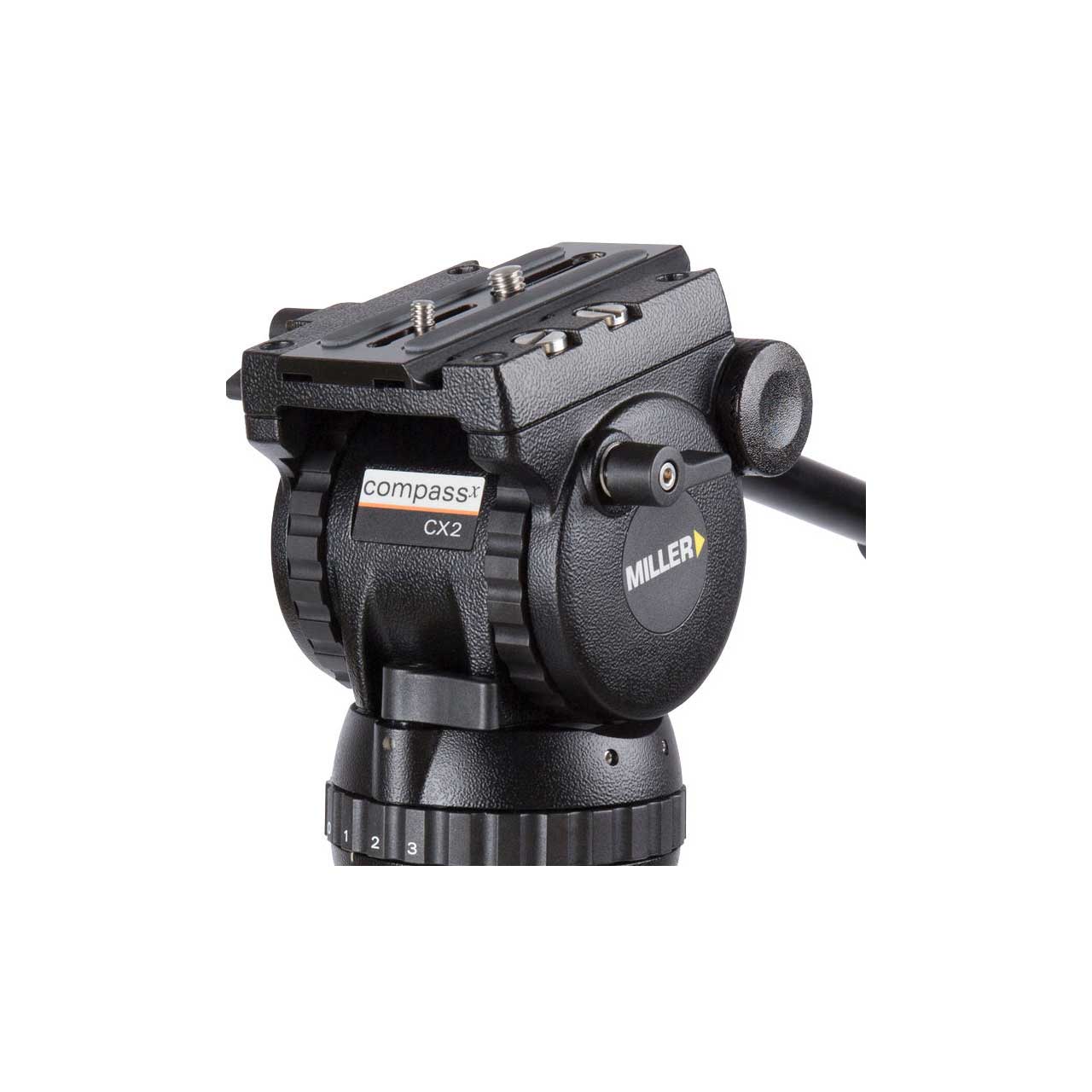

      • 1x 1090 CX2 fluid head
      • 1x 440 Toggle 75 LW Tripod (alloy)
      • 1x 835 DS Tripod spreader
      • 1x 679 Pan handle - fixed with clamp
      • 1x 550 Rubber feet (set of 3)
      • 1x 554 Shoulder strap (padded)

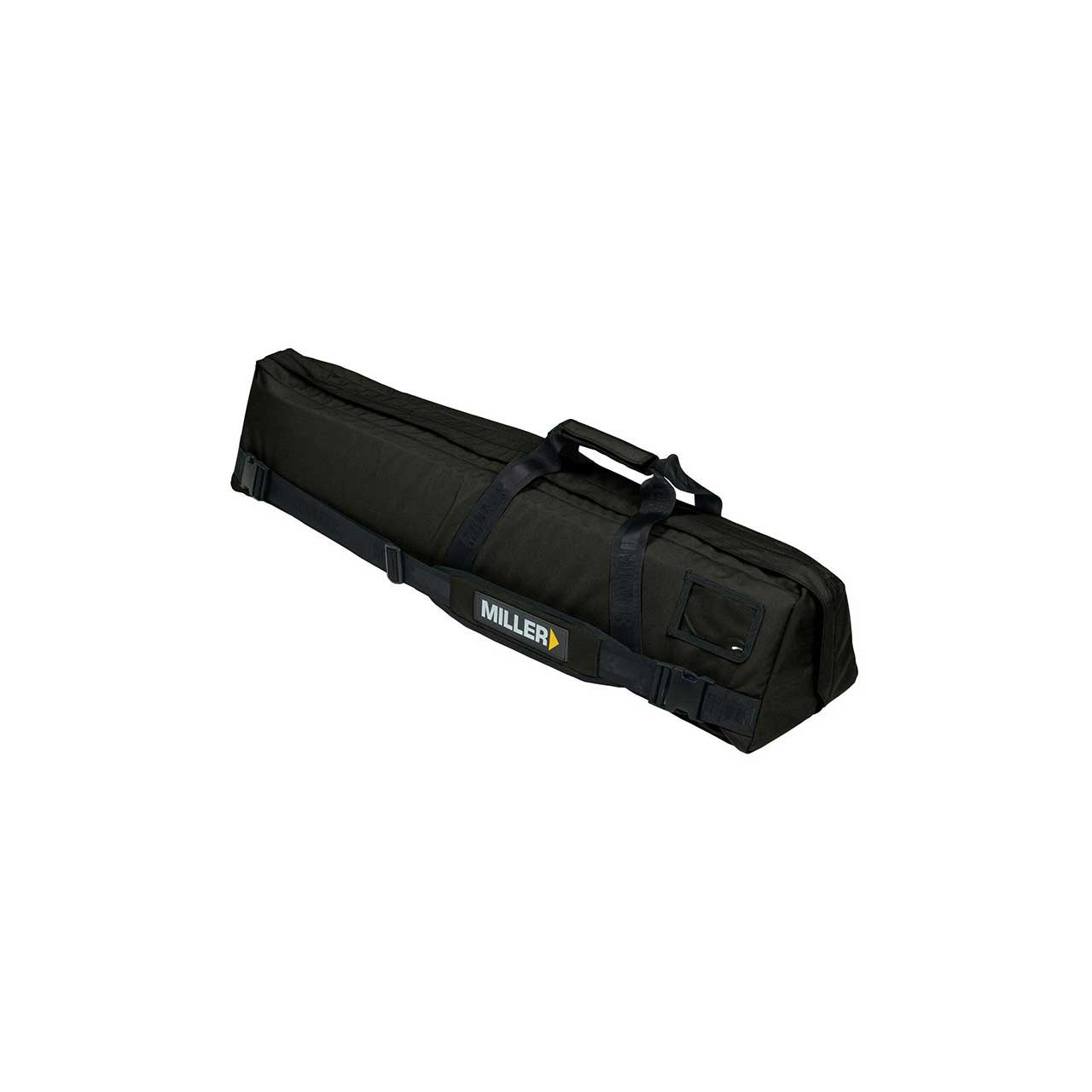

      • 1x 3512 Softcase 1-stage

    • Warranty:

      • 3 Year Warranty

    • GTIN:

      9354041001535
