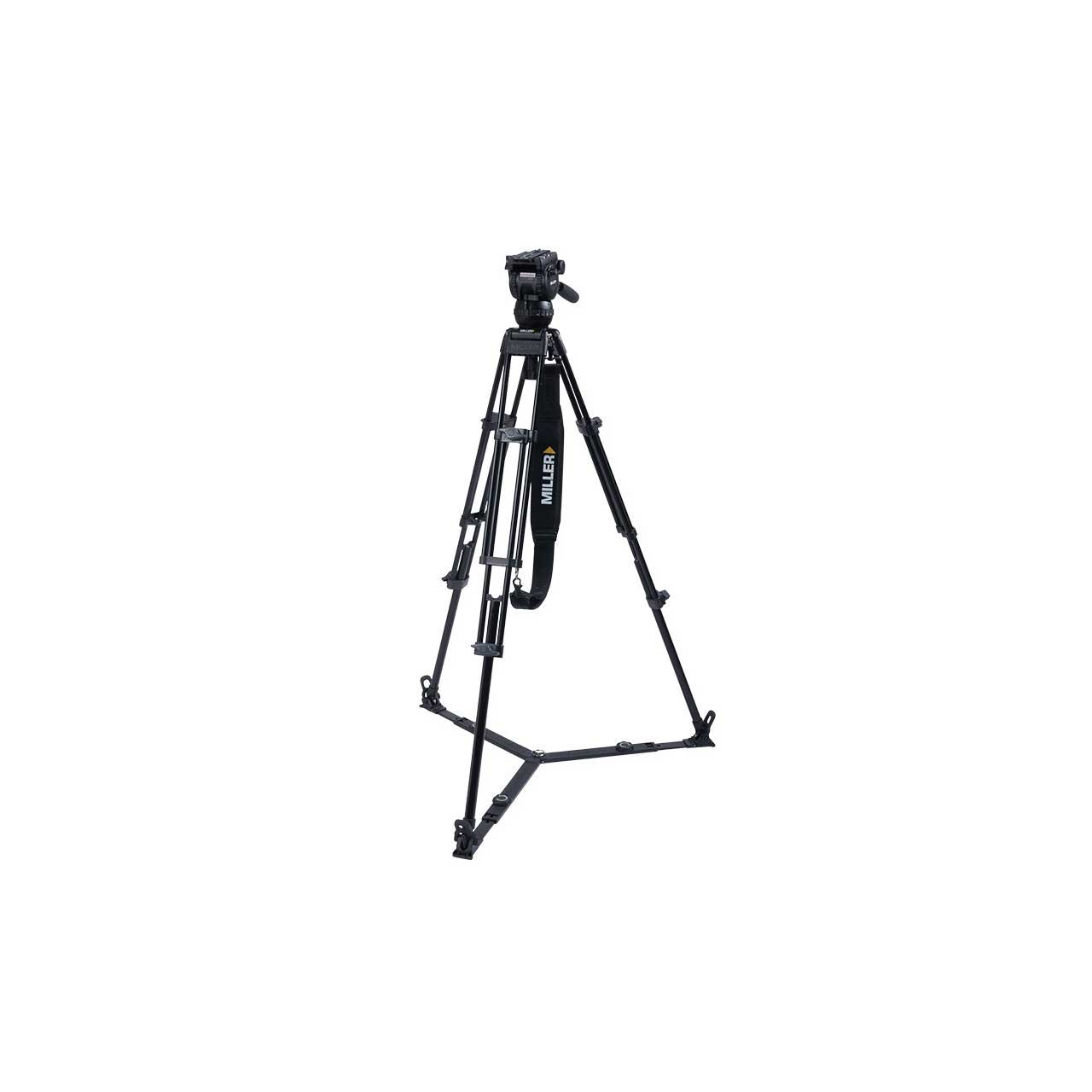

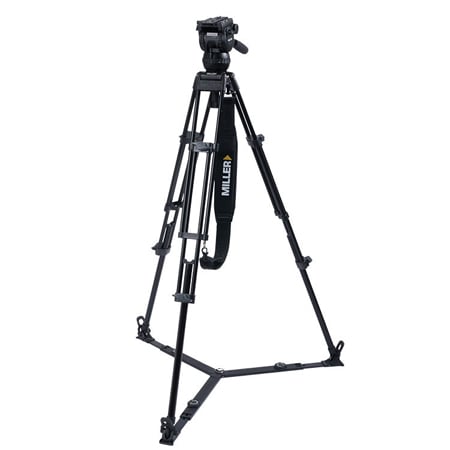

Miller 3704 CX2 (1090) Toggle 2-ST Tripod (420G) Ground Spreader (411) Pan Handle (679) Strap (554) Soft Case (3514)

ITEM #: MIL-3704 MFG #: 3704

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,953.00

Our Price:

$2,391.93

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    3704 - Overview

    The Miller 3704 CX2 Toggle 2-stage (alloy) Tripod system is designed for “on the go” creative professionals needing a versatile and affordable solution with uncompromised performance. Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, CX2 is capable of balancing payloads from 0kg to 8kg. It features advanced precision fluid drag, intuitive controls, and fast set-up.

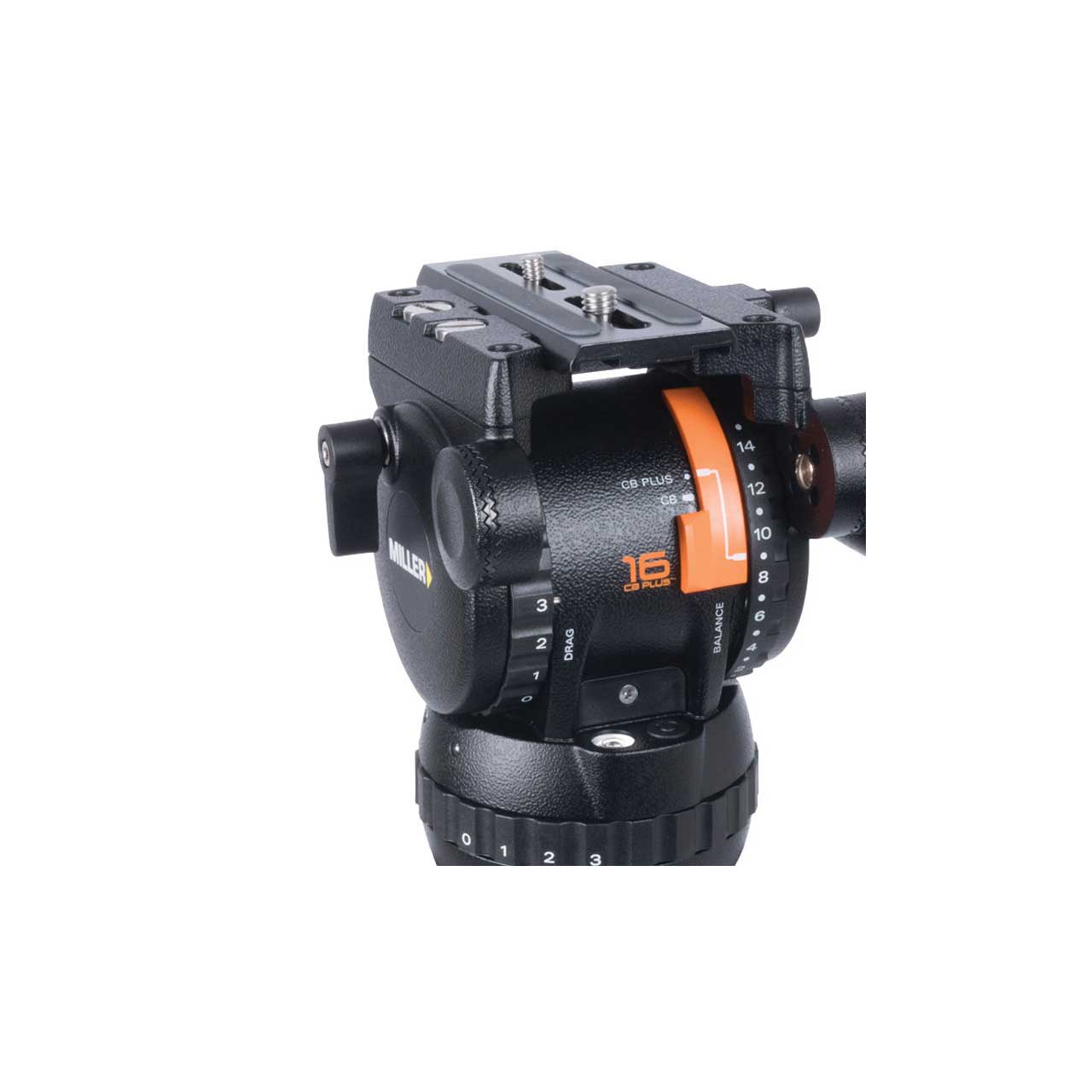

    The CX2 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 settings of Miller’s unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.

    The CX2 is matched with the 2-stage Toggle (alloy) Tripod and on-ground spreader to provide a large height range 560-1730mm (22-68.1"), positive leg toggle locks and quick pack down.

    • Features:

      • Compact, light and versatile.
      • 75mm ball levelling.
      • Perfect for payloads to 0-8kg (17.6lbs).
      • 15+0 CB Plus selectable counterbalance positions.
      • Ergonomically located CB Plus switch.
      • 3+0 selectable positions of fluid pan and tilt drag.
      • Positive selection radial ring controls.
      • 2-stage fast toggle adjustment legs.
      • Durable black anodised alloy tubing.
      • Comes with on ground spreader.
      • Comes with 2-stage Tripod bag.
      • 3 year warranty.

    • Specifications:

      • Payload Range: 0-8.0kg (0-17.6lbs)
      • Weight: 6.8kg (15.0 lbs)
      • Height Range: 560-1730mm (22-68.1")
      • Transport Length: 860mm (33.9")
      • Counterbalance Positions: 16 selectable positions (15+0)
      • Pan Tilt Drag: 3 selectable fluid drag positions + 0
      • Pan Tilt Locks: Positive lock calliper brake system
      • Tilt Range: + 90°/ -75°
      • Pan Range: 360°
      • Camera Platform: Quick release, side load camera plate
      • Sliding Range: 60mm (2.4")
      • Mounting Base: o75mm (2.9") ball levelling
      • Height Above Bowl: 167mm (6.6")
      • Illuminated Controls: Bubble level
      • Pan Handle: Fixed length 390mm (15.4")
      • Temperature Range: -40° to +65°C (-40° to +149°F)
      • Leg Extension: 2-stage
      • Lock Type: Toggle
      • Leg Material: Alloy

    • Item Includes:

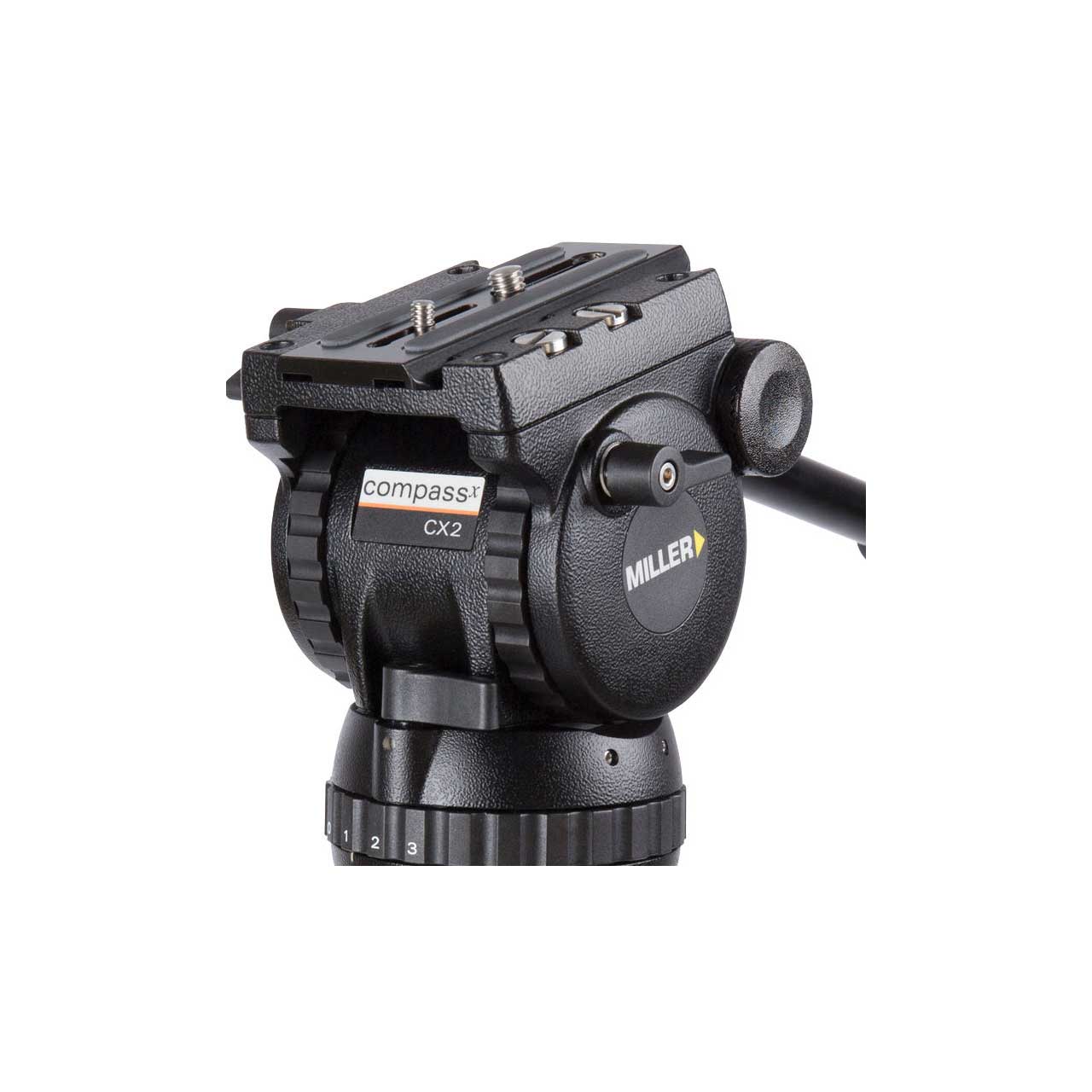

      • 1x 1090 CX2 fluid head
      • 1x 440G Toggle 75 1-stage Tripod (alloy)
      • 1x 411 On ground spreader
      • 1x 679 Pan handle - fixed with clamp
      • 1x 554 Shoulder strap (padded)
      • 1x 1520 Solo shoulder strap (Aircell)

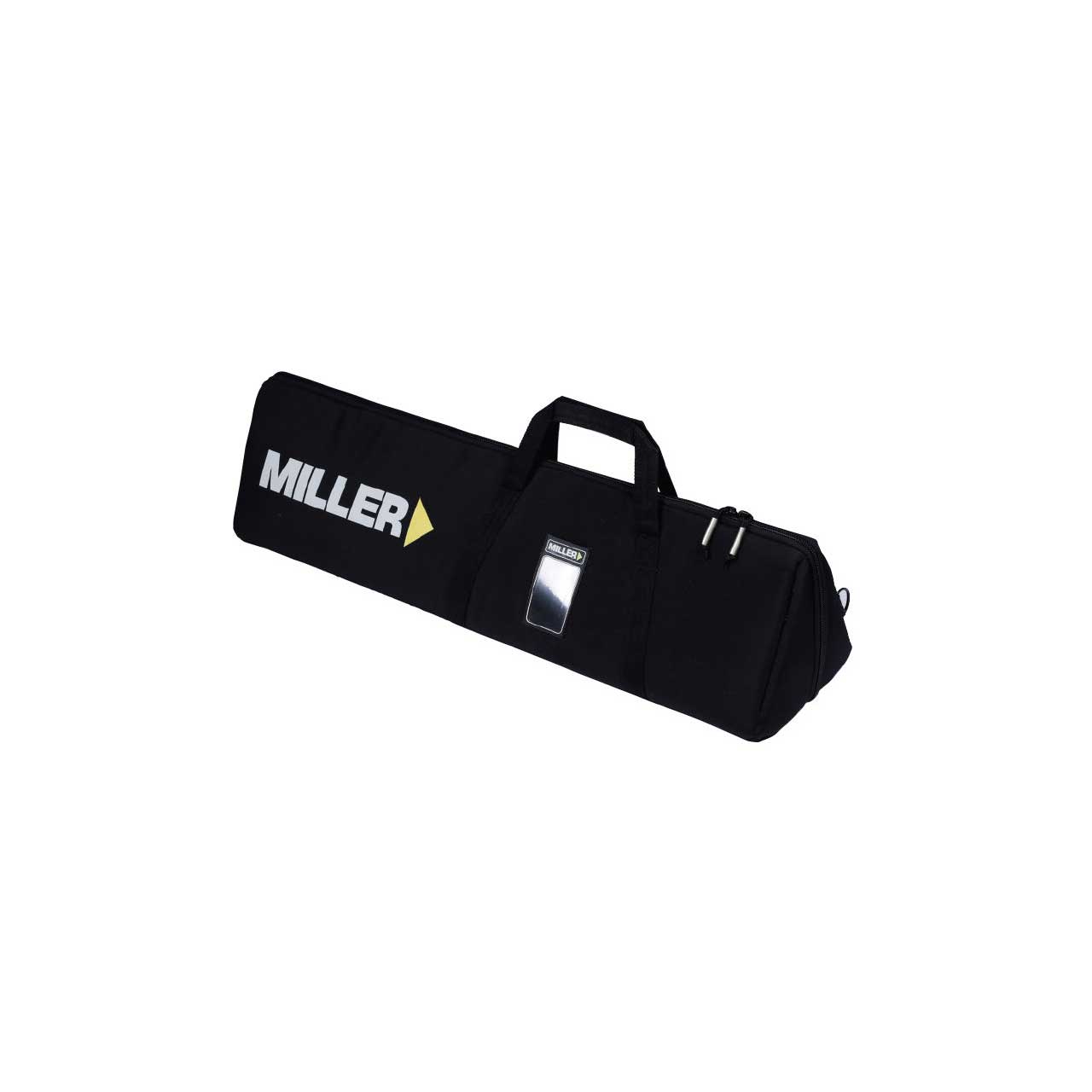

      • 1x 3514 Softcase 2-stage

    • Warranty:

      • 3 Year Warranty

    • GTIN:

      9354041001542
