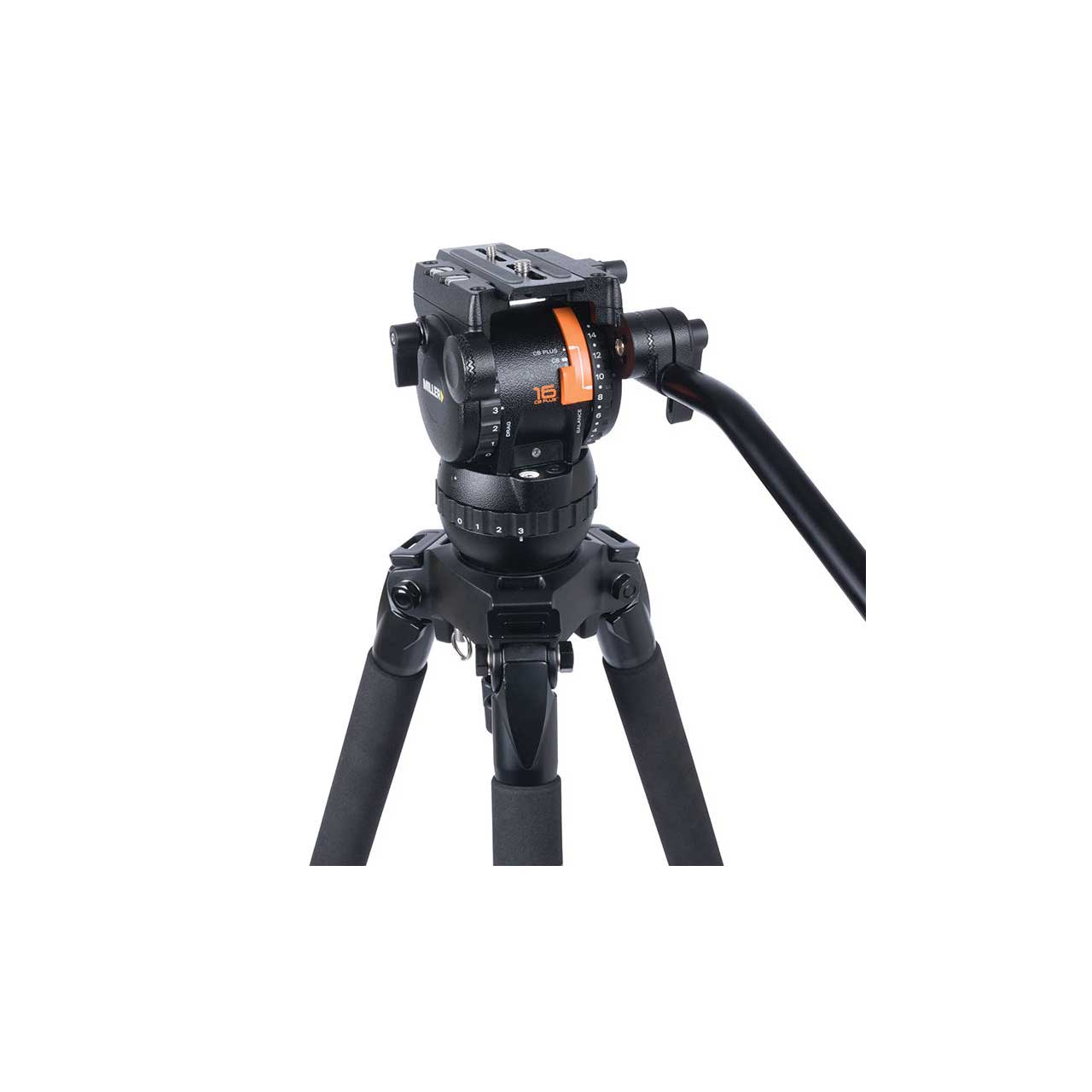

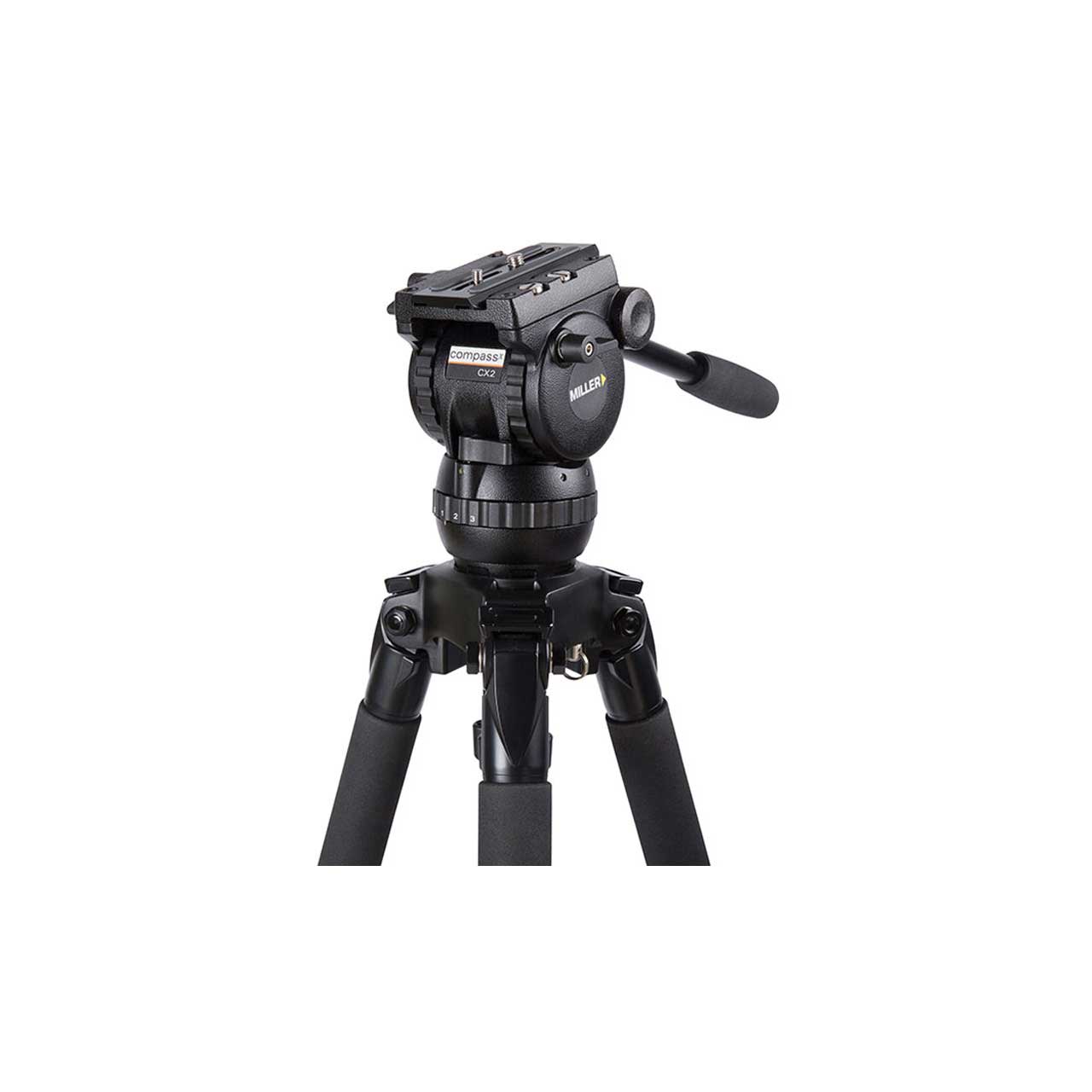

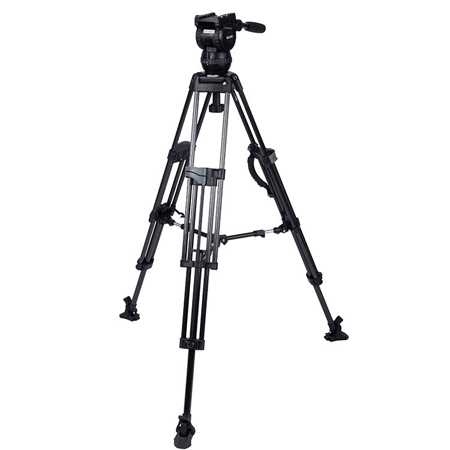

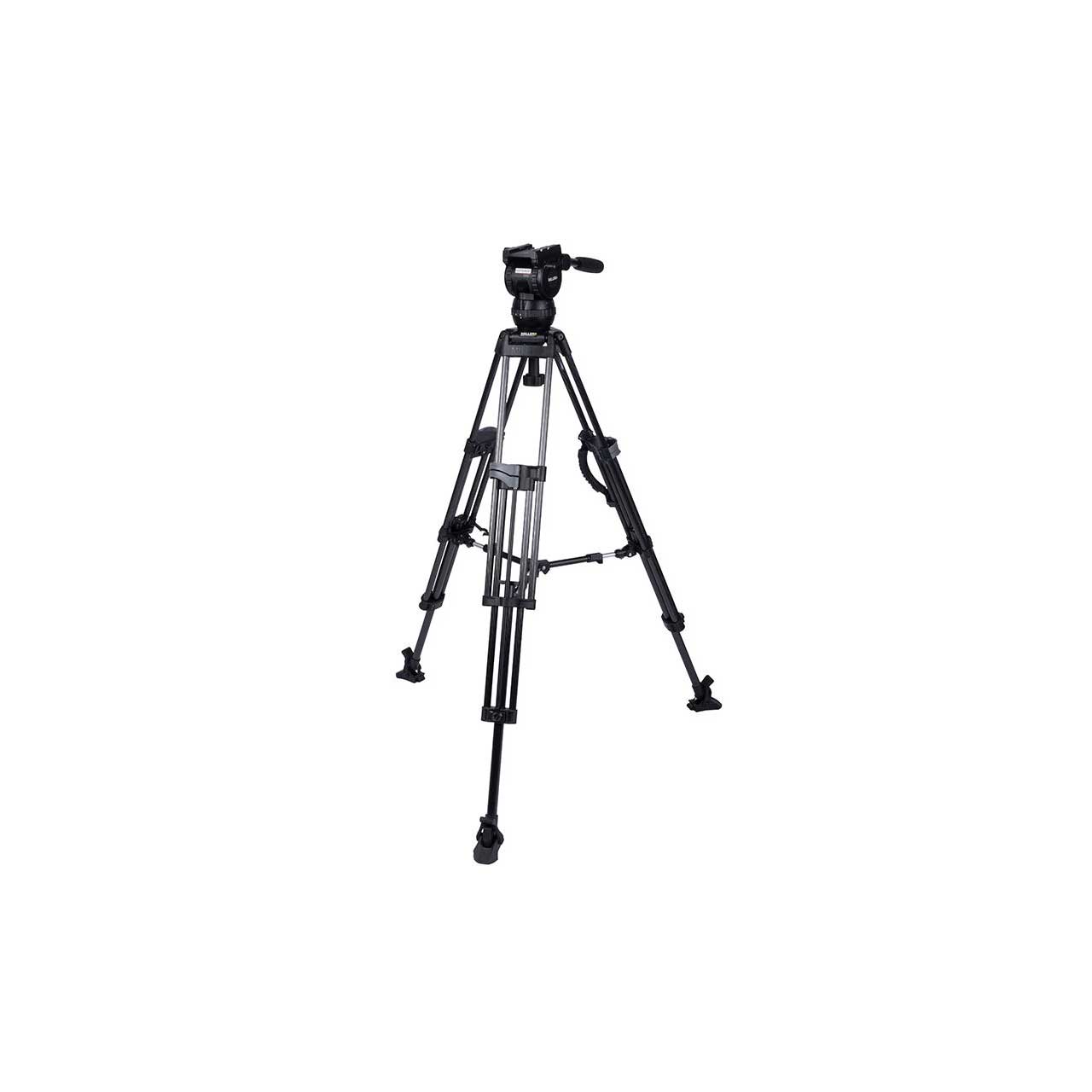

Miller 3715 CX2 (1090) 75 Sprinter 2-ST Carbon Fiber Tripod (1620) Mid-Level Spreader (593) Pan Handle/Feet/Soft Case

3715 - Overview

3715 - Overview

• Features:

  • Compact, light and versatile.
  • 75mm ball levelling.
  • Perfect for payloads to 0-8kg (17.6lbs).
  • 15+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 3+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • 2-stage dual action lock extension.
  • Lightweight carbon fibre legs.
  • Comes with 2-stage Tripod bag.
  • 3 year warranty.


• Specifications:

  • Payload Range: 0-8.0kg (0-17.6lbs)
  • Weight: 5.4kg (11.9 lbs)
  • Height Range: 404-1784mm (15.9-70.2")
  • Transport Length: 864mm (34")
  • Counterbalance Positions: 16 selectable positions (15+0)
  • Pan Tilt Drag: 3 selectable fluid drag positions + 0
  • Pan Tilt Locks: Positive lock calliper brake system
  • Tilt Range: + 90°/ -75°
  • Pan Range: 360°
  • Camera Platform: Quick release, side load camera plate
  • Sliding Range: 60mm (2.4")
  • Mounting Base: o75mm (2.9") ball levelling
  • Height Above Bowl: 167mm (6.6")
  • Illuminated Controls: Bubble level
  • Pan Handle: Fixed length 390mm (15.4")
  • Temperature Range: -40° to +65°C (-40° to +149°F)
  • Leg Extension: 2-stage telescopic
  • Lock Type: Concentric Rapid Lock
  • Leg Material: Carbon Fibre


• Item Includes:

  • 1x 1090 CX2 fluid head
  • 1x 1501 Solo 75 2-stage Tripod (carbon fibre)
  • 1x 679 Pan handle - fixed with clamp
  • 1x 1520 Solo shoulder strap (Aircell)

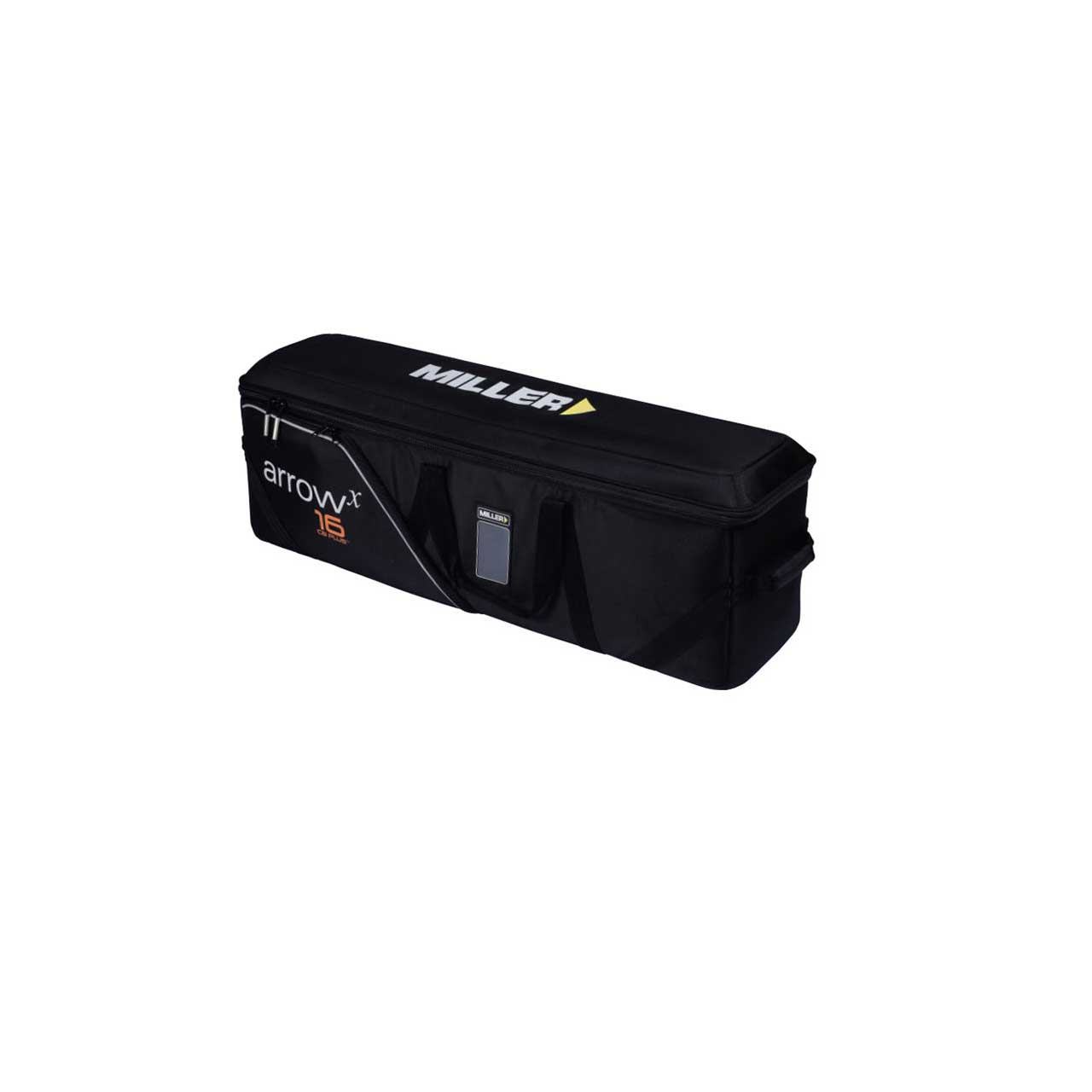

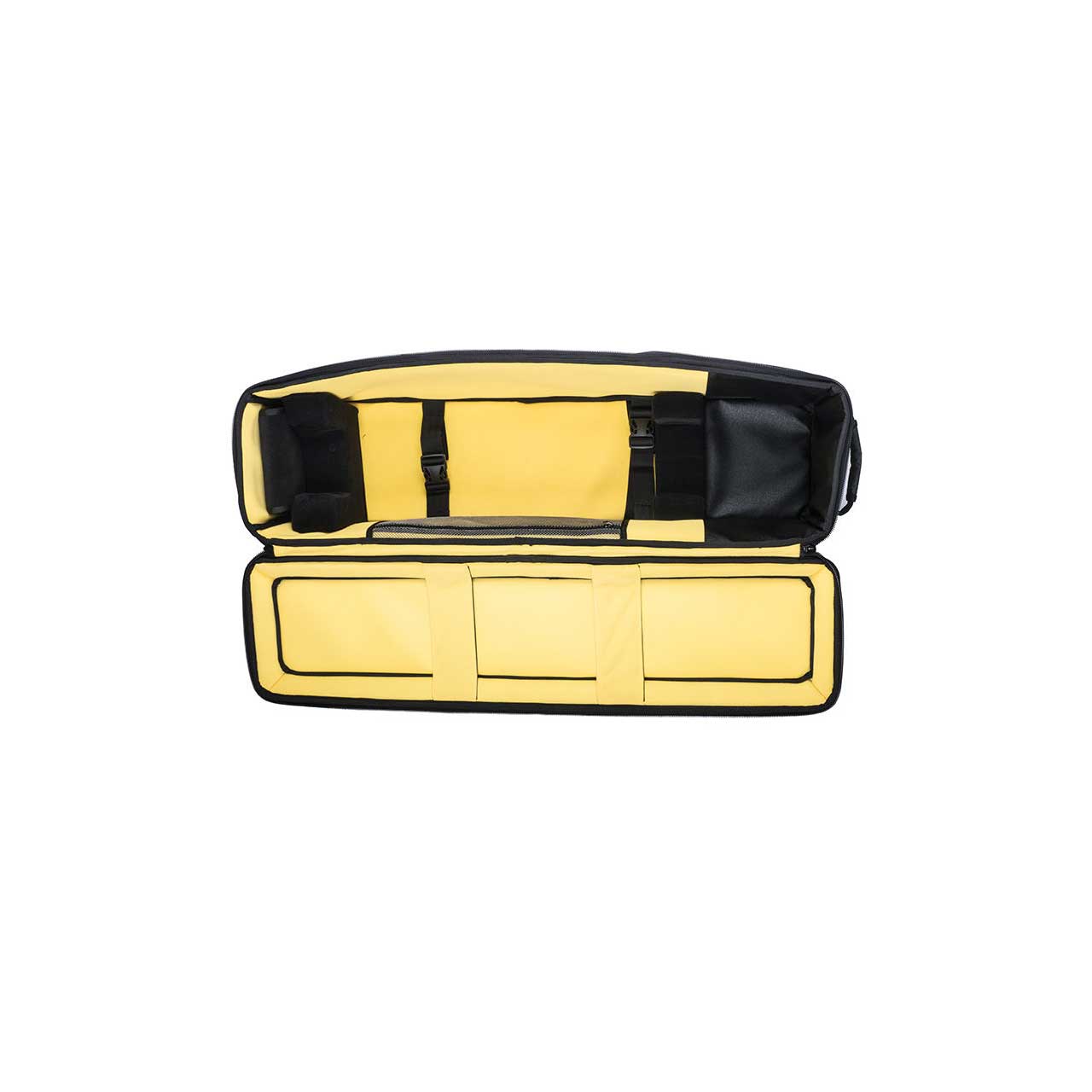

  • 1x 3514 Softcase 2-stage


• Warranty:

  • 3 Year Warranty


• GTIN:

  9354041002389
