Miller 3744 CX8 (1093) Solo 75 2-ST Carbon Fiber Tripod (1501) Pan Handle (679) Strap (1520) Soft Case (3514)

ITEM #: MIL-3744 MFG #: 3744

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Miller Camera Support
Free Shipping with $49 Minimum Order

List Price:

$3,755.00

Our Price:

$3,041.55

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    3744 - Overview

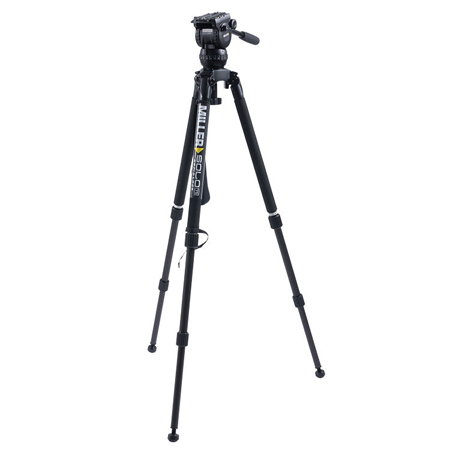

    The Miller 3744 CX8 Solo 75 2-stage (carbon fibre) Tripod system combines with the innovative lightweight 1501 Solo CF Tripod and CX8 fluid head. An ideal Tripod system for cinematic and documentary, where the payload and centre of gravity changes frequently due to lens or accessories swapping.

    CX8 is the premium head in the 75mm ball levelling CompassX series. Designed for camera rigs from 0kg to 12kg, with CB plus 16 balance positions and 5 levels of fluid drag, it sets the standard in professional compact camera supports.

    The CX8 is matched with the 2-stage Solo (carbon fibre) Tripod resulting in a working height range of 414-1794mm (16.3-70.6"),and offering rapid action twist locks, versatility of the Solo leg angles with the added benefit of carbon fibre construction.

    • Features:

      • Compact, uncompromised performance.
      • 75mm ball levelling.
      • Perfect for payloads to 0-12kg (26.4bs).
      • 15+0 CB Plus selectable counterbalance positions.
      • Ergonomically located CB Plus switch.
      • 5+0 selectable positions of fluid pan and tilt drag.
      • Positive selection radial ring controls.
      • 2-stage rapid leg lock extension.
      • Lightweight carbon fibre legs.
      • Comes with 2-stage Tripod bag.
      • 3 year warranty.


    • Specifications:

      • Payload Range: 0-12.0kg (0-26.4lbs)
      • Weight: 5.5kg (12.2 lbs)
      • Height Range: 414-1794mm (16.3-70.6")
      • Transport Length: 870mm (34.3")
      • Counterbalance Positions: 16 selectable positions (15+0)
      • Pan Tilt Drag: 5 selectable fluid drag positions + 0
      • Pan Tilt Locks: Positive lock calliper brake system
      • Tilt Range: + 90°/ -75°
      • Pan Range: 360°
      • Camera Platform: Quick release, side load camera plate
      • Sliding Range: 60mm (2.4")
      • Mounting Base: o75mm (2.9") ball levelling
      • Height Above Bowl: 167mm (6.6")
      • Illuminated Controls: Bubble level
      • Pan Handle: Fixed length 390mm (15.4")
      • Temperature Range: -40° to +65°C (-40° to +149°F)
      • Leg Extension: 2-stage telescopic
      • Lock Type: Concentric Rapid Lock
      • Leg Material: Carbon fibre


    • Item Includes:

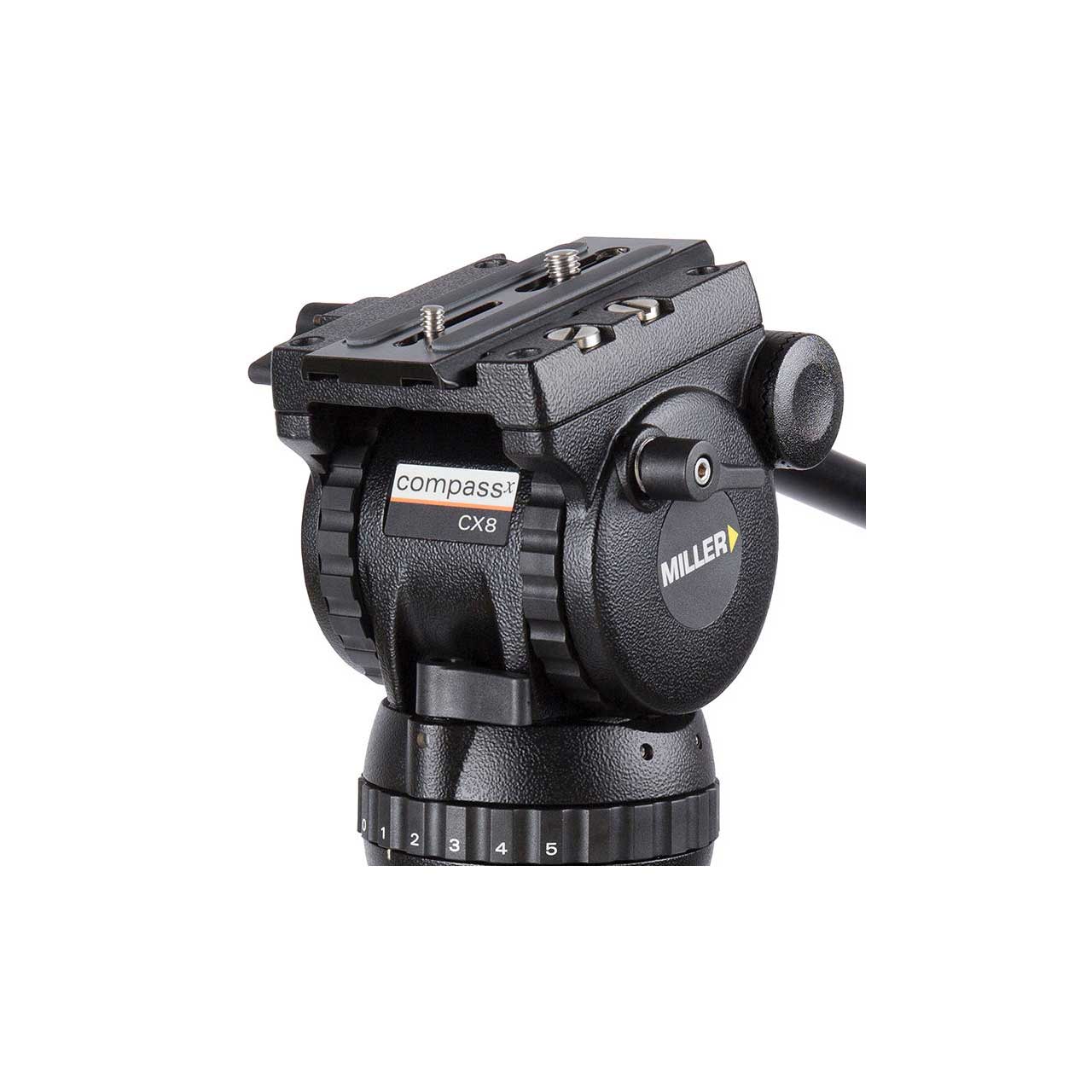

      • 1x 1093 CX8 fluid head
      • 1x 1501 Solo 75 2-stage Tripod (carbon fibre)
      • 1x 679 Pan handle - fixed with clamp
      • 1x 1520 Solo shoulder strap (Aircell)

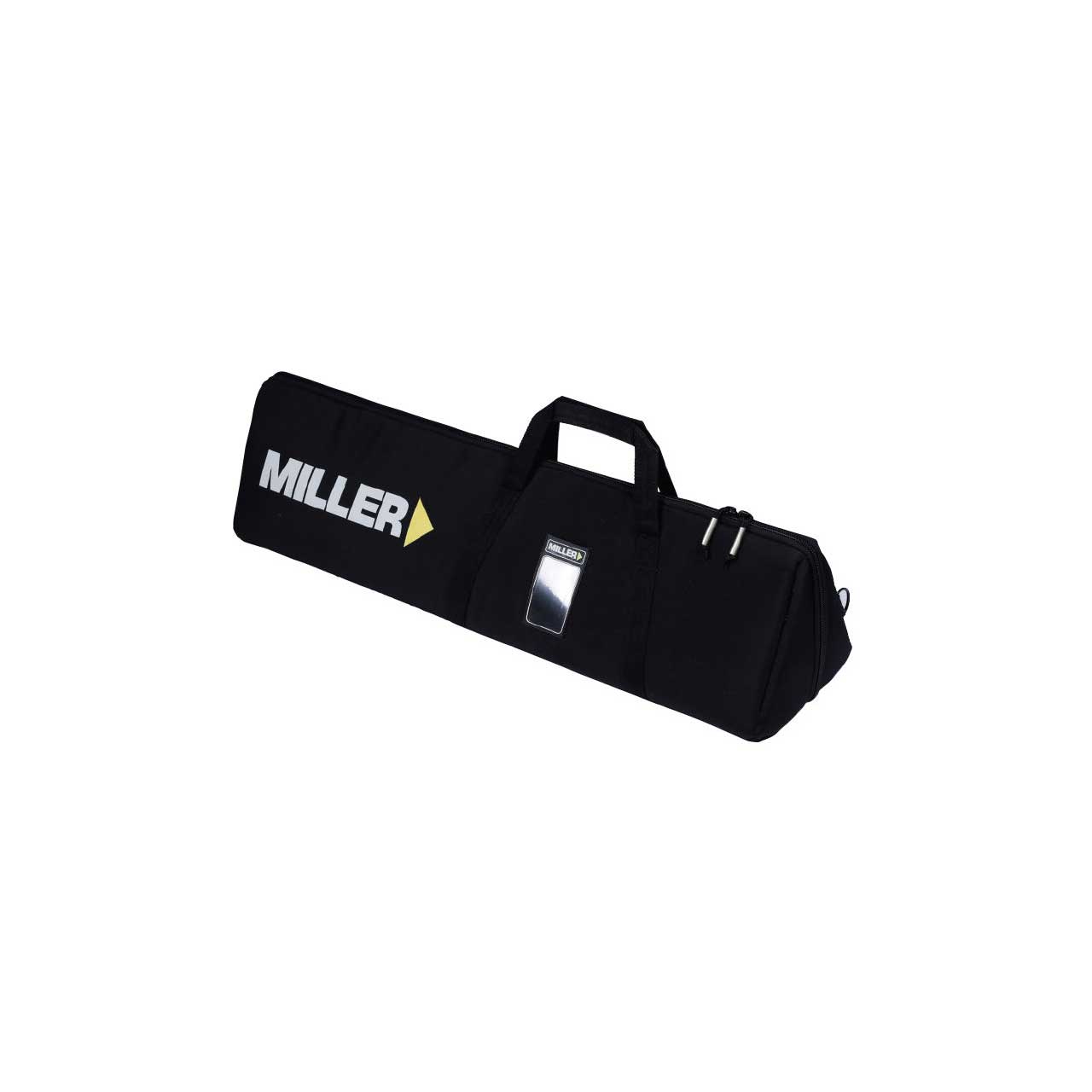

      • 1x 3514 Softcase 2-stage


    • Warranty:

      • 3 Year Warranty


    • GTIN:

      9354041001672
