Miller 3748 CX8 (1093) 75 Sprinter II 2-ST Carbon Fiber Tripod (1620G) Ground Spreader (470) Pan Handle (679) Soft Case

3748 - Overview

• Features:

  • Compact, light and versatile.
  • 75mm ball levelling.
  • Perfect for payloads to 0-12kg (26.4bs).
  • 15+0 CB Plus selectable counterbalance positions.
  • Ergonomically located CB Plus switch.
  • 5+0 selectable positions of fluid pan and tilt drag.
  • Positive selection radial ring controls.
  • 2-stage dual action lock extension.
  • Lightweight carbon fibre legs.
  • Comes with 2-stage Tripod bag.
  • 3 year warranty.


• Specifications:

  • Payload Range: 0-12.0kg (0-26.4lbs)
  • Weight: 6.8kg (15.0lbs)
  • Height Range: 607-1697mm (23.9-66.8")
  • Transport Length: 867mm (34.1")
  • Counterbalance Positions: 16 selectable positions (15+0)
  • Pan Tilt Drag: 5 selectable fluid drag positions + 0
  • Pan Tilt Locks: Positive lock calliper brake system
  • Tilt Range: + 90°/ -75°
  • Pan Range: 360°
  • Camera Platform: Quick release, side load camera plate
  • Sliding Range: 60mm (2.4")
  • Mounting Base: o75mm (2.9") ball levelling
  • Height Above Bowl: 167mm (6.6")
  • Illuminated Controls: Bubble level
  • Pan Handle: Fixed length 390mm (15.4")
  • Temperature Range: -40° to +65°C (-40° to +149°F)
  • Leg Extension: 2-stage
  • Lock Type: HS dual action
  • Leg Material: Carbon fibre


• Item Includes:

  • 1x 1093 CX8 fluid head
  • 1x 1620G 75 Sprinter II 2-stage Tripod (carbon fibre)
  • 1x 470 Ground spreader
  • 1x 679 Pan handle - fixed with clamp

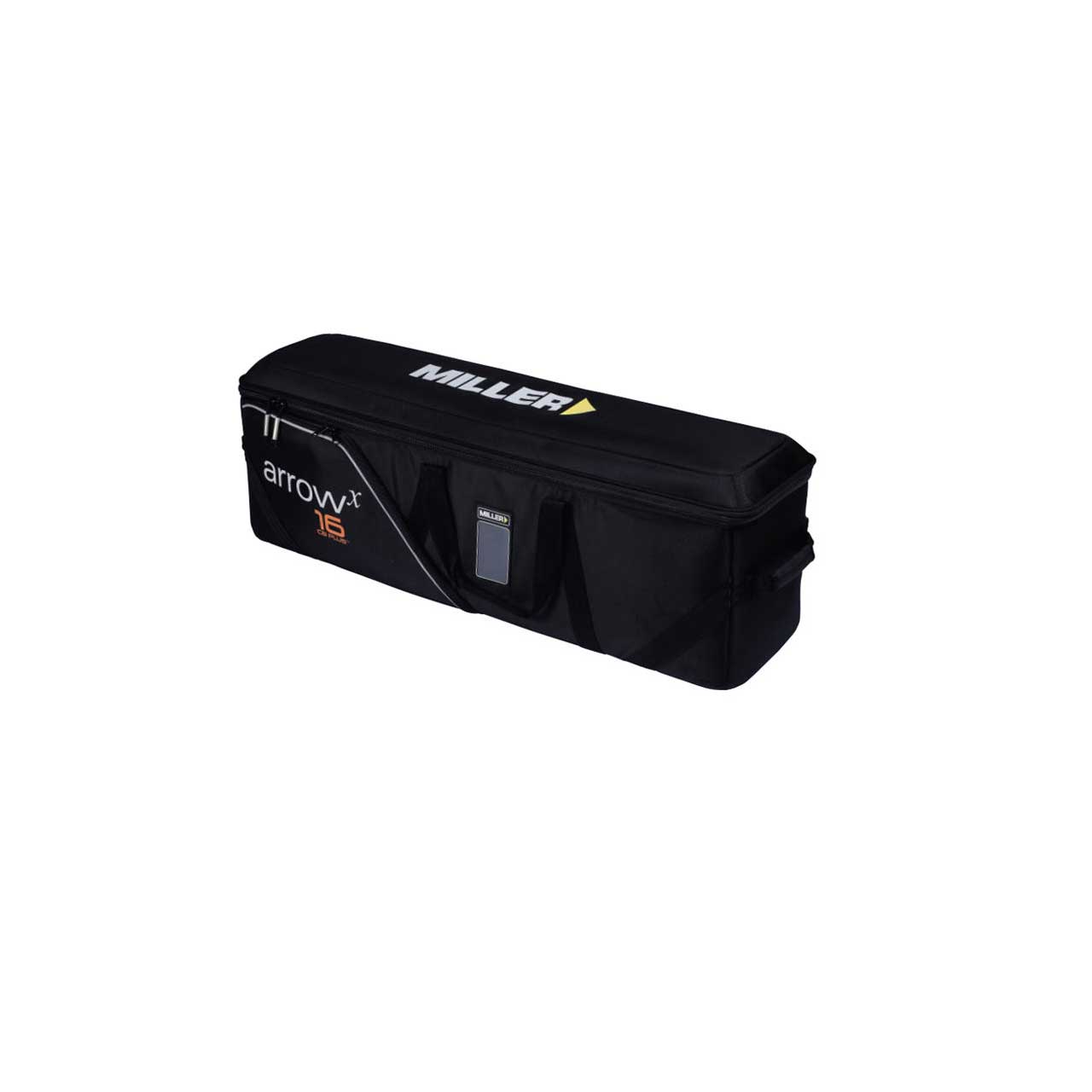

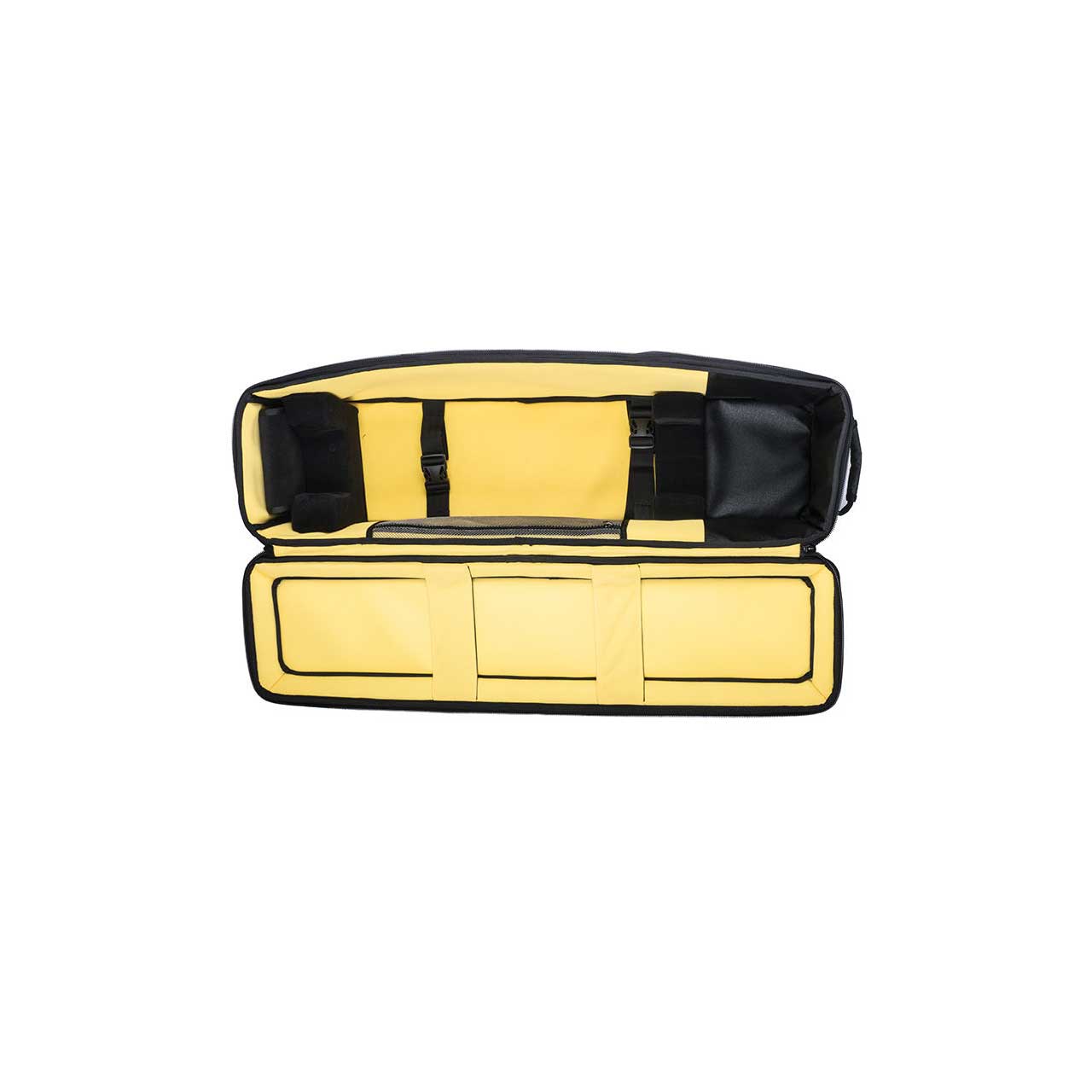

  • 1x 3502 Arrowx softcase 2-stage


• Warranty:

  • 3 Year Warranty


• GTIN:

  9354041002433
