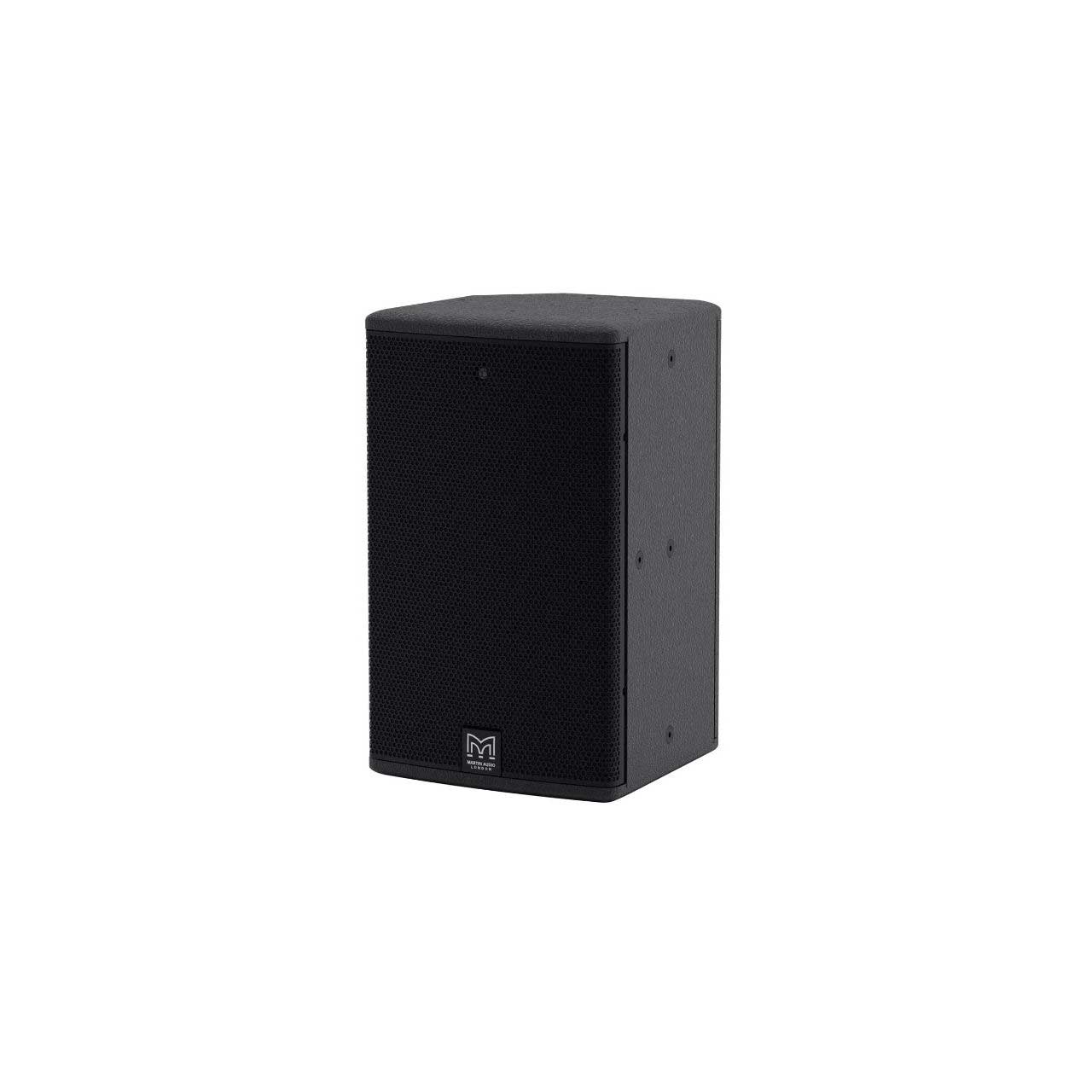

Martin Audio CDD-LIVE 8 Powered Coaxial Differential Dispersion Portable Loudspeaker - Ultra-Compact - 8-Inch - Black

ITEM #: MRTN-CDD-LIVE-8 MFG #: CDD-LIVE 8

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$3,250.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


CDD-LIVE 8 - Overview

The Martin Audio CDD-LIVE 8 is an ultra-compact, self-powered, two-way system featuring an 8" (200mm) LF/1" (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation. Its small size gives no indication of its high output capability and exceptional fidelity. As a stand-alone loudspeaker, it has a multitude of professional applications - from small-medium scale sound reinforcement, AV presentations and HoW to distributed systems, frontfill/infill and use as a micro stage monitor.

With wide coverage close-up, the Coaxial Differential Dispersion technology employed in the CDD-LIVE 8 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns, and its innovative CDD driver achieves `point source' summation of the LF and HF sections - eliminating off-axis variations in frequency response associated with non-coaxial designs.

A self-powered system, the CDD-LIVE 8 incorporates a two-channel Class D amplifier, DSP and Dante™ digital audio networking - simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers 1000W LF + 300W HF peak output to the drivers, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz.

Applications
Live sound reinforcement
Theatre sound
Corporate AV events
Fixed installations in concert halls, ballrooms and HoW
Stage monitor and sidefill
Bars and clubs
Frontfill/infill

  • Features:

    • Ultra-Compact, self-powered two-way system
    • Coaxial Differential Dispersion™ technology
    • Onboard Class D amplification and DSP
    • Dante™ Digital Audio networking
    • Global mains operation with Power Factor Correction

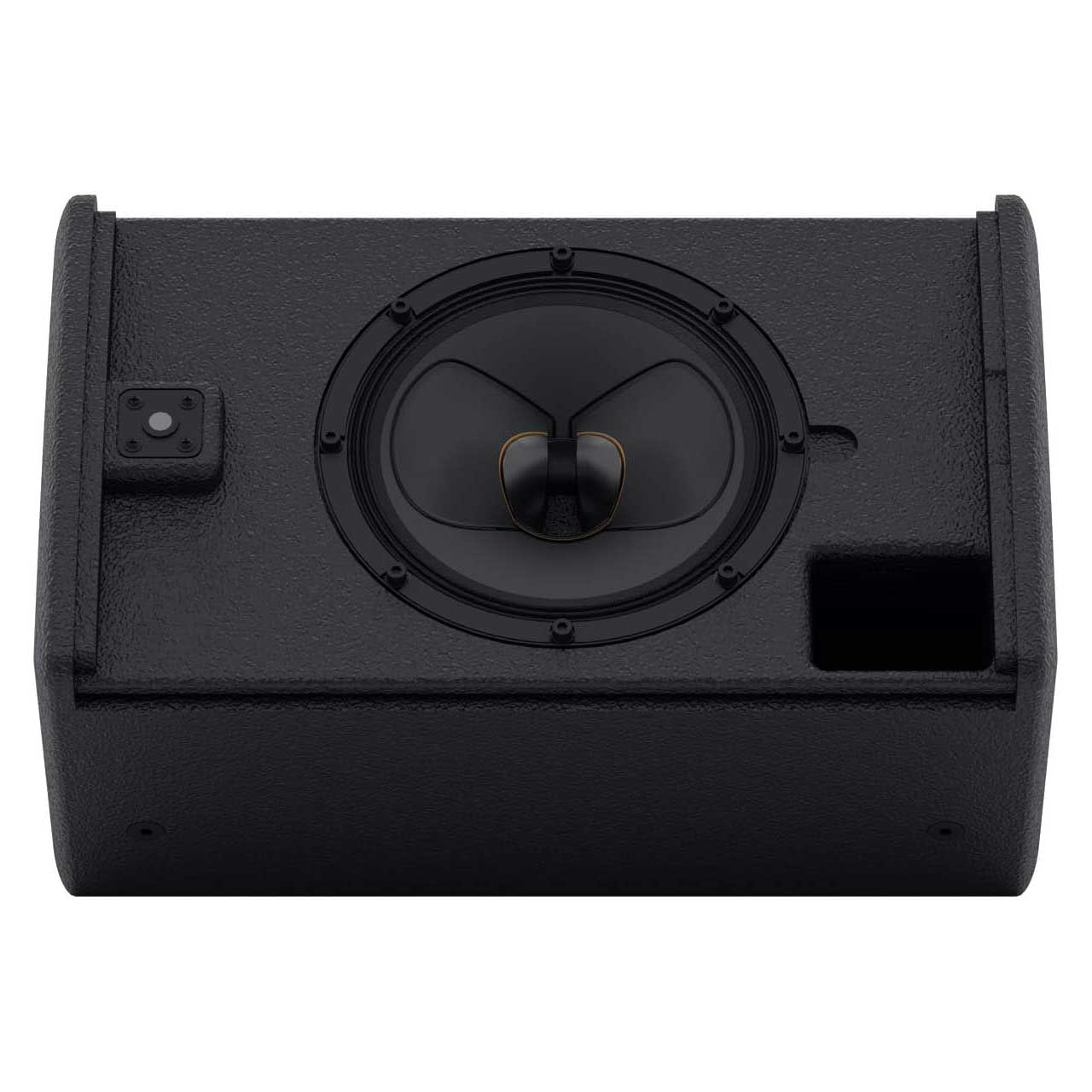

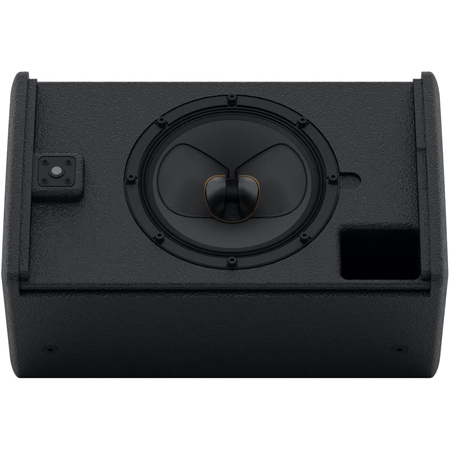

    • User-rotatable CDD™ driver
    • Vertical and horizontal mounting options
    • Tour-grade, multi-angle plywood enclosure
    • IP24 rating option with rain cowl
    • Comprehensive mounting accessories

  • Specifications:

    • Acoustics
    • TYPE: Ultra-compact, Coaxial Differential Dispersion powered two-way system
    • FREQUENCY RESPONSE: (1) 70Hz - 20kHz ±3dB, -10dB @ 50Hz
    • DRIVER: LF: 8" (200mm)/2" (50mm) voice coil, long excursion, shared ferrite motor system with HF / HF: 1" (25mm) exit/1.4" (38mm) voice coil, polyimide dome compression driver
    • INPUT SENSITIVITY: -13dBu for 100dB SPL
    • MAXIMUM SPL: (2) 117dB continuous / 123dB peak
    • DISPERSION: 110°-80° horizontal, 60° vertical (user-rotatable)
    • CROSSOVER: 2.4kHz Active LR8 - Balance presets for pole mount/ pole mount with sub/ stage monitor


    • Module
    • Audio input:

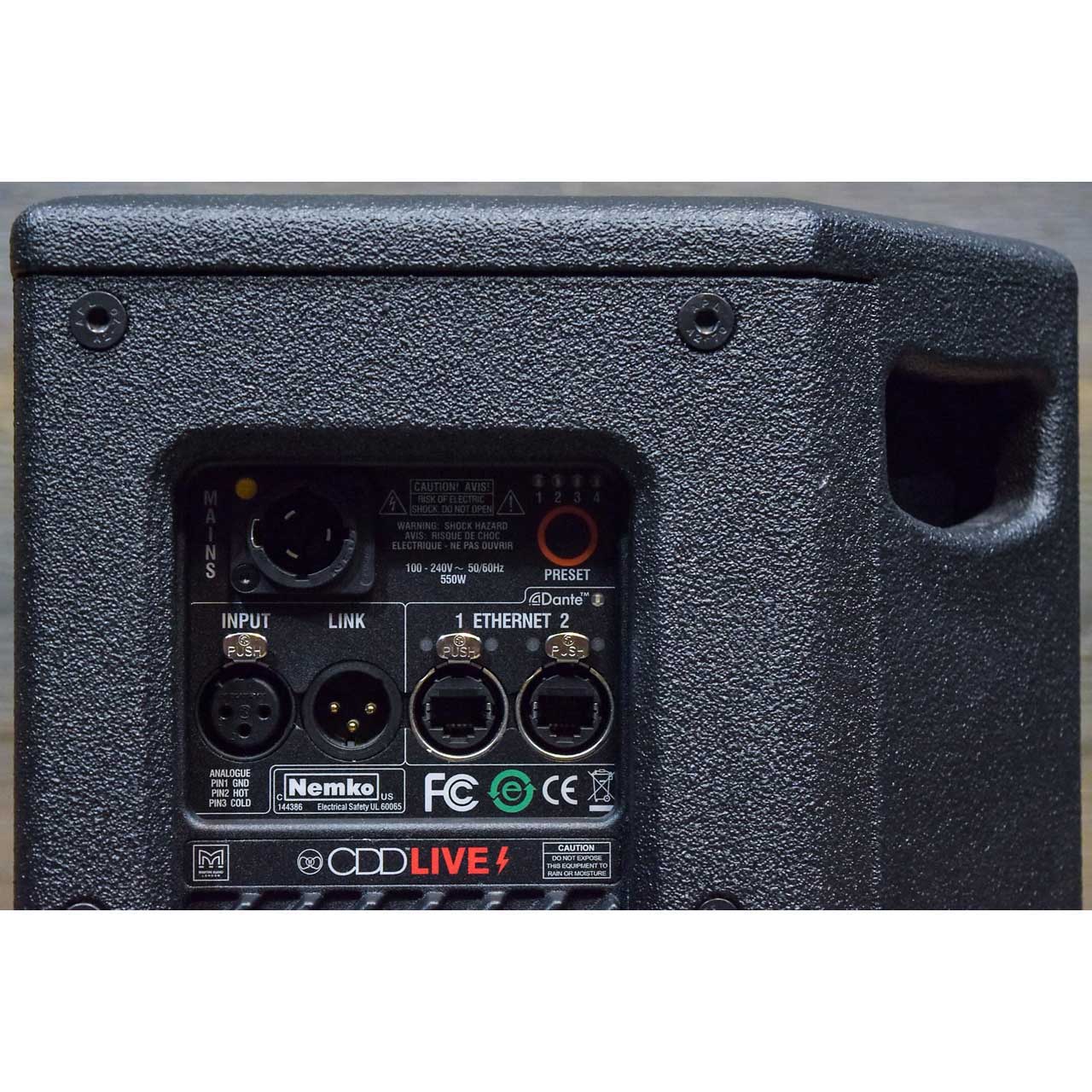

    • CONNECTORS: Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
    • ANALOG INPUT IMPEDANCE: 20 k? balanced to ground
    • MAXIMUM ANALOG INPUT LEVEL: 24.6 Vpp (+21dBu), over voltage protected
    • Internal Processing
    • Multi-channel DSP, programmable via TCP/IP using VU-Net software
    • PEQ/shelving filters
    • Up to 48dB/Oct HPF
    • Low latency HF FIR filters
    • Up to 200ms input delay
    • Pre-set selection via rear panel switch


    • Network
    • CONNECTORS: 2x Neutrik ® EtherconRJ45
    • PROTOCOL: TCP/IP and UDP/IP


    • Amplifier Module
    • TYPE: 2 channel switch-mode, class D
    • PEAK OUTPUT POWER: 1300W
    • CONTINUOUS OUTPUT POWER: 650W total
    • AVERAGE EFFICIENCY: 89%
    • COOLING: External convection cooled, with internal fan
    • MAXIMUM AMBIENT TEMPERATURE: 40°C (104°F) for full output


    • Power Supply
    • TYPE: Switch mode, fixed frequency with PFC
    • AC INPUT OPERATING RANGE: 85 - 265V ~ AC, 50 - 60Hz
    • POWER FACTOR: > 0.98
    • NOMINAL POWER CONSUMPTION: 550W
    • MAINS CONNECTOR: Neutrik® Powercon True1


    • Mechanical
    • ENCLOSURE: Extensively braced multi-laminate plywood.
    • FINISH: Textured black PU coating.
    • PROTECTIVE GRILLE: HEX perforated mild steel with protective zinc plating and black powder coat finish. Backed with black grille cloth
    • FITTINGS Top hat for pole mounting - 15 x M8 mounting points - Single pocket handle - Optional weather protection cowl

  • Item Includes:

    • 1x CDD-LIVE 8 Powered Portable Loudspeaker - 8-Inch - Black
    • 1x Transit Cover
    • 1x Bracket Set - Optional wall, yoke and universal brackets

  • Warranty:

    • Martin Audio CDD-Live Loudspeaker Systems are warranted against manufacturing defects in materials or craftsmanship over a period of 5 years from the date of original purchase.
