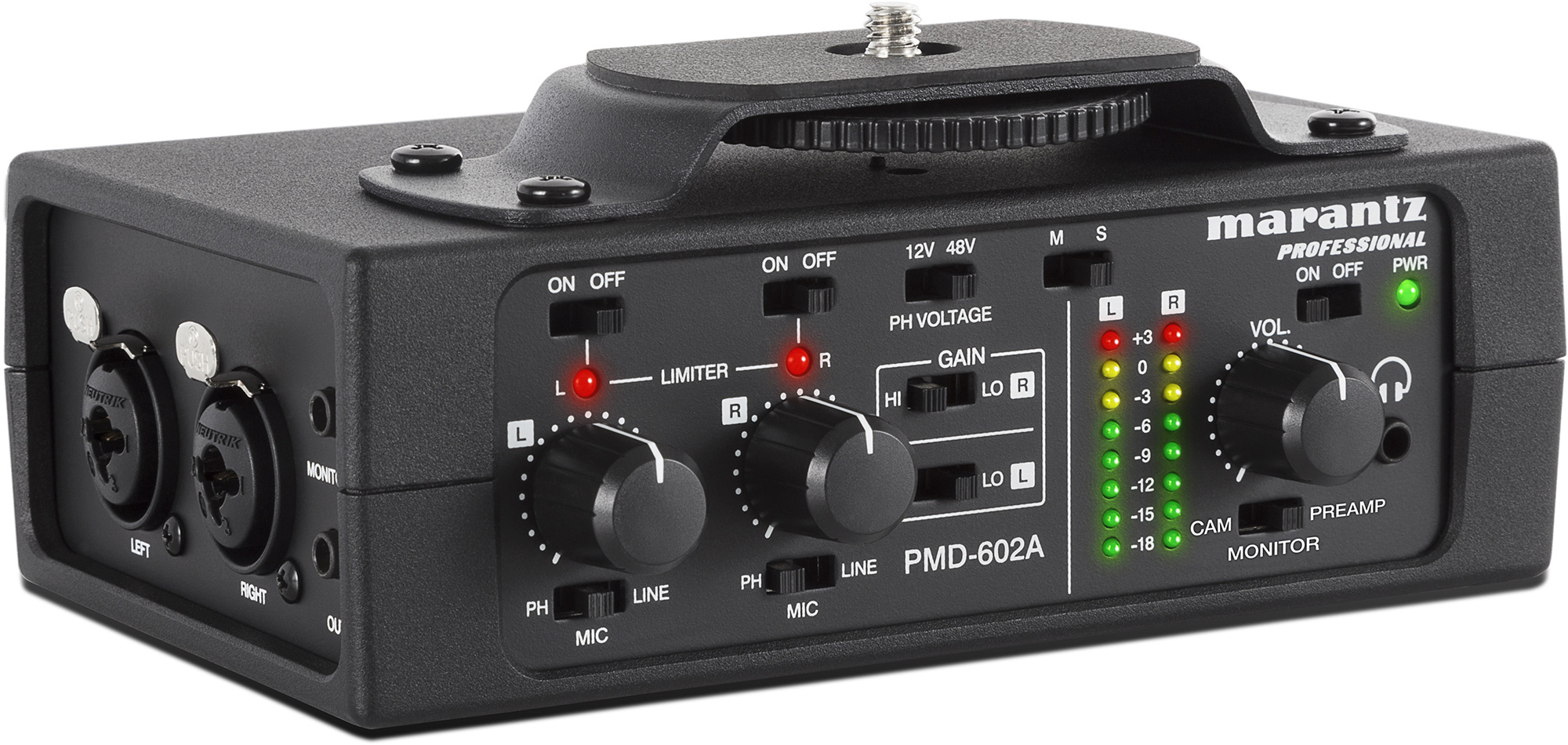

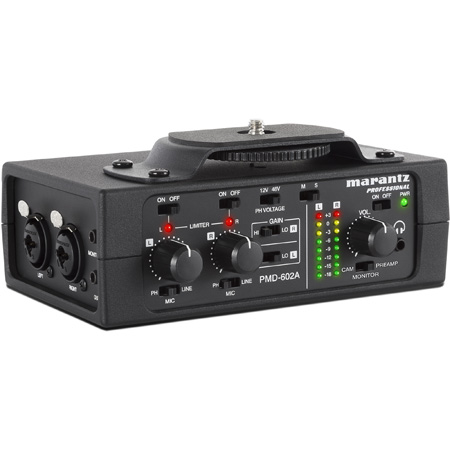

Marantz PMD-602A 2-Channel DSLR Audio Interface
  • Marantz PMD-602A 2-Channel DSLR Audio Interface
  • Marantz PMD-602A 2-Channel DSLR Audio Interface

Questions? Ask a Markertek Expert:
800-522-2025 Email

Marantz PMD-602A 2-Channel DSLR Audio Interface

Manufacturer: Marantz Professional

Item #: MRZ-PMD-602A   •   MFG #: PMD-602A




Our Price:$99.00

free ship


Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Marantz PMD-602A is a two-channel battery-operated interface which enables the use of microphones or line-level audio devices with DSLR cameras or field recording equipment. Professional features incude XLR combo inputs with selectable 12V or 48V phantom power for condenser microphones, mic or line-level input sensitivity with two-stage gain control, a 3.5mm stereo line input, and limiting to ensure gain matching. The line output master makes it possible to correctly feed any camera or recorder line input while monitoring through the headphone output. The PMD-602A also has a 1/4" x 20 mounting bracket on the top for the attachment of a camera, and a tripod socket on the bottom of the unit for added flexibilty.


    • Features

      • Two XLR Combo inputs - selectable MIC or LINE level
      • 12V or 48V phantom power for use with condenser microphones
      • 3.5mm stereo LINE input
      • Limiter function
      • LINE output with level control
      • Headphone output for monitoring
      • Camera mount and tripod socket
      • (4) AA battery operation

    • Specifications

      • Audio Specification
      • Frequency Response: 20 Hz-20 kHz, +1 dB
      • Signal-to-Noise Ratio: > 94 dB
      • Max Mic Input Level: -20 dBu (high gain), +10 dB (low gain)
      • Mic Input Sensitivity: -40 dBu
      • Mic Input Impedance: 2 kΩ
      • Max Line Input Level: +24 dB
      • Line Input Impedance: 10 kΩ
      • Maximum Voltage Gain: -24 dB
      • Phantom Power: 12V and 48V (switchable)

        Connectors
      • (2) XLR-1/4" (3.5 mm) TRS stereo inputs
      • (1) 1/8" (3.5 mm) TRS stereo output
      • (1) 1/8" (3.5 mm) stereo headphone output

        Environmental
      • Operating Temperature: 41° to 140°F (5° to 60°C)
      • Operating Humidity: 25 to 85% (non-condensing)

        General
      • Power Requirement: 4 AA batteries
      • Battery Life (phantom power OFF): 15 hours
      • Battery Life (phantom power ON): 12 hours
      • Power Consumption: <5 W
      • Dimensions (HxWxD): 1.5 x 2.5 x 6" (38 x 64 x 152mm)
      • Weight: 1.4Lbs (0.63kg)

    • GTIN:

      0694318022757
