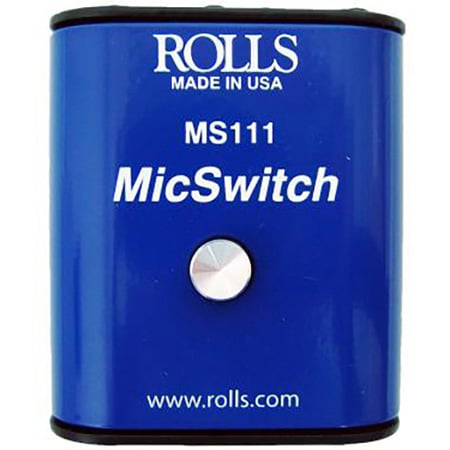

Rolls MS111 Mic Switch

ITEM #: MS111 MFG #: MS111

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    MS111 - Overview

    The Rolls MS111 is a general purpose muting switch for microphones. The MS111 will pass phantom power, with no popping on the outputs. It is configurable to be Push to Mute or release to Mute by a second switch accessed on the side of the unit.

    The MS111 can have the mute switch configured to be Momentary (see manual), the switch is set to latching from the factory. The MS111 is only compatible with balanced signals.

    To switch a microphone signal on or off connect the balanced XLR cable coming from your microphone to the female Input jack on the MS111 and connect the male Output jack with a balanced XLR cable to the input of your mixer, or the next device in the signal path. Press the switch on the MS111 once to activate the microphone, press the switch again to mute the microphone.

    • Features:

      • Passes Phantom Power
      • Balanced Female XLR Input and Male XLR Output jacks
      • Activation Switch can be either Latching or Momentary Mute
      • Reversible Activation Switch "Up" position can be mic on or off
      • Can be stand mounted with the Rolls MSC106 mic mount accessory
      • No popping on the outputs when switched
    • Specifications:

      • Input/Output Impedance: 600 Ohms
      • Connections: 2 XLR: 1 Male, 1 Female
      • Size: 2.5" W x 2" H x 3" D
      • Weight: 1 lb.
    • GTIN:
