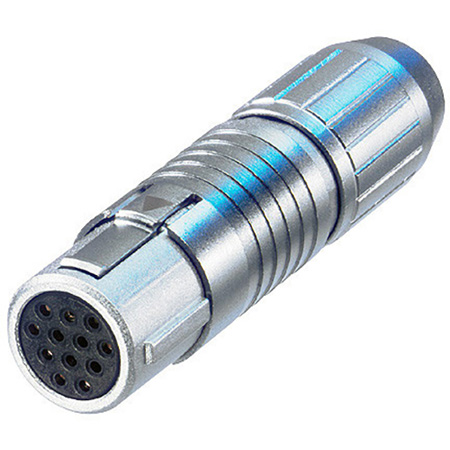

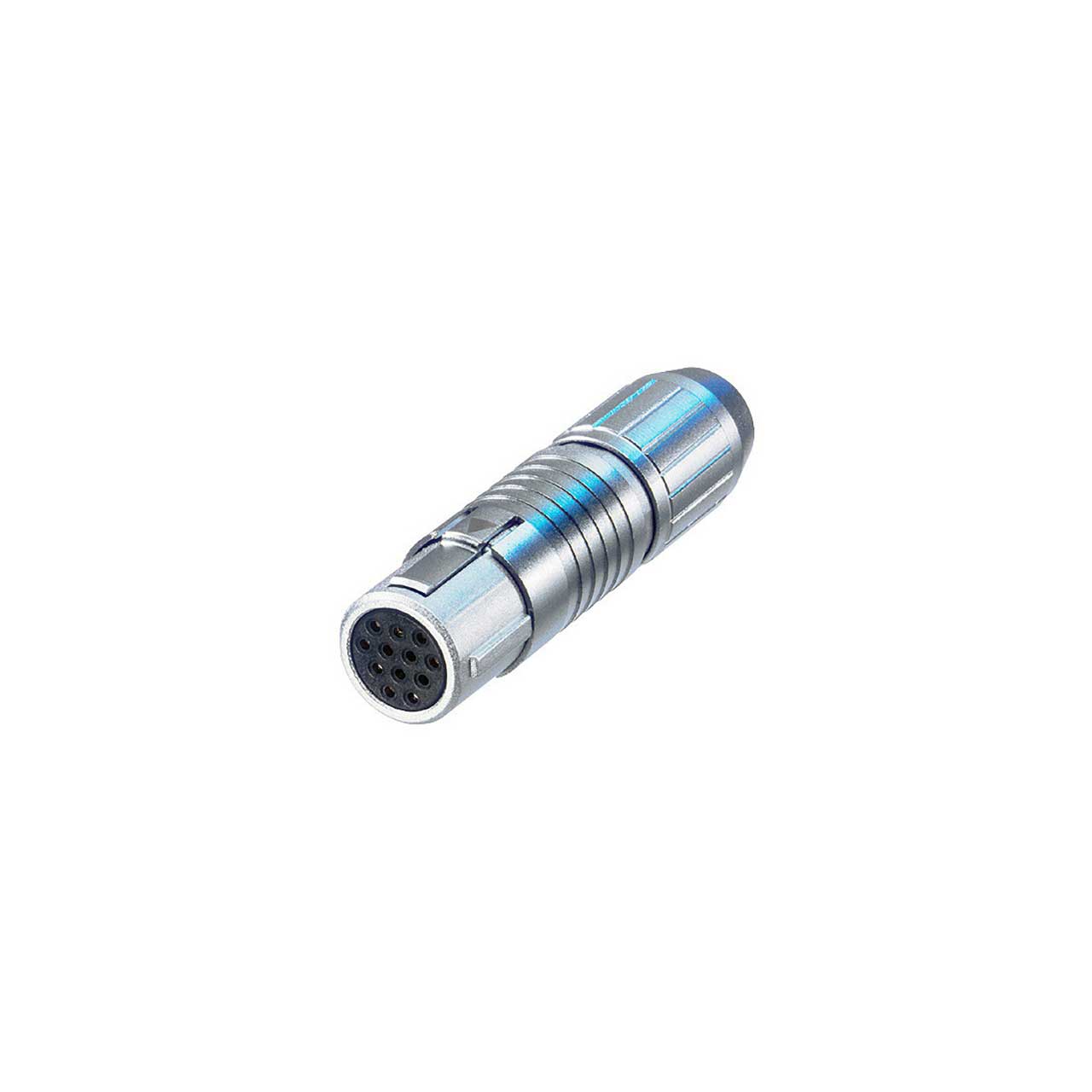

Neutrik MSCF12 miniCON 12 Pole Female Cable Connector with Solder Contacts

ITEM #: MSCF12 MFG #: MSCF12

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$21.45

Our Price:

$18.39

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    MSCF12 - Overview

    12 Pole Female Cable Connector, Chuck Type Strain Relief, Solder Contacts
    The Neutrik MSCF12 miniCON with its flexible and compact design is perfectly suitable for multipin/industrial applications. The rugged all metal miniature connector offers a push-pull locking device and stands out by an excellent cost/performance ratio.

    • Features:

      • Easy assembly: Contact soldering in disassembled condition avoids awkward wiring of high density contacts
      • Velour chromium housing
      • Push-pull self-locking system
      • Rugged, precisely machined all metal design
      • Gold plated contacts

    • Specifications:

      • Product
      • Title: MSCF12
      • Connection Type: miniCON
      • Gender: female

      • Electrical
      • Contact resistance: < 8 mΩ (inner)
      • Dielectric strength: 1 kVdc
      • Insulation resistance: > 0.5 GΩ
      • Rated current per contact: 3 A
      • Rated voltage: < 50 V

      • Mechanical
      • Cable O.D.: 3 - 5 mm (grey chuck), 5 - 7 mm (white chuck)
      • Cable retention: > 20 N
      • Insertion force: < 25 N
      • Wiresize: 0,5 mm²
      • Wiresize: 20 AWG
      • Wiring: Solder contacts
      • Locking device: Push-Pull

      • Material
      • Contact plating: 0.2 µm AuCo
      • Contacts: Bronze (CuSn6)
      • Insert: Polyamide (PA 6.6)
      • Shell: Zinc diecast / Brass (ZnAl4Cu1 / CuZn39Pb3)
      • Strain relief: Polyacetal (POM)

      • Environmental
      • Flammability: UL 94 V-0
      • Protection class: IP 5X
      • Solderability: Complies with IEC 68-2-20
      • Temperature range: -30 °C to +80 °C

    • GTIN:

      7613187002052
