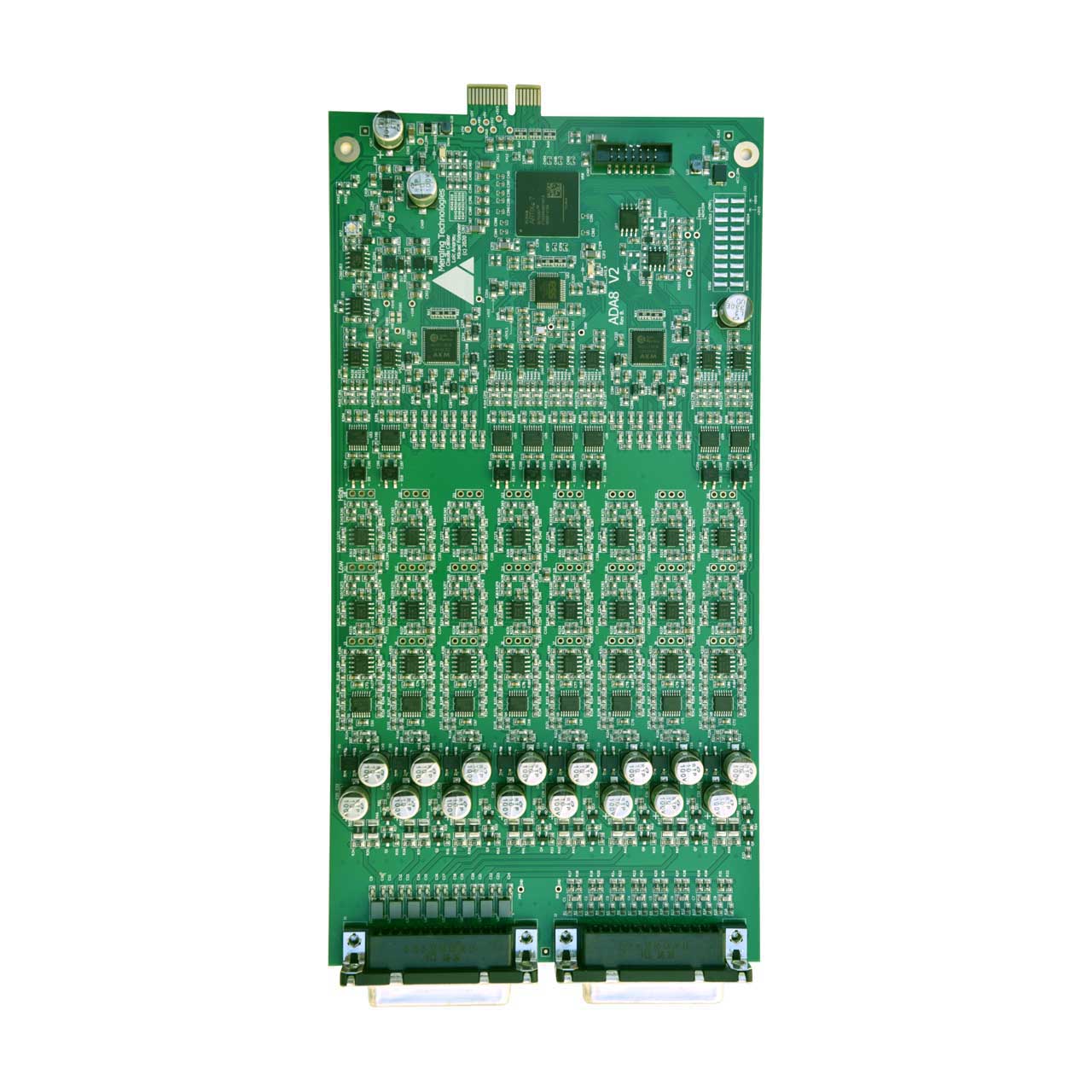

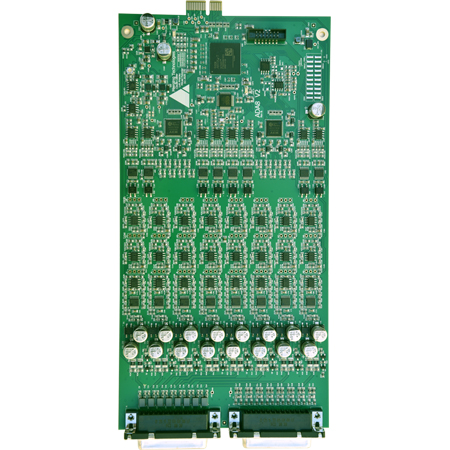

Merging Technologies ADA8S 192kHz Remotely Controlled Mic/Line Input and Output Card for Horus/HAPI MK II

ADA8S - Overview

• Features:

  • 8x exceptionally transparent, Swiss designed pre-amplifiers
  • Remote/Local switch to Line Level on a per channel basis
  • Completely accessible remotely for all parameter changes
  • Phantom Power/Polarity Invert/Low Cut*/Impedance switchable per channel
  • Dynamic range of 139dB (A-weighted, typ) on the Line inputs
  • Auto-mute circuitry for "no-pop" power cycling
  • Digitally controlled output trims for line up procedures


• Specifications:

  • Mic Pre-Amp + ADC
  • Mic Pre Max Input (Mic+Pad / Mic / Mic Boost): +24 dBu / +12 dBu / +0 dBu
  • Input Impedance (Differential, Software Switchable Per Channel): 3 kω / 10.4 kω
  • Frequency response +0/-0.3dB @ fs = 48 kHz: 9 Hz - 22 kHz
  • Frequency response +0/-0.3dB @ fs = 96 kHz: 9 Hz - 46 kHz
  • Frequency response +0/-0.3dB @ fs = 192 kHz: 11 Hz - 94 kHz
  • Dynamic Range (A-weighted, typ.), ref +12 dBu: 137 dB
  • Dynamic Range Mic Boost (A-weighted, typ.), ref 0 dBu: 128 dB
  • Gain Range (software controlled): 0 dB to +66 dB
  • THD+N Pre + A/D (20 Hz - 20 kHz) @ -2 dBFS: < -111 dB (0.00028 %)
  • Interchannel Crosstalk @ 1kHz: < -130 dB
  • EIN @ > 40 dB Gain (150Ω Source Impedance, A-weighted): < -127 dBu
  • Common Mode Rejection Rate (20 Hz - 20 kHz): > 75 dB
  • Phantom Power (Software Switchable Per Channel): +48V
  • Polarity Invert (Software Switchable Per Channel): YES
  • Low Cut filter** (Software Switchable Per Channel): -12 dB/octave, 80 Hz

    Line Input
  • Max Line Input for 0 dBFS: +24 dBu
  • Input Impedance (Differential): 10.4 kω
  • Dynamic Range (A-weighted, typ), ref +24 dBu: 139 dB
  • THD+N Line+A/D (20 Hz - 20 kHz) @ -2 dBFS: < -111 dB (0.00028 %)
  • Interchannel Crosstalk @ 1kHz, typ.: < -135 dB
  • Sensitivity Range for 0 dBFS (software controlled): -42 dBu to +24 dBu
  • Gain Step: 0.5 dB
  • Common Mode Rejection Rate (20 Hz - 20 kHz): > 70 dB
  • Connector Pinout: DB-25 / AES59 (Tascam Ana.)

    Line Output
  • Max Output level software switchable for 0 dBFS: +24 dBu / +18 dBu +0/-0.5 dB
  • Frequency response +0/-0.3dB @ fs = 48 kHz: 0 Hz - 22 kHz
  • Frequency response +0/-3dB @ fs = 96 kHz: 0 Hz - 46 kHz
  • Frequency response +0/-3dB @ fs = 192 kHz: 0 Hz - 92 kHz
  • Output Impedance (Differential): < 80 ω
  • Dynamic Range (A-weighted, typ.): 125 dB / 126 dB
  • THD+N (1 kHz) @ 0dBFS: < -115 dB (0.00017 %)
  • Interchannel Crosstalk @ 1kHz: < -139 dB
  • Connector Pinout: DB-25 / AES59 (Tascam Ana.)


• Item Includes:

  • 1x Merging Technologies ADA8S Option Card


• Warranty:

  • 2-Year Limited Warranty


• GTIN:

  0615104391512
