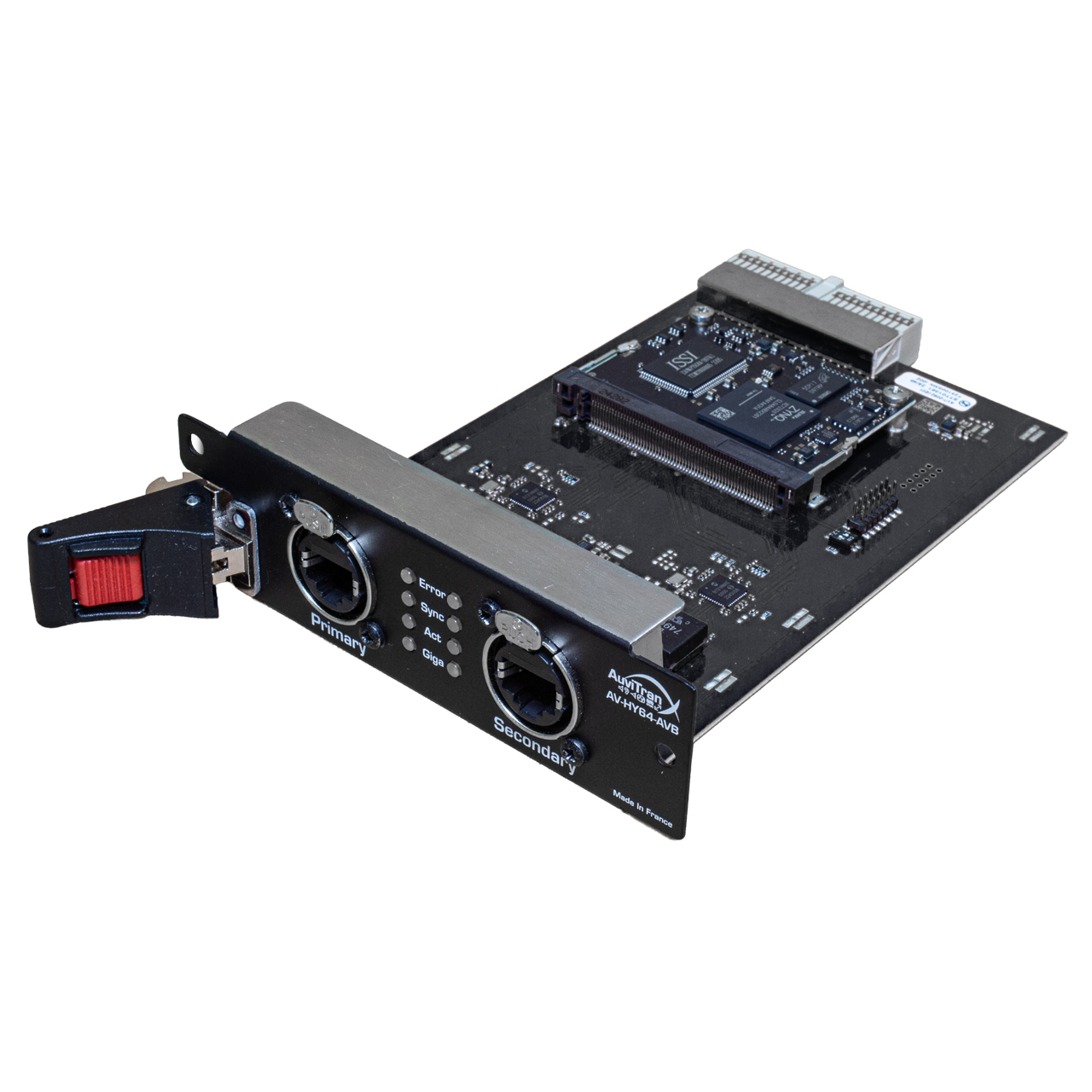

AuviTran AV-HY64-AVB MILAN 64 Channel MILAN Certified Interface Card for Yamaha RIVAGE PM Series Mixers

AV-HY64-AVB MILAN - Overview

Bring direct AVB connectivity into your RIVAGE PMdigital mixing system

• Features:

  • Unique AVB card for RIVAGE PM series
  • 64 input and 64 output channels @96kHz
  • AVB redundancy support


• Specifications:

  General
  • Power supply: +5.0V - through Yamaha HY backplane
  • Temp/Humidity:
    - Storage: 23°F - 158°F (-5°C - 70°C) / 0% to 95% (non-condensing)
    - Operating: 32°F - 122°F (0°C - 50°C) / 5% to 90% (non-condensing)
  • AVB connections: 2x Neutrik EtherCon for AVB primary and secondary with 4 status LEDs for each port

    Audio Formats
  • Audio sampling frequency: 48kHz, 96kHz
  • Audio sample resolution: All AVB audio sample format - 32 bits

    AVB Compatible Features
  • Stream formats supported: AAF, CRF
  • Clock synchronization capability: CRF Stream, AAF Stream, Internal Clock

    Audio Inputs and Outputs
  • Number of input and output channels:
    - 64x input and 64x output channels @ 48kHz
    - 64x input and 64x output channels @ 96kHz
  • Number of input and output streams:
    - 8x input and 8x output streams of 8 channels @ 48kHz
    - 8x input and 8x output streams of 8 channels @ 96kHz

    Mechanical Specifications
  • Dimensions (WxHxD): 4.9" x 1.5" x 8.2" (125mm x 37mm x 207mm)


• Item Includes:

  • 1x AV-HY64-AVB MILAN
