Blackmagic Design Pocket Cinema Camera 4K with Core SWX PowerBase EDGE LINK Battery Pack & P-Tap Cable & Charger Kit

MTK-BMDPC4KCBKIT - Overview

• Features:

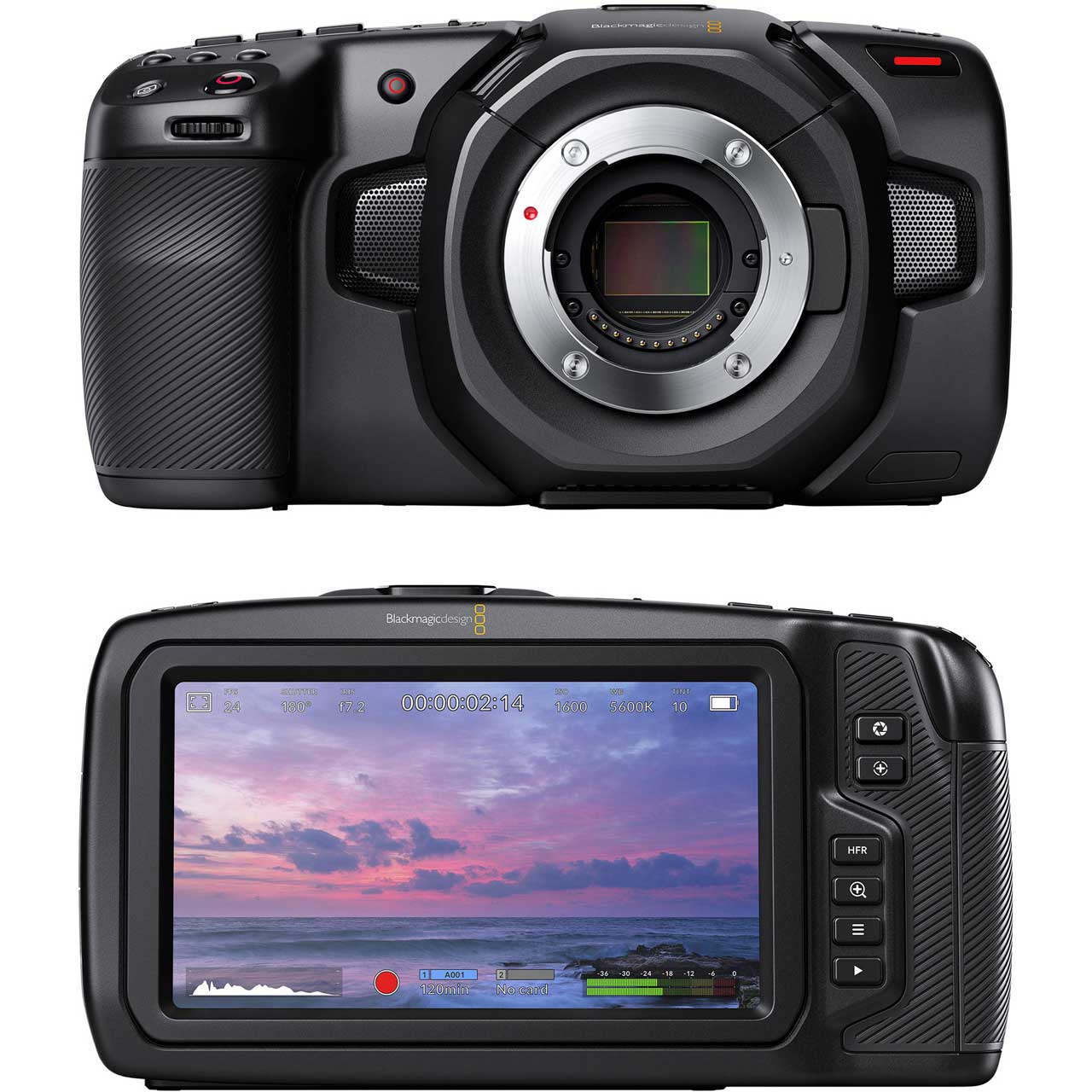

  • Pocket Cinema 4K
  • Effective Sensor Size: 18.96mm x 10mm (Four Thirds)
  • Lens Mount: Active MFT mount
  • Lens Control: Iris, focus and zoom on supported lenses
  • Dynamic Range: 13 Stops
  • Shooting Resolutions: 4096 x 2160 (4K DCI), 3840 x 2160 (Ultra HD), 1920 x 1080 (HD)
  • Frame Rates: Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 4K DCI, 120 fps in HD windowed.
  • Focus: Focus button turns on peaking, auto focus available using compatible lenses
  • Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
  • Screen Dimensions: 5" 1920 x 1080
  • Screen Type: LCD capacitive touchscreen
  • Metadata Support: Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

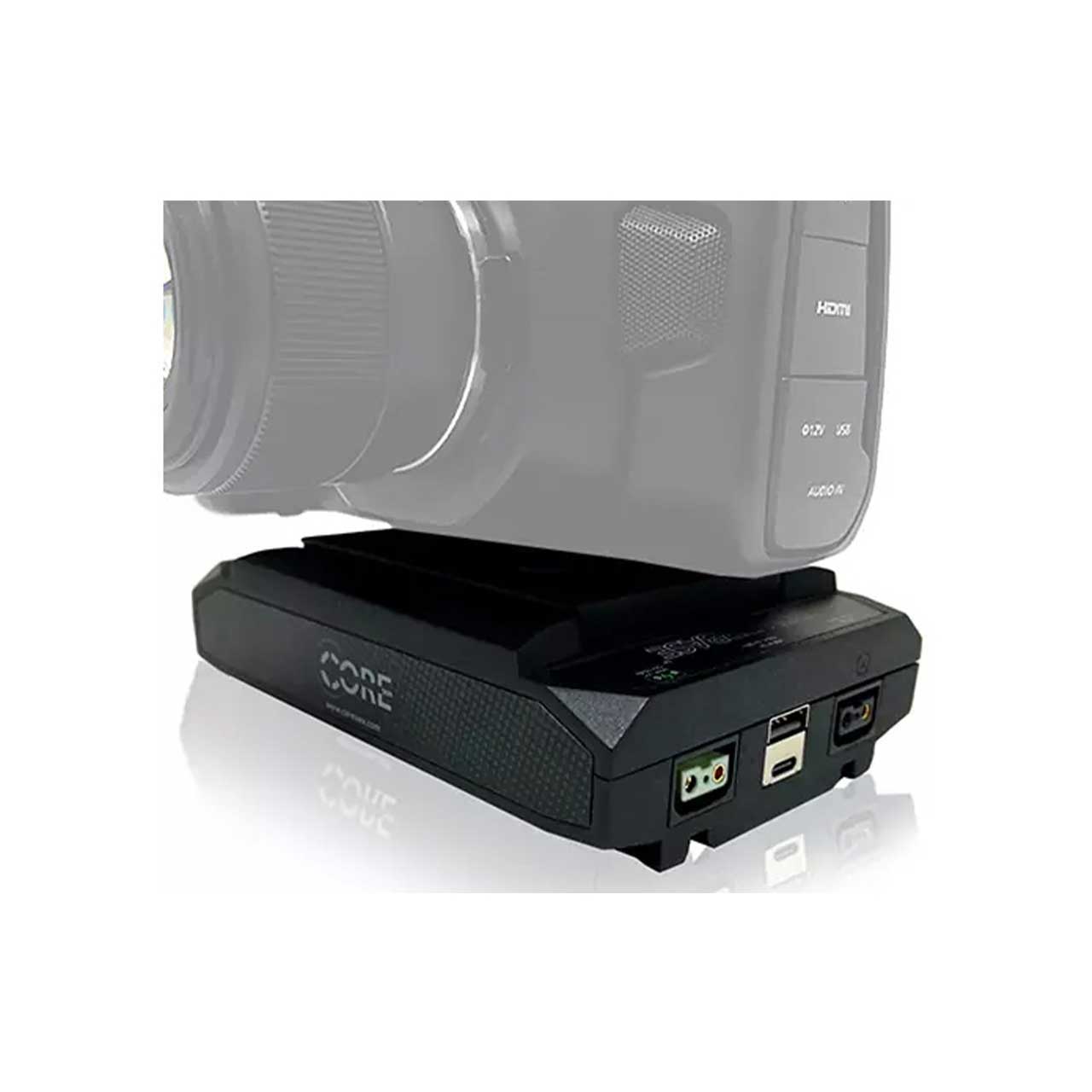

    PBE-Link
  • Compatible Charging: The Powerbase Edge charges on all Core SWX V-Mount battery chargers, as well as other manufactures V-Mount chargers such as SonyT, RED&Trade; and IDXT. In addition, the battery pack can be charged via the p-tap with the PB70C15 charger.
  • USB Power Core: SWX has an integrated p-tap (powertap/dtap) connector on the side of he battery allowing you to power any 12vdc device from this port which is a feature Core SWX had since its first battery 16 years ago. With their "ear to the ground," they also know how important mobile devices are to production, and so they are one of the first companies to incorporate a USB port on the packs, providing accessible charging for your mobile devices.
  • Storage Mode: Hold the LCD backlight button for 20 seconds to awaken and to put back into "Storage mode". All Edge battery packs are now shipped in "Storage Mode". Storage mode reduces the chance of the battery being delivered in a fully depleted state of charge.
  • Travel Safe: All of Core SWX batteries that are travel safe have an Air Compliant Label. They understand that customers are constantly onthe go, therefore Core SWX is dedicated to making there experience as smoothly as possible.
  • Smart Tap: As with all Core SWX brick battery offerings, the Hypercore series have an integrate p-tap (powertap/dtap) connector on the side of the battery allowing you to power any 12vdc device from this port. With that said, once again through extensive R&D Core SWX is now offering a "Smart Tap" which will pull all battery data.


• Specifications:

  • Pocket Cinema 4K
  • Total Video Inputs: None
  • Total Video Outputs: 1x HDMI up to 1080p60
  • Analog Audio Inputs: 1x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1x 3.5mm Stereo Input. Can also be used for Timecode input.
  • Analog Audio Outputs: 1x 3.5mm headphone jack.
  • Computer Interface: USB Type-C for external drive recording, PTP camera control and software updates
  • Microphone: Integrated stereo microphone
  • Built-in Speaker: 1x mono speaker
  • SD Video Standards: None
  • HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
  • 4K DCI Standards: 4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60.
  • Media: 1x CFast card slot, 1x SD UHS-II card slot, 1x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes Recording.
  • Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac)file systems
  • External Control: iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and internal record start and stop when used with a compatible ATEM and ATEM Software Control.
  • Color Corrector: DaVinci YRGB
  • Software Included: Blackmagic OS
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10.
  • Power Supply: 1x External 12V power supply
  • External Power Input: 1x 2-pin locking connector
  • Battery Type: Canon LP-E6
  • Battery Life: Approximately 60 minutes (recording at 24 fps without any external USB-C device connected)
  • Power: 12V-20V

    PBE-Link
  • Capacity: 49wh (14.8vdc, 3.3Ah)
  • Operational Voltage: DC 12v-16.8v
  • Dimensions: 5.1 x 3.6 x 1.55"
  • Weight: 1.3lbs
  • Normal Runtime: approx. 12+ hours
  • Max Continuous Load: 8A

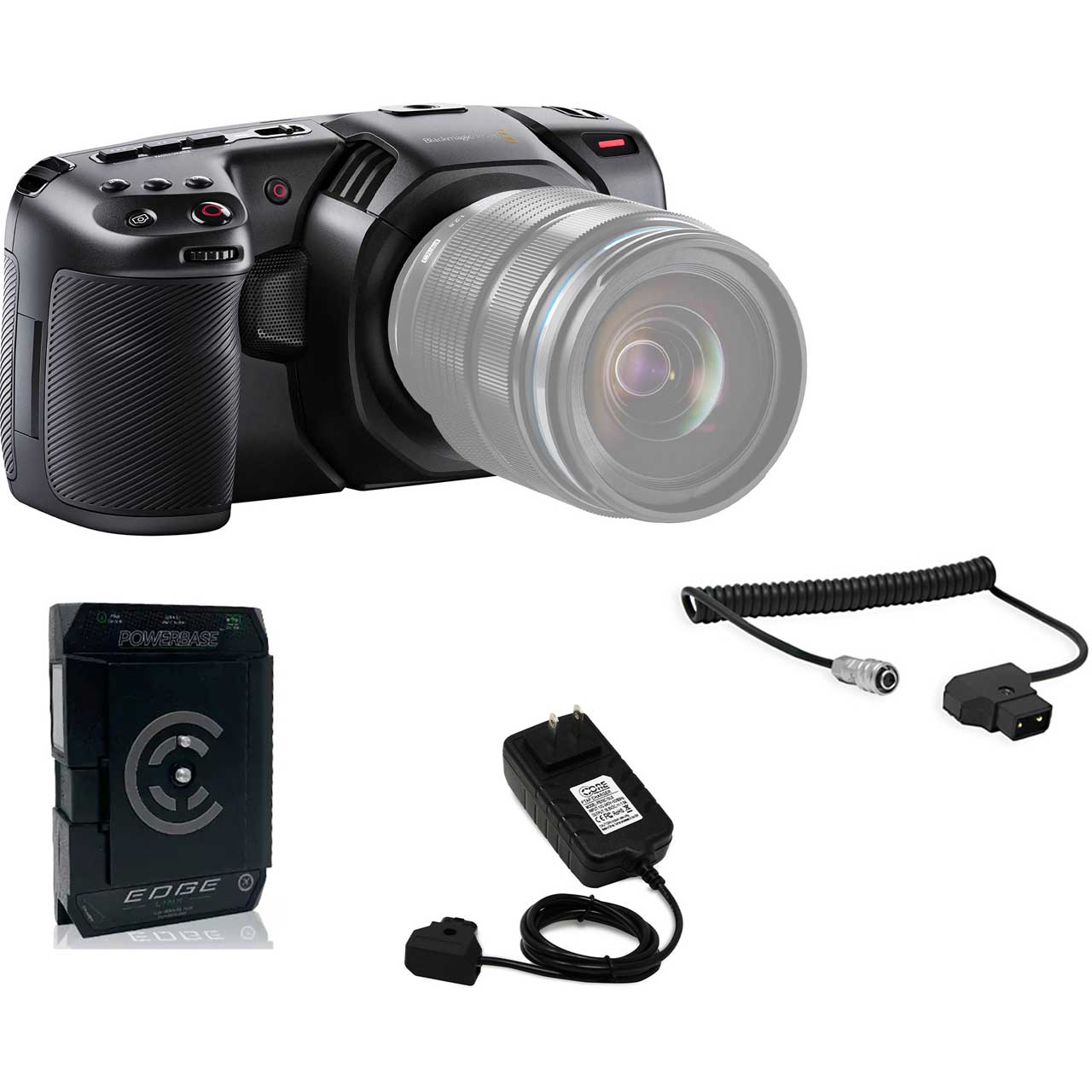

• Item Includes:

  • 1x Blackmagic Design Pocket Cinema Camera 4K
  • 1x Core SWX PBE-Link PowerBase EDGE LINK Battery Pack

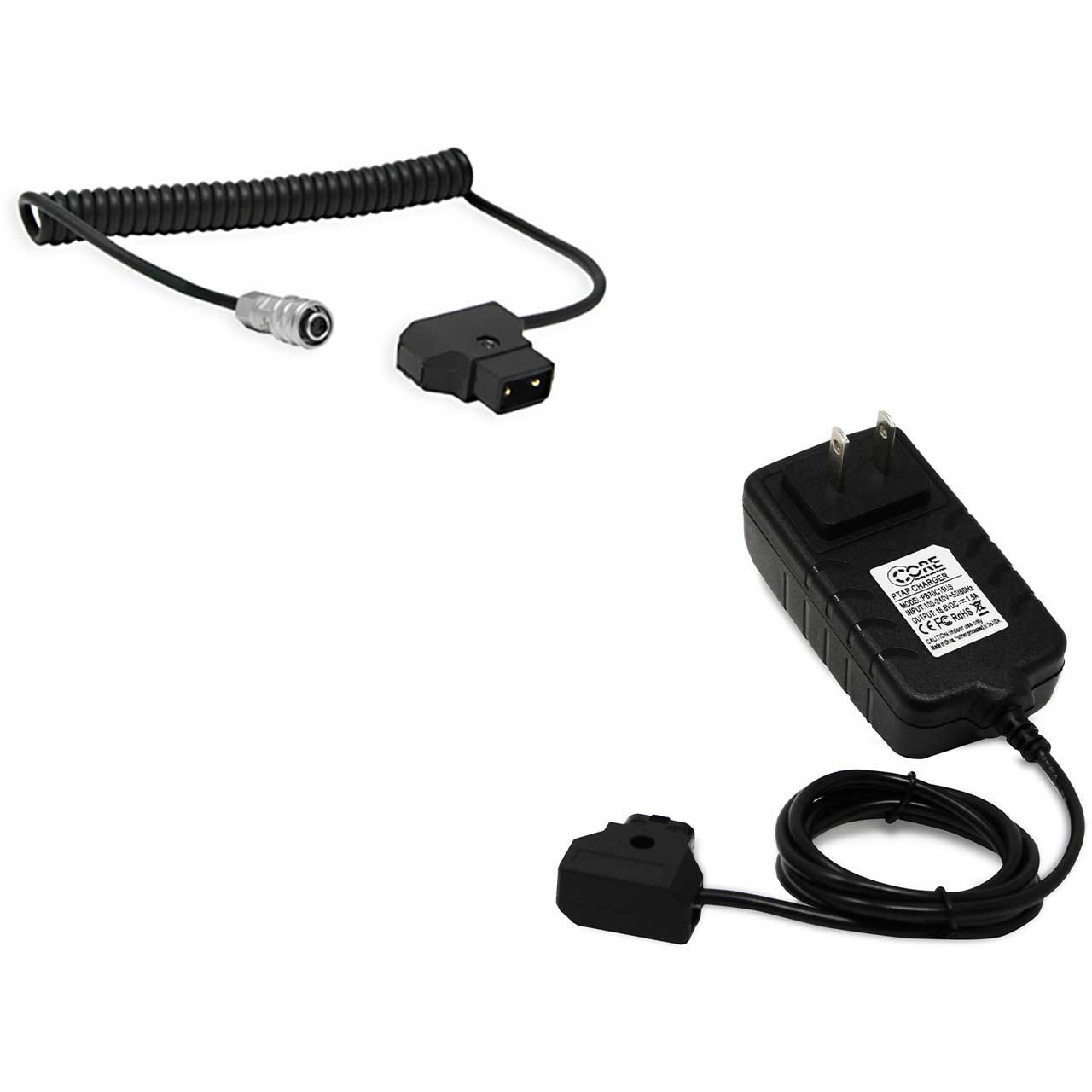

  • 1x Core SWX PTC-BMPC4 Coiled P-Tap to 2-Pin Cable
  • 1x Core SWX PB70C15US Single Position Powertap Charger
