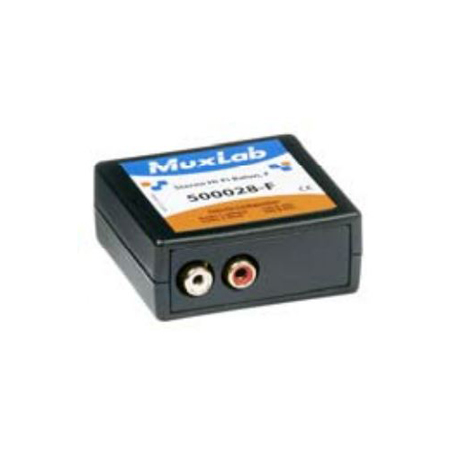

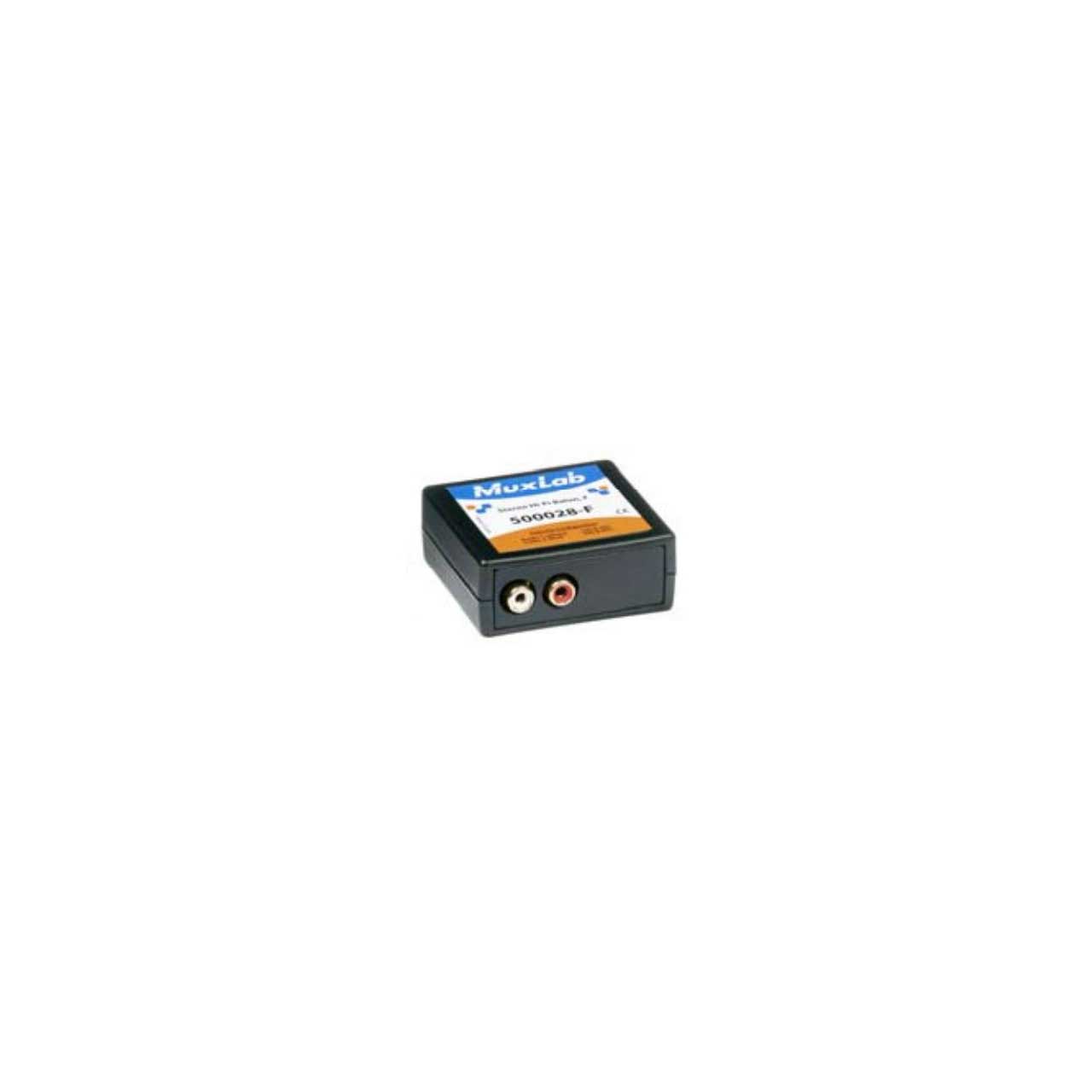

MuxLab 500028-F Stereo Hi-Fi Balun - Female RCA to RJ45

ITEM #: MUX-500028-F MFG #: 500028-F

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$59.00

Our Price:

$41.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    500028-F - Overview

    Analog Audio Up to 3,250 Feet (1km) via Cat5e/6 UTP!

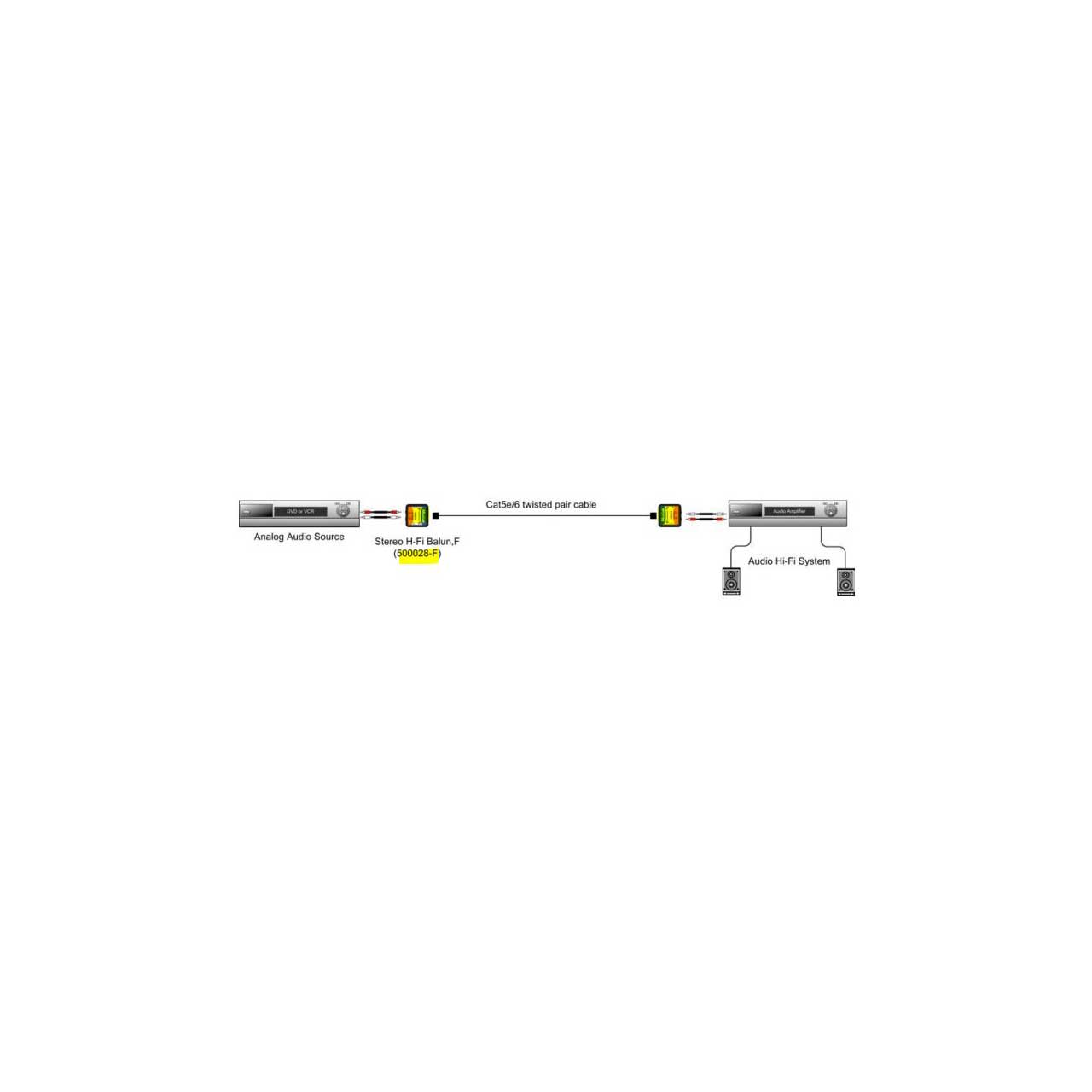

    Used in matched pairs the MuxLab Stereo Hi-Fi Balun 500028-F with it's RCA Female inputs works with a companion 500028-F (sold separately) to allow an unbalanced line-level Hi-Fi stereo analog audio signal to be transmitted via single Cat5e/6 cable in a point-to-point connection to distances of up to 3,250ft / 1km!

    The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required.

    Applications
    Boardroom systems, classroom training, auditoriums, custom home installations and intercom systems.

    • Features:

      • Extend stereo Hi-Fi audio signal distances up to 3,250ft / 1km via single Cat5e/6 to a second 500028-F
      • Frequency response: 20Hz to 20kHz (over distance range)
      • Color coded RCA female inputs

    • Specifications:

      • Environment: Line level unbalanced analogue audio
      • Devices: DVD players, satellite receivers, MPEG players, laptops, hi-fidelity stereo audio amplifiers, audio switchers, AV monitors, powered subwoofer and other line level audio equipment
      • Transmission: Transparent to the user.
      • 3dB Bandwidth: 20 Hz to 20 KHz over the distance range
      • Maximum Input: 1.1Vp-p (unbalanced)
      • Insertion Loss per balun pair: Less than 2 dB over the frequency range.
      • Common Mode Rejection: Greater than 60 dB @ 1 KHz/Greater than 40 dB over the frequency and distance range
      • THD: Maximum 0.007% @ 1 KHz over distance range.
      • Audio Source: Impedance 100 ohms maximum
      • Audio Receiver: Impedance 10 k ohms minimum
      • Max. Distance - Cat5e/6 UTP: 3,250 ft (1km)
      • Pin Configuration(RJ45) EIA 568 A or B: Audio 1 (White): pins 1[R] & 2 [T]/Audio 2 (Red): pins 3 [R] & 6 [T]
      • Cable - UTP: 24AWG or lower solid copper twisted pair wire
      • Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pf/foot.
      • Attenuation: 6.6 dB/1000 ft at 1 MHz
      • Cable - Coax: Shielded audio cable
      • 500028-F: Two (2) RCA-F/One (1) RJ45
      • Temperature Operating: 0§ to 55§ C./Storage:-20§ to 85§ C. Humidity: up to 95%
      • Enclosure ABS: Fire retardant plastic

    • Warranty:

      • Limited Lifetime Warranty
