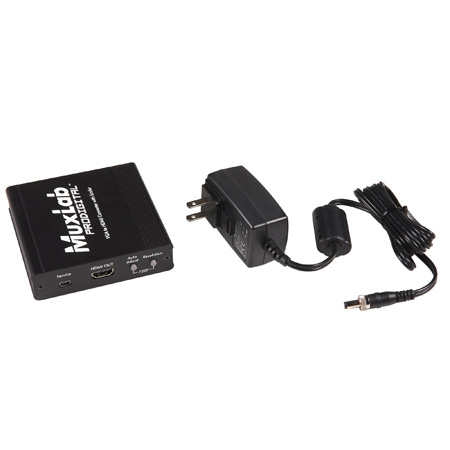

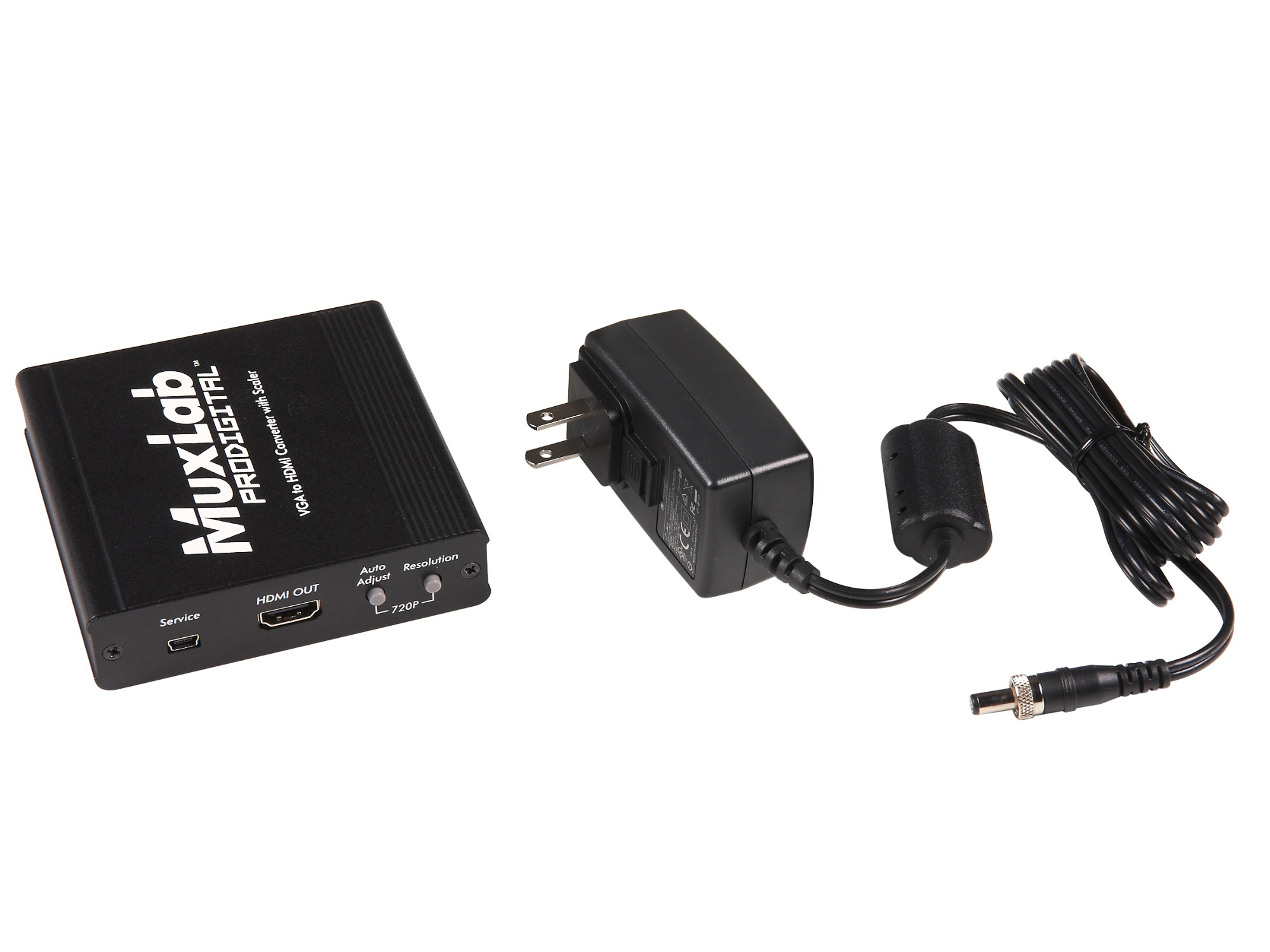

Muxlab 500149 VGA to HDMI Converter with Scaler

ITEM #: MUX-500149 MFG #: 500149

free ship

List Price:

$288.00

Our Price:

$197.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    500149 - Overview

    The VGA to HDMI Converter with Scaler is designed to scale analog video from PC input source to digital HDMI output of wide-range HD and PC resolutions up to 1080p or WUXGA. Besides video scaling, the device can convert analog stereo audio input to digital format and embed it to HDMI output as 2-Channel LPCM. This unit has a comprehensive resolution button that allows user to select a variety of output resolutions and adjust for best picture quality.

    • Features:

      • HDMI and DVI 1.0 Compliant.
      • Scales many PC resolutions to many HD or PC resolutions
      • Solves odd VGA resolutions to display on a fixed HDMI panel
      • Support high resolution output
      • PC resolutions supported: VGA, SVGA, XGA, SXGA, UXGA,WXGA,WSXGA, WUXGA
      • SD/HD resolutions supported: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
      • Automatically detects the factory settings of the connected display and outputs the corresponding resolution and refresh rate, when the NATIVE resolution is selected
      • Supports stereo analog input with PC video to HDMI output
      • Supports firmware upgrading via USB
      • Powered by local 5VDC power supply with locking connector
      • Elegant Aluminium enclosure designed for ruggedness and better cooling

    • Specifications:

      • One (1) VGA HD-15 input receptacle
      • One (1) Audio input 3.5mm Stereo Jack
      • One (1) HDMI output receptacle.
      • One (1) Mini USB Service port
      • One (1) 2.1mm barrel locking power connector

    • GTIN:

      0627699001493
