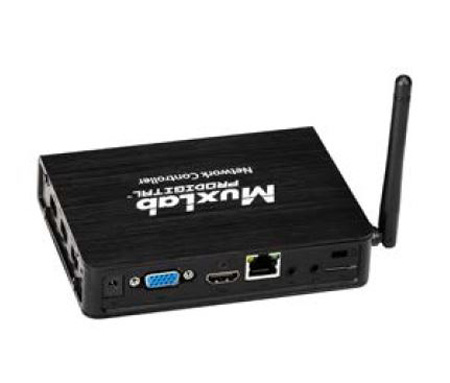

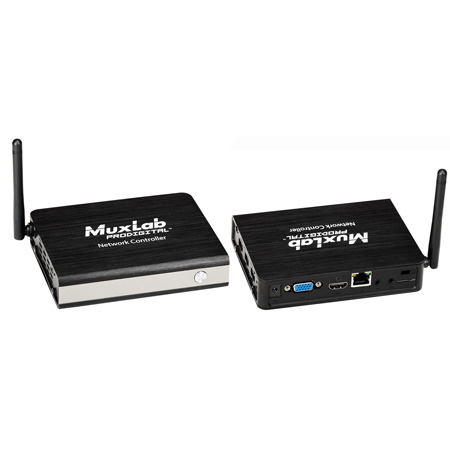

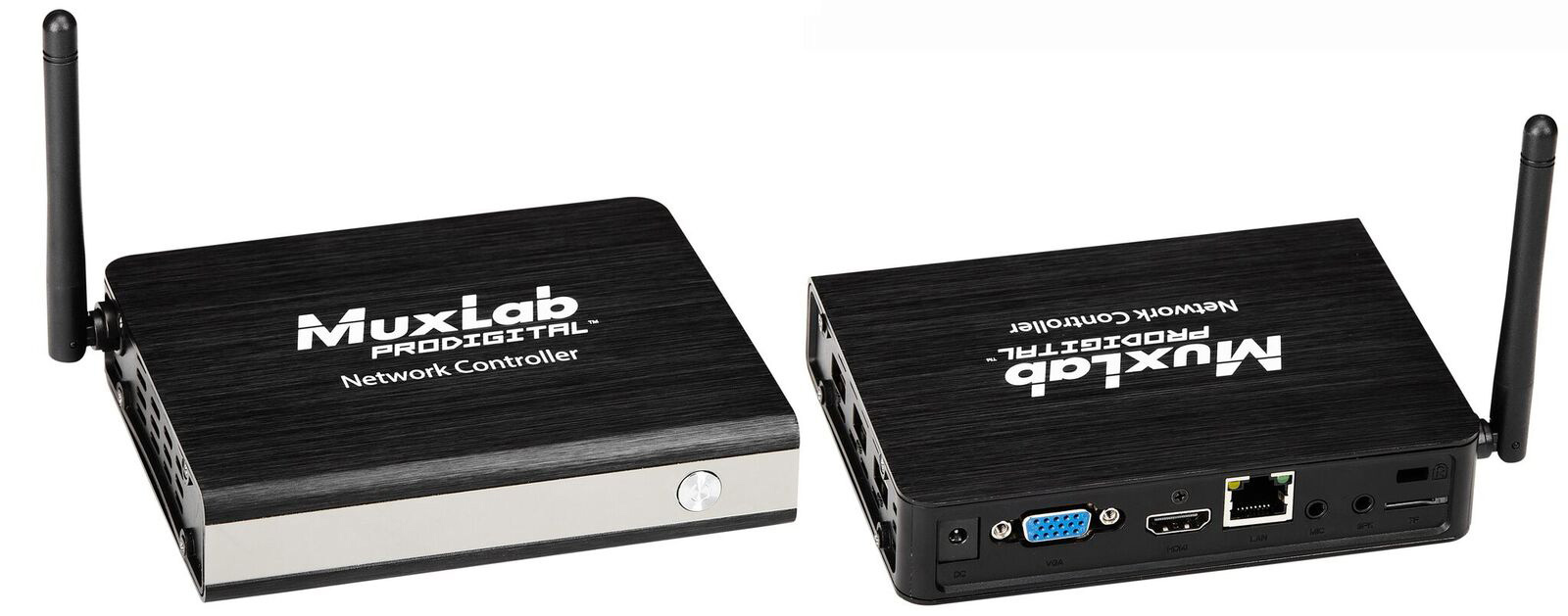

MuxLab 500811 Pro Digital Network Controller
  • MuxLab 500811 Pro Digital Network Controller
  • MuxLab 500811 Pro Digital Network Controller
  • MuxLab 500811 Pro Digital Network Controller
  • MuxLab 500811 Pro Digital Network Controller


MuxLab 500811 Pro Digital Network Controller

Manufacturer: MuxLab Inc

Item #: MUX-500811   •   MFG #: 500811



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the MUX-500811

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





Simplify your AV systems with 24/7 access from any place at any time with the MuxLab 500811 ProDigital Network Controller! This versatile solution goes way beyond remote control, allowing users to manage virtual switches and splitters with the press of a button. It centralizes control of all IP-connected MuxLab devices, and is accessible both on- and off-site using an intuitive web interface and third party apps on smartphones and tablets. Just a tap or swipe selects and directs connected AV devices.

When installed on a local area network (LAN), the MuxLab Network Controller will scan the LAN for connected MuxLab products allowing the user to configure and control these products through an Ethernet Web interface. This Controller also provides the building blocks to develop automation control applications. IP-based devices can be managed with a scripted command that automates actions for a totally hands-free operation. It also auto-discovers MuxLab AV over IP devices to simplify installation and centralizes software upgrades to enhance performance. Plus, it supports a common API for third party control of MuxLab devices.


How It Works
The Network Controller is based on a Linux PC platform. Basically, it scans the network for active MuxLab AV over IP products over a distributed network, which the user can then configure and control. Because it can be managed locally and remotely, it frees users from being onsite to configure, operate or troubleshoot the system. It also supports I/O presets, which can be created and saved for later use.


  • Features

    • Centralizes control of all MuxLab products within a system
    • Provides web interface to manage & control MuxLab products
    • Provides a mobile web interface for smartphones and tablets
    • Provides control APIs (IP & RS-232) for 3rd party control integration
    • Supports I/O presets to be configured
    • Serves as a base platform to develop automation control applications
    • Supports Software upgrades

  • Specifications

    • CPU: Intel Atom Z3735F processor
    • Memory: 2GB RAM DDR3
    • 32GB embedded-MMC Flash
    • BIOS: 64-bit
    • VGA / HDMI: HDMI 1.4a & VGA. Resolutions up to 1920 x 1200 60Hz
    • Peripherals: USB 2.0 ports (3x) (Supports USB mobile hard drive up to 2TB)
    • microSD card slot (1x) (Supports up to 128GB)
    • 3.5mm Audio (MIC In, Line Out)
    • Network: 10/100Mbps Ethernet
    • Wireless: 802.11b/g/n dual-band Wi-Fi, with 3dB Antenna
    • Bluetooth 4.0
    • Operating System: Ubuntu 10.04
    • Operating Temperature: 10 °C to 35 °C
    • Storage Temperature: 0 °C to 70 °C
    • Storage Humidity: 30% to 70%
    • Enclosure: Black Aluminium and Plastic
    • Dimensions: 5.3" x 4" x 1.3" (135 x 102 x 33 mm)
    • Weight: 1 lb (0.5 kg)
    • Accessories Included: 12VDC, 1A External Power Adaptor
    • Regulatory: FCC, CE, RoHS, WEEE
    • Warranty: Two (2) years

  • Warranty

    • 2 Year

  • GTIN:

    0627699008119
