    500812 - Overview

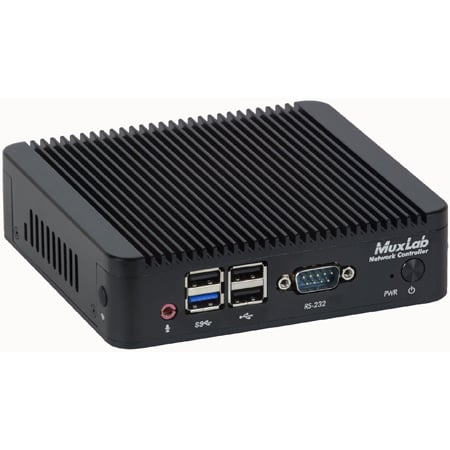

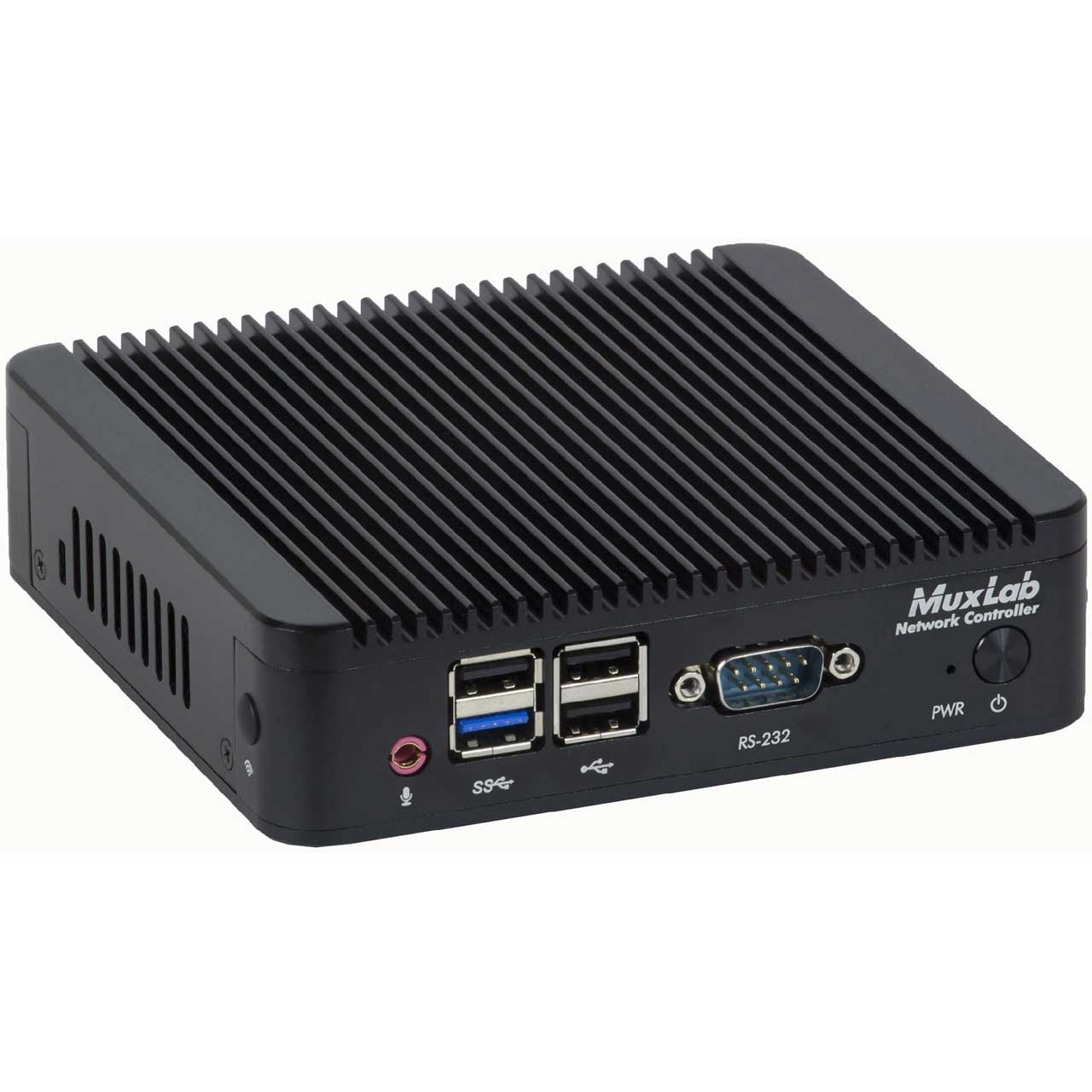

    The MuxLab ProDigital Network Controller (500812) is a Linuxbased PC that allows users to control hub-installed MuxLab products via an Ethernet Web interface.

    When installed on a local area network (LAN), the MuxLab Network Controller will scan the LAN for connected MuxLab AV over IP products allowing the user to auto-discover, configure and control the connectivity of these products through an Ethernet Web interface. The Controller may also be managed by MuxLab's MuxControl App and the 500816-IP 8 Button IP PoE Control Panel. The unit may also be used to manage firmware upgrades of connected MuxLab devices.

    An Application Program Interface (API) is available supporting a number of third party partner control applications running on smartphones and tables.

    Commercial and residential AV systems
    Digital signage
    Multi-room systems
    Retail systems
    Collaborative PC systems
    Medical information systems

    • Features:

      • Centralized control of MuxLab AV over IP devices
      • Managed via Web Interface
      • Manages AV over IP device configuration & connectivity
      • Supports connectivity presets
      • May be managed by MuxControl App and 500816-IP 8 Button IP PoE Control Panel
      • Centralized management of AV over IP device firmware updates
      • Supports an API for Third Party App integration*
      • Serves as a base platform to develop automation control applications
      • Note: *Third party drivers available via MuxLab Website
    • Specifications:

      • CPU: Intel Celeron J1800 Processor, @ 2.41GHz 4 cores
      • Memory: 2GB DDR3
      • Display: Integrated Intel HD Graphics, 1x HDMI and 1x VGA
      • Keyboard and Mouse: USB keyboard and mouse (not required and not included)

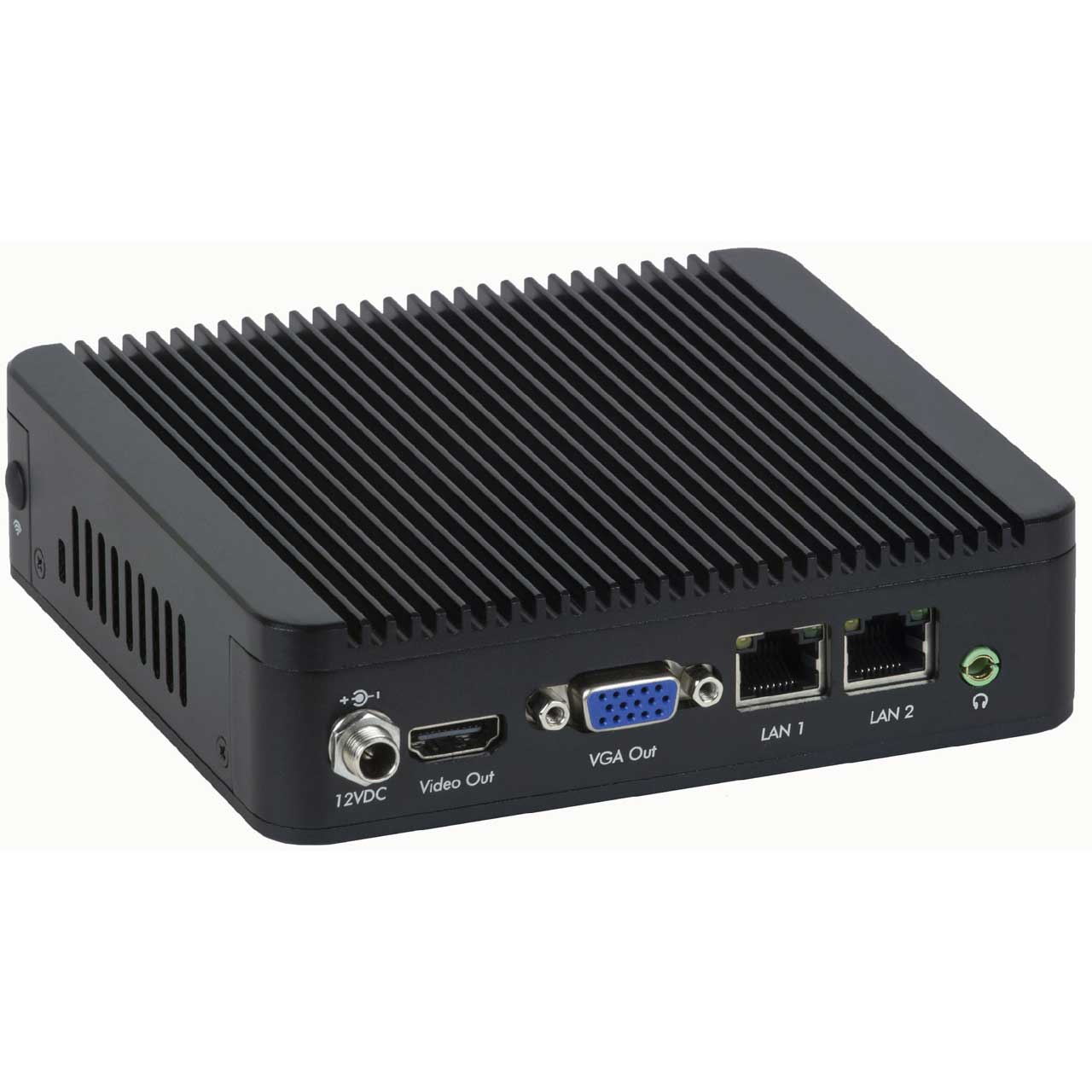

      • Peripherals:
        USB 2.0 ports (3x)
        SS USB 3.0 port (1x)
        Network gigabit interface (2x)
        VGA Video out port (1x)
        HDMI Video out port (1x)
        Audio in via 3.5mm port (1x)
        Audio out via 3.5mm port (1x)
        RS232 port (1x)
      • Operating System: Ubuntu 18.04 LTS
      • Temperature:
        Operating: 32° to 122°F (0° to 50°C)
        Storage: -4° to 176°F (-20° to 80°C)
      • Humidity: 10 to 90% (non-condensing)
      • Dimensions: 5.24 x 5.00 x 1.38" (133 x 127 x 35mm)
      • Weight: 1.5lbs (0.7kg)
      • Regulatory: FCC, CE, RoHS, WEEE
    • Item Includes:

      • 1x External 12VDC @ 3A Power Adapter
