MVK509TWINFCUS - Overview

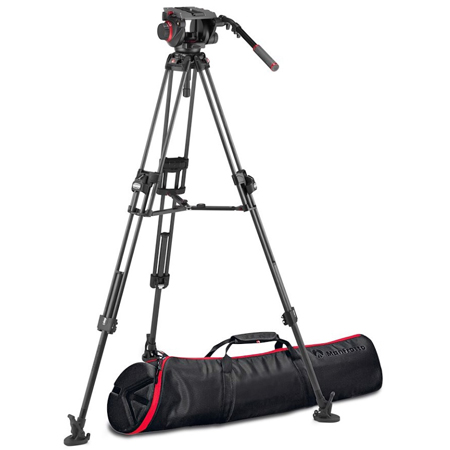

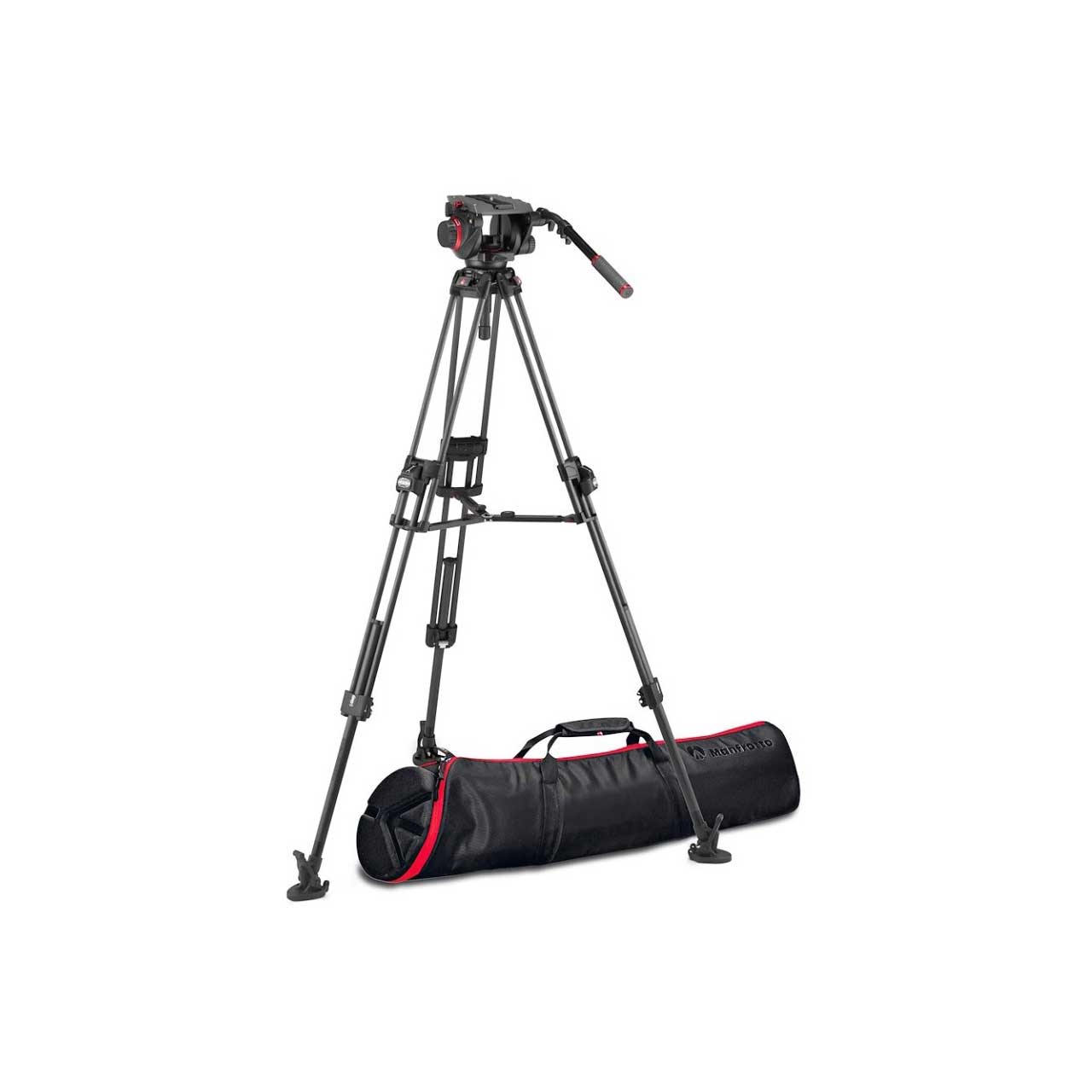

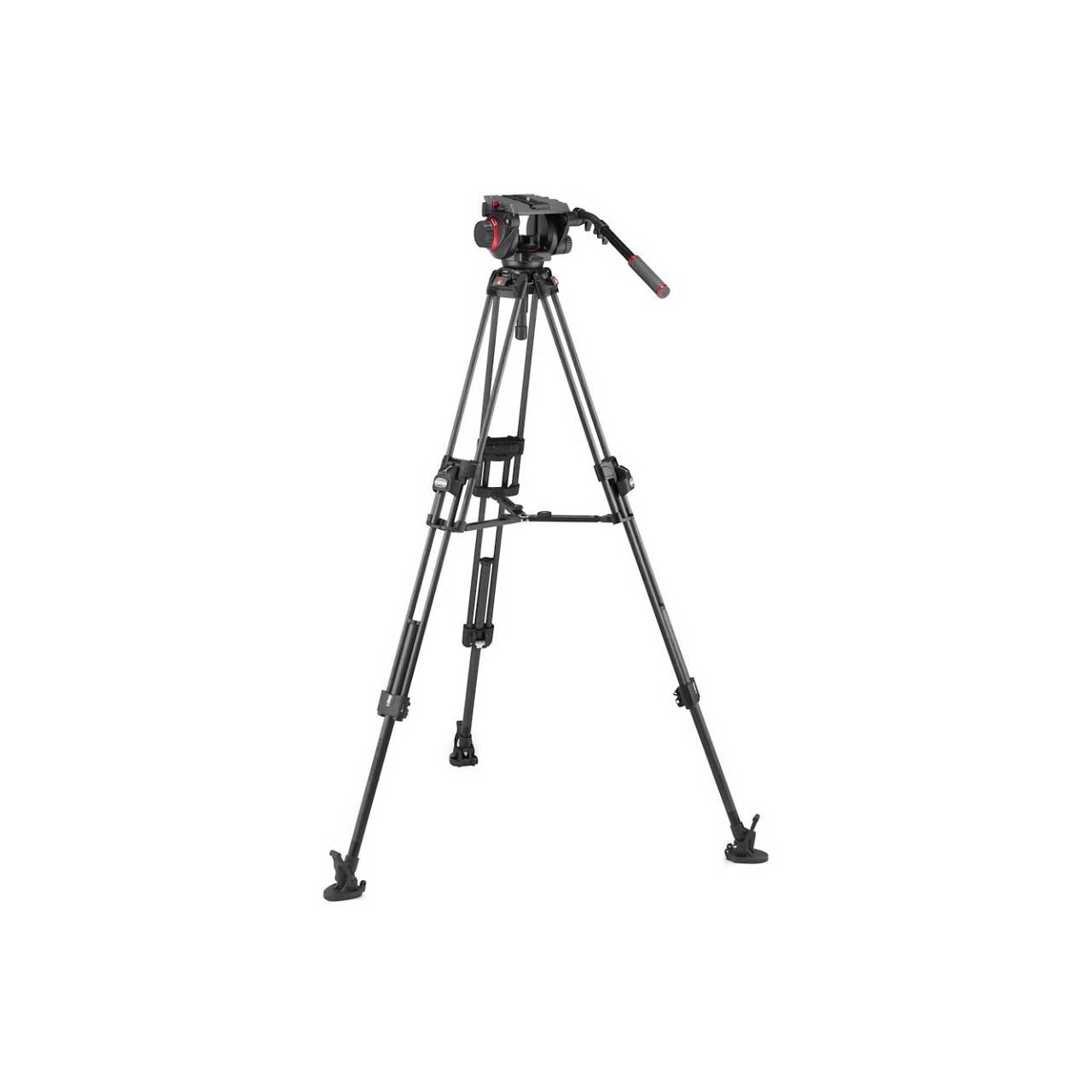

The MVK509TWINFCUS video system includes the Manfrotto 509 Professional Fluid Video Head and the 645 Fast Twin Tripod in carbon fiber.

The 509HD fluid head combines ergonomic design features with professional performance. To help you obtain incredibly smooth camera movements and great footage, the 509HD has variable fluid drag and a fast, precise, 4-step counterbalance system that makes it suitable for a wide range of semi-professional and professional camera setups. The 509HD's patented Advanced Balancing Recorder (ABR) allows you to quickly find, memorise and regain the correctly balanced plate position when using a particular combination of equipment. The 509HD also features Easy Link connectors for easy accessory attachment, an illuminated levelling bubble and replaceable rosettes for pan bar attachment on both sides of the head. The 509HD has a 100mm half ball video tripod mount.

The 645 FTT Fast Twin Carbon Tripod features a double tubing and Lever-Lock lever technology for the most robust support ever. The tripod is provided with a 2 in 1 half ball: a standard 100mm bowl compatible with a 75mm adapter (available as accessory) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.

This range was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The synchronized closure mechanisms between the upper and lower locks, enable videographers to control the entire leg with a single lock and get to work in record time. The new tripod provides maximum versatility, supporting the use of a broad choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.

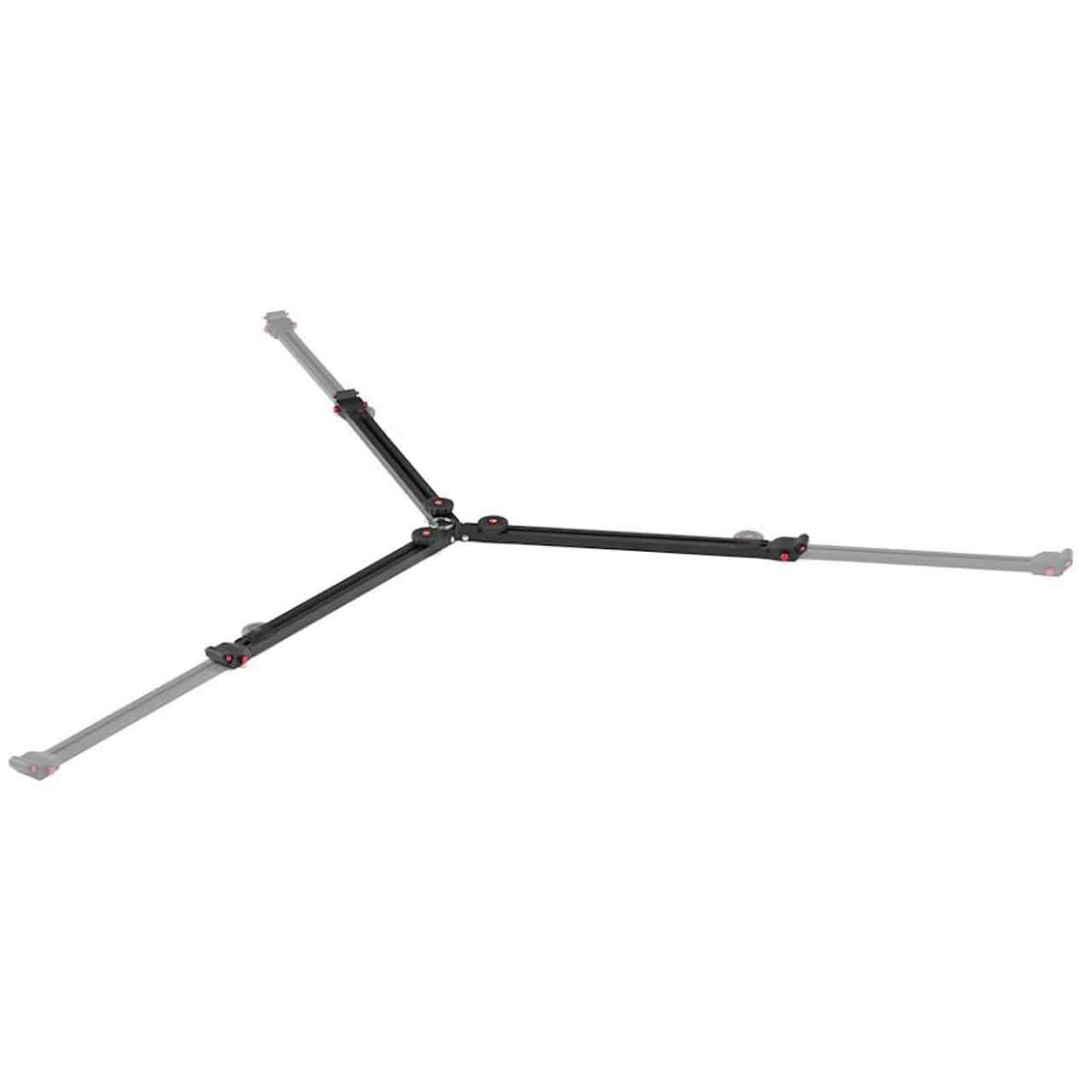

Moreover, it comes with the 2 in 1 ground and middle telescopic spreader and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

  • Features:

    • Variable fluid drag and 4-step counterbalance system
    • Tripod with 100mm bowl and compatible with 75mm adapter

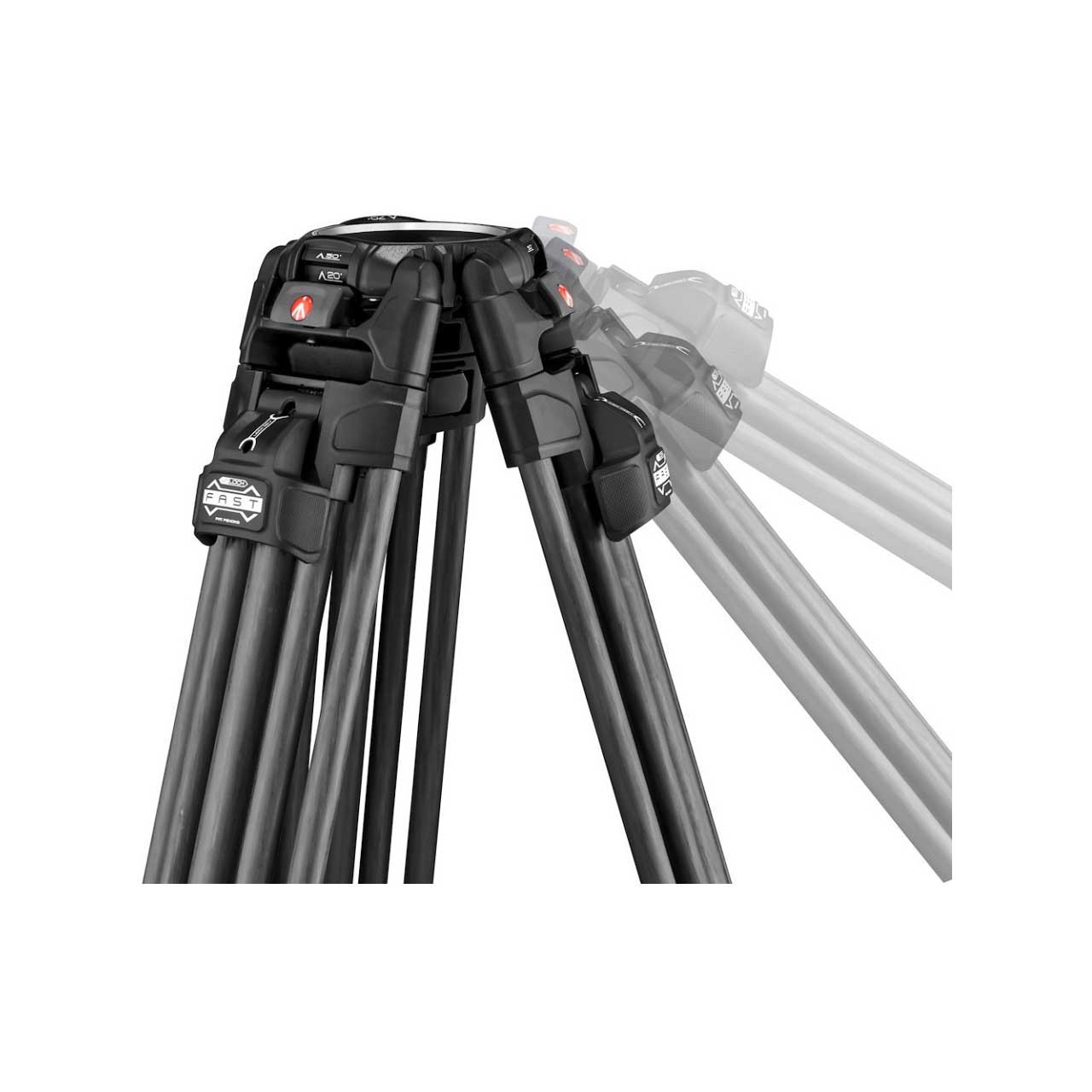

    • ULTRA L-LOCK & 3-angle selection mechanism for easy set up
    • Equipped with spiked feet with rubber overshoes for a firm grip
    • Highest safety standards ensured by UNI/PdR 105:2021 compliance
  • Specifications:

    • Weight: 16.53 lbs
    • Safety Payload UNI/PdR 105:2021: 29.76 lbs
    • Counterbalance Weight: 18.74 lbs
    • Maximum Height: 68.11 in
    • Min Height: 17.13 in
    • Bubble Spirit Level (No.): 1
    • Center Of Gravity: 4.92 in
    • Carrying Bag Included: MB MBAG100PN
    • Center Column: no center column
    • Certifications: WEEE; RoHS

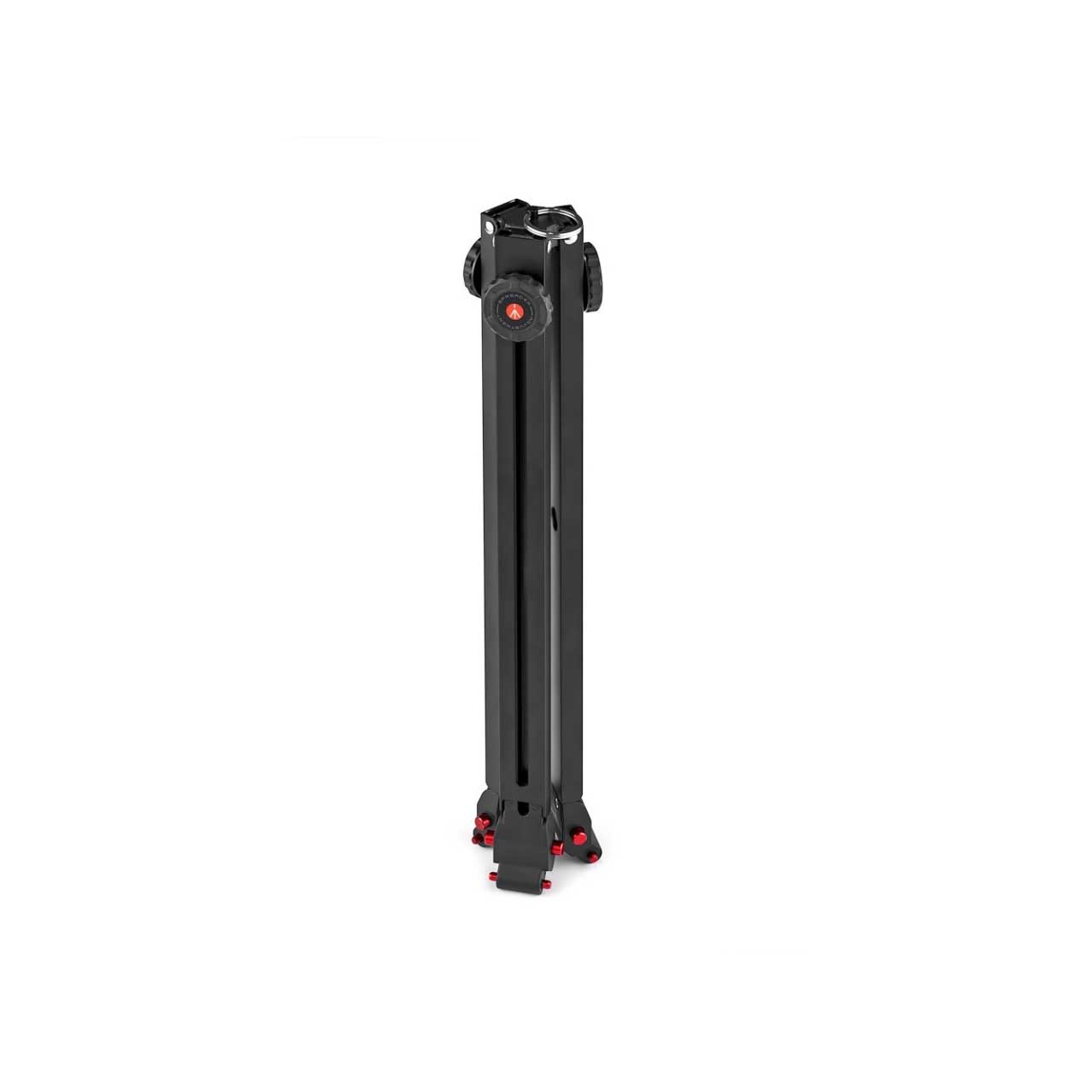

    • Closed Length: 35.24 in
    • Color: Black
    • Top Attachment: 1/4" screw, 3/8" screw
    • Ball Flat: 100 Ball
    • Powered By (Batteries): Lithium
    • Easy Link: Yes
    • Front Tilt: -60° / +90°
    • Head Type: Video/Fluid Head
    • Leg Type: Twin
    • Leg Angles: 20°, 50°, 70°
    • Leg Lock Type: Flip Lock
    • Leg Sections: 3
    • Material: Aluminum
    • Maximum Working Temperature: 140 °F
    • Minimum Working Temperature: -4 °F
    • Pan Bar Included: Yes
    • Pan Drag: continuously adjustable from 0 to max level
    • Panoramic Rotation: 360 °
    • Plate Type: 509PLONG
    • Quick Release: Yes
    • Spreader: Low & Mid level - Variable arm leg
    • Tilt Drag: continuously adjustable from 0 to max level
    • Accessory Compatibility: 502HLV; 509HLV; 114MV; 181B; 565
  • Item Includes:

    • 1x Manfrotto MVK509TWINFCUS 509 Video Head with 645 Fast Twin Carbon Tripod
  • Warranty:

    • 2 years
