    MX153 - Overview

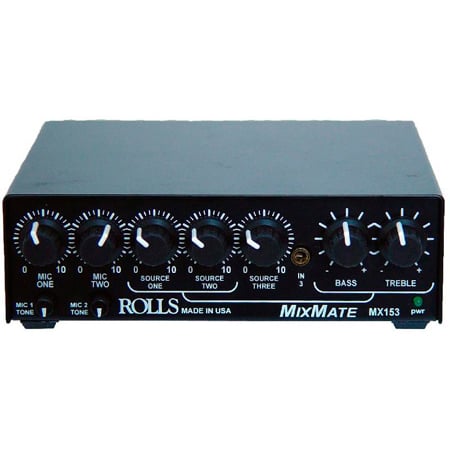

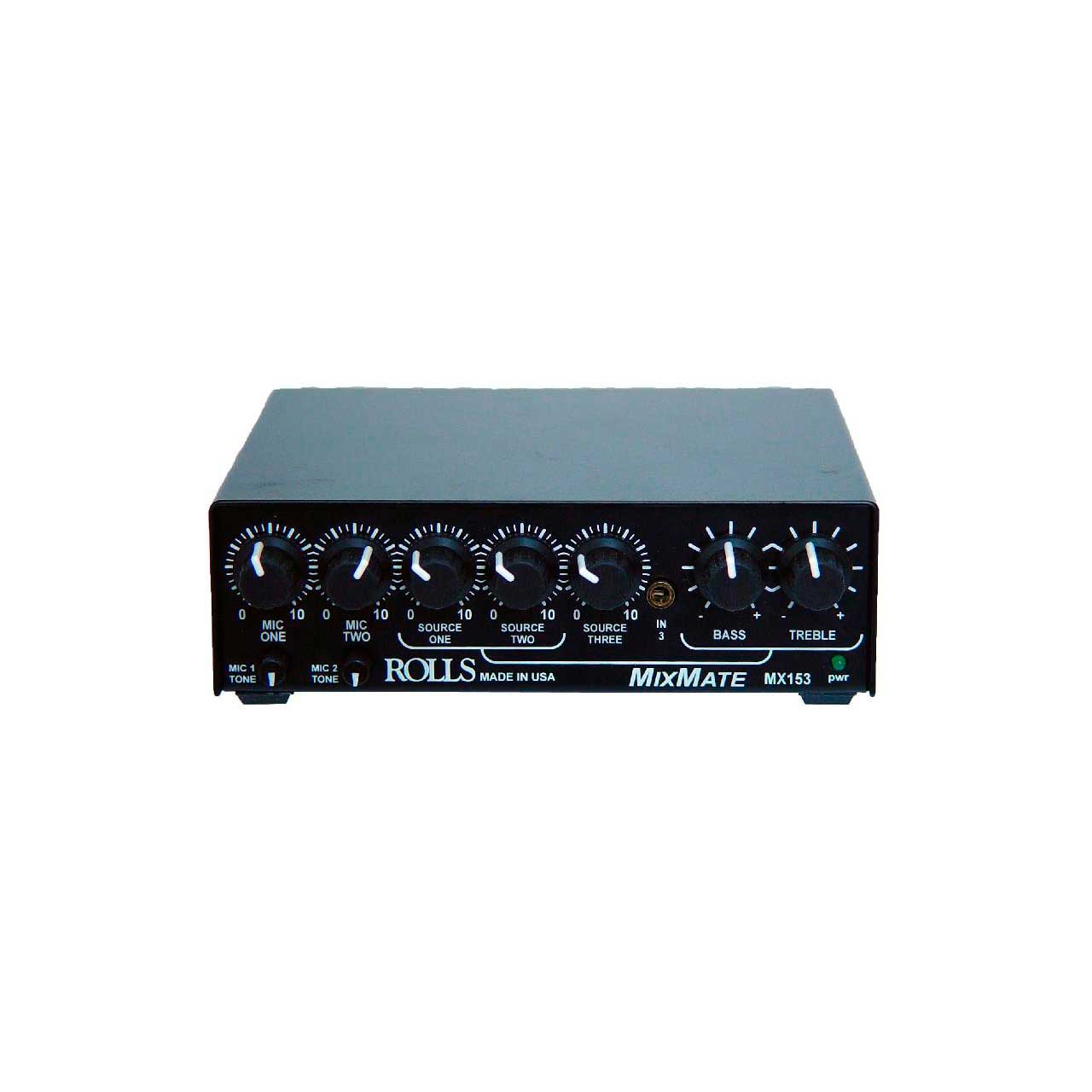

    The Rolls MX153 is a one-half rack space, two microphone and three stereo source mixer. The unit provides a compact and efficient way to mix sources such as AM/FM tuners, CD players, and video players with dynamic or condenser microphones. Applications include background music and paging for small clubs, churches, schools, restaurants, etc.

    Each microphone channel has a Level and Tone control. Sources One and Two have Level adjustments and pass through combined Bass and Treble controls. Source Three has a Level adjustment only.

    The Microphone inputs are balanced XLR jacks, all Source inputs are stereo RCA. The main output is stereo RCA. An included 12VAC adapter (Rolls PS27) provides power to the unit.

    A series of six DIP switches provide important features to the MX153. Two switches apply the 12VDC of phantom power to the individual Microphone Inputs. A second switch sums the program material of Source Three to mono, and a third sums the overall output to mono. Another switch provides priority ducking to Source Three input allowing that channel to mute the other source inputs for use with a jukebox. The final switch configures Microphone Input One as a paging input, ducking the other microphone and Sources One and Two.

    Includes Rack mount to fit it RMS270 Rack Tray.

    • Features:

      • Two Mic inputs with available phantom power
      • Treble or Bass cut controls for each mic
      • Three stereo source inputs
      • Bass and Treble controls on source 1 & 2
      • Signal muting (ducking) on mic 1 & source 3
      • Switchable Mono or Stereo mode on unbalanced outputs
      • Uses 12VDC power for easy use in mobile applications

    • Specifications:

      • Mic input Z 600 ohm balanced
      • Source input Z >10K ohms RCA
      • Mic Max input -14dBV
      • Max source input 24dBV
      • Phantom Voltage 12VDC
      • Max Gain: 60 dBV mic
      • Max Gain: 24 dBV/Channel source
      • Muting 60dBV
      • Power 12VDC 100Ma.
      • Size: 6.5 x 1.5 x 5 (W x H x D)
      • Weight: 2 lbs (.8Kg)

    • GTIN:

      0675889015300
