Henry Engineering SPORTSCASTER 1RU Broadcast Audio Control System

ITEM #: HE-SPORTSCASTER MFG #: SPORTSCASTER

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$1,450.00

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    SPORTSCASTER - Overview

    Henry Engineering's SportsCaster is an audio control system for managing the audio portion of a sporting event radio or video broadcast. When used with Henry Engineering's Sports Pods, SportsCaster creates an integrated system that includes all essential audio functions including audio mixing for air or webcast, headphone audio management and distribution, and off-air intercommunication. SportsCaster is a one-box solution that is comprehensive yet intuitive and easy-to-use. By integrating all functions in one device, SportsCaster eliminates the need for multiple mixers, distribution systems, headphone amplifiers, intercoms, power supplies, and complicated wiring.

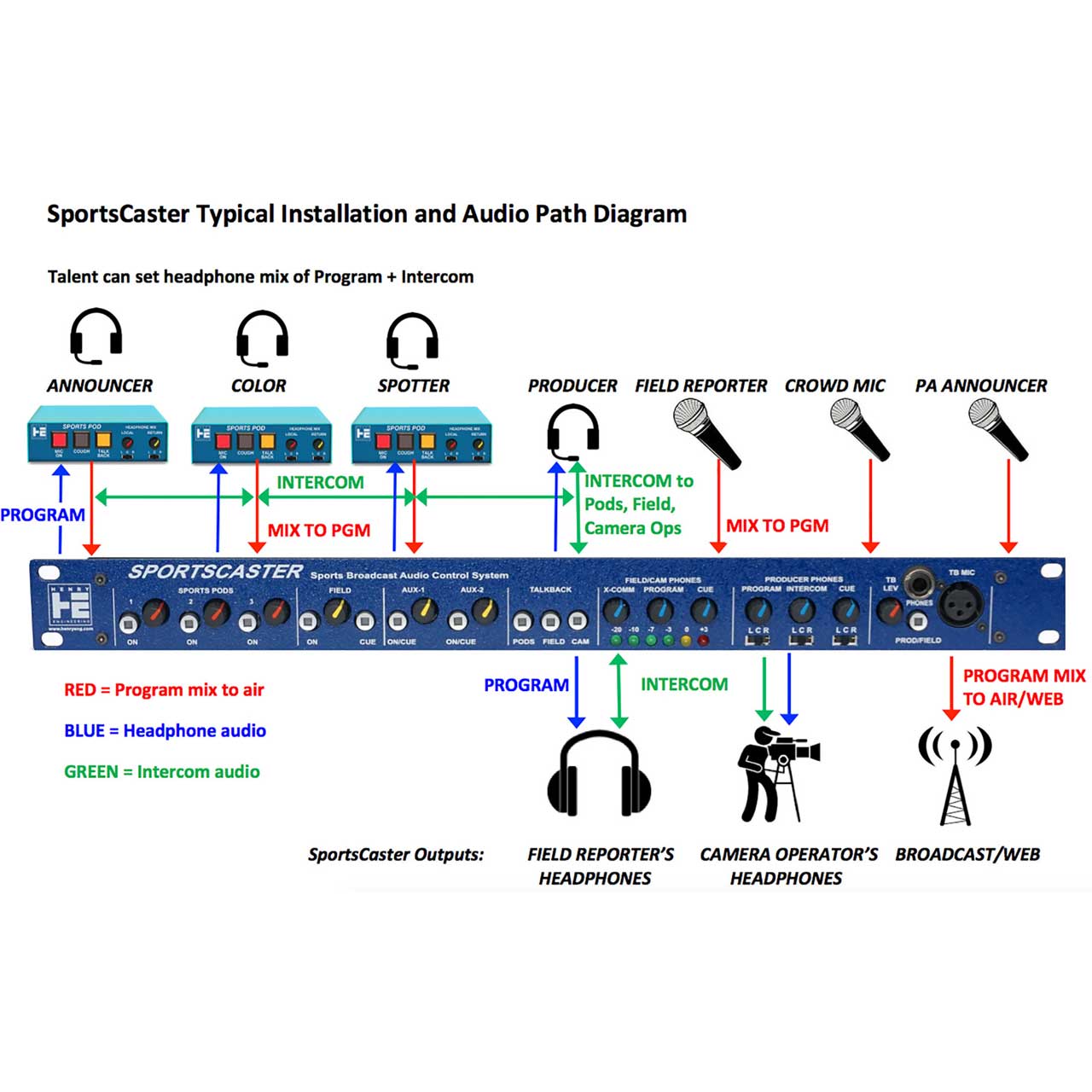

    The broadcast team includes the Producer, play-by-play Announcers, Field Reporter, and Camera Operators. All wear headphones to monitor the broadcast and to hear the Producer's cues via the Intercom.

    The Announcers call the game using Sports Pods. A Field Reporter can also be mixed in, as well as a Crowd mic and PA Announcer or other audio source. This Program mix is what the audience hears via air or web.

    The Producer uses his Talkback mic to selectively talk to the Announcers, Field Reporter, or Camera Operators, off-air. The Announcers can also use the Intercom to talk to each other, off-air.

    There is two-way Intercom between Producer and Announcers, and between Producer and Field Reporter.

    The Cross-Comm feature allows three-way Intercom between Producer, Field Reporter, and Announcers, when it's necessary for the Announcers to coordinate directly with the Field Reporter.

    One-way Talkback from Producer to Camera Operators allows the Producer to direct the Camera Operators.

    Isolated Headphone outputs for the Field Reporter and Camera Operators allow each to hear only what is necessary without distraction.

    • Features:

      • Talent headphone audio distribution
      • Talkback/Intercom Mic facility for Producer
      • Duplex intercom between Producer and Talent
      • Producer headphone audio mixing
      • Headphone mix for Field Reporter and Camera operators
      • Field Reporter Headphone output
      • Duplex intercom between Producer and Field reporter
      • Party-line intercom between Producer/Talent/Field reporter
      • Camera operators Headphones Output
      • Talkback from Producer to Camera operators
      • Inputs for crowd mic, PA announcer, etc.
      • Cue bus to audition auxiliary sources
      • Main Program output to air or streaming

    • Specifications:

      • Inputs
      • Sports Pod mics 3x: Balanced, 0 dBu, 20K
      • Field: Balanced, 0 dBu (line) or -50 dBu (mic), 20K
      • Aux-1: Balanced, 0 dBu (line) or -50 dBu (mic), 20K
      • Aux-2: Balanced, 0 dBu, 20K
      • Local: Balanced, 0 dBu, 20K
      • Return: Balanced, 0 dBu, 20K

        Outputs
      • Program (XLR): Balanced, +4 dBu, lo-Z
      • Program (3.5mm-Tip): Unbalanced, -10 dBu, 5K
      • Field: Balanced, +4 dBu (line) or -50 dBu (mic), lo-Z
      • Camera: Balanced, +4 dBu (line) or -50 dBu (mic), lo-Z
      • Cue (3.5mm-Ring): Unbalanced, -10 dBu, 5K
      • Link I/O: Headphone audio and power to Sports Pods
      • Headphones: 24 ohms or higher, stereo

        Controls
      • Control: On/Off control of Sports Pods mics
      • Power Input: 115 VAC, 50-60 Hz, 12 watts. Can be user set for 230V operation.

        Physical
      • 1-RU, 6" depth, 5 lbs.

        Approvals
      • CE / ROHS / City of Los Angeles Electrical Test Lab

    • GTIN:

      0602573016398
