Rolls MX34C Live Mix 2 Channel Mic Mixer 1/8 In and Out

ITEM #: MX34C MFG #: MX34C

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$169.00

Our Price:

$129.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MX34C - Overview

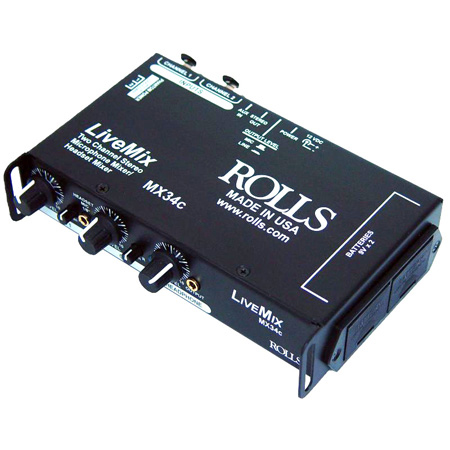

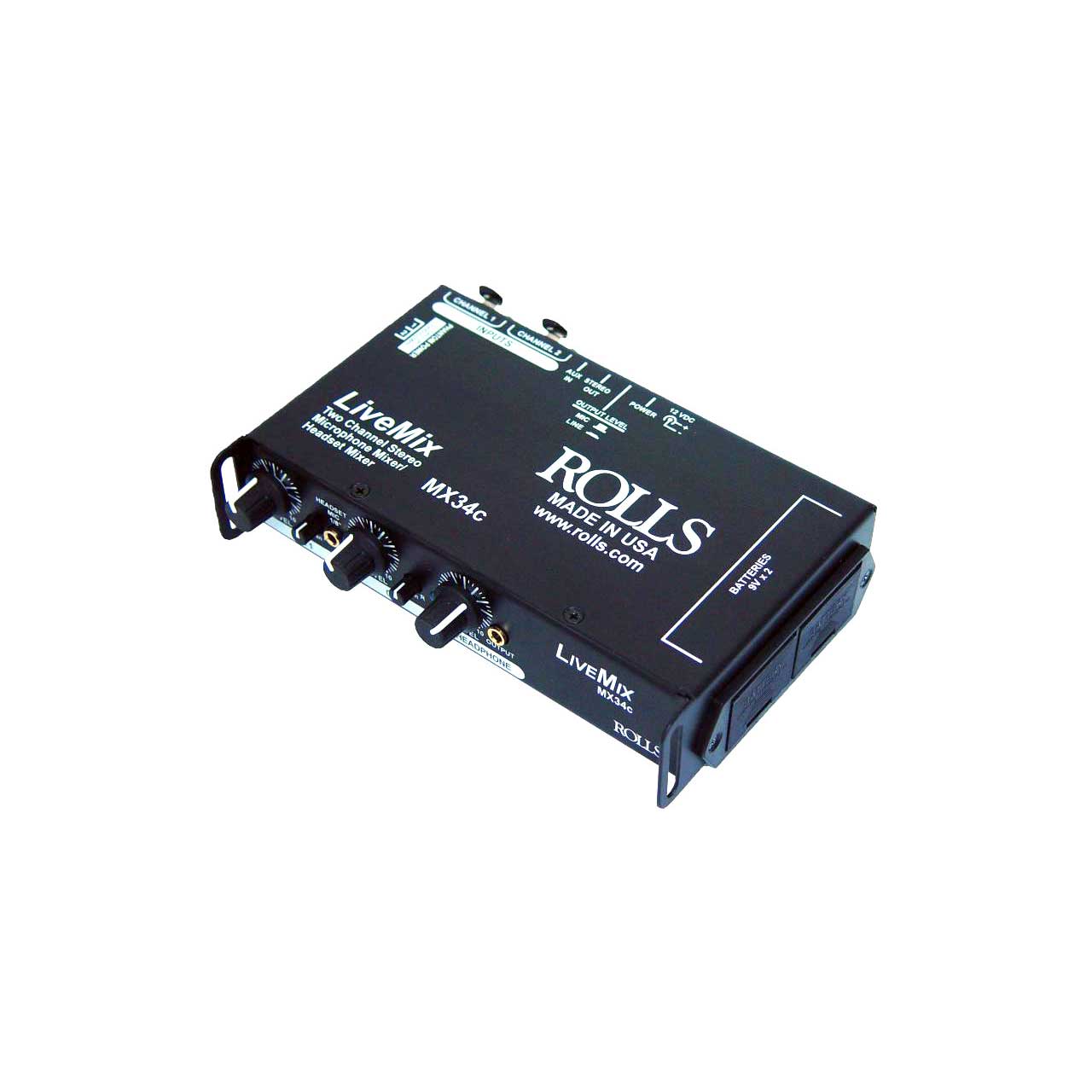

The Rolls MX34c LiveMix - two channel microphone mixer. Although having many uses, this little mixer was originally designed with the video camera operator in mind. The MX34c is a two channel microphone mixer with balanced XLR inputs, phantom power, and stereo 1/8" (3.5mm) outputs. The 3.5mm output may be switched either mic or line level. It has a stereo 1/8" (3.5mm) Auxiliary input for connection to any stereo line-level source such as an AM/FM tuner, CD player etc. And a 3.5mm headset mic in on the front for narration, etc.. Each channel has a Level and Pan control, and a separate headphone circuit allows for monitoring all signals without effecting the main output signal. Holes for a shoulder strap, easy-access controls, and smart Input/Output jack placement make the MX34c ideal for the live recording enthusiast. The 9 volt alkaline batteries ensure adequate signal strength as well as phantom power for your favorite condenser microphone.

  • Features:

    • 9V Battery or AC adapter operation
    • 2 Mic Inputs
    • +18VDC Phantom Power
    • 3.5mm Stereo Output
    • 3.5mm Stereo Headphone Output
    • Pan control on each channel
    • Auxiliary 3.5mm Input
    • 3.5mm mic in jack for headset or other mic
    • Mic/Line Switch for each XLR Input

  • Specifications:

    • Input Impedance: Mic - 600 Ohms or greater (XLR), Aux - 47K stereo (3.5mm)
    • Output Impedance: 50 Ohms
    • THD + Noise: .02%
    • S/N Ratio: 110 dB
    • Frequency Response: 20 Hz - 30 kHz (+0 / -1 dB)
    • Max Output Level: + 14 dB
    • Max Input Level: +20 dB
    • Max Gain: +70 dB
    • Batteries: 2 X 9V Alkaline
    • Current Draw: 30 mA
    • Phantom Power: +18 VDC
    • Input Connectors: 2 Female XLR, 1/8" (3.5mm)
    • Output connectors: 3.5mm Stereo Main Out, 3.5mm Headphone
    • DC Power Jack: (5.5mm X 2.1mm Tip Negative)
    • Size: 6.3"w x 3.7"d x 1.4" h
    • Weight: 1 lbs.

  • GTIN:

    0675889003406
