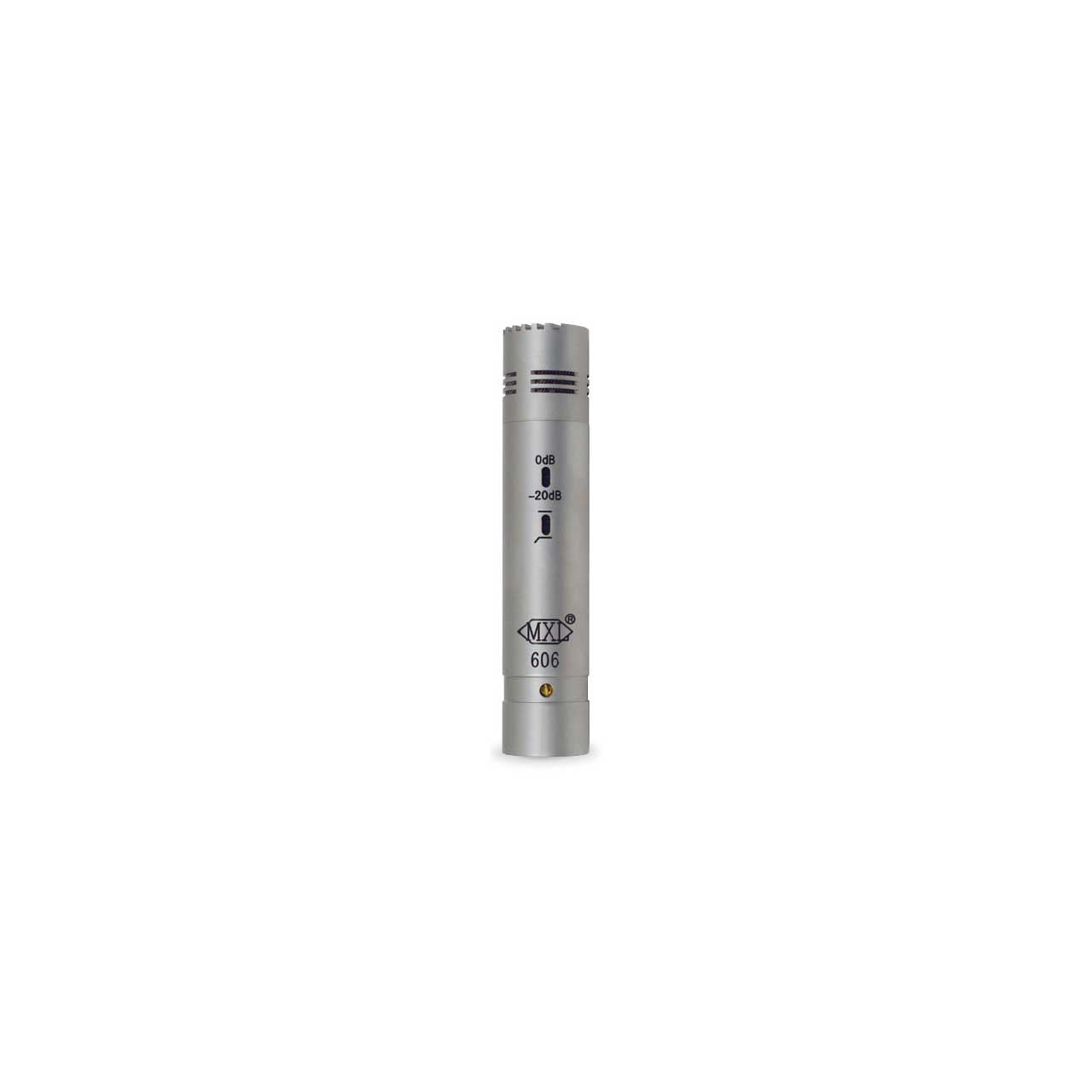

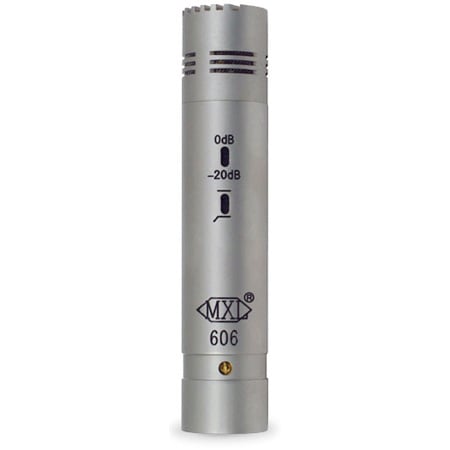

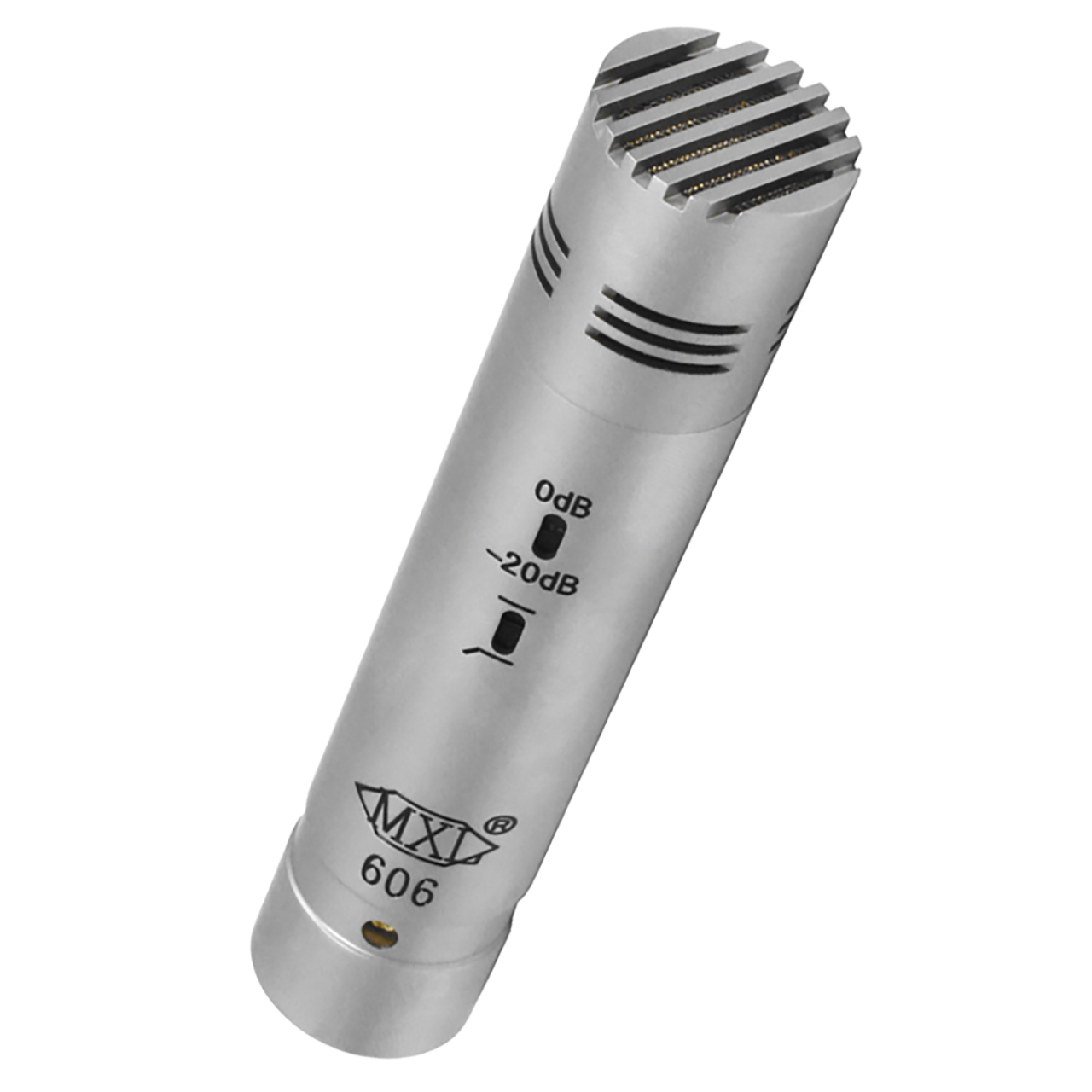

MXL 606 Small Diaphragm Condenser Instrument Microphone

ITEM #: MXL-606 MFG #: MXL 606

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$79.95

Our Price:

$49.95

Availability: In Stock
iAvailability Description Popup


MXL 606 - Overview

The MXL 606 instrument microphone delivers the sound you are looking for when recording snare drums, high-hat cymbals, acoustic guitars, pianos, percussion, stringed instruments and more. Using transformerless FET circuitry and a gold-sputtered diaphragm capsule provides a clean and clear tone. The 606 also features a -20 dB switchable attenuation pad and low-frequency roll-off.

Power Requirement
The MXL 606 requires 48V phantom power (± 4V). If no sound is picked up by the microphone, make sure that the phantom power on your mixer or separate power supply is switched on.

  • Features:

    • Small-diaphragm instrument mic with a warm, detailed sound
    • Transformerless FET circuitry for clean, clear recordings
    • Bass roll-off and attenuator to fit any recording situation
    • Excellent detail in the midrange and at the top end
    • Ideal for percussion, acoustic guitars and pianos

  • Specifications:

    • Type: Pressure gradient condenser mic
    • Diaphragm: Gold-sputtered, 6 micron
    • Capsule Size: 22mm/.87"

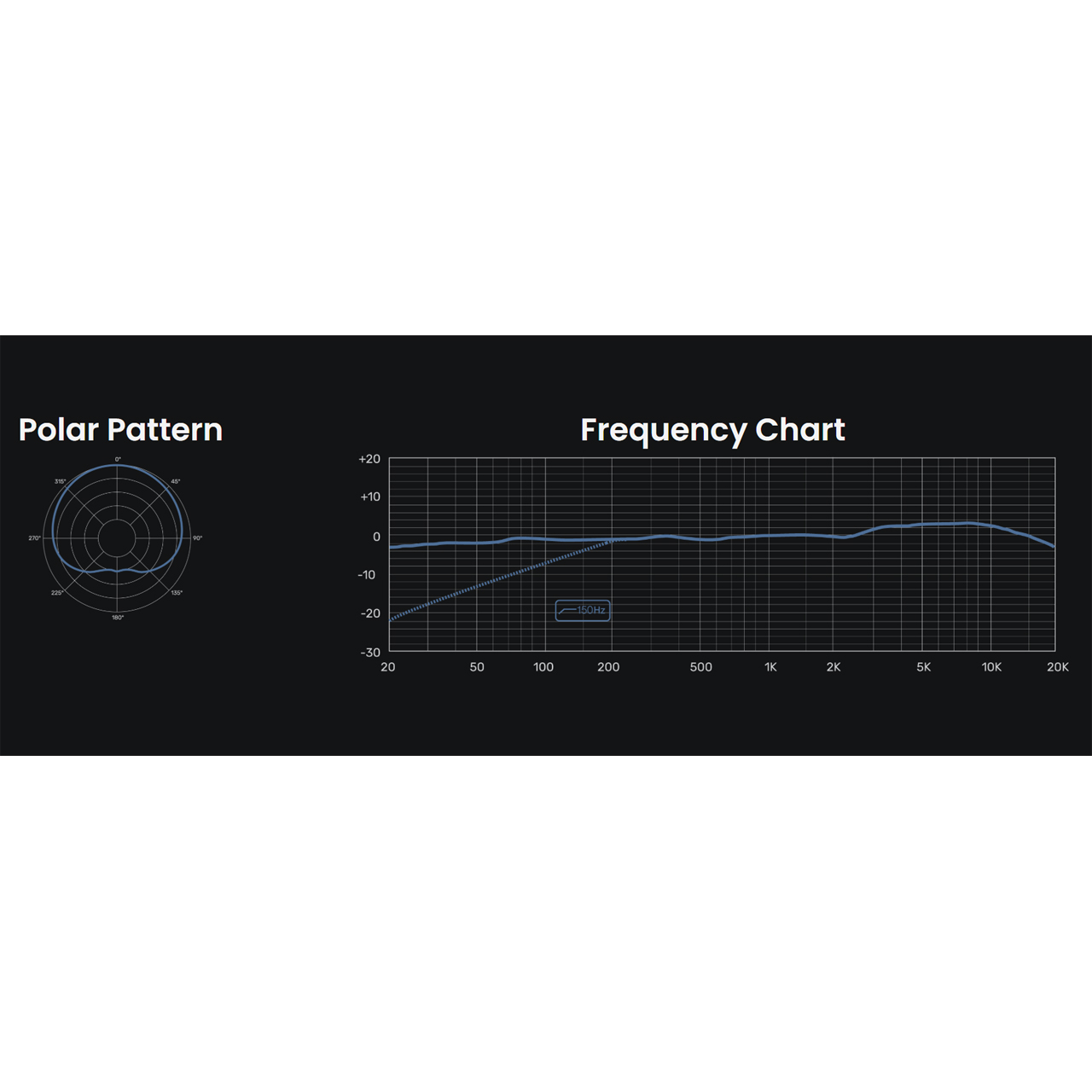

    • Frequency Response: 30Hz - 20kHz
    • Polar Pattern: Cardioid
    • Sensitivity: 15 mV/Pa
    • Output Impedance: 150 Ohms
    • Equivalent Noise: 17 dB (A-weighted IEC 268-4)
    • S/N Ratio: 77 dB (Ref. 1 Pa A-weighted)
    • Max SPL for .5% THD: 137 dB
    • Power Requirements: 48V phantom power (+/- 4V)
    • Size: 110mm x 23mm/4.3" x 0.89"
    • Weight: 0.25 lbs/113g
    • Metal Finish: Silver

  • Item Includes:

    • 1x MXL 606 microphone

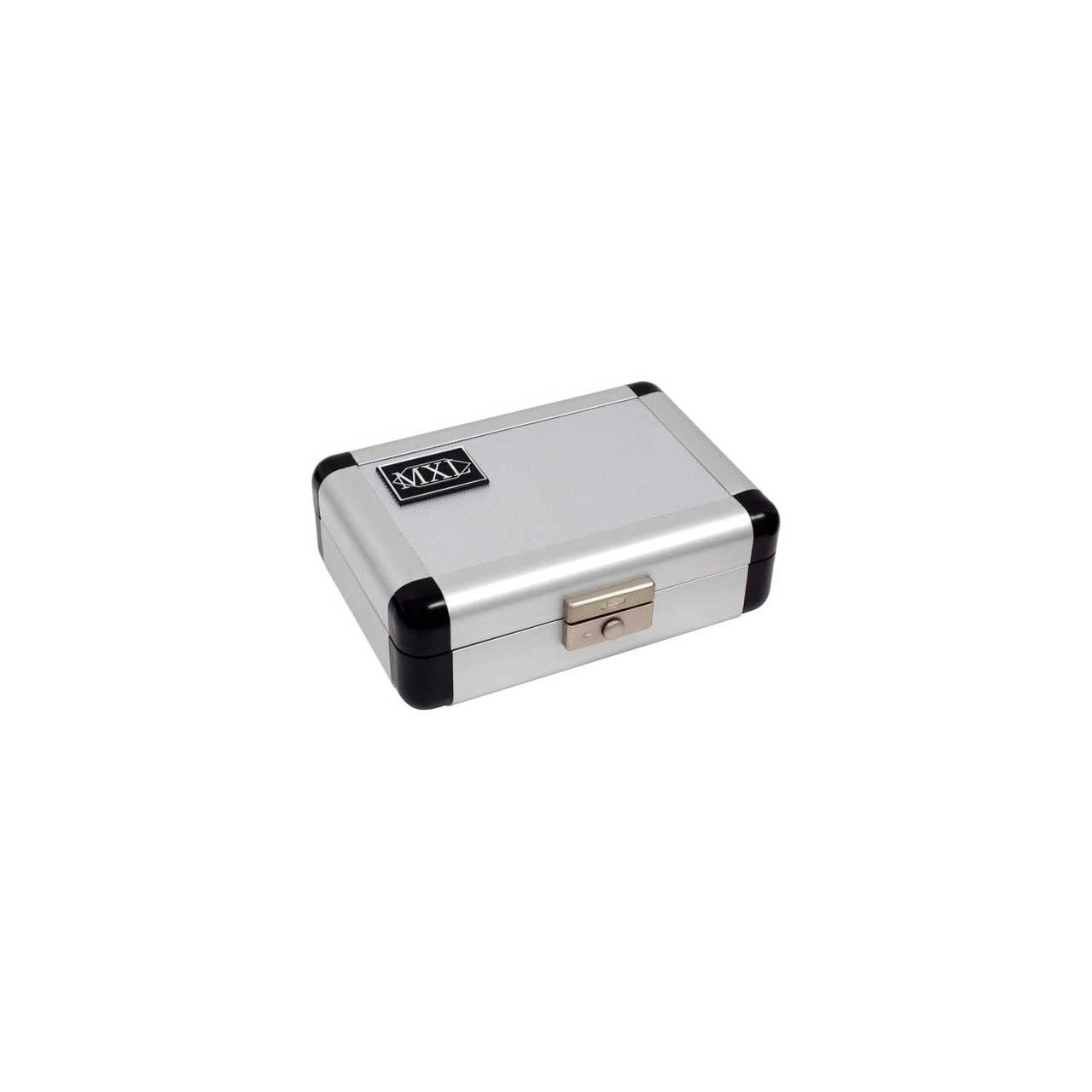

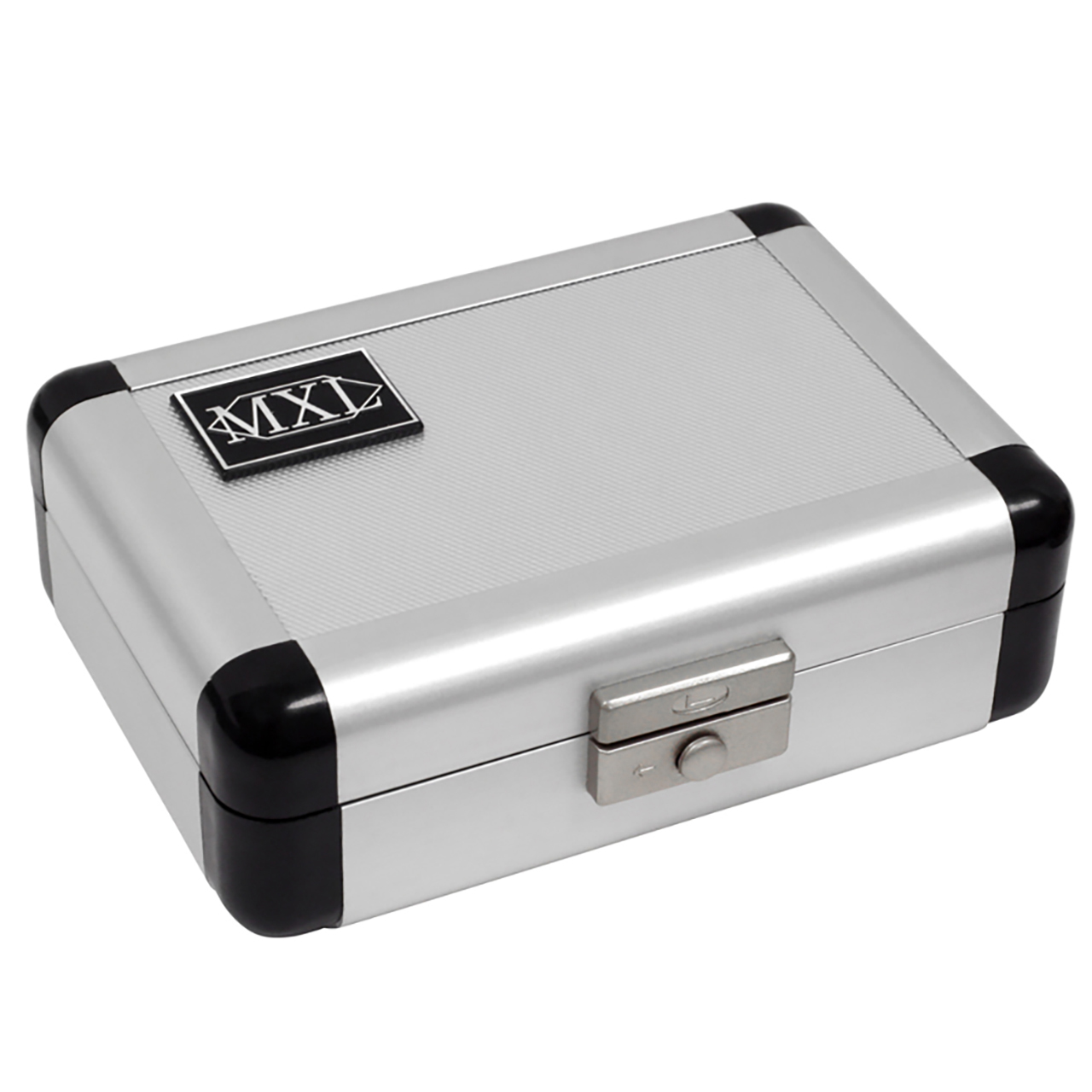

    • 1x Carrying case
    • 1x Hard mount mic stand adapter

  • GTIN:

    0801813149340
