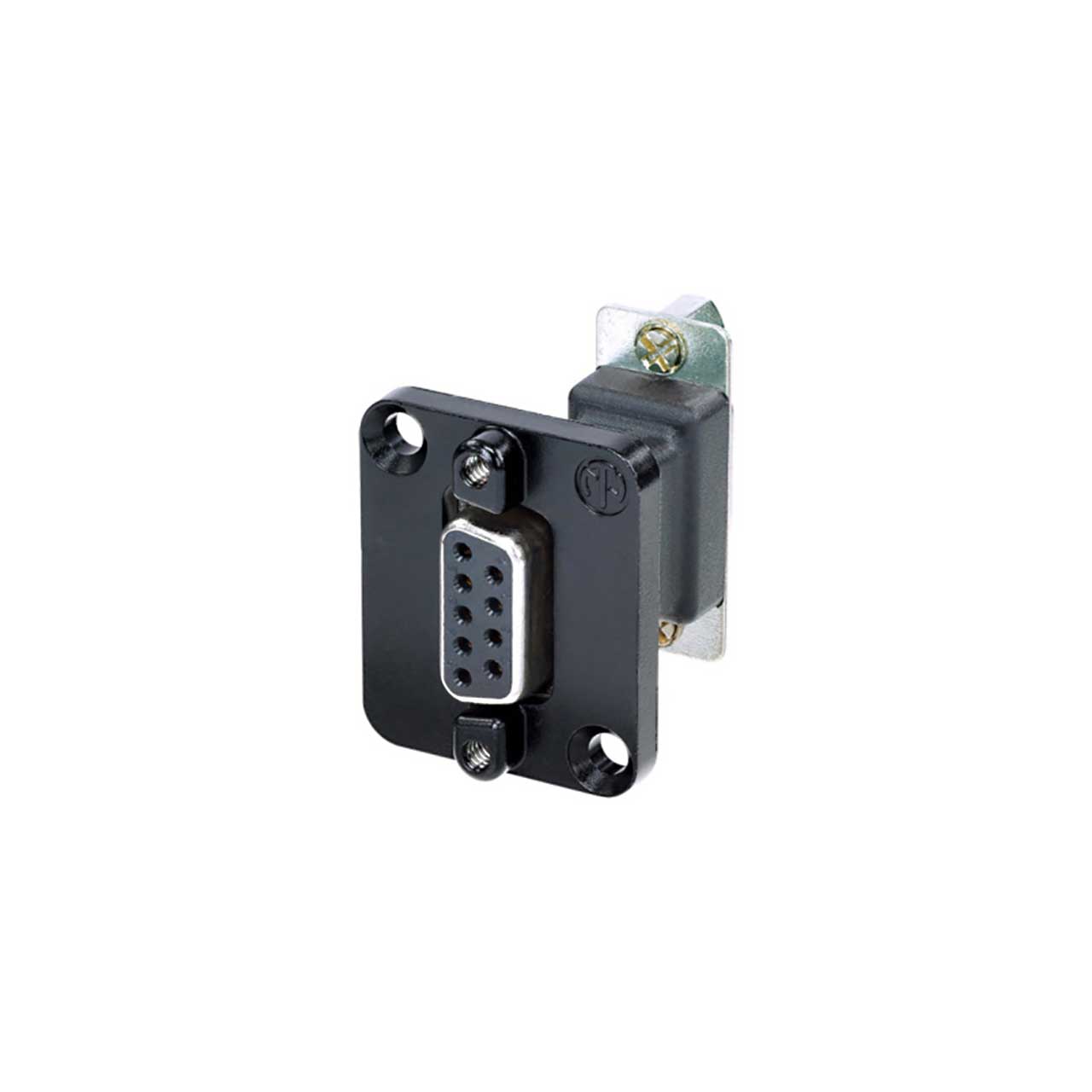

Neutrik NADB9FF-B DB9 Female feed-through Chassis Mount

ITEM #: NADB9FF-B MFG #: NADB9FF-B

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$16.37

Our Price:

$14.03

Availability: In Stock
iAvailability Description Popup


    NADB9FF-B - Overview

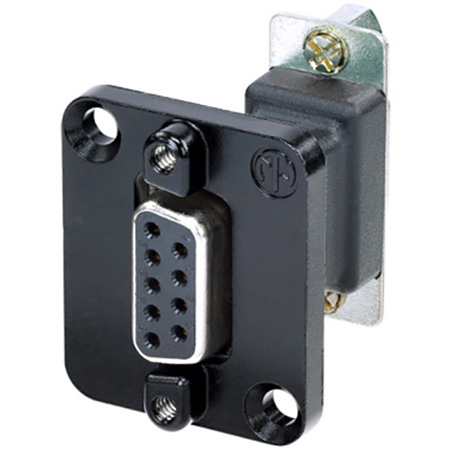

    The NADB9FF-B is a 9 pole D-SUB feedthrough, female to female, black D-shape housing.

    • Features:

      • Ideal for audio networking and integration of equipment into video systems
      • Universally accepted standard D-shape housing

    • Specifications:

      • Contact resistance: 30 mΩ
      • Insulation resistance: > 5 GΩ
      • Number of electronical contacts: 9
      • Rated current per contact: 3 A
      • Rated voltage: 50 V ac
      • Dielectric strength: > 0.5 kVac
      • Panel thickness: 4 mm
      • Wiring: Feedthrough
      • Mounting direction: Front mounting
      • Chassis shape: D
      • Contact plating: Au
      • Contacts: Brass (CuZn39Pb3)
      • Insert: Steel , tin plated, PBT
      • Shell: Zinc diecast (ZnAl4Cu1)
      • Shell plating: Black chromium
      • Flammability: UL 94 HB
      • Temperature range: -25 °C to +85 °C

    • GTIN:

      7613187008962
