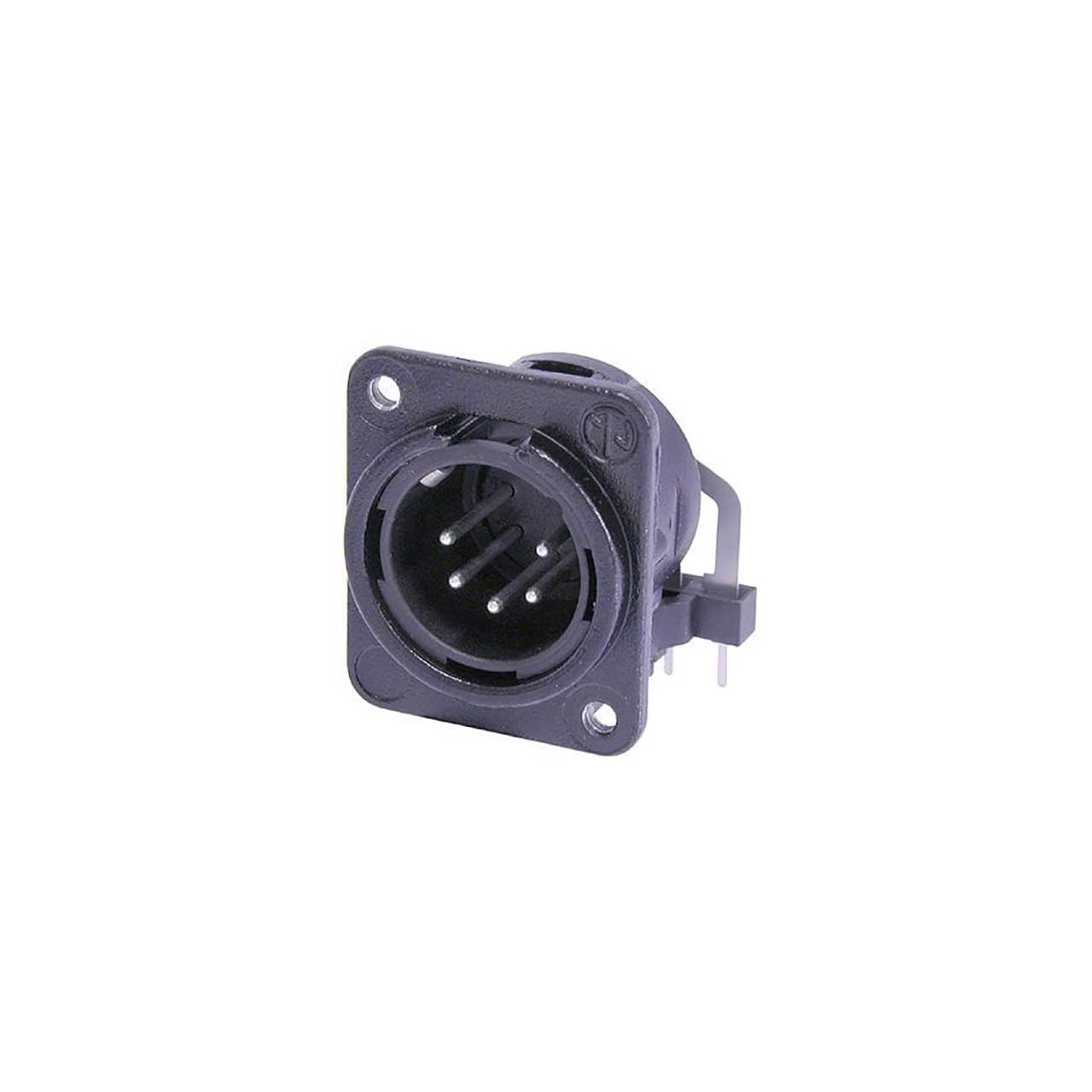

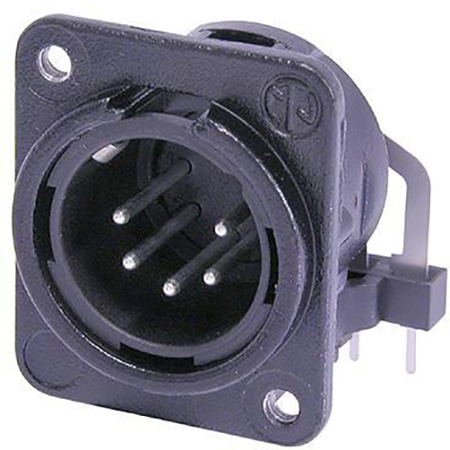

Neutrik NC5MDM3-H-BAG Receptacle DM3 Series 5-pin Male - PCBH - Black/Silver

NC5MDM3-H-BAG - Overview

• Features:

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • PCB mount termination


• Specifications:

  • Electrical
  • Capacitance Between Contacts: ≤ 7 pF
  • Contact Resistance: ≤ 5 mΩ
  • Dielectric Strength: 1,5 kVdc
  • Insulation Resistance: > 10 GΩ (initial)
  • Rated Current Per Contact: 7,5 A
  • Rated Voltage: < 50 V

    Mechanical
  • Insertion Force: ≤ 20 N
  • Withdrawal Force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: Horizontal PCB mount
  • Locking Device: Latch lock
  • Mounting Direction: Rear mounting
  • Chassis Shape: D
  • Mounting: Mounting holes with M3 threads

    Material
  • Contact Plating: 2 µm Ag over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking Element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Black chromium

    Environmental
  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard Compliance: IEC 61076-2-103
  • Protection Class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -22°F - 176°F (-30 °C - 80 °C)
