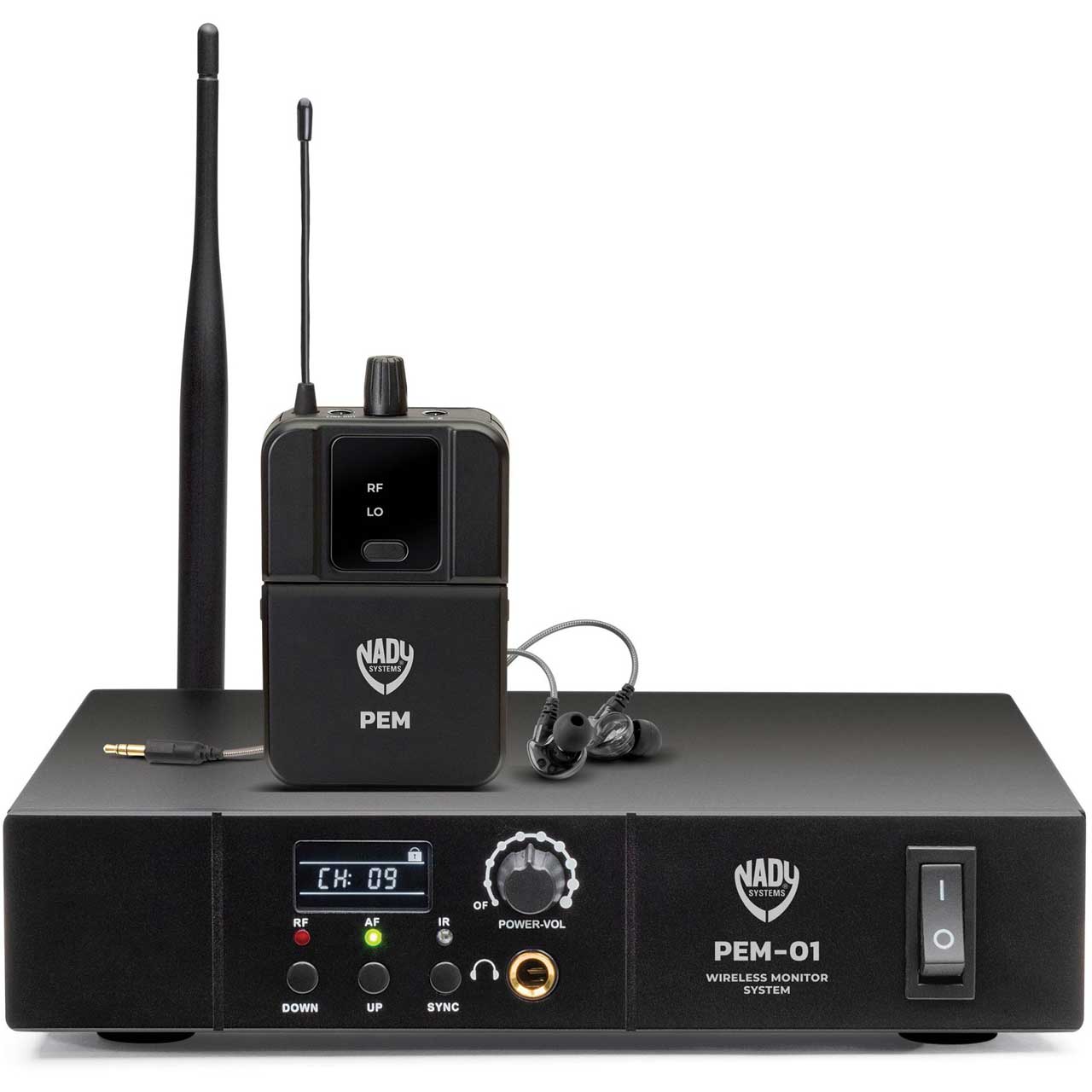

Nady PEM-01 16 Frequency / Single Transmitter Mono Output Wireless In-Ear Monitor System for Stage

PEM-01 - Overview

• Features:

  • The perfect system for accurate stage monitoring without compromising freedom of movement. Eliminates stage feedback and loudness typically produced by monitor speakers, allowing for a better, cleaner Front-Of-House sound
  • Reliable long-range operation (up to 300 feet line-of-sight). advanced PLL frequency synthesized UHF technology with 16 user-selectable frequencies providing clear channel operation on the UHF 900MHz band to give you interference-free performance for any application or locale.
  • Metal Transmitter with front panel AF / RF LED's for monitoring RF signal and audio levels, backlit display indicating operating frequency, and sync function for easy frequency matching. Two unbalanced 1/4" line level inputs and one XLR input
  • Receiver includes a 3.5mm (1/8") headphone jack for use with either the included high performing behind-the-ear earbuds EB-6 Earbuds or your favorite pair, and a 3.5mm (1/8") line out jack for the optional use of a recording device. Up to 11 hours of continuous use with 2 AA batteries (not included)


• Specifications:

  • Overall System
  • Frequency Range: 903.250MHz - 927.650MHz
  • Frequency Response: 60 Hz - 17,000 Hz (±3dB)
  • Dynamic Range: 98dB
  • Signal-to-Noise Ratio: > 80 dB, with proprietary companding noise reduction
  • Operating Range: 300 feet line-of-sight

    PEM-01 Wireless Transmitter
  • Controls: Power/Mute On/Off

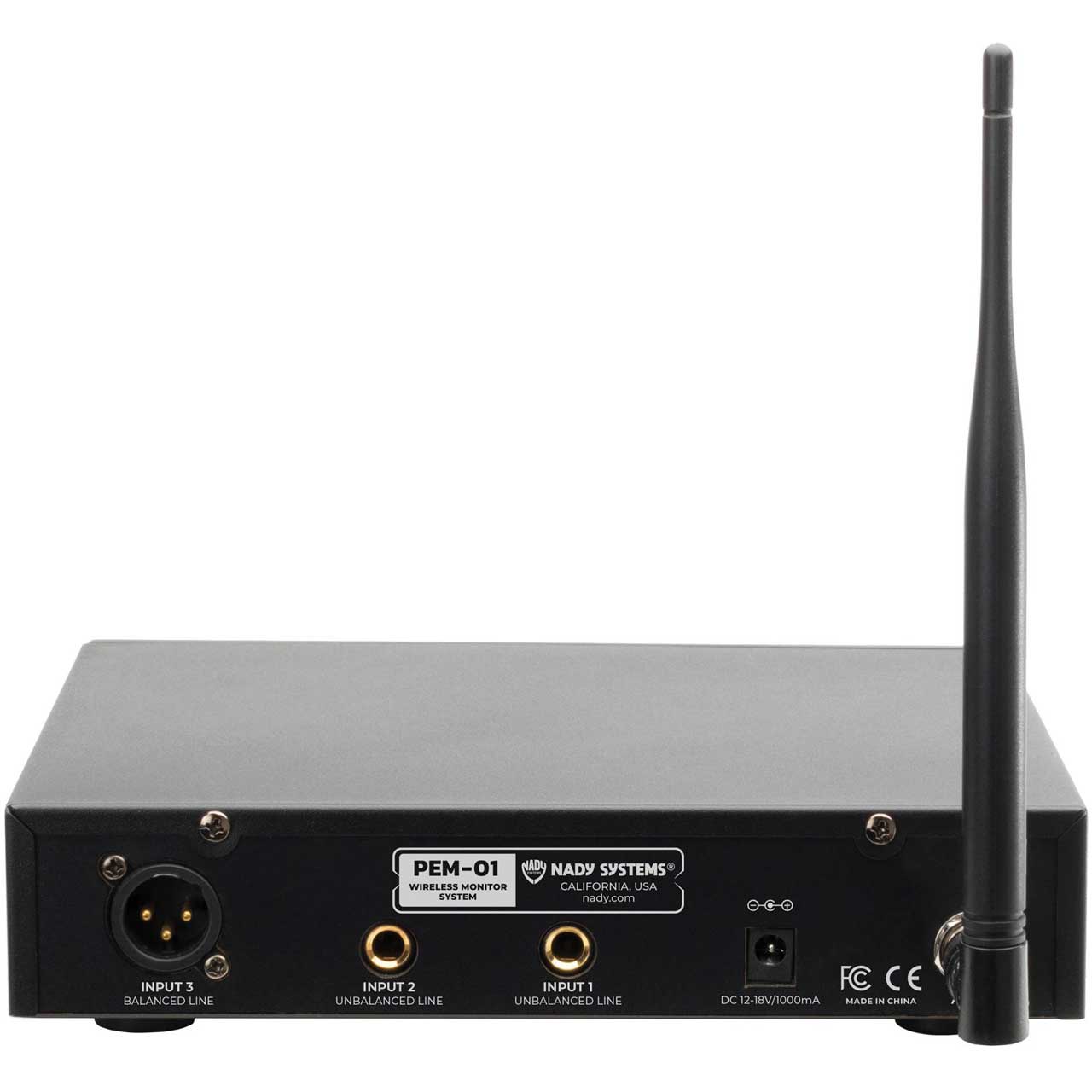

  • Connectors: 1/4" Stereo headphones monitor out, two unbalanced 1/4" line level inputs, 2.5mm barrel-type DC input jack; BNC antenna socket
  • Power Requirements: DC 12V/1000mA
  • Dimensions: 8.25" x 7.125" x 1.75"
  • Weight: 2.2lbs

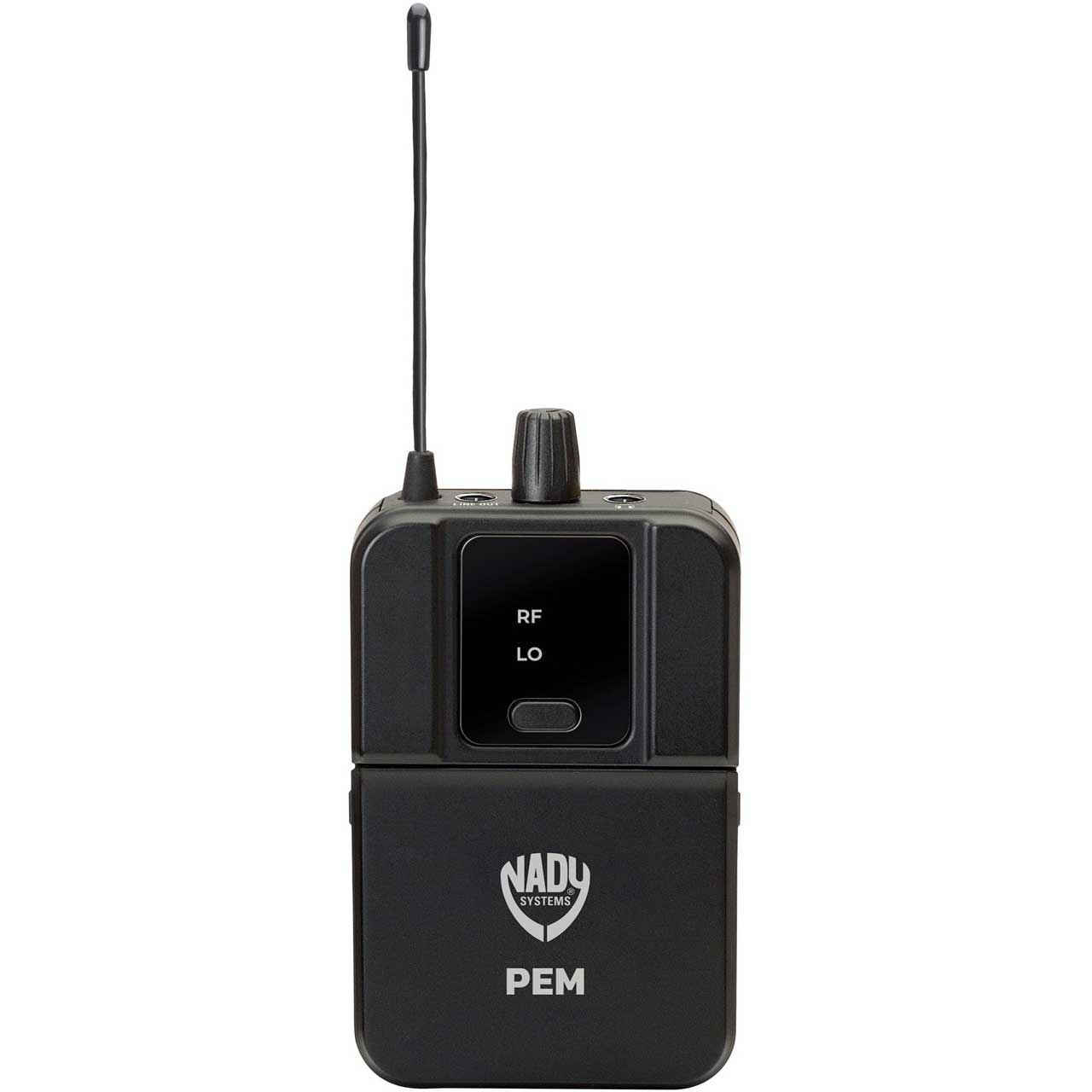

    PEM Bodypack Receiver

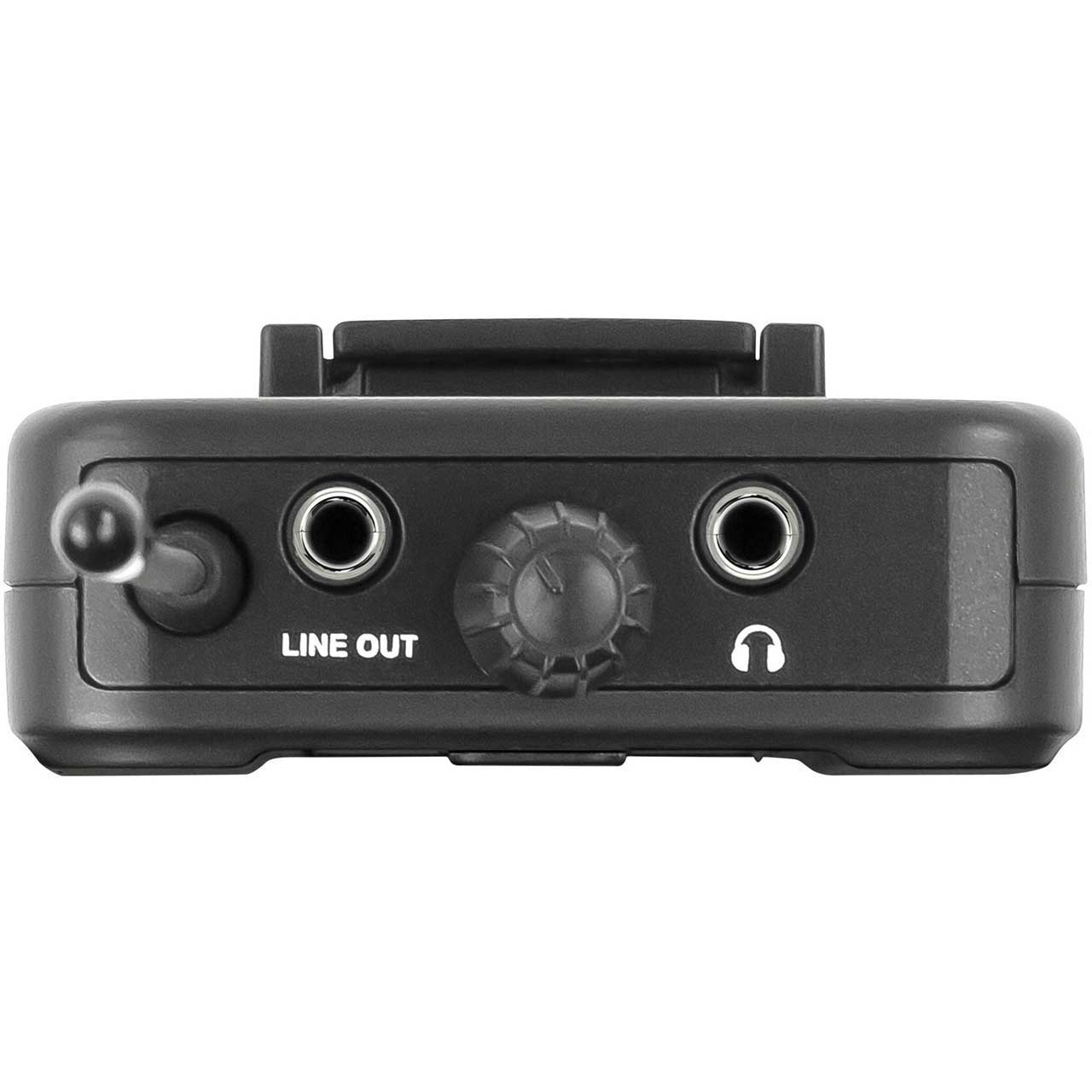

  • Connectors: 3.5mm dual mono headphone output, 3.5mm line output
  • Controls: Power / Channel Select / Volume
  • Power Requirements: 2xAA
  • Battery Life: up to 11 hours
  • Dimensions: 2.375" x 1" x 4.25"
  • Weight: 2.4oz

    Frequency Chart
    CHANNEL - FREQ.
  • 0 - 903.250 MHz
  • 1 - 903.825 MHz
  • 2 - 904.875 MHz
  • 3 - 905.325 MHz
  • 4 - 905.975 MHz
  • 5 - 906.575 MHz
  • 6 - 907.225 MHz
  • 7 - 908.425 MHz
  • 8 - 909.075 MHz
  • 9 - 910.875 MHz
  • A - 911.325 MHz
  • B - 916.850 MHz
  • C - 925.000 MHz
  • D - 925.650 MHz
  • E - 926.850 MHz
  • F - 927.650 MHz

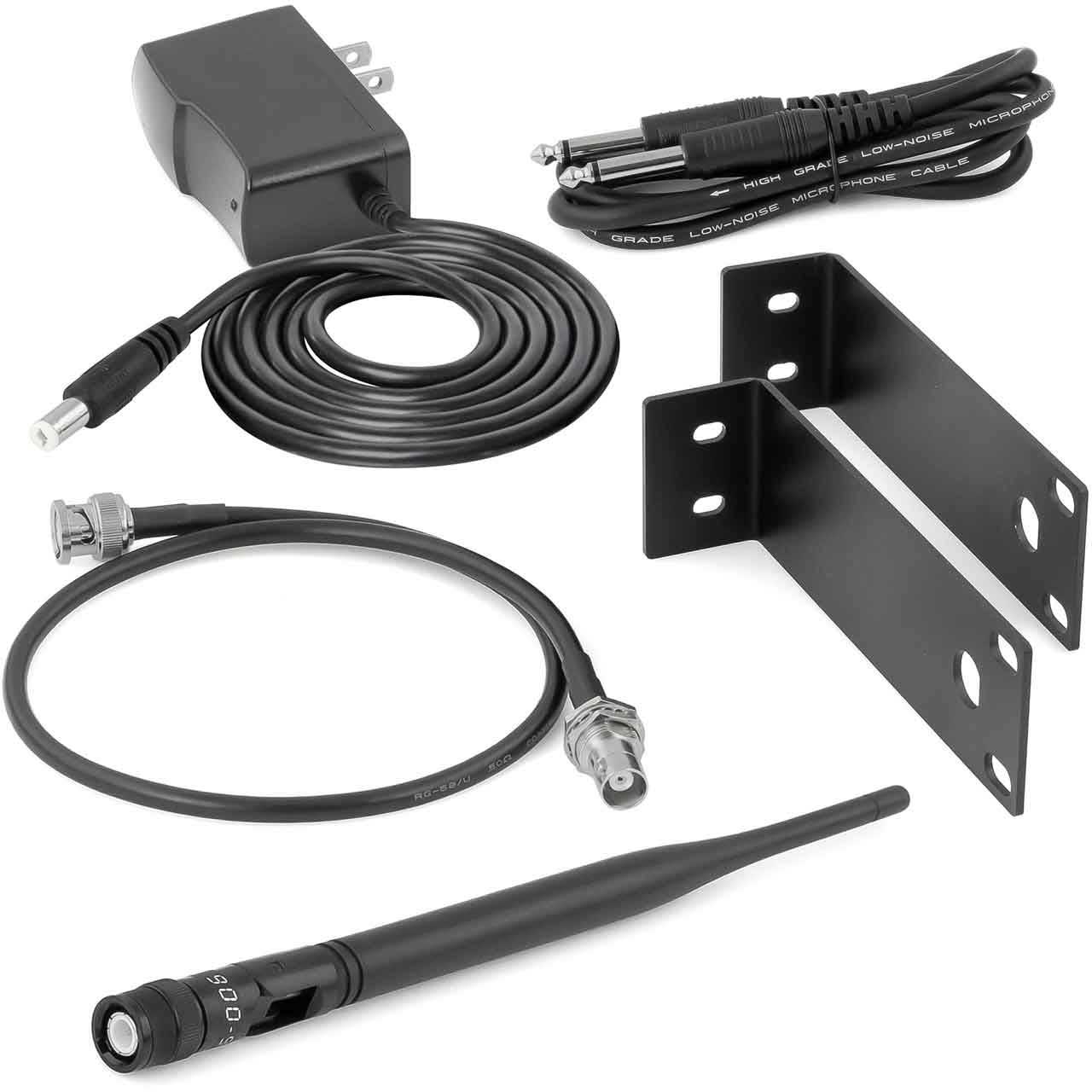

• Item Includes:

  • 1x Transmitter with AC adapter
  • 1x Bodypack receiver with EB-6 earbuds
  • 1x Rackmount kit with antenna front mounting hardware
  • 1x 1/4" audio cable


• GTIN:

  0634343118889
