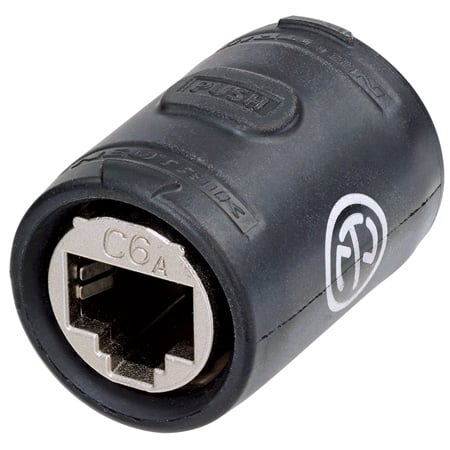

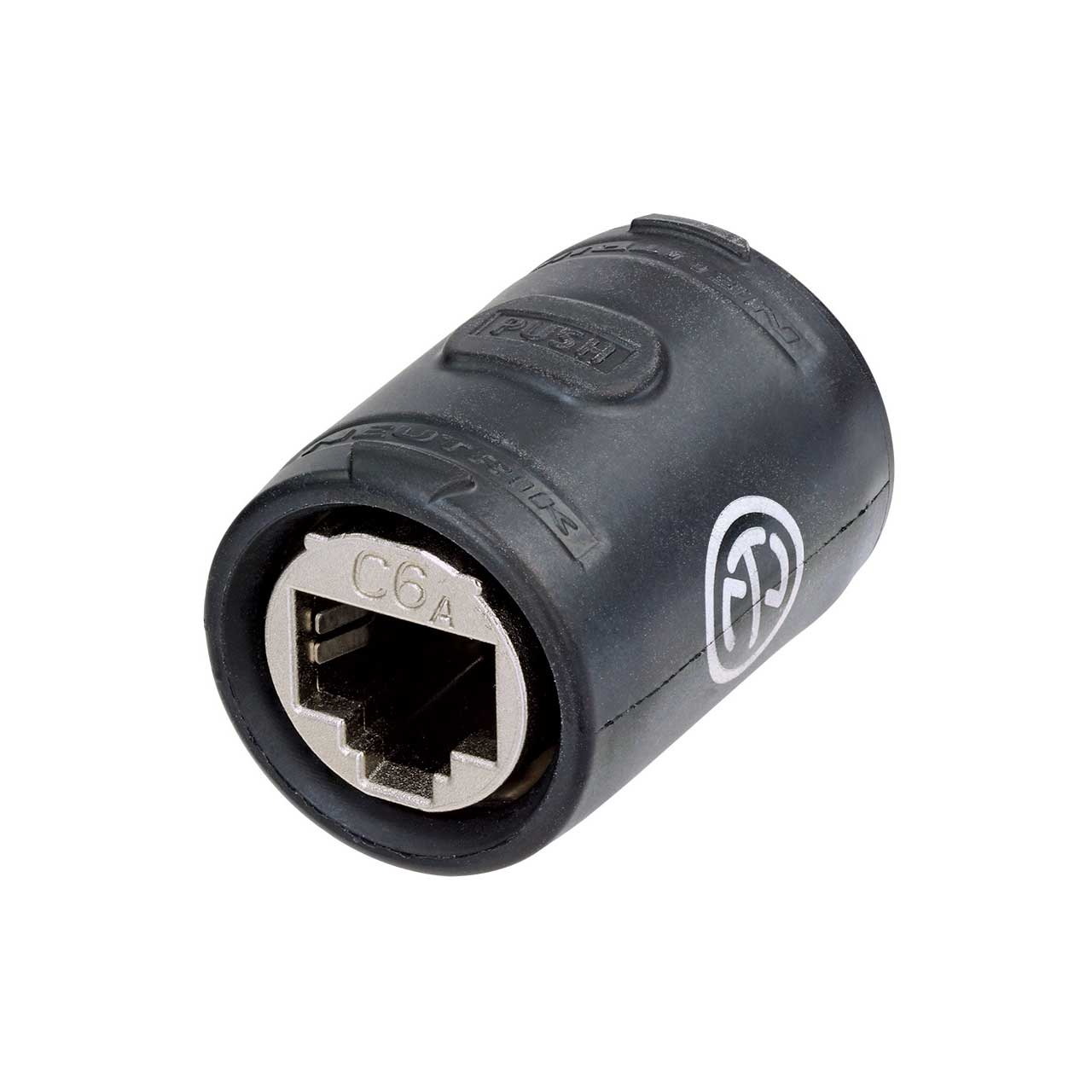

Neutrik NE8FFX6-W etherCON CAT6A Feedthrough Coupler for Cable Extensions

NE8FFX6-W - Overview

NE8FFX6-W - Overview

• Features:

  • Ruggedized coupler with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • IP65 protected when mated with NE8MX6*
  • Accommodates standard RJ45 plug
  • Revolutionary small form factor
  • The adapter offers the million-fold proven robust latch lock system
  • The adapters are problem solvers for various intermating problems for professional and semi-professional applications


• Specifications:

  • Connection Type: Adapter
  • Gender: female
  • Contact resistance: < 200 mΩ
  • Dielectric strength: > 1.5 kVdc
  • Insulation resistance: > 0.5 GΩ
  • Rated current per contact: 1.5 A
  • Transmission performance: CAT6A, acc. TIA/EIA rating; Class EA, acc. IEC/ISO/EN rating
  • Power over Ethernet: PoE+ acc. IEEE 802.3a
  • tnsertion force: = 50 N
  • Withdrawal force: = 50 N
  • Lifetime: > 1000 mating cycles
  • Wiring: Feedthrough
  • Locking device: Latch lock


• GTIN:

  7613187011504
