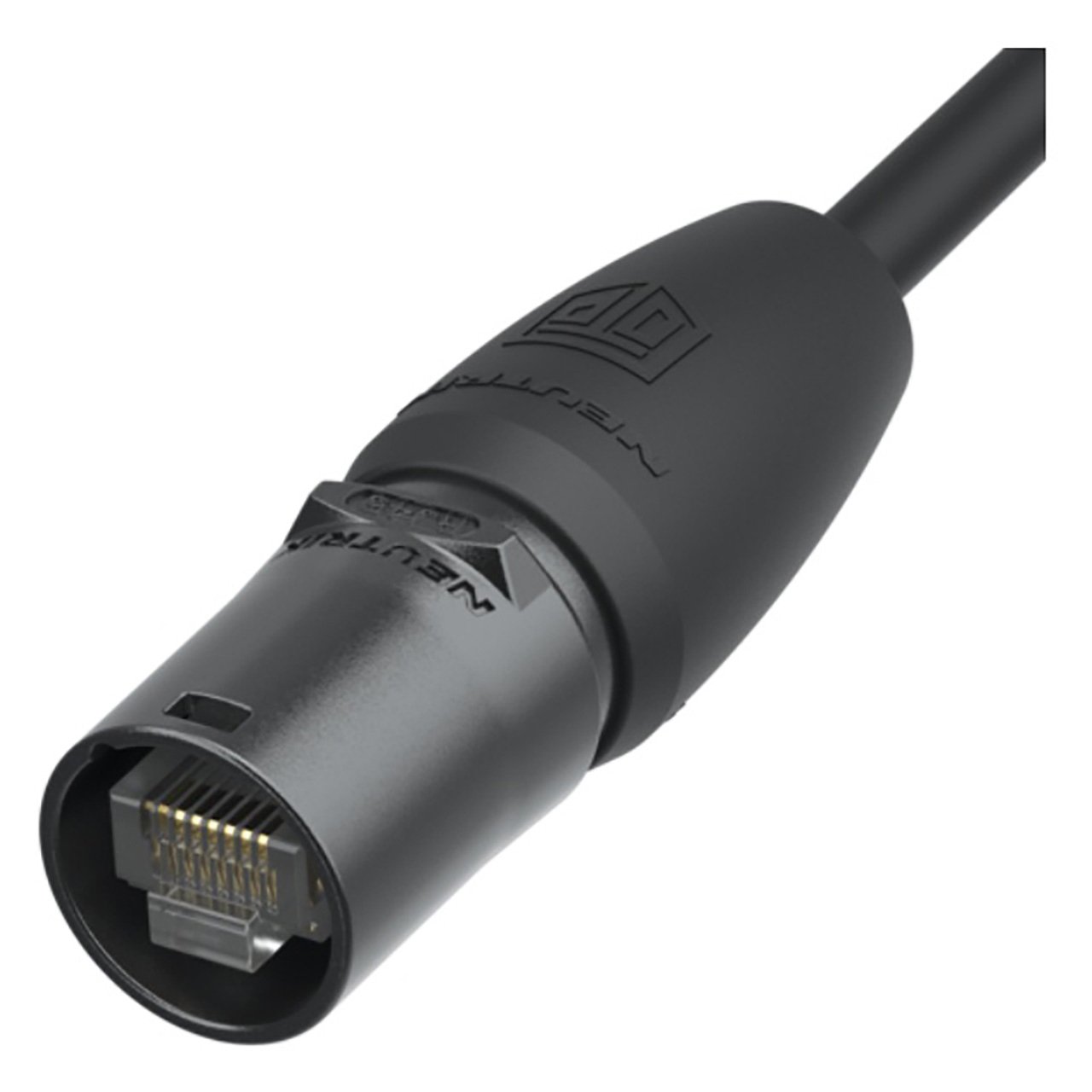

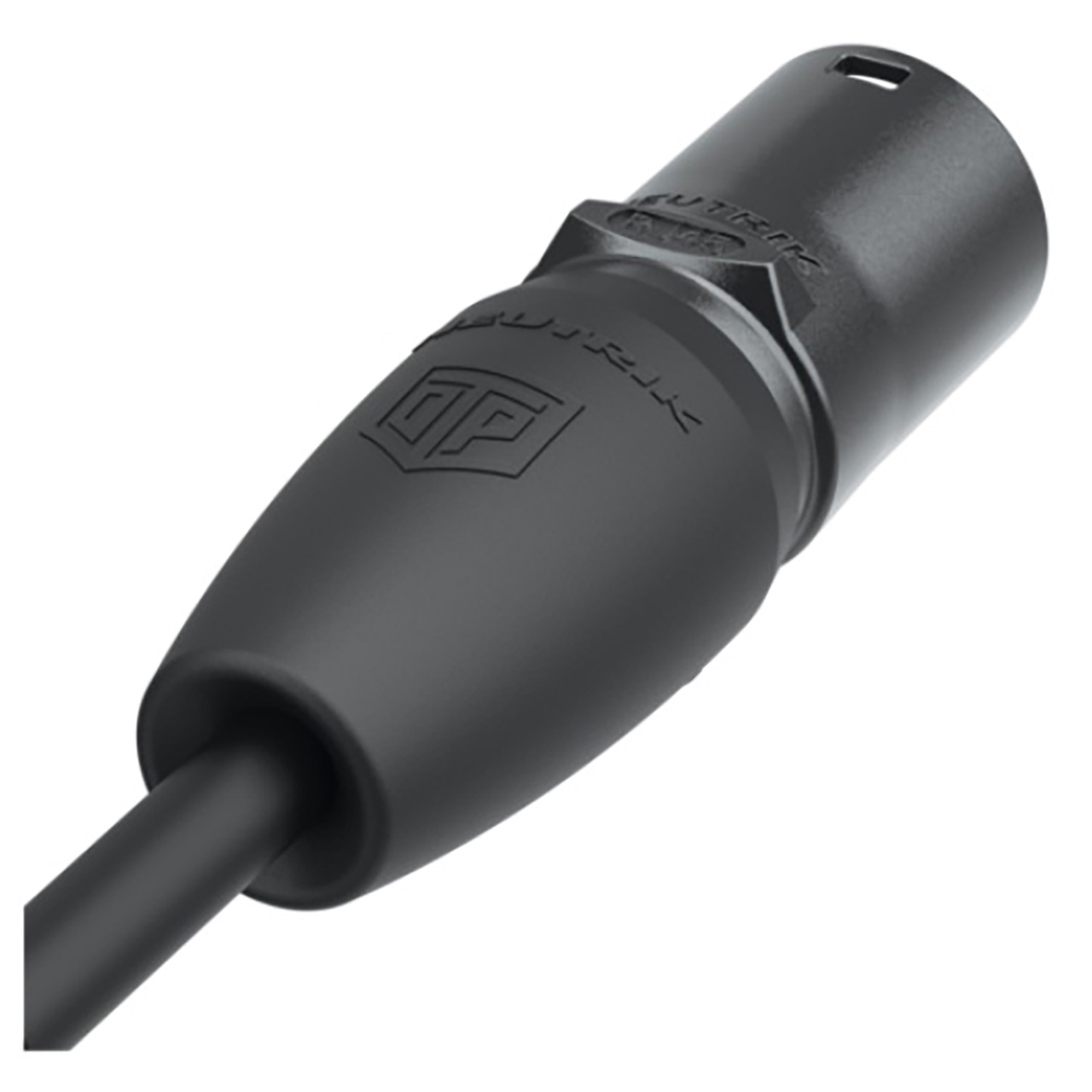

NEUTRIK NE8MX-B-TOP-14 etherCON RJ45 Cable Connector Carrier - 8mm-10mm OD - Black Chromium Shell - Each

NE8MX-B-TOP-14 - Overview

• Features:

  • RJ45 system for harsh and demanding environment
  • Cable connector carrier accepts the most common RJ45 plugs
  • IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
  • Rugged diecast shell and unique chuck type strain relief
  • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
  • Allows assembly of non pre-assembled conventional RJ45 cables


• Specifications:

  • Connection Type: etherCON
  • Gender: Male

    Mechanical
  • Cable O.D.: 8.0mm - 10.0mm
  • Insertion Force: ≤20 N
  • Withdrawal Force: ≤20 N
  • Lifetime: >1000 mating cycles

    Material
  • Boot: Thermoplastic elastomer (TPE)
  • Shell: Zinc diecastÿ(ZnAl4Cu1)
  • Shell coating: Black KTL
  • Insert: Polyamide (PA66)
  • Strain Relief: Polyacetalÿ(POM)

    Environmental
  • Protection Class: IP65 (mated)
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)


• Item Includes:

  • 1x NEUTRIK NE8MX-B-TOP-14 etherCON RJ45 Cable Connector Carrier - 8mm-10mm OD - Black Chromium Shell
