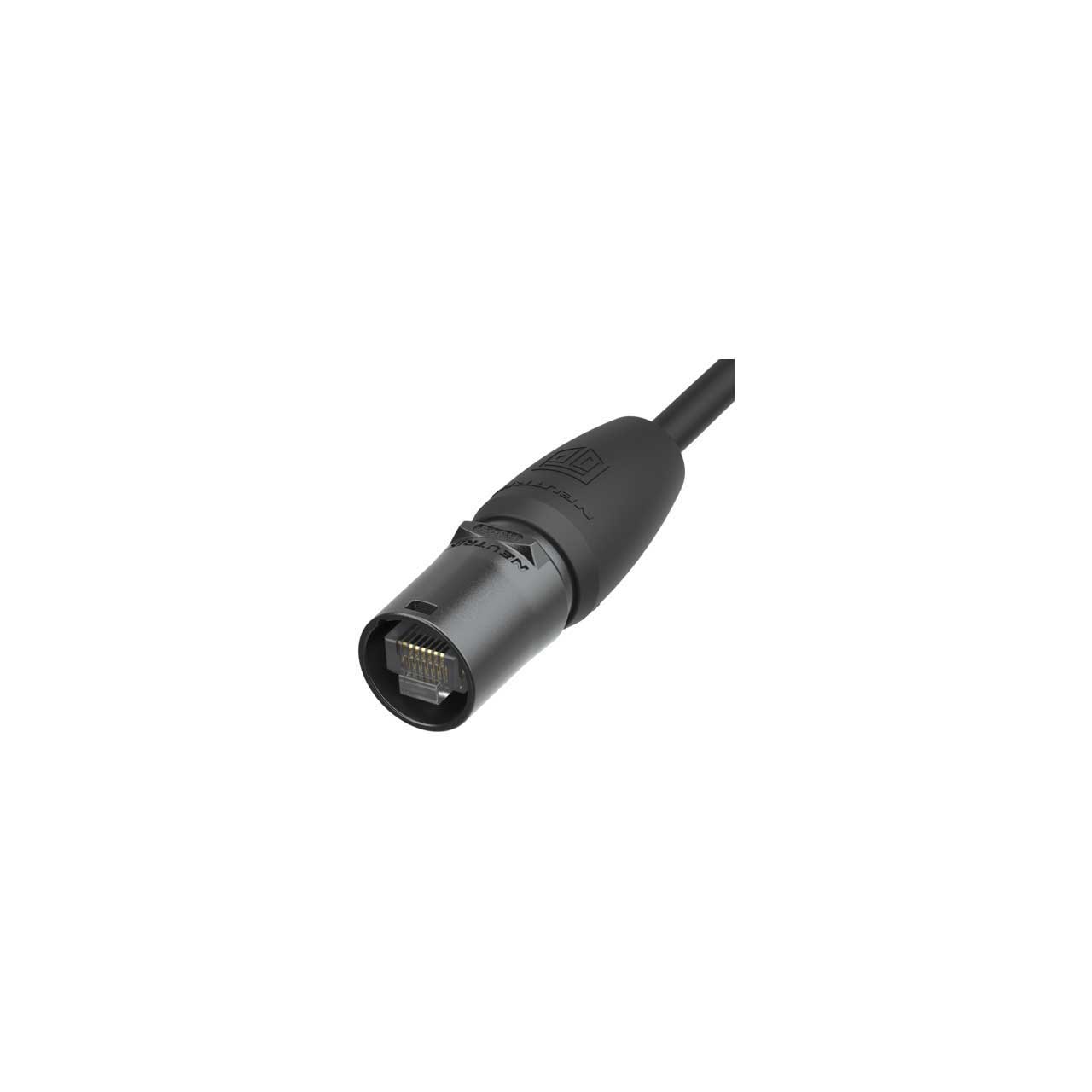

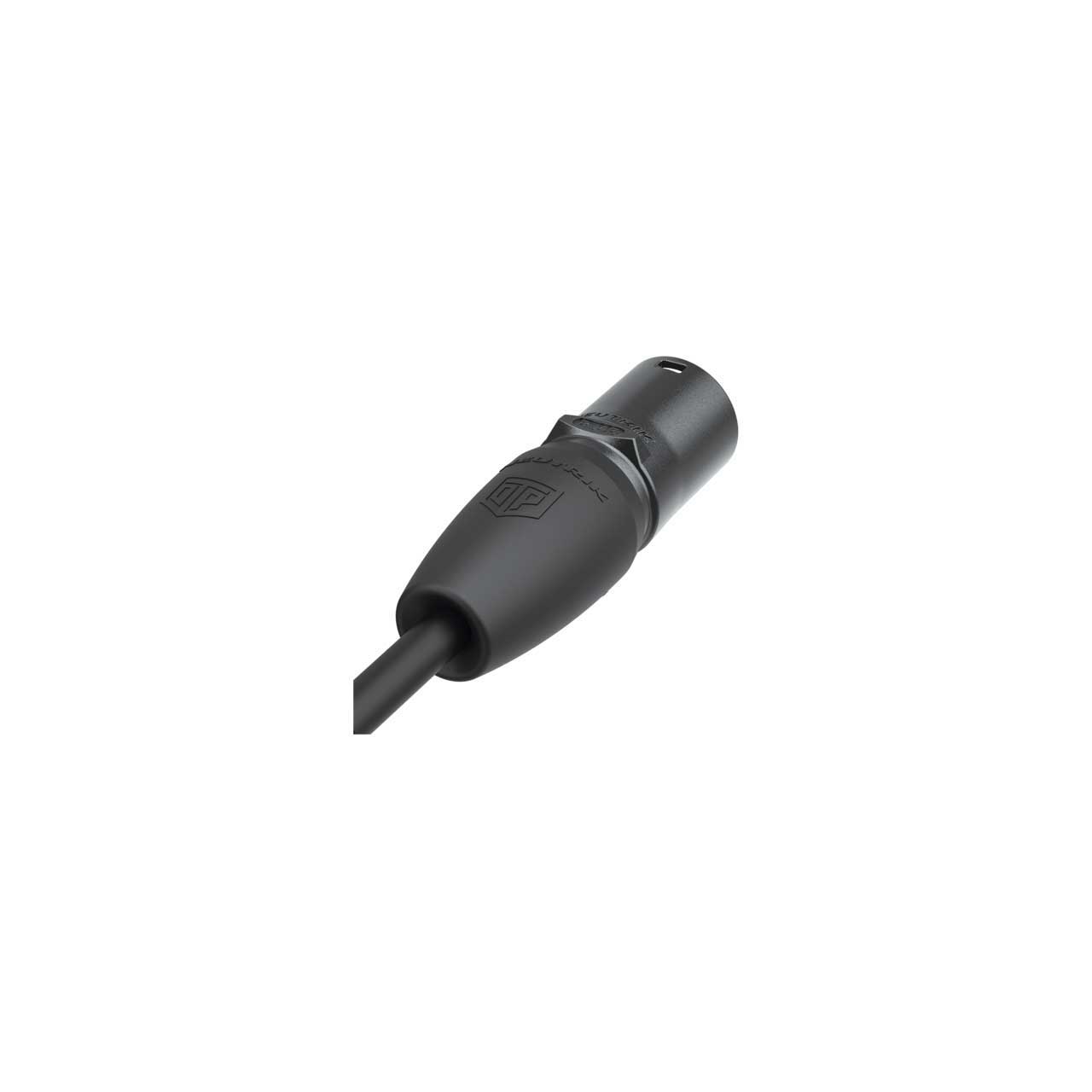

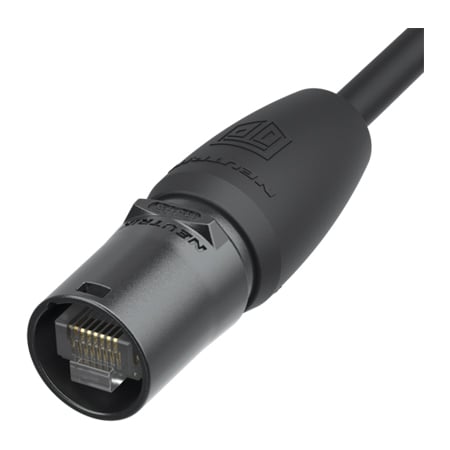

Neutrik NE8MX-B-TOP Ethercon Cable Connector Carrier For 5mm-8mm Cable Diameters - Black Chromium Shell/Chuck/Boot Only

ITEM #: NE8MX-B-TOP MFG #: NE8MX-B-TOP

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$4.75

Our Price:

$4.07

Availability: In Stock
iAvailability Description Popup


    NE8MX-B-TOP - Overview

    The Neutrik NE8MX-B-TOP cable connector carrier consists of a black chromium shell, chuck and boot. The boot is suitable for cable diameters from 5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include cable or RJ45 plug.

    IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range.

    Please Note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

    • Features:

      • The RJ45 system for harsh and demanding environment
      • Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
      • IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
      • Rugged diecast shell and unique chuck type strain relief
      • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
      • Allows assembly of non pre-assembled conventional RJ45 cables

    • Specifications:

      • Connection type: etherCON
      • Gender: Male

        Mechanical
      • Cable O.D.: 5.0 - 8.0 mm
      • Insertion force: ≤ 20 N
      • Withdrawal force: ≤ 20 N
      • Lifetime: > 1000 mating cycles

        Material
      • Boot: Thermoplastic elastomer (TPE)
      • Shell: Zinc diecast(ZnAl4Cu1)
      • Insert: Polyamide (PA66)
      • Strain relief: Polyacetal(POM)
      • Shell coating: Black KTL

        Environmental
      • Protection class: IP65 (mated)
      • Temperature range: -30 °C to +80 °C ( -22 °F to 176 °F )

    • Warranty:

      • 2 Year Warranty
