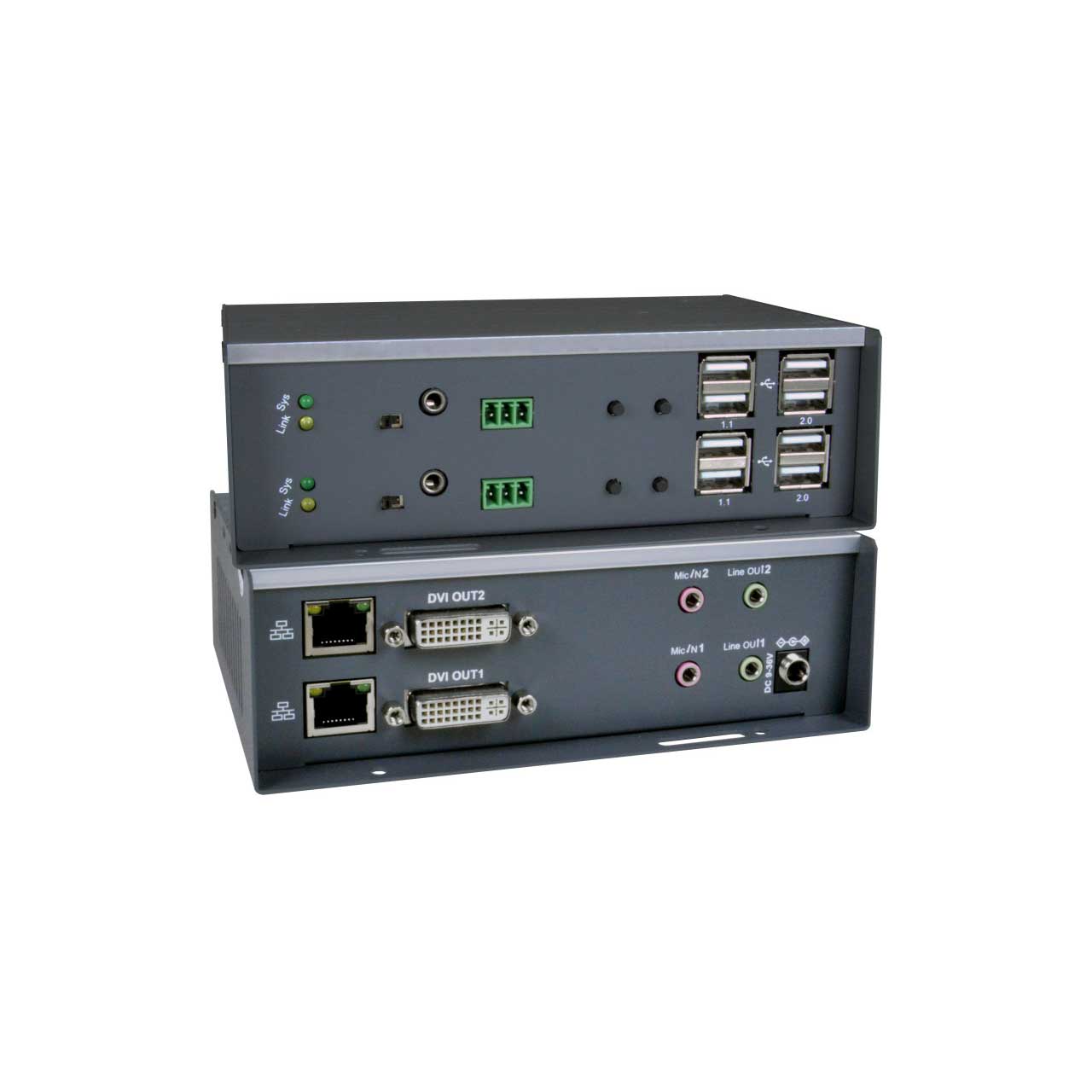

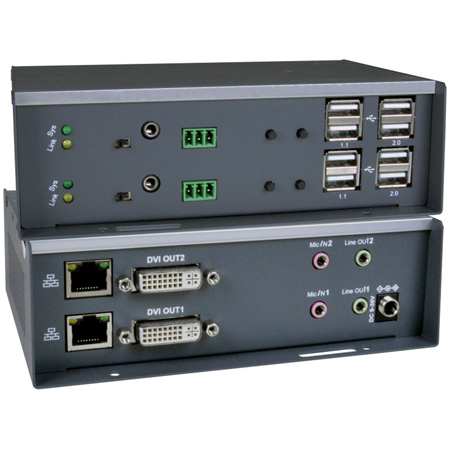

NTI ST-IPUSBD-R-DH Dual Monitor DVI USB KVM Extender with Video Wall Support Over IP - Remote Unit

ST-IPUSBD-R-DH - Overview

• Features:

  • Dual Head

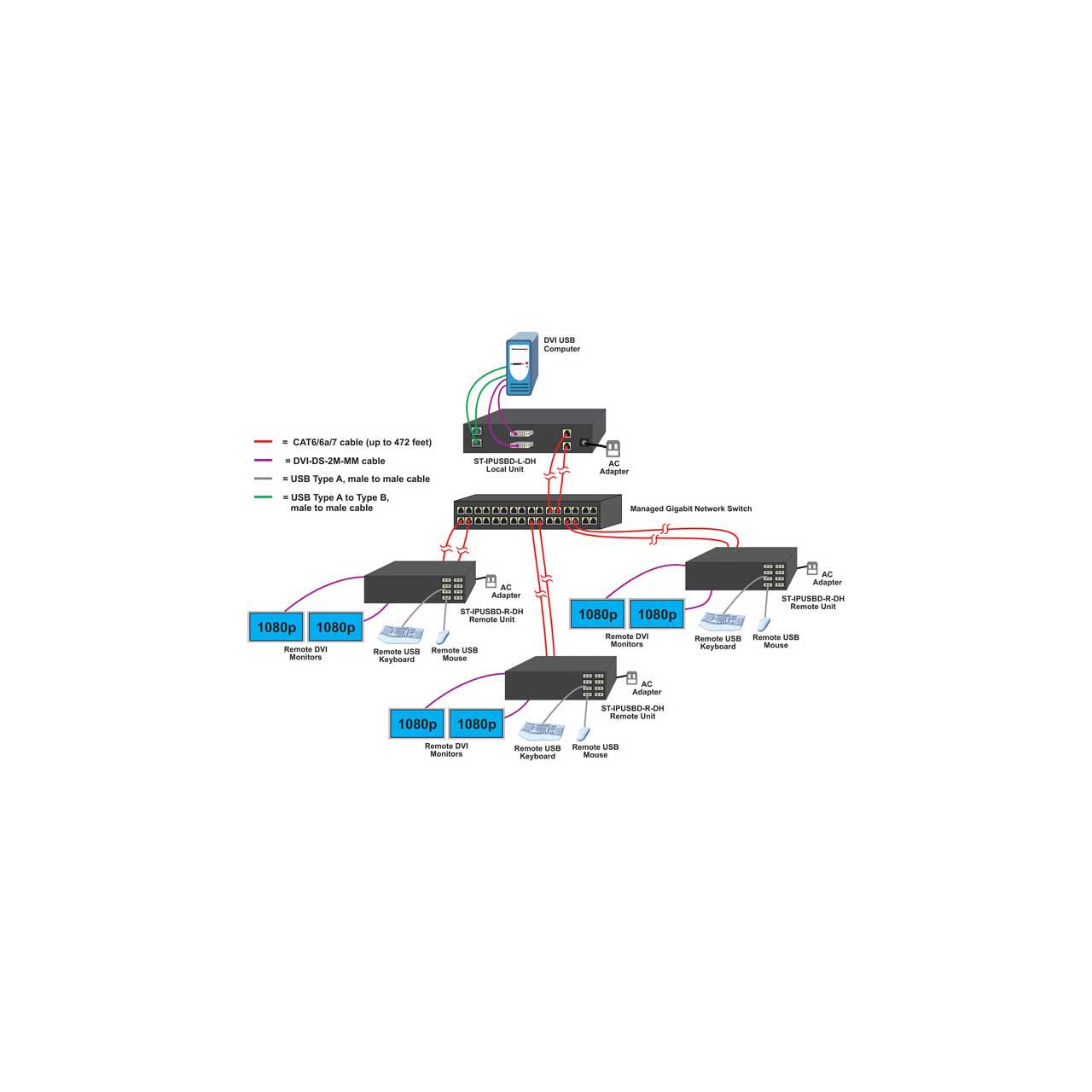

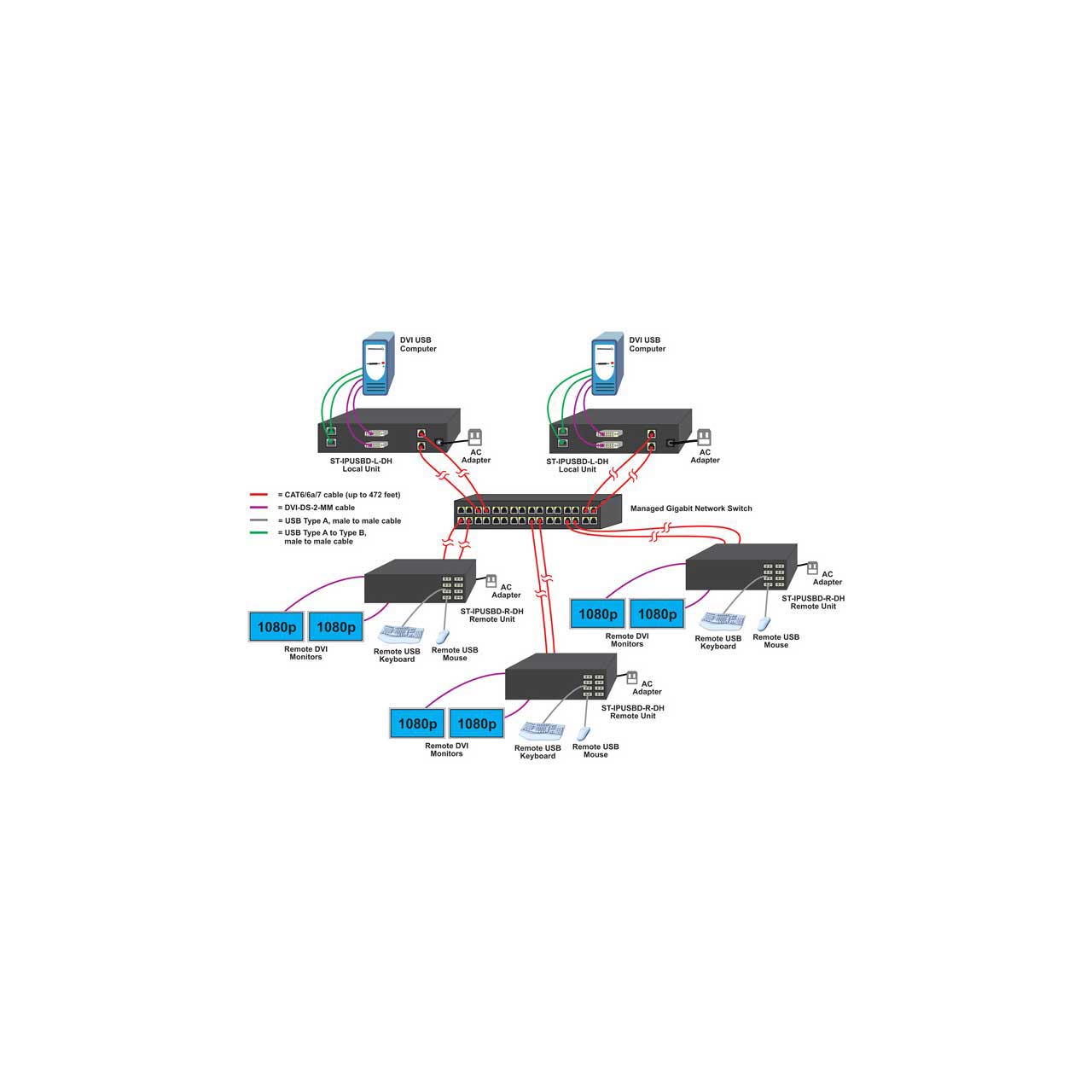

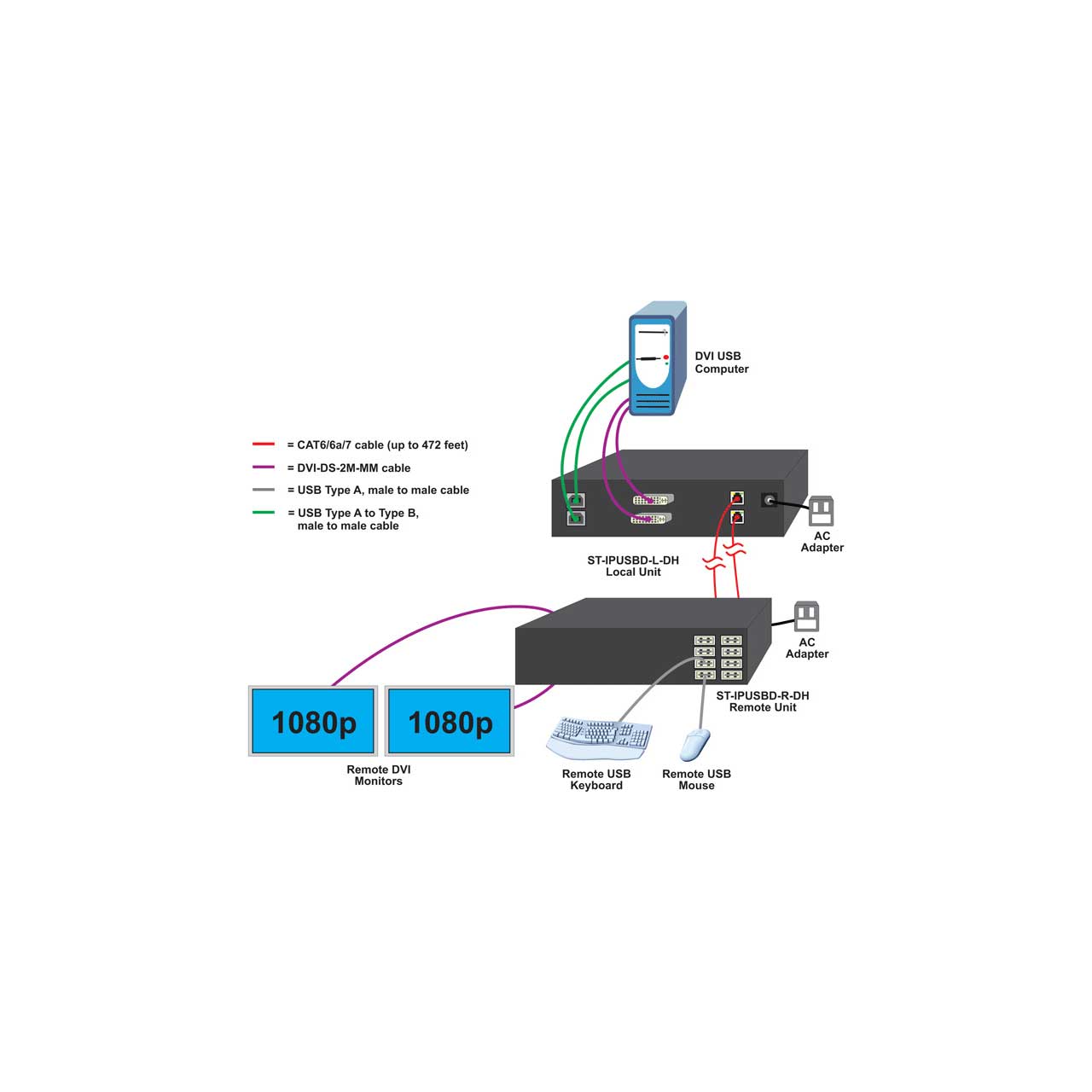

  • Supports Point-to-Point, Point-to-Many, and Many-to-Many connections.
  • 8 USB connectors for keyboard, mouse, flashdrive, HDD, or touchscreen display.

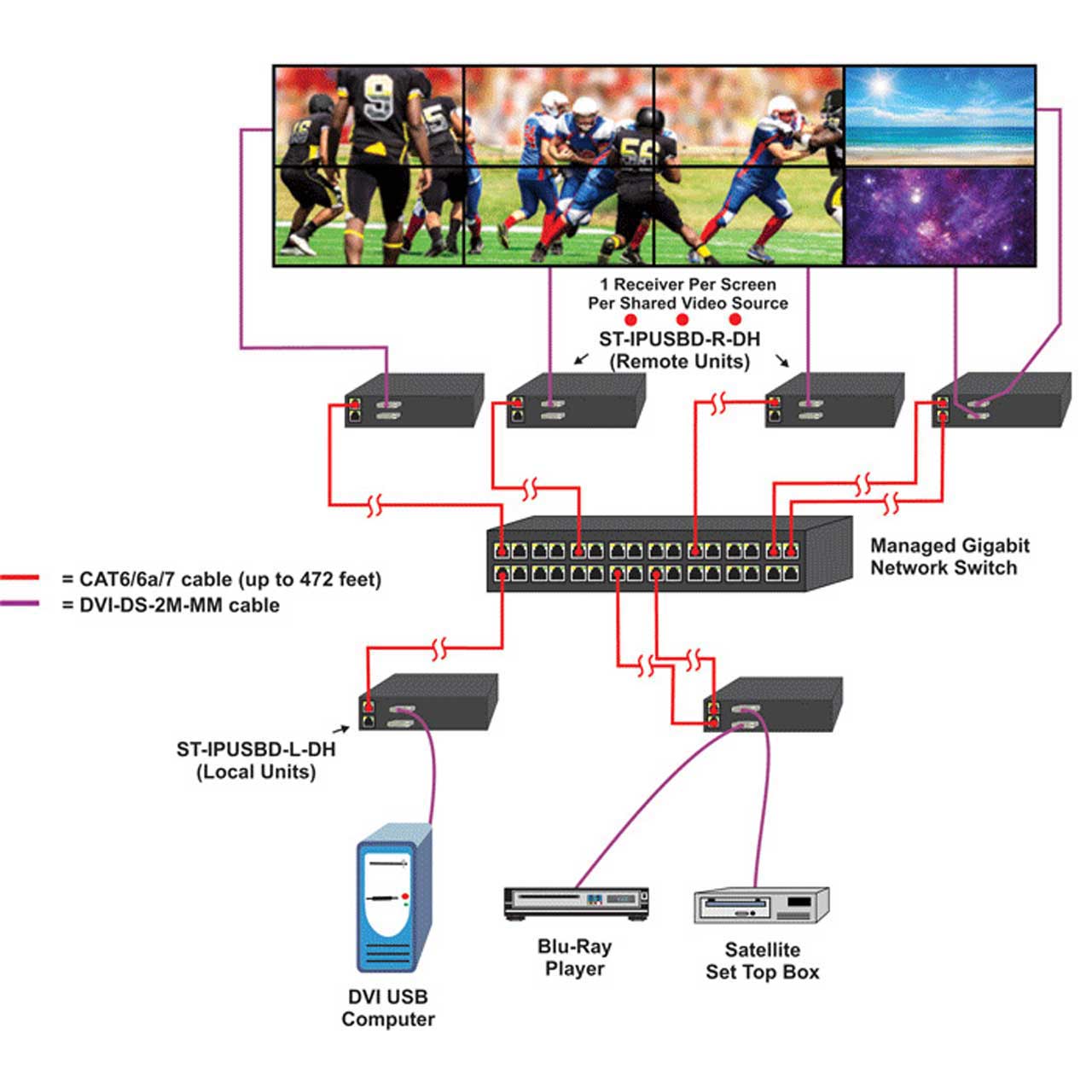

  • Supports video wall installations from 1x2 to 4x4 screens.


• Specifications:

  • Remote Unit
  • Two female DVI-I connectors
  • Signal type: single link digital DVI
  • Eight female USB Type A connectors for keyboard, mouse, flash drive, HDD, or touchscreen display
  • Four USB 2.0 and four USB 1.1
  • Four female 3.5mm stereo jacks for audio out and mic in
  • Microphone only works when in a point-to-point connection
  • Two female 3.5mm ports for IR receiver (sold separately)
  • Screw terminals for RS232. (Not supported at this time.)
  • Two female RJ45 ports for sending/receiving video, audio, IR, and USB signals
  • Supported video resolutions: HDTV resolutions to 1080p, Up to 1920x1200 (WUXGA)

    Power
  • Local and remote unit: Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (included).
  • Output: 12 VDC, 5A
  • Power consumption (max):
  • Local unit: 7.2W
  • Remote unit: 28.8W

    Dimensions
  • WxDxH (in): 6.3 x 4.33 x 1.97
  • Environmental
  • Operating temperature: 32 to 122°F
  • Storage temperature: -4 to 185°F
  • Operating/storage relative humidity: 0 to 80% non-condensing RH.

    Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant

    Max Distance
  • 472 feet in a Point-to-Point connection.
  • 944 feet in a Point-to-Point, Point-to-Many, or Many-to-Many connection via a managed Gigabit network switch.
  • The max length between most switches and the local/remote unit is 472 feet.
  • The switch itself will determine the maximum distance.

    Cables
  • Cables included with local unit: Two 3.94 ft (1.2 m) male DVI to male HDMI cable. One 6 ft (1.8 m) male USB Type A to male USB Type B cable.
    Use DVI-DS-2M-MM DVI-D Male-to-Male Single Link Cable to connect to a DVI source or display (not included).
    Use DVI-IS-xx-MM DVI-I Male-to-Male Single Link Cable to connect to a DVI source or display (not included).
    Use DVI-HD-xx-MM cables to connect an HDMI source or display (not included).
    Use CAT6/6a/7 straight through cable with TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).


• Item Includes:

  • 1x Remote Unit
  • 1x 12VDC 5A power supply
  • 1x Country-specific line cord


• Warranty:

  • Two years
