Blurring the line between products, the Evertz NEXX Router, can fit into your solution. This multifaceted compact processing router has the potential to do SDI and IP coupled with mono channel audio shuffling. A modular solution that can conform.

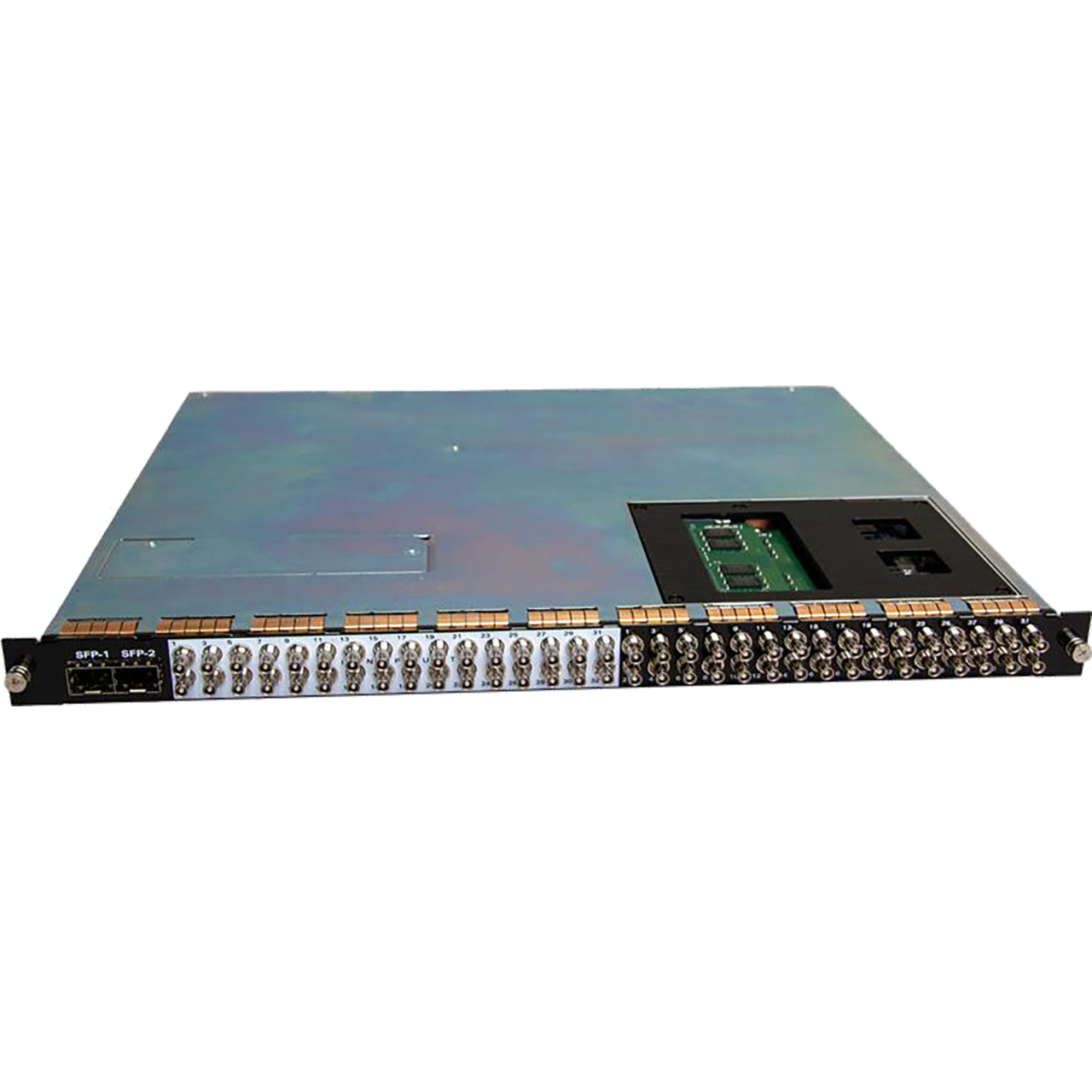

Robust by design, NEXX takes many cues from Evertz' years of industry leading routing platforms. With the included NEXX-IO-C1 module providing 32x32 HDBNC SDI, bi-directional SFPs for discrete MADI or TDM, frame sync, and four Standard Edition MVs. NEXX-670 (sold separately) brings 4 QSFP ports contributing the best IPG, UDX, and Multiviewer that Evertz has to offer. The NEXX-SCORPION (sold separately) helps normalize all the odds and ends of the system, including Dante. All possible in a compact 5RU module router frame!
Licensable features to buy what you need now and future proof by adapting to your next project. A configuration suited for upgrading the production from SDI to IP, 1080p to single wire 12G, or something in-between. Unlock Frame sync, UHD, Multiviewers, and more as desired. Increase the IO count by adding frames in a non-blocking architecture allowing the NEXX to get to a colossal 960x960 12G-SDI single essence with just a crosspoint upgrade.

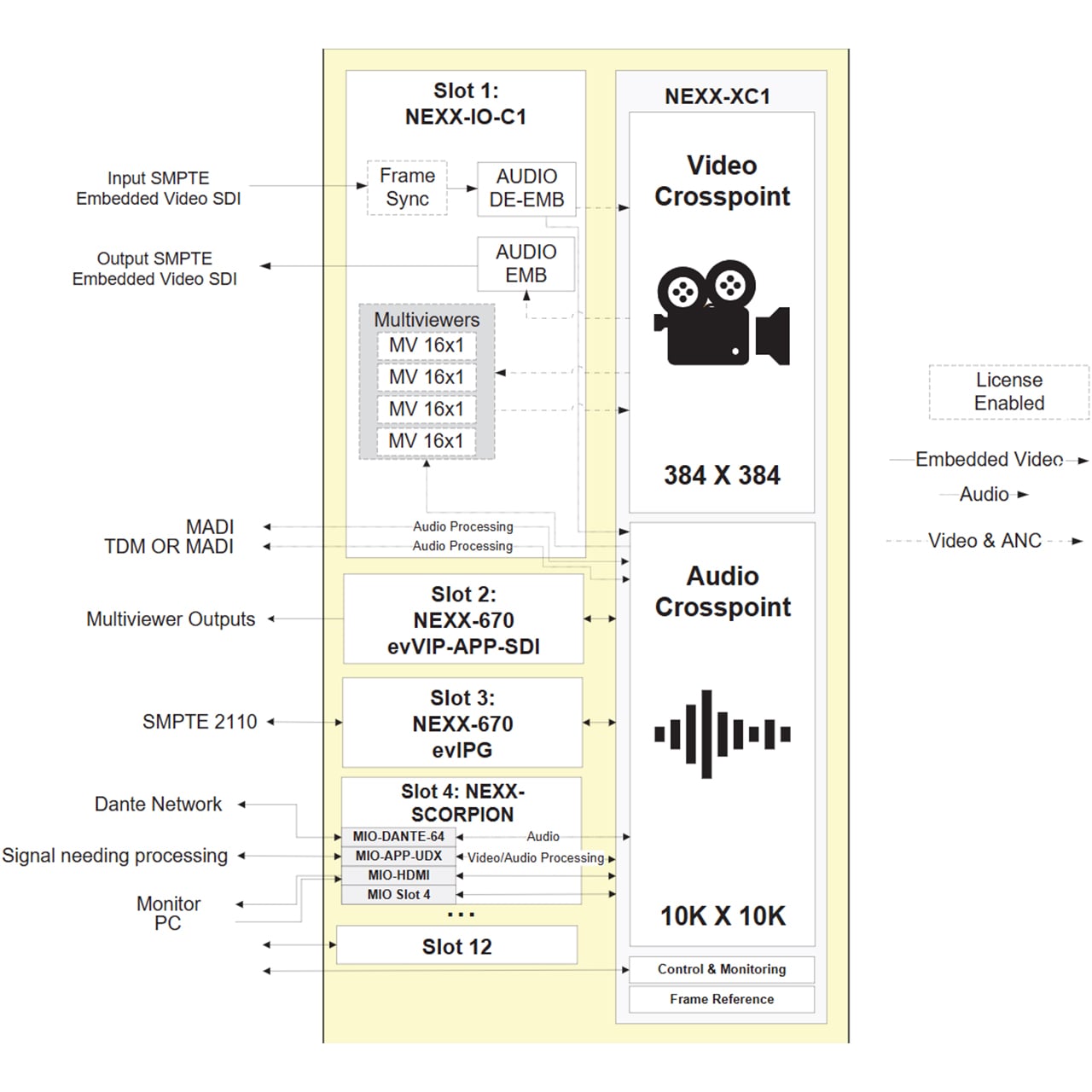

Demystifying the NEXX platform starts with a modular design which expands the router to be more than just a router, with advanced processing capabilities including built-in multiviewers, frame synchronization, SMPTE ST 2110 I/O, and up/down/cross conversion. If that isn't enough, we took it a step further with our miniature I/O (MIO) from the SCORPION platform to support interfaces that include Dante, HDMI, and so much more.
Building your foundation with NEXX allows you to support your needs for today's and future workflows with various types of interfaces, standards, and modules.

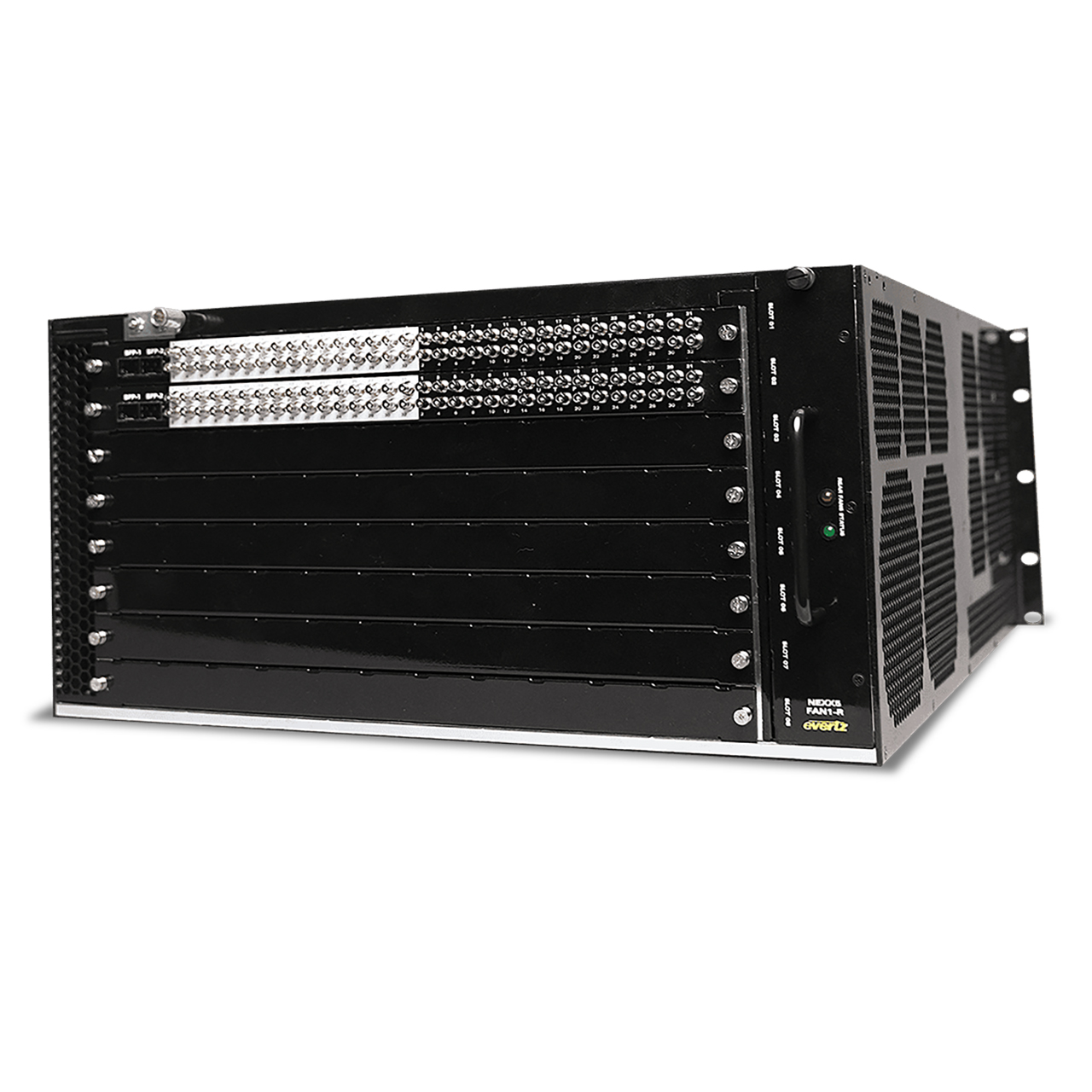

NEXX 5 RU base package 1 includes a 5RU frame with long ears for a front recessed mounted frame capable of supporting 12 IO slots. Populated with one front-accessible video routing XPT engine, redundant control, and a single 32x32 IO module for video/audio routing.

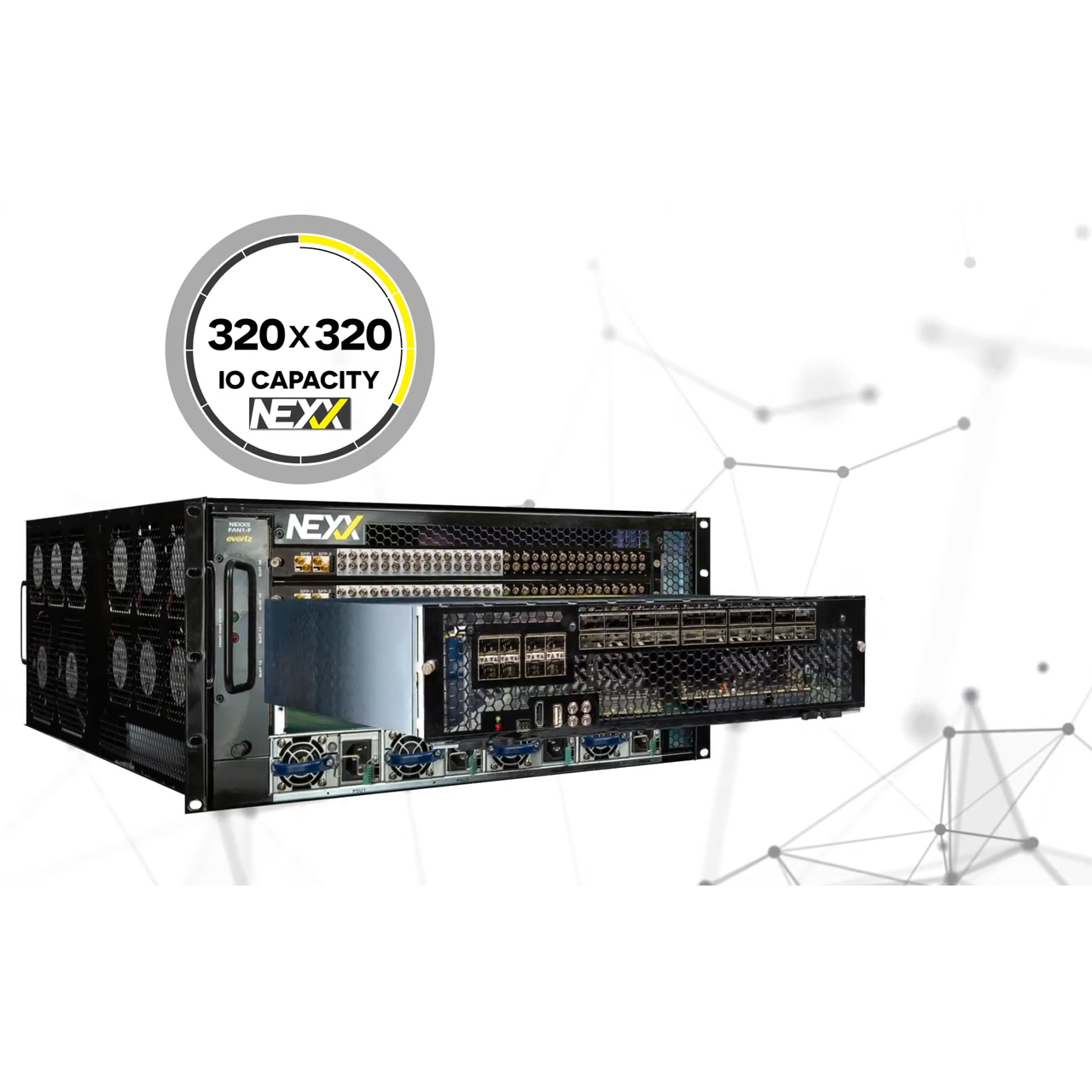

Please Note! Main image is shown with two NEXX-IO-C1 32x32 IO Module's but this package only includs a single 32x32 IO Module.
