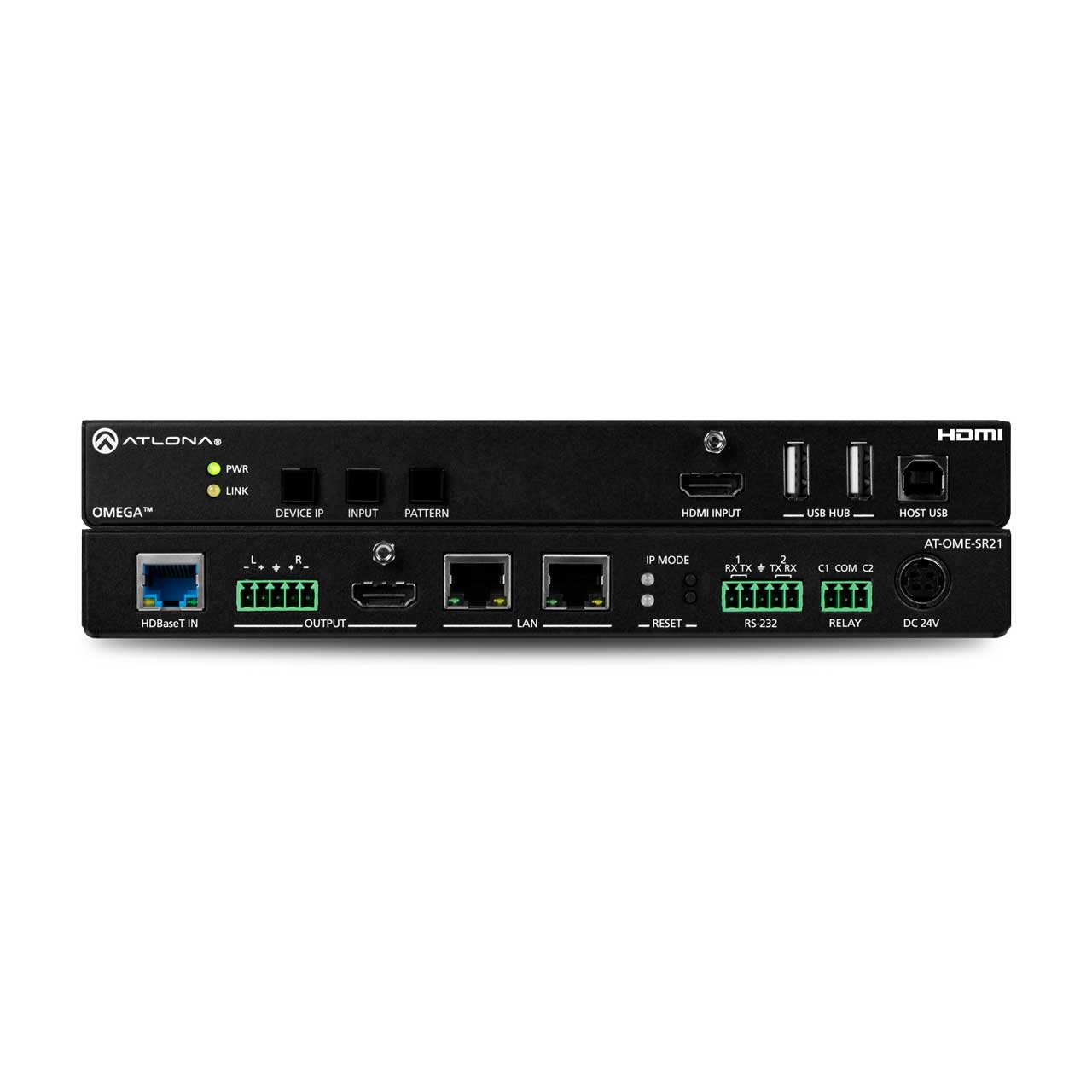

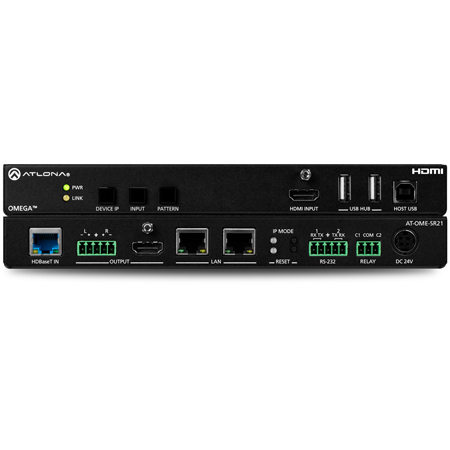

    AT-OME-SR21 - Overview

    The Atlona AT-OME-SR21 is an HDBaseT receiver and 4K/UHD scaler with a local HDMI input. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-SR21 receives HDBaseT for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). The HDMI input supports video up to UHD/60 4:4:4. The OME-SR21 is HDCP 2.2 compliant and features 4K/60 upscaling and downscaling with frame rate conversion. Additionally, it receives USB over HDBaseT and includes a USB 2.0 hub for integration with PCs, cameras, microphones, speakers, DSPs, and touch or interactive displays. The OME-SR21 is ideal for 4K presentation applications with Omega, HDVS-200, or UHD-EX Series transmitters, as well as Atlona AV presentation switchers with HDBaseT outputs, local HDMI sources, and the Gain™ Series amplifiers.

    Versatile scaler, switcher, and extender
    The OME-SR21 combines the benefits of 4K/UHD scaling, auto-switching for HDBaseT and HDMI inputs, integrated display control, USB extension, and more. It incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-SR21 can remotely power an Atlona transmitter over HDBaseT.

    Automatic Display Control
    The OME-SR21 can provide control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the OME-SR21 can trigger a display to power on automatically whenever a laptop or other device is connected to the OME-SR21.

    Reliable Auto-Switching
    The OME-SR21 automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt "high" state but may not be delivering active video.

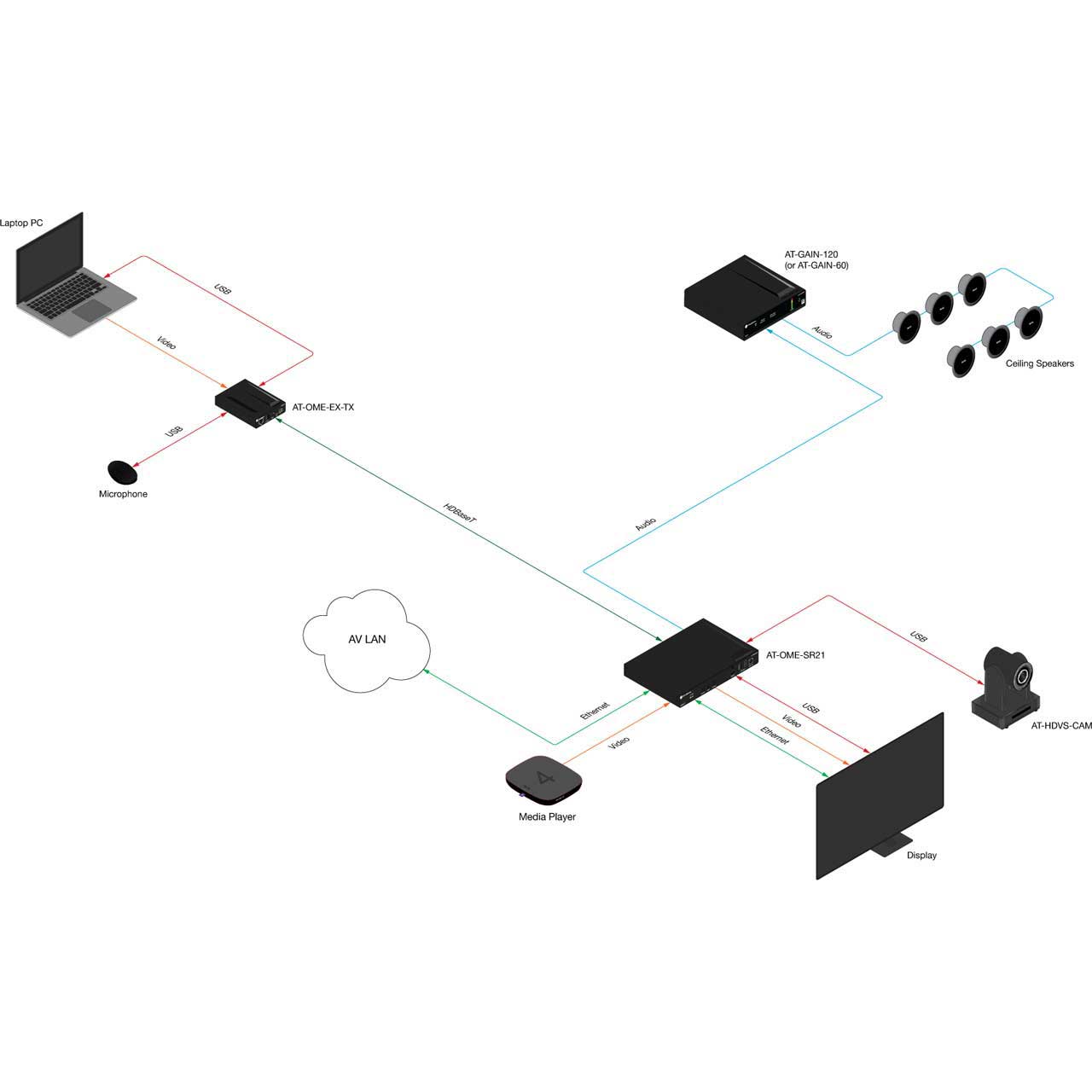

    Complete system integration - The OME-SR21 and an Omega Series switcher / transmitter provide a compact, yet comprehensive and cost-effective integration solution.
    Larger system applications - The OME-SR21 is ideal for extending AV and control, from a switcher in an equipment rack to a remote display. Built-in 4K scaling optimizes content for 4K and HD displays.
    Video conferencing - With a compatible Omega switcher / transmitter, USB extension makes the OME-SR21 ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones.

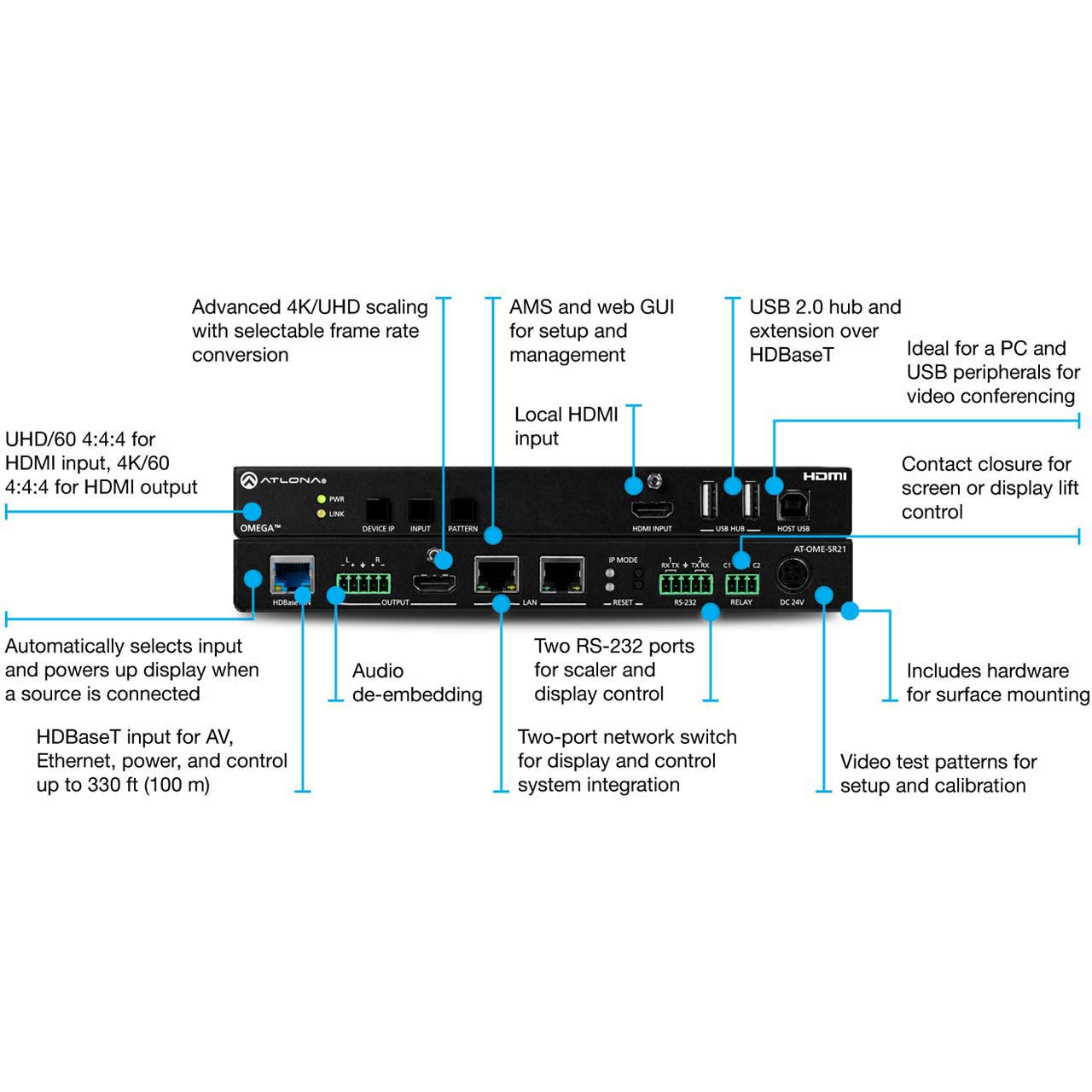

    • Features:

      • HDBaseTTM receiver for HDMI, Ethernet, power, control, and USB
      • Local HDMI input
      • USB 2.0 interfacing and extension up to 330 feet (100 meters)
      • 4K/UHD downscaling and upscaling
      • Supplies powering over HDBaseT to a transmitter
      • Audio de-embedding
      • Dual Ethernet ports and integrated network switch
      • Two relays provide control for motorized screen, shades, or display lift
    • Specifications:

      • Video
      • HDMI: 2.0
      • HDCP: 2.2
      • UHD/HD/SD: 4096x2160@60*/50/30/25/24Hz, 3840x2160@60*/50/30/25/24Hz, 1080p@60/59.9/50/30/29.97/25/24/23.98Hz, 1080i@30/29.97/25Hz, 720p@60/59.94/50Hz, 576p@50Hz, 576i@25Hz, 480p@60/59.96Hz, 480i@30Hz
      • VESA: 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1440x900, 1400x1050, 1280x1024, 1280x800, 1366x768, 1360x768, 1152x864, 1024x768, 800x600, 640x480
      • Scaler Up/Down: 1024x768p60, 1280x720p50, 1280x720p60, 1280x768p60, 1280x800p60, 1360x768p60, 1600x1200p60, 1920x1080p24, 1920x1080p25, 1920x1080p50, 1920x1080p60, 1920x1200p60, 2048x1080p60, 3840x2160p24, 3840x2160p25, 3840x2160p30, 3840x2160p50, 3840x2160p60, 4096x2160p24, 4096x2160p25, 4096x2160p30, 4096x2160p50, 4096x2160p60
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit
      • * 4K/UHD @ 60Hz is limited to 4:2:0 over HDBaseT, 4K/UHD@60Hz 4:4:4 is available via local HDMI.

      • HDMI Pass-Through Formats: PCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
      • Bit Rate: 24 Mbits/s max
      • Analog Audio
      • Format: Stereo 2-Channel
      • Balanced Output: +4 dBu nominal gain, +20 dB headroom
      • Frequency Response: 20 Hz to 20 kHz, ± 0.5 dB
      • Impedance: 150Ω
      • Stereo channel separation: > 90 dB
      • THD+N: < 0.03% at 20 Hz to 20 kHz
      • SNR: > 90 dB at 1 kHz, zero clipping @ 0 dBFS, unweighted
      • EQ: 5 band, 63Hz, 85Hz, 250Hz, 1kHz, 4kHz
      • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

      • Signal: 2.0
      • Maximum Data Rate: 120 Mbps

      • RS-232: 1-way connected display control. 2-way device control and monitoring. Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
      • CEC Support: Yes
      • Relay: Normally open (NO), adjustable Toggle and Pulse modes. Electrical rating: 48V@1A

        Resolution / Distance
      • HDMI IN/OUT: 4K/UHD: 15ft/5m, 1080p: 30 ft/10m
      • CAT5e: 4K/UHD: 295ft/90m, 1080p: 330 ft/100m
      • CAT6/6a/7: 4K/UHD: 330 ft/100m, 1080p: 330 ft/100m

        Connectors, Controls, and Indicators
      • HDMI IN: 1 - Type A, 19-pin female
      • HDBaseT IN: 1 - RJ45, female
      • HDMI OUT: 1 - Type A, 19-pin female
      • USB HUB: 2 - Type A, 4-pin female
      • USB HOST: 1 - Type B, female
      • AUDIO OUT: 1 - 5-pin captive screw, balanced / unbalanced 2-channel
      • RELAY: 1 - 3-pin captive screw
      • RS-232: 2 - 3-pin captive screw (bidirectional)
      • LAN: 2 - RJ45, 100Base-T
      • DC 24V: 1 - 4-pin, mini-DIN locking connector
      • PWR indicator: 1 - LED, green
      • LINK indicator: 1 - LED, yellow
      • Control Buttons: DEVICE IP, INPUT, PATTERN: 3 - momentary, tact-type
      • IP MODE, RESET: 2 - momentary, recessed
      • Function Indicators:IP MODE, RESET 2 - LED, green

      • Operating: 32 to 122°F
      • Storage: -4 to 140°F
      • Humidity (RH): 20% to 60%, non-condensing
      • Unit Size 1.02 x 8.62 x 5.98 inch
      • Power Supply: 1.26 x 1.93 x 4.69 inch
      • Weight: 1.96
    • Item Includes:

      • 1x AT-OME-SR21
      • 2x Captive screw connector, 5-pin
      • 1x Captive screw connector, 3-pin
      • 4x Mounting screws
      • 1x Pair rack mount ears
      • 1x 24V DC power supply
      • 1x IEC power cord
      • 1x Installation Guide
