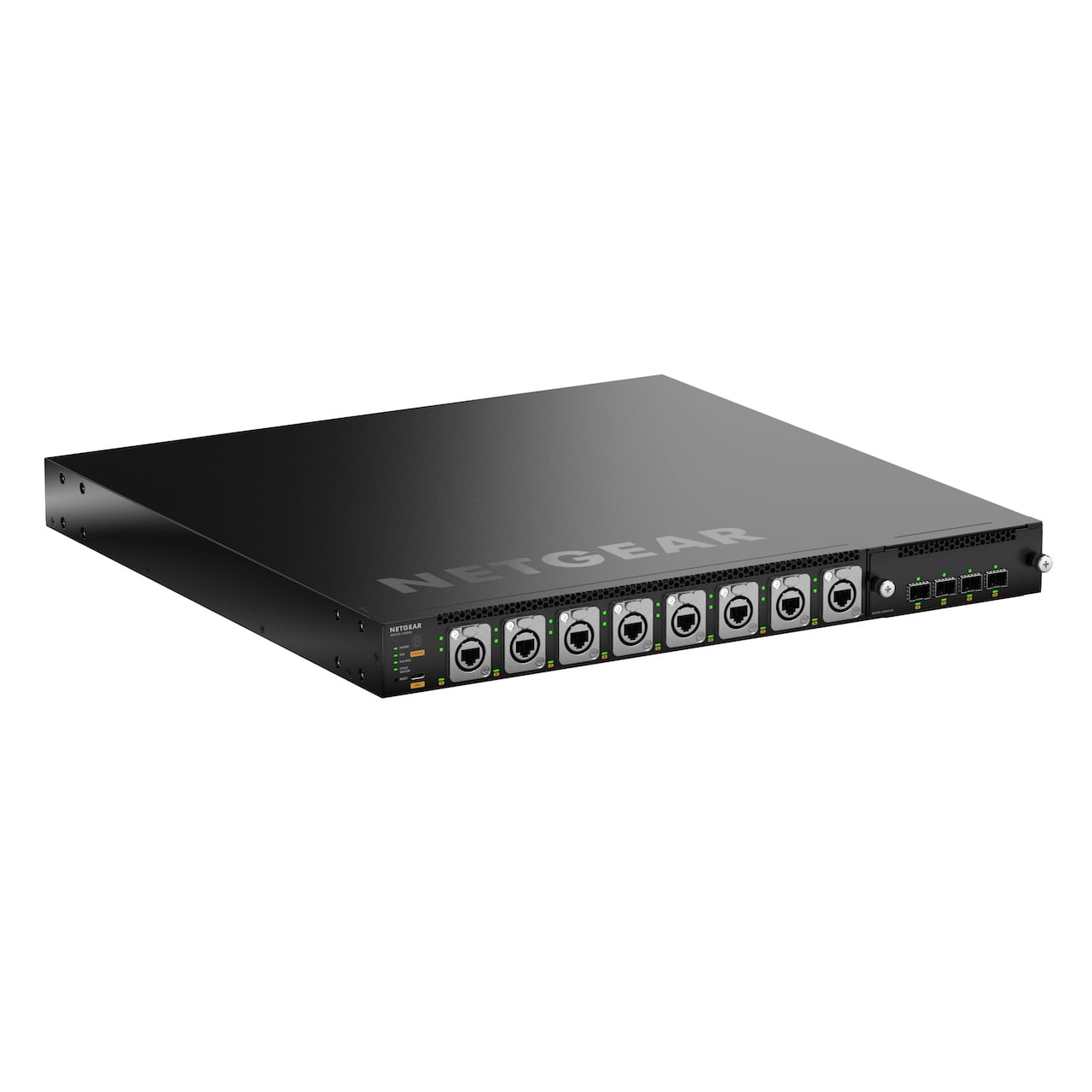

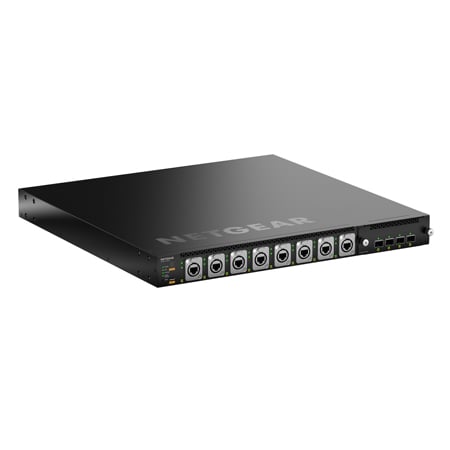

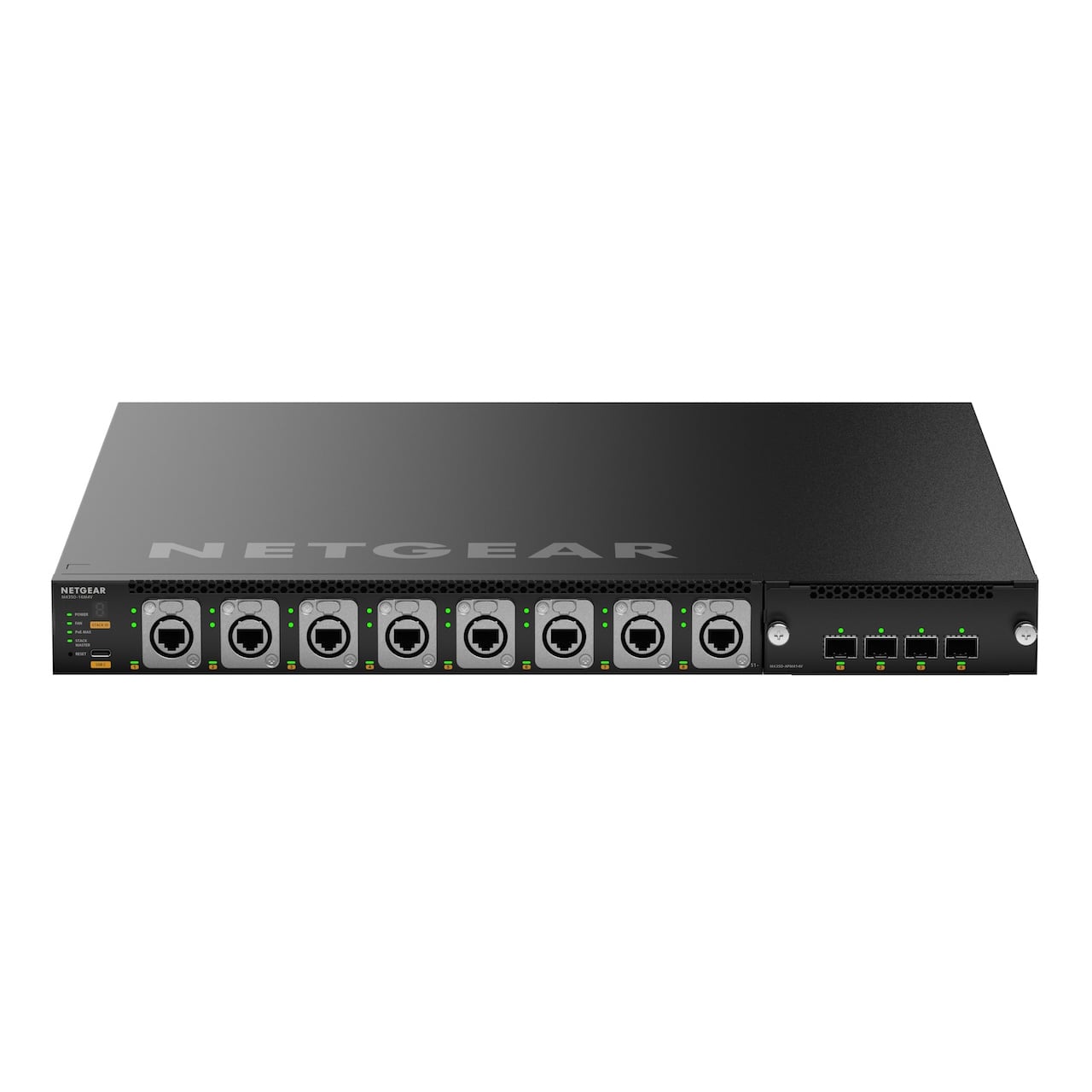

Netgear AV Line M4350-16M4V 20-Port Managed Ethernet Switch - 16x 2.5G PoE++ 25G - 8x NEUTRIK etherCON & 4x SFP28

MSM4320-100NES - Overview

From 1G to 25G, M4350 switches offer managed control for AV over IP and IT networks. Clean rack design, flexible ports, and pro-grade performance!

• Features:

  • 16 2.5G PoE++ ports incl. 8 etherCON Neutrik with 4 25GBASE-X SFP28 uplinks
  • 10 Gigabit only, or 25 Gigabit only supported on SFP28 ports 17-20
  • Individual RGB LED under each port, representing the color of the AV profile in AVUI and Engage
  • Two internal 800W power supplies providing 530W of redundant base PoE budget
  • The PoE budget can reach 1,130W, when the redundant PoE budget remains 530W (1+1)
  • The switch ships with one APM414V interface card (4 standard 25G SFP28 ports)
  • Interface card option (APM414SD) with 2 opticalCON QUAD for 4 MMF fiber 10G or 25G transceivers
  • Interface card option (APM414LD) with 2 opticalCON QUAD for 4 SMF fiber 10G or 25G transceivers
  • Interface option (APM414C) with 4 standard 10GBASE-T RJ45 ports (1G or 10G)
  • 2 powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
  • Lifetime Next Business Day Hardware Replacement


• Specifications:

  • Primary Port Speed: 2.5 Gigabit
  • Number of Ports: 20 (16x 2.5G PoE++ incl. 8x Neutrik etherCON, and 4x 25G SFP28)
  • IGMP Support: Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support: Yes, up to 12kb
  • AVB Support: Yes, included
  • Acoustics: Quiet Mode 35.6dB@77°F(25°C)
  • Power Consumption:
    - With max PoE: 1359.8W/4,639.64Btu/hr
    - Without PoE: 109.6W/373.96Btu/hr
  • Standby w/o Any Port Connection: 50.6W/170.60Btu/hr
  • PSU Compatible Models: Internal only
  • Internal PSUs: 2x internal 800W PSUs with PowerCON connectors
  • Compatible Interface Cards:
    - APM414SD (2x Neutrik opticalCON QUAD connectors for 4x MMF Transceivers)
    - APM414LD 2x Neutrik opticalCON QUAD connectors for 4x SMF transceivers)
    - APM414V (4x Standard 25G SFP28 ports) ships with the switch
    - APM414C (4x Standard 10G RJ5 ports)

    Management
  • NETGEAR Engage Controller
  • Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive.

    Physical
  • Dimensions: 17.31" x 17.32" x 1.71" (440mm x 432mm x 43.2mm)
  • Weight: 17.31lbs (7.85kg)


• Item Includes:

  • 1x M4350-16M4V (MSM4320)
  • 1x APM414V interface card with 4x SFP28 ports
  • 1x Power Cord (Standard AC to C13)
  • 2x Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords
  • 1x Console USB Type-C cable
  • 1x Rack-mounting standard bracket set
  • 1x Set of longer brackets for recessed mounting
  • 4x Rubber footpads for tabletop installation
  • 1x Installation guide


• GTIN:

  0606449175073
