Netgear WAX220-100NAS Dual Band Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax/e 4.10 Gbit/s Wireless Access Point - Indoor

WAX220100NAS - Overview

• Features:

  • Latest Business Wifi - Upgrade to WIFi 6 with speeds of up to 4.2 Gbps for faster streaming, downloading, video conferencing, and more.
  • Budget Friendly Solution - The perfect WiFi 6 business solution for your small office, retail shop, conference room, or lobby.
  • Compact With Versatile Mounting - Small size and easy to mount on a wall or ceiling make it ideal for a lobby or retail showroom where you want your Access Point to be discrete
  • Secure & Isolated - 4 unique SSID's, WPA3 authentication, and a dedicated Ethernet connection isolate it from the rest of your office network

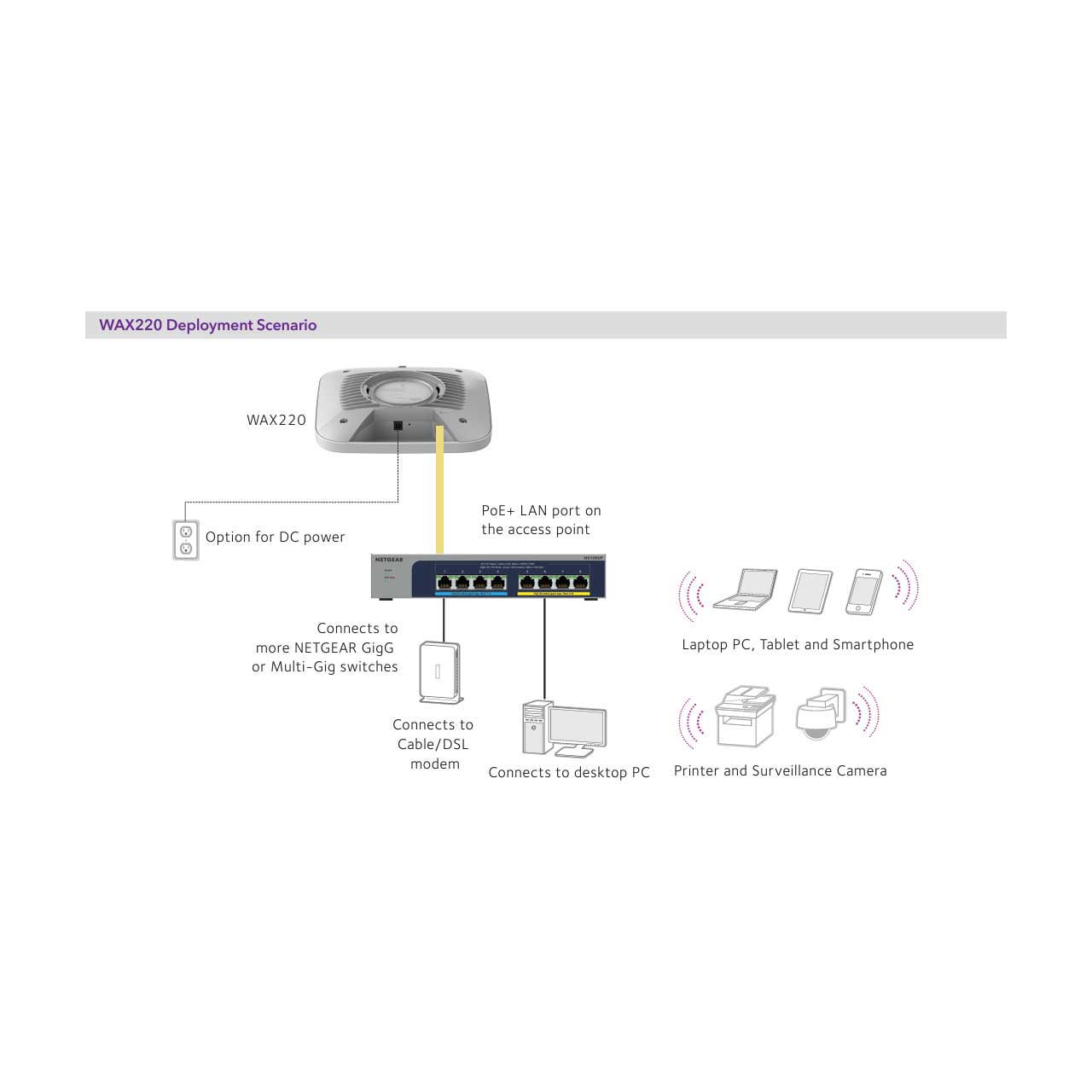

  • Power Over Ethernet(Poe+) Powered - Connect it to your router with a single Ethernet cable for both power and data, without complicated wiring, professional installation, or added IT equipment costs.
  • Easy Diy Set Up - Easy 10 minute configuration with an intuitive Web GUI. No need for professional installation or IT equipment cost.


• Specifications:

  • Physical Characteristics
  • Power Supply: 12V/2.5V (30W) Power adapter (included with WAX220PA model only) or PoE+ Switch
  • Power Consumption: 15.2W

    Physical Specifications
  • Dimensions (WxDxH): 7.71in x 7.71in x 1.74in (196mm x 196mm x 44.4mm)
  • Weight: 1.15lb (523g)
  • Mounting options: Ceiling or Wall mount

    Network Interfaces
  • Ethernet Ports: 1x 100/1000/2500Mbps Ethernet (RJ-45) PoE port with Auto Uplink (Auto MDI-X)

    Environmental Specifications
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -40°F to 158°F (-40°C to 70°C)
  • Operating Relative Humidity: 5% to 95%
  • Storage Humidity: 5% to 95%
  • MTBF: @ 77°F > 1,896,453 hours @ 113°F > 431,098 hours
  • Safety Certification: CB, EN60950, EN62368

    RF Characteristics
  • Frequency Band: 2.4GHz and 5GHz concurrent operation
  • Maximum Theoretical Throughput: 600Mbps (2.4GHz), 3600Mbps (5.0GHz)
  • Maximum Number of Clients: 256 (2.4GHz 128, 5GHz 128)

    Network Management
  • Deployment options: Standalone Web UI
  • Access Point: Antenna: 5dBi (2.4GHz), 5dBi (5GHz)
  • Security: WiFi Protected Access (WPA2/WPA3), MAC Address filtering, 4 SSID
  • MAC ACL: Yes
  • VPN Pass-through: No
  • 802.11e WMM: Wireless multimedia mode for QoS
  • Simultaneous Bridge/Client Association: No


• Item Includes:

  • 1x NETGEAR WiFi 6 AX4200 Dual-band Access Point with Multi-Gig PoE (WAX220)

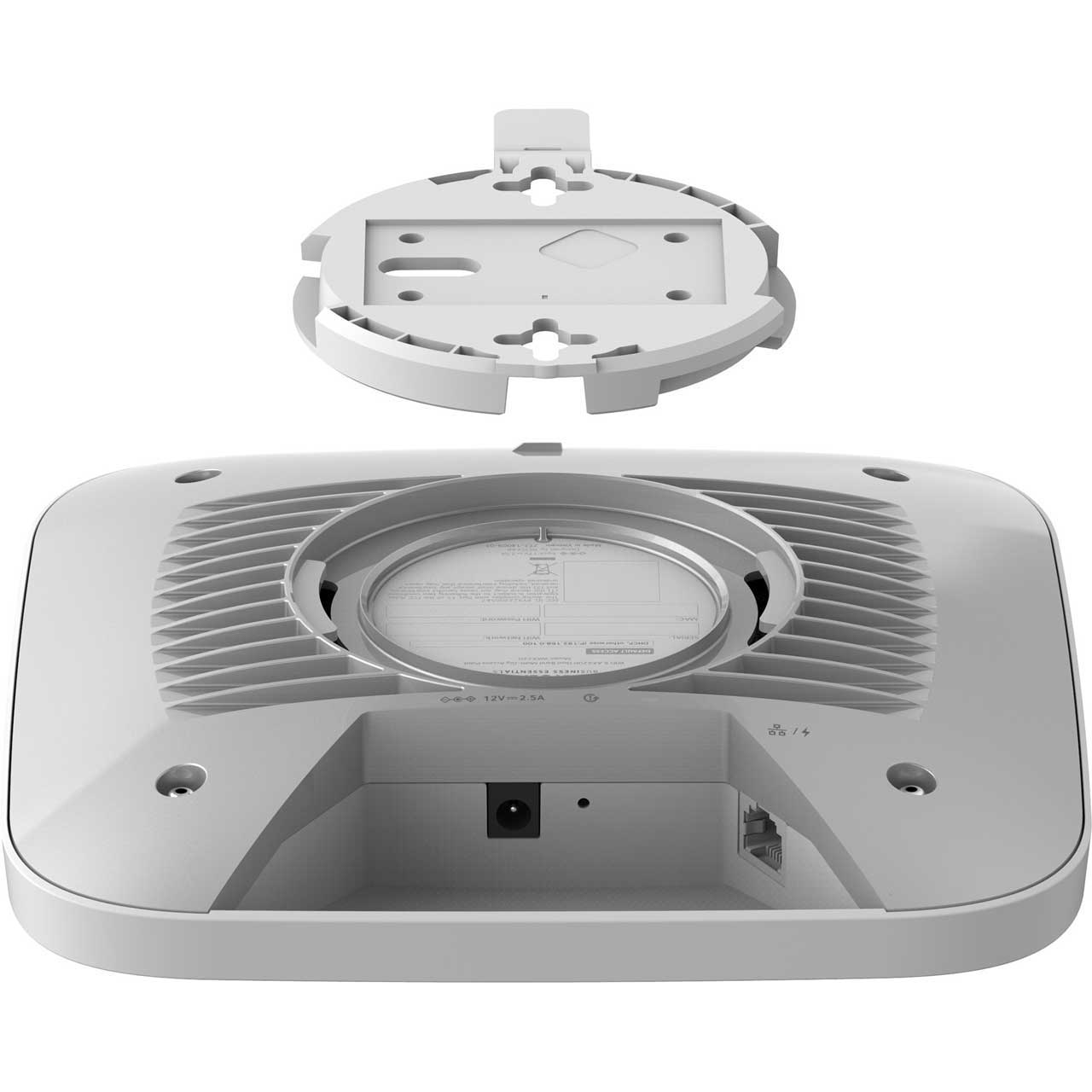

  • 1x Wall/ceiling mount kit
  • 1x Installation guide
  • 1x Warranty/support information card
  • 1x Power adapter


• Warranty:

  • 3 Year Warranty
