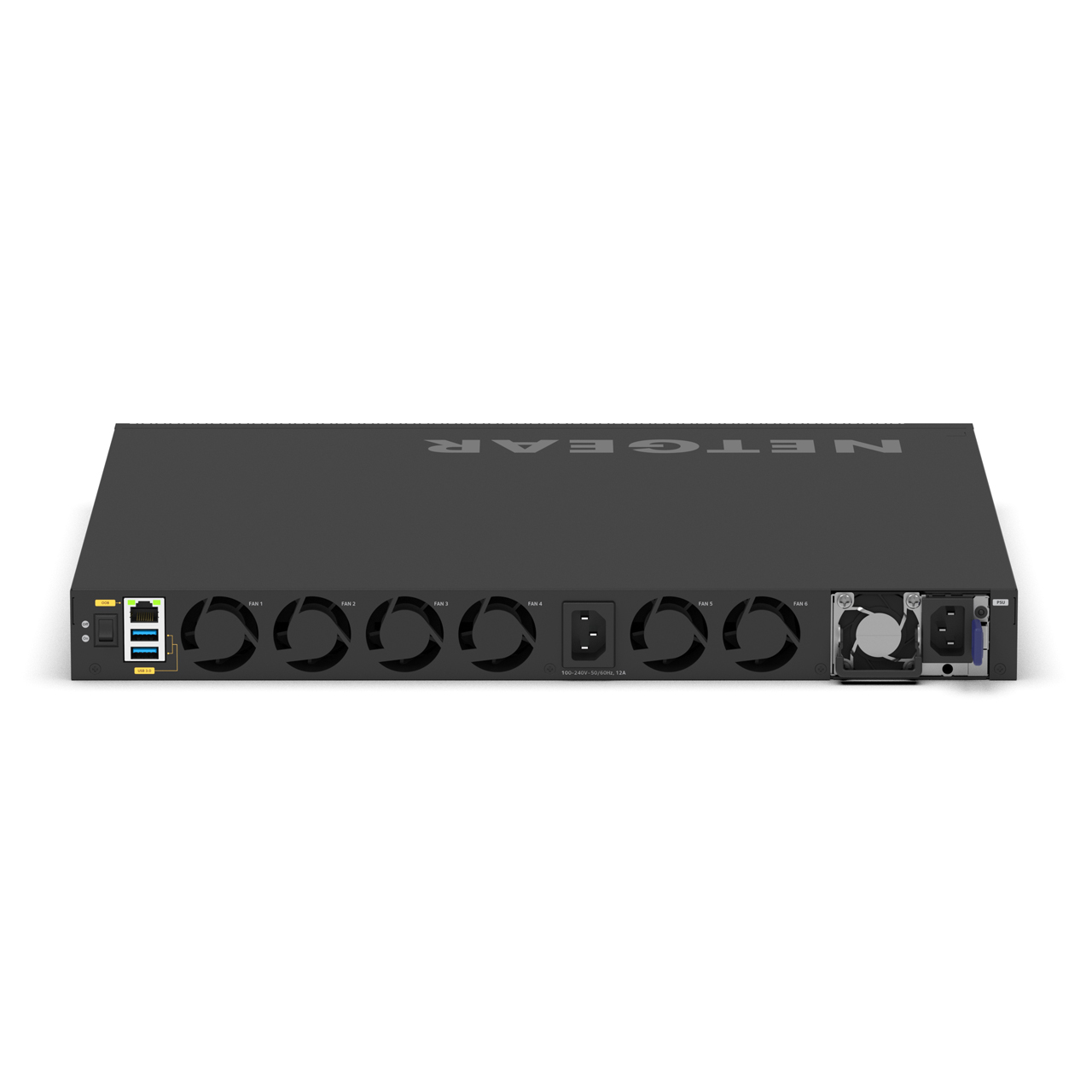

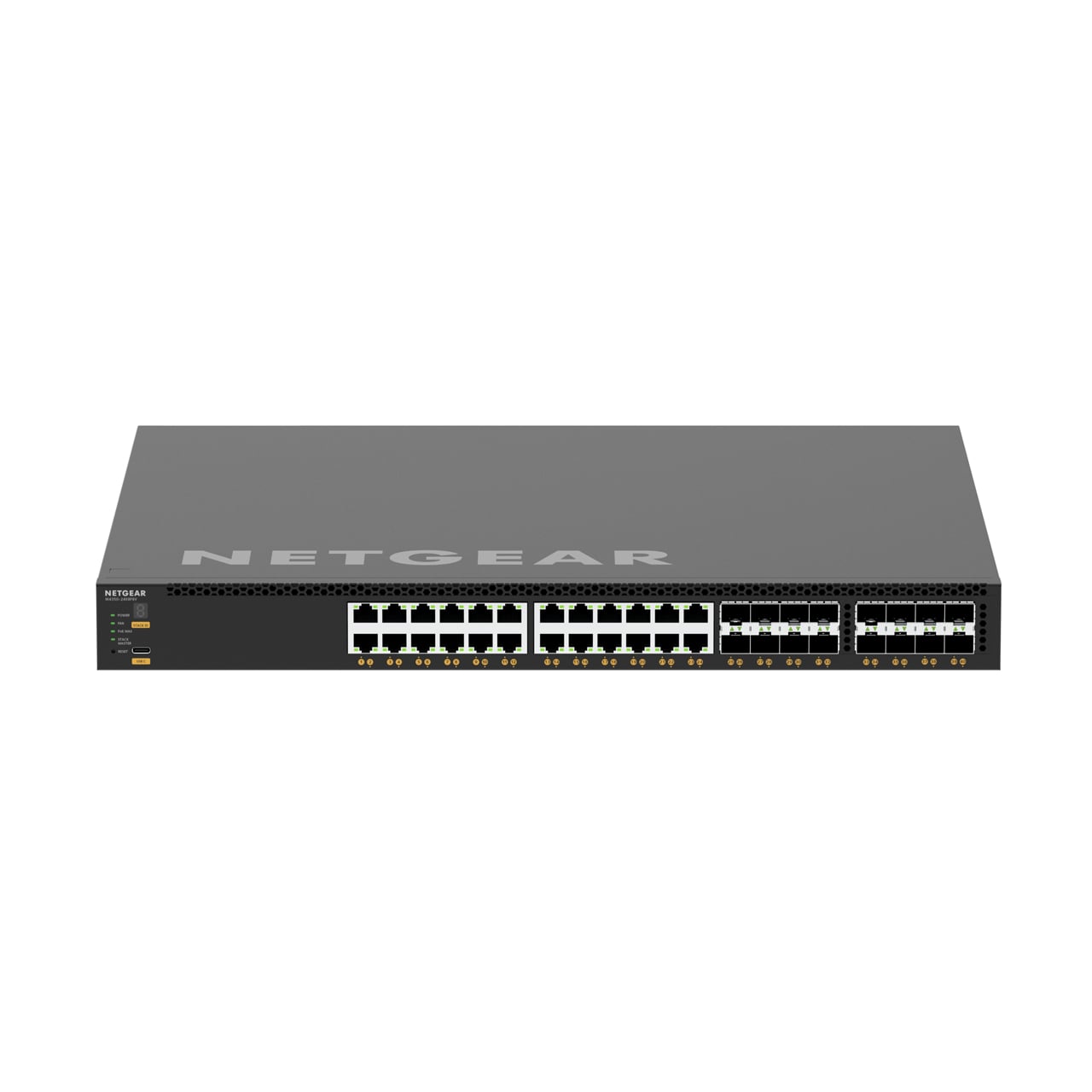

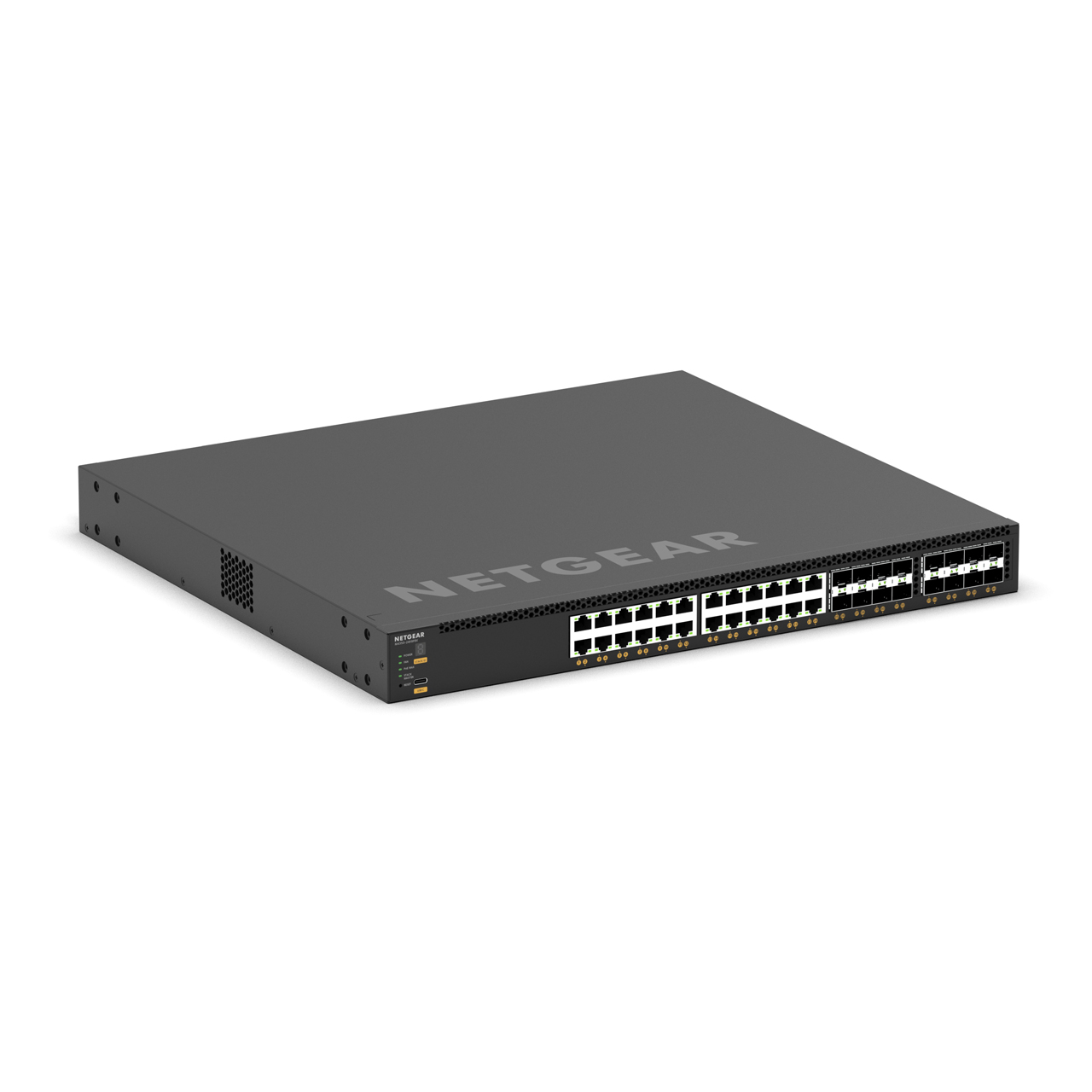

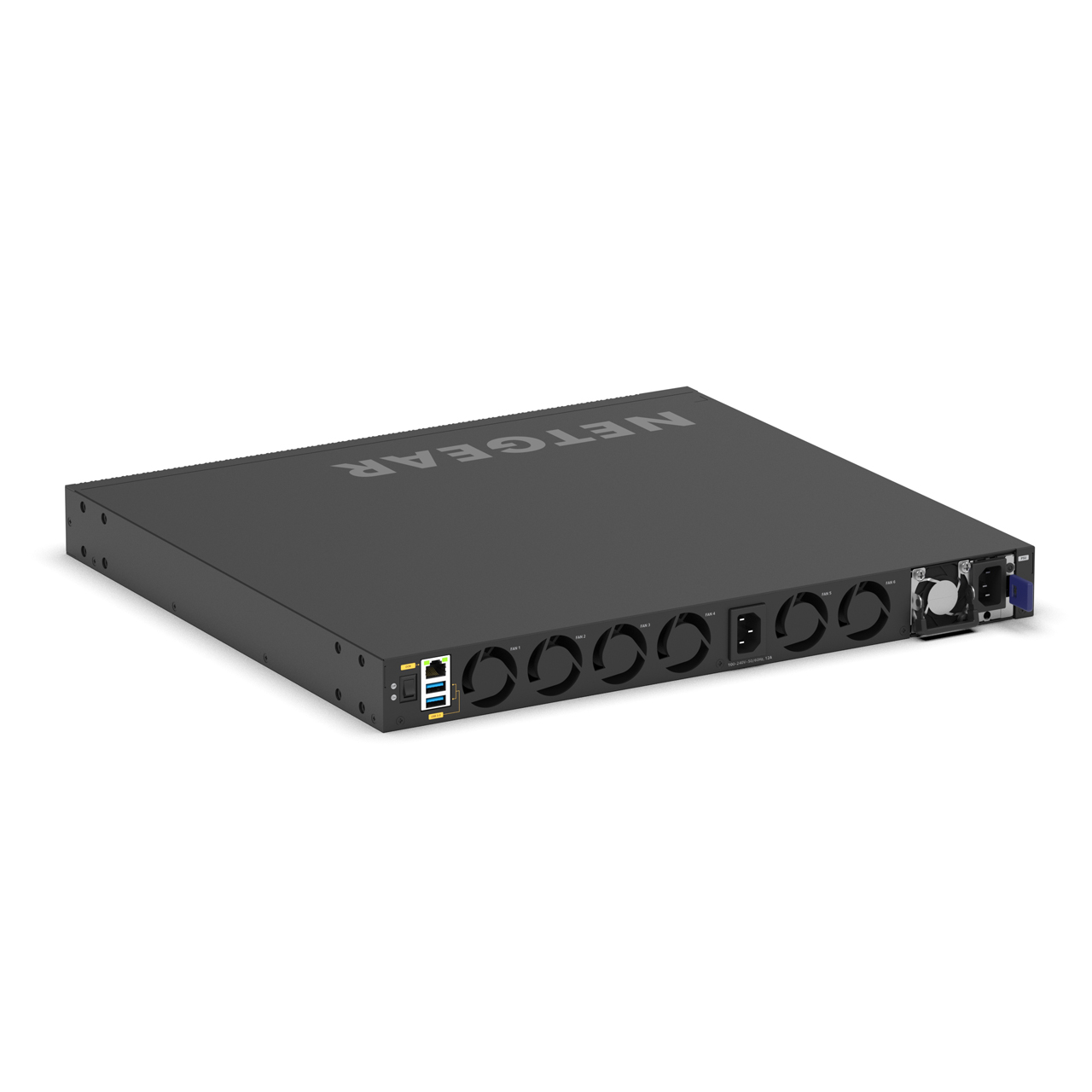

Netgear AV Line M4350-24X8F8V-TAA 24x 10G/Multi-Gig PoE++ 8x SFP+ and 8x SFP28 25G Fully Managed Switch - TAA Compliant

ITEM #: NG-XSM4340V-TAA MFG #: XSM4340V-TAANES

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
NetGear AV
Free Shipping with $49 Minimum Order

List Price:

$10,427.57

Our Price:

$7,199.99

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

XSM4340V-TAANES - Overview

The Netgear XSM4340V-TAA is a fully managed switch designed for AV over IP out of the box. With built-in Netgear IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Fast, Easy Configuration for AV Pros
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
Netgear IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 switches.

Power and Throughput
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75" (40cm) of depth.

  • Features:

    • 24x 10G/Multi-Gig PoE++ ports, 8x 10GBASE-X SFP+ and 8x 25GBASE-X SFP28 ports
    • 750W internal power supply providing 290W of PoE budget
    • 1x slot for modular power supply (1+1 redundancy and/or EPS share)
    • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
    • The PoE budget can reach 1,770W, when the redundant PoE budget remains 290W
    • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
    • Layer 3 feature set includes static, policy-based, and dynamic routing


  • Specifications:

    • Primary Port Speed: 10 Gigabit/Multi-Gig
    • Number of Ports: 40
      - 24x 10G/Multi-Gig PoE++
      - 8x 10G SFP+
      - 8x 25G SFP28)
    • PoE Ports/Budget: 24x PoE++ (90W/port), 290W Base, up to 1,770W Budget
    • IGMP Support: Enhanced (Netgear IGMP Plus™)
    • Jumbo Frame Support: Yes, up to 12kb
    • AVB Support: Yes, included
    • Acoustics: Quiet Mode 32.6dB @ 77°F (25°C)
    • Power Consumption:
      - With PoE: 464W/1582.24Btu/hr
      - Without PoE: 151.8W/476.65Btu/hr
      - Standby without Any Port Connection: 53.4W/167.68Btu/hr


  • Item Includes:

    • 1x M4350-24X8F8V (XSM4340V-TAA)
    • 1x Power cord
    • 1x Console USB Type-C
    • 1x Rack-mounting standard bracket set
    • 1x Set of longer brackets for recessed mounting
    • 4x Rubber footpads for tabletop installation
    • 1x Installation guide


  • Warranty:

    • Limited Lifetime with Registration
